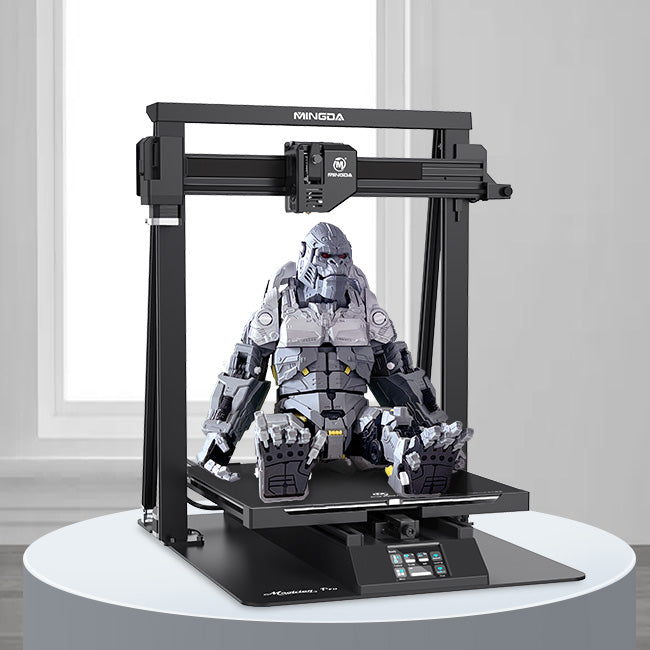

MINGDA Magician Pro Une étonnante imprimante 3D FDM modulaire libère votre potentiel d’impression 3D. MINGDA Magician Pro An amazing modular FDM 3D Printer unleashes your 3D printing potential.

Product Description
Magician Pro FDM 3D Printer: Innovator of Auto-Leveling

MINGDA Magician Pro–An amazing modular FDM 3D Printer unleashes your 3D printing potential! Equipped with a new 32-bit motherboard and a high-performance Cortex-M4 architecture main control chip, MINGDA features faster computing speed and a smoother system. The integration silent driver makes the motherboard have both silent printing and precise voltage output control, which ensures a more accurate and silent printing.  Auto-LevelingOne touch smart Auto Leveing  Huge Building Size400*400*400mm  Fast AssemblyModular structure  Built-in PSUPSU build-in a closed type, without exposure, which is more secure.


Technical Specifications
● Print size: 40×40×40cm (15.7″×15.7″×15.7″)
● Calibration: Self-developed Automatic Leveling, 36 Points
● Filament diameter: 1.75 mm
● Printing material: PLA / ABS / PETG & TPU
● Nozzle size: 0.4mm default, wide range of other nozzles supported
● Extuder: Direct Drive,Double Gears
● Filament run-out detection: Support
● Resume Printing: Support
● Tool Box: Yes
● Max nozzle temperature: 260 °C/500 °F
● Max heatbed temperature: 110 °C/230 °F
● Average speed: 8-10 cm/s,3.1-3.9in./s
● Control panel: 3.5 inch colorful LCD touch screen
● Print interface: SD Card,U Disk,USB-C
● Z-axis: Double threaded rod with synchronous belt
● Machine Weight: 14.5kg
● Machine Dimension: 65×58.6×67.5cm / 25.5*23.0*26.5in(X×Y×Z)

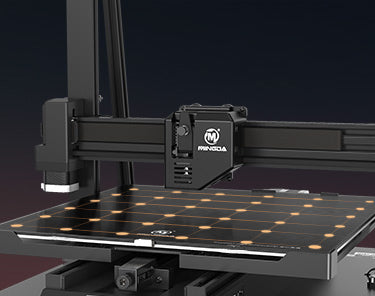

Innovator of Auto-Leveling
MINGDA self-developed Auto-Leveling function can automatically compensate the hot bed unevenness. Leveling and printing can be completed with one button, simple operation and great user experience.

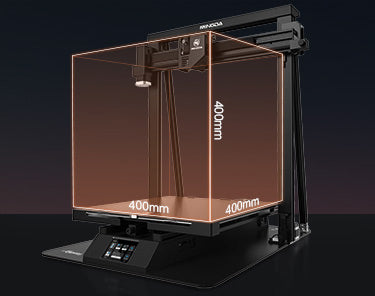

Unlock Unlimited Creativity
The size increased again, reaching to 400*400*400mm. Extra-large size for thought running wild.

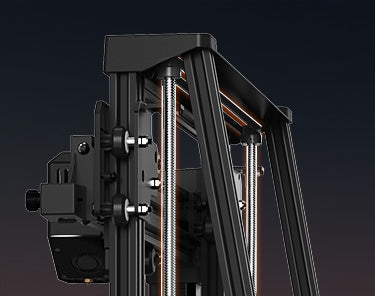

Smooth & Stable Operation
Double thread Z-axis moving parts to reduce printing wobbles.

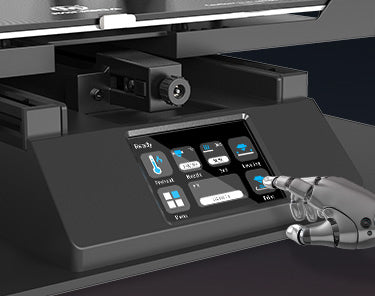

User-friendly Touch Screen

The screen adopts a new UI interface, manipulate photos, and switch in multiple languages. New interface; large screen; simple operation.

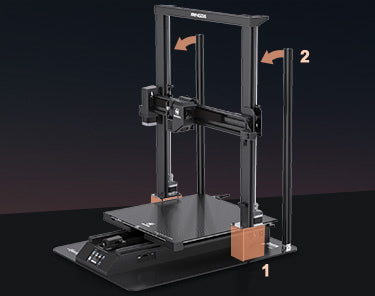

Get Started Quickly
Modular design allows the printer to be assembled only in 5 minutes, which is very easy to use.

Ultra-Silent Printing
Ultra-quiet mechanical structure

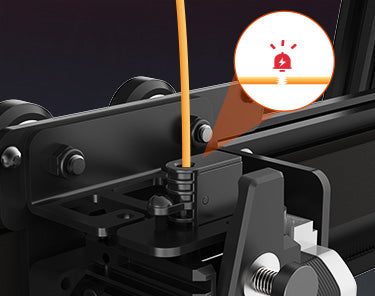

Filament Runout Detection
Equipped with a filament runout sensor, it can monitor the supply of filament intelligently. If your printer runs out of filament, it will automatically stop without losing your printing progress.

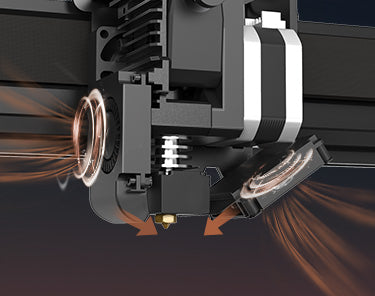

Dual Cooling Fans
The printing head adopts a double fan two-way heat dissipation system, cools down models rapidly. The printing speed is faster which can reach 100mm/s.

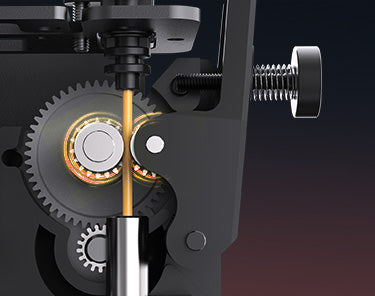

Double Gears Direct Extrusion
Conveying material uniform without winding

Resume Printing Function
No need to worry about sudden power failure.

Newly Upgraded Chip of Brand Core
High-speed computing; high-performance,
32-bit frequency: 168M;
Cortex-M4 CPU with FPU and
DSP instruction,memory protection unit

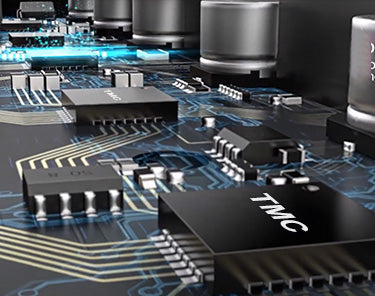

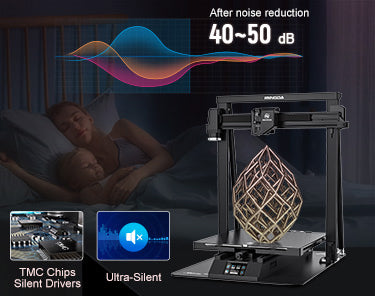

Stepping Drive – Ultra Quiet TMC
Use TMC Stepper Motor Drivers,Super Quiet and Noise Reduction,running more stable,≤50dB silent printing

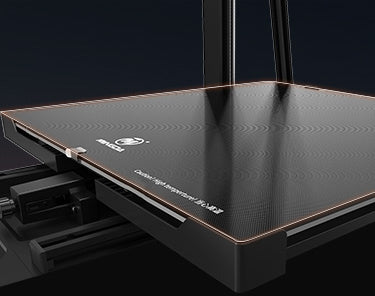

Glass Heat Bed
The 4th generation of glass heat bed cold glue installation,easy to take the model and scratch proof.

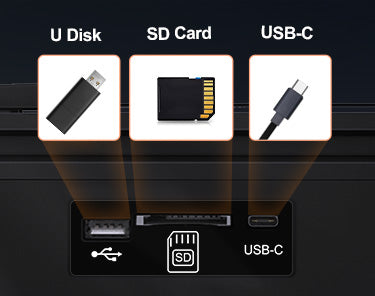

Multi Connection
Support SD card, USB and USB-C, supports online printing

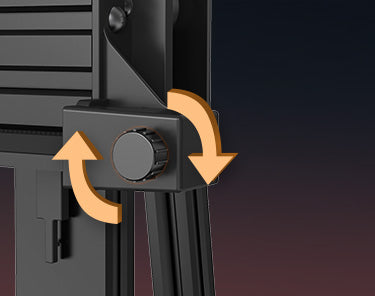

Belt Tensioner on X/Y Axis
Adjust the belt tightness to avoid long-term use of the printer, the belt is loose.

Parts List

User manual
Filament holder
Allen wrench
M5*8 (2pcs)
M5*12 (6pcs)
SD card
Teflon tube
Power cable
M3*8 (2pcs)


Test model
please click on it to download.
