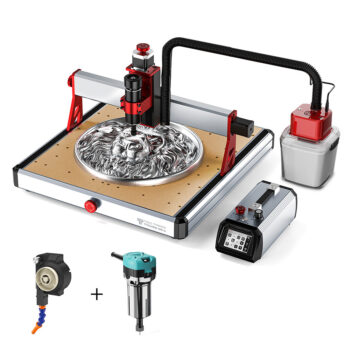

TWO TREES TTC450 Ultra + Vacuum Cleaner + Trimmer + Air Cooling
TWO TREES TTC450 Ultra CNC Router Machine + Vacuum Cleaner + Wood Trimmer Router + Air Cooling Kit
TWO TREES TTC450 Ultra CNC Router Machine + Vacuum Cleaner + Wood Trimmer Router + Air Cooling Kit
Highlights
Powerful Core Performance
Equipped with a 500W high-efficiency spindle, this CNC engraving machine delivers powerful cutting performance and improves metal processing efficiency by up to 40%. With precision engineering of ±0.05mm, it ensures smooth, burr-free surfaces and professional-quality results. Supporting over 10 materials—including aluminum, wood, and acrylic—it meets a wide range of creative and industrial needs. Its robust structure, featuring 12H linear guides on the X/Y/Z axes, provides high stability and allows engraving on hard materials such as aluminum, copper, and carbon fiber.
Smart Operation Experience
Designed for flexibility and control, this machine supports offline, wireless, and APP operation, while the XYZ handwheel enables precise manual adjustment and the adjustable feet ensure easy leveling. It offers dual-mode functionality, allowing users to seamlessly switch between CNC and laser engraving modes (laser module sold separately). The 3.5-inch IPS touch screen provides an intuitive and responsive interface for effortless operation.
Easy to Use & Safe Design
User-friendly and reliable, this machine features a one-button emergency stop and automatic spindle power-off during tool changes for enhanced safety. With 90% of the structure pre-assembled, installation is quick and beginner-friendly. Built with dustproof guides, Z/Y-axis brushes, and optional vacuum accessories, it ensures a clean workspace and extends the lifespan of the machine.
Expanded Application Scenarios
This CNC engraving machine supports a variety of optional accessories such as vacuum cleaners and engraving modules, offering greater flexibility for creative projects. It’s perfect for multiple applications including custom furniture, jewelry engraving, woodworking, educational toys, signage, and DIY crafts—ideal for both professional workshops and personal makerspaces.
Specification – TWO TREES TTC450 Ultra Router Machine
| General | Brand: TWO TREES Type: CNC Router Machine Model: TTC450 Ultra |
| Specification | Main material: Aluminum + Stainless Steel + Injection Molding Working range: 460mm x 460mm x 100mm Compatible engraving materials: Plywood, MDF, Solid Wood, Acrylic, Carbon Fiber, Aluminum, Copper, Stainless Steel X/Y axis positioning accuracy: 0.01mm Z axis positioning accuracy: 0.0025mm Engraving accuracy: 100±0.05mm Maximum engraving speed: 3000mm/min Spindle motor: 500W (standard) Spindle speed: 8000-30000 RPM, depending on installation Control board input voltage: 24V Maximum power consumption: 80W Touch screen: 3.5-inch IPS capacitive touch color screen (480*320 resolution) Firmware type: GRBL open source, supports both CNC and laser (no firmware flash required) Programming software: VCarve, Fusion360, EASEL, Carveco Maker, FlatCAM, Camlab, Millmade, Carbide3D, and all Vectric software Supported systems: macOS, Windows, and Linux Supported tool diameter: 0.5mm to 7mm (ER11 Collet) Power supply: 216W dual-channel switching power supply Standby power consumption: 12.6W Maximum acceleration: 500mm/s² Engraving layer height: 0.1mm-20mm for non-metals; 0.1mm-0.2mm for metals Software languages: Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, and Turkish |
| Weight & Size | Product Weight: 19kg Package Weight: 22.6kg Package Size(L x W x H): 695x620x205mm |
| Package Contents | 1 x Base Frame 1 x X-axis Module 1 x Z-axis Module 1 x Main Control Box 2 x Y-axis Profile Covers 1 x Spindle Mounting Seat 1 x Spindle motor 1 x Base Push Plate 1 x Y-axis Lead Screw 1 x X-axis Lead Screw 1 x Left Slider 1 x Right Slider 1 x Y-axis Motor 1 x X-axis Motor 4 x Feet Pads 4 x Base Corner Protectors 4 x cable 1 x USB Data Cable 1 x Power Cable 1 x Probe 1 x ER11 Simple collet 6.35mm (1/4 inch) 2 x Bearing 1 x memory card 6 x Fixture 3 x Open-end wrench 1 x Cutter box 6 x Hexagonal wrench 8 x Screw M5*15 8 x Screw M3*8 4 x Screw M3*12 12 x Screw M5*12 8 x Screw M5*18 2 x Screw M5*20 4 x Screw M5*55 2 x Screw M3*4 |
Specification – TWO TREES Vacuum Cleaner
| General | Brand: TWO TREES Type: Engraving Machine Accessories |
| Specification | Compatible Machines: TTC 450/TTC 450 Pro |
| Weight & Size | Product Weight: 1.4kg Package Weight: 1.4kg Package Size(L x W x H): 61x49x7.8cm |
| Package Contents | 1 x CNC Engraving Machine Vacuum Cleaner 1 x User Manual |
Specification – TWO TREES Wood Trimmer Router
| General | Brand: TWO TREES Type: Wood Trimmer Router Model: 800W Color: Blue |
| Specification | Voltage/Frequency: 110V/60Hz/220V/50Hz Rated Power(W): 800±10%(W) Rotation speed: 10000-30000r/min Collet specification: ER11 Compatible Machines: TTC450/450 Pro/TTC6050 Optimum engraving ambient temperature: 0-40℃ |
| Weight & Size | Package Weight: 3kg Package Size(L x W x H): 15x12x25cm |
| Package Contents | 1 x Wood Trimmer Router 1 x Power Cord 1 x Power Adapter 2 x Mount 1 x Wrench Kit 1 x Cable 10 x Zip Ties 1 x User Manual |
Specification – TWO TREES Air Cooling Kit
| General | Brand: TWO TREES Type: Air Cooling Kit |
| Specification | Fan Speed: 0-38500 rpm/min Compatibility: TTC450/450 Pro, TTC6050/TTCH40 CNC Router Machine, Makita, Milwaukee, 775 spindle motors |
| Weight & Size | Product Weight: 0.8kg Package Weight: 0.8kg Package Size(L x W x H): 24.5×17.5×9.3cm |
| Package Contents | 1 x Air Cooling Kit 1 x User Manual |
