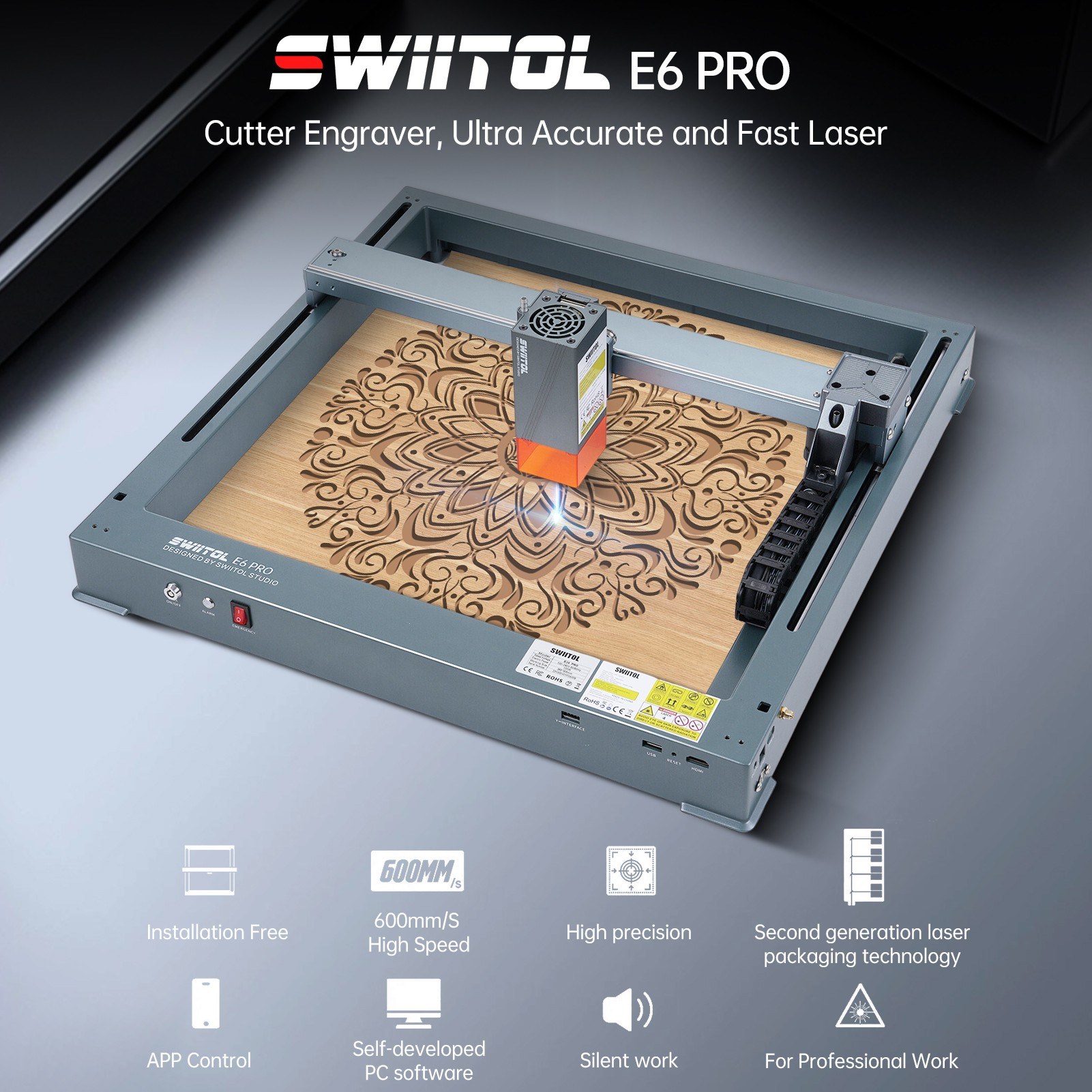

Swiitol E6 Pro 6W + Honeycomb + Rotary
Swiitol E6 Pro 6W Integrated Structure Laser Engraver with Y-axis Rotary Roller and 400x400mm Honeycomb Working Table 36000mm/min High Speed Engraving 365x305mm Work Area with 0.06mm Ultra-fine Laser Spot 32-bit Motherboard and Tank Chain Binding
Features:
♦ Integrated Structure Laser Engraver: The overall frame of Swiitol E6 Pro is made of aluminum alloy and can be used out of the box without installation.
♦ More stable and high-speed structure: The bottom frame of E6 Pro is formed in one piece, and the X-axis metal adopts a double-axis guide rail structure to work with small jitter, ensuring that the machine does not jitter when running at a high speed of 36000mm/Min; 365x305mm working area, ultra-fine laser focal area is reduced to 0.06×0.06mm.
♦ Tank chain binding: To make the machine more beautiful and the structure more stable, Swiitol E6 Pro adopts the tank chain wire binding scheme. The wire harness runs smoothly without entanglement and improves the wire life.
♦ Brand new 32-bit motherboard: The most intelligent motherboard, with faster data reception and processing capabilities, optional accessories to enable autofocus and resume carving after power off. Sinking cutting and other functions.
♦ Mobile APP: The APP BURNLAB is now available in major Android application markets and iOS system (you can also scan the QR code of the manual to download). It is small and multi-functional, bringing a new control experience. Come and give it a try.
♦ New filter panoramic glass eye protection design: The panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of ultraviolet light. You and the people around you do not need to wear goggles to watch. Laser engraving. Reduce your goggle expense and inconvenience of wearing goggles.
♦ Broad compatibility: The machine is compatible with various mature engraving software, such as LaserGRBL and LightBurn, and supports Win XP/Win 7/Win 8/XP/Win 10. It also supports MAc system (LightBurn) and engraving file formats. Support NC, BMP, JPG, PNG, DXF, etc.
♦ Safety protection: It is equipped with an emergency stop button. If an unexpected situation occurs, the machine can be stopped at any time. It is also equipped with a reset switch and a limit switch to make engraving safer.
♦ Rich accessories: According to different needs, honeycomb panels, air assists, rollers, claw plates, conveyor belts, air purifiers and other accessories can be purchased (need to be purchased separately)
Better Tool for Cutting and Engraving: After using this laser cutting honeycomb table to cut wood, acrylic and other materials, the edges of the wood are neat and clean, not easy to be yellowed by smoke, and you can get a clean cutting work.
Double Protection: Honeycomb board adopts scientific and reasonable honeycomb height design to prevent laser burning workbench or desktop. At the same time, it is equipped with anti-cutting metal protective backing board, which can further protect the desktop from laser damage.
Observable Design: When the laser cuts through wood or acrylic, the metal plate at the bottom of the honeycomb will emit a bright light, which means that the cutting has penetrated. Easier to judge whether cutting through. You don’t need to calculate the number of cuts, just keep repeating cutting until the bottom glows, which means the material has been cut through.
Wide Compatibility: 400*400mm size honeycomb board can be suitable for various mature laser engraving machines. And compatible with Swiitol Laser Engravers C18 PRO\C24 PRO\E6 PRO\E18 PRO\E24 PRO.
High-quality: Made of durable metal, processed by high-precision CNC, solid structure not easy to deform, and high flatness.
▶ Application: Compatible with most of the engraving machine in the market such as ATOMSTACK, SCULPFUN,NEJE,XTOOL,ORTUR. And suitable for Swiitol Laser Engravers C18 PRO\C24 PRO\E6 PRO\E18 PRO\E24 PRO. This machine can work directly with the engraver on materials with a cylindrical shape. According to the cable attachment, the machine can work with mainly engrave on material with a cylindrical shape.
▶ The Rollers can be set at 4 different distances, 4-138mm adjustable range, easy to be adjusted without the use of wrench screwdriver. Support 195mm cylinder length objects.
▶ Perfect for Engraving Cylindrical Objects – Place your cylindrical work stably on the rotary roller and connect it with the engraver. It’s suitable for engraving cans, wine bottles, cups, curved crafts, and more.
▶ The roller shaft is all metal structure, one-piece rubber roller, the hardness reaches 60A, the friction force is stronger, and the engraving process is more stable.
▶ Easy to operate: no need to install, connect the rotary roller with the engraver as soon as out of the box.
Specification:
Model: E6 PRO
Engraving ruler: 365x305mm
Machine Electric power: 130W
Laser Electric power: 90W
Laser output optical power: 6W
Laser wave: 455 ±5 nm
Engraving accuracy: 0.02mm
Net weight of equipment: 8.5kg
Max Engraving Speed: 36000mm/Min
Data transmission type: USB connection
Focusing type: fixed focus laser, no focusing
Spot size: 0.06×0.06mm
Operating software: LaserGRBL, LightBurn for with Win XP/Win 7/Win 8/XP/Win 10 system
APP: BURNLAB compatible with iOS and Android
Carving materials: Basswood, pine, paulownia, plywood, yellow peach, mahogany, density board, kraft paper, non-transparent acrylic board, resin, rock board, ceramics, leaves, bamboo, cardboard, plastic, leather, PCB version, alumina, non-reflective Electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Cutting materials: Kraft paper, hardwood, Paulownia, basswood, pine, softwood, bamboo chips less than 3MM, low-density foam board, non-transparent acrylic board, ABS, PP and other boards less than 3MM thick, cardboard, non-woven fabrics, wooden boards, acrylic, some thin plastic board, sponge;
Supported file formats: NC, BMP, JPG, PNG, DXF
Power supply: 100-240V AC, 50/60HZ Output: 12V 5A
Product:
Size: 400x400mm
Material: Aluminum Alloy
Product Thickness: 22mm
Precautions:
●Please read the user manual carefully before operating the laser engraving machine.
●When operating the laser engraving machine, please install the laser protective cover; if it is not installed properly, you need to wear goggles.
●Do not touch the laser with your hands, otherwise your hands may be burned.
●Please avoid strong impact on the machine.
●Children under 14 years old are prohibited from using this product. Children over 14 years old require adult supervision.
●The laser cannot be applied directly to any specular reflective object, which may cause injury to the operator or burn the laser.
Packing List:
1 x Laser Engraver
8 x Wire anchor
8 x Cable clamp
1 x WIFI antenna
1 x Fixed focus lens
1 x Flash drive
1 x H3 hexagon L-shaped wrench
2 x M4 thumb screw
1 x Slider
1 x Switch key
1 x One- to-two TYPE C cable
1 x Power cable
1 x Silicone hose (air hose)
1 x Goggles
1 x 100*30 lint-free cloth
4 x (M4*6)
1 x User manual
1 x Honeycomb Panel
1 x 400x400mm metal Desktop Protection Board
4 x Corner Protector
8 x Screws
1 x Rotary Roller Kit
