SCULPFUN E1 Pro 21W
SCULPFUN E1 Pro 21W Enclosed Laser Engraver, 400×320mm Working Area, 600mm/s CoreXY, HD Camera, Class 1 Safety, Air Assist
SCULPFUN E1 Pro 21W Enclosed Laser Engraver, 400×320mm Working Area, 600mm/s CoreXY, HD Camera, Class 1 Safety, Air Assist

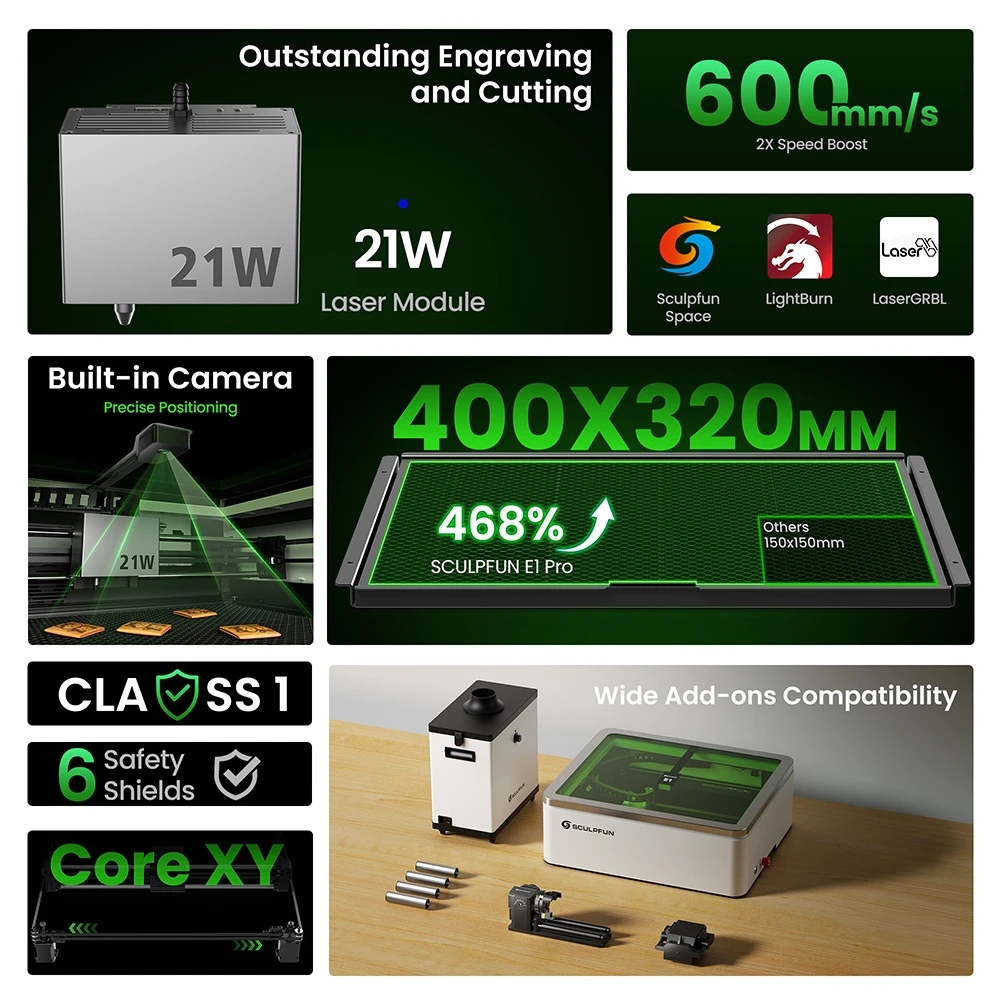

Highlights

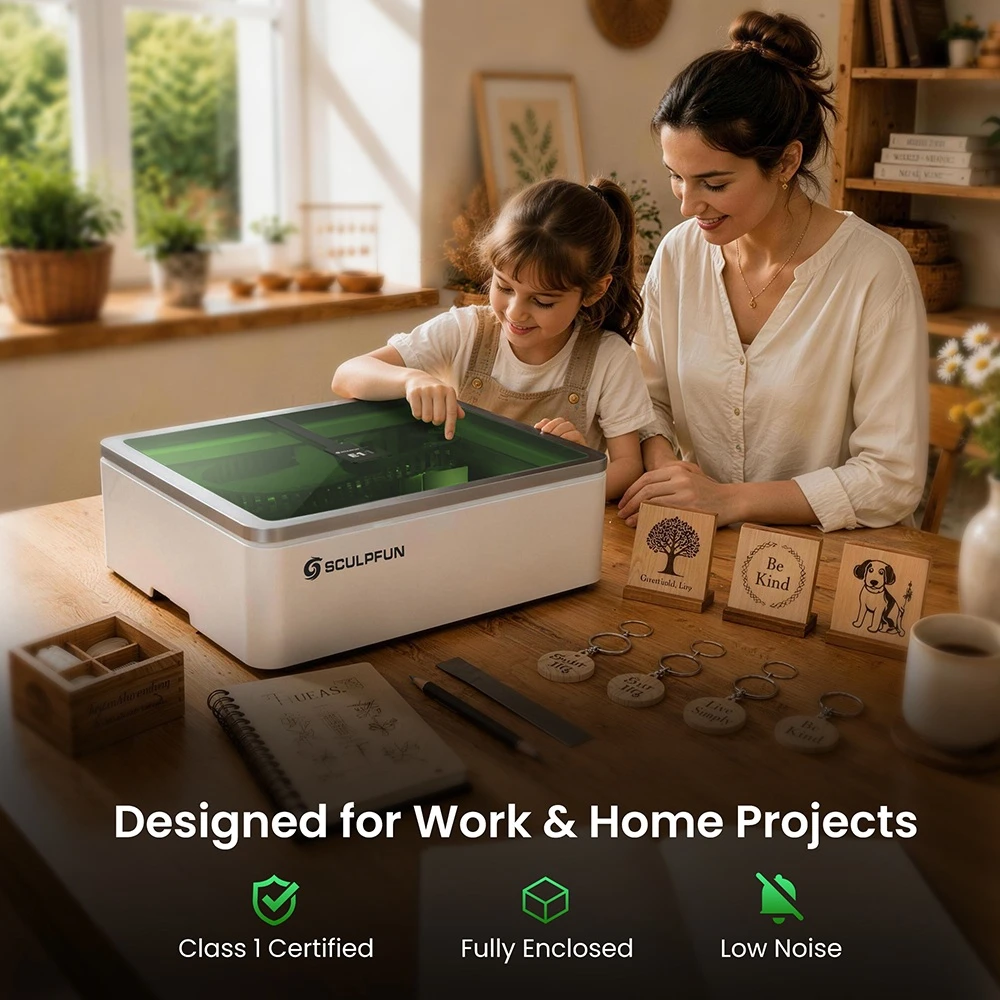

Fully Enclosed Class 1 Safety Protection
The SCULPFUN E1 Pro features a fully enclosed design that effectively reduces smoke, heat, and noise while enhancing user safety. Certified to Class 1 laser safety standards, the protective cover filters up to 99% of laser light. Multiple safety features, including a safety lock, emergency stop button, Hall sensor, and automatic laser shutdown when the cover is opened, ensure secure operation at all times.

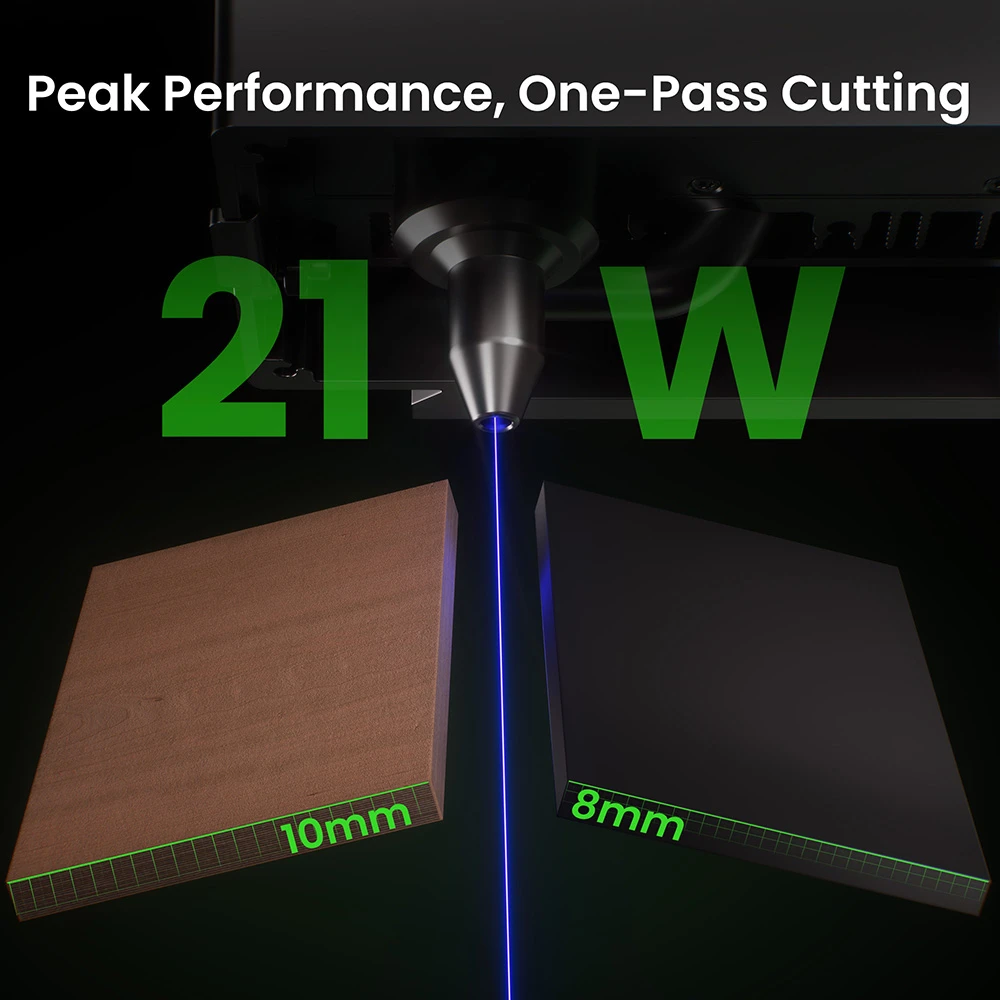

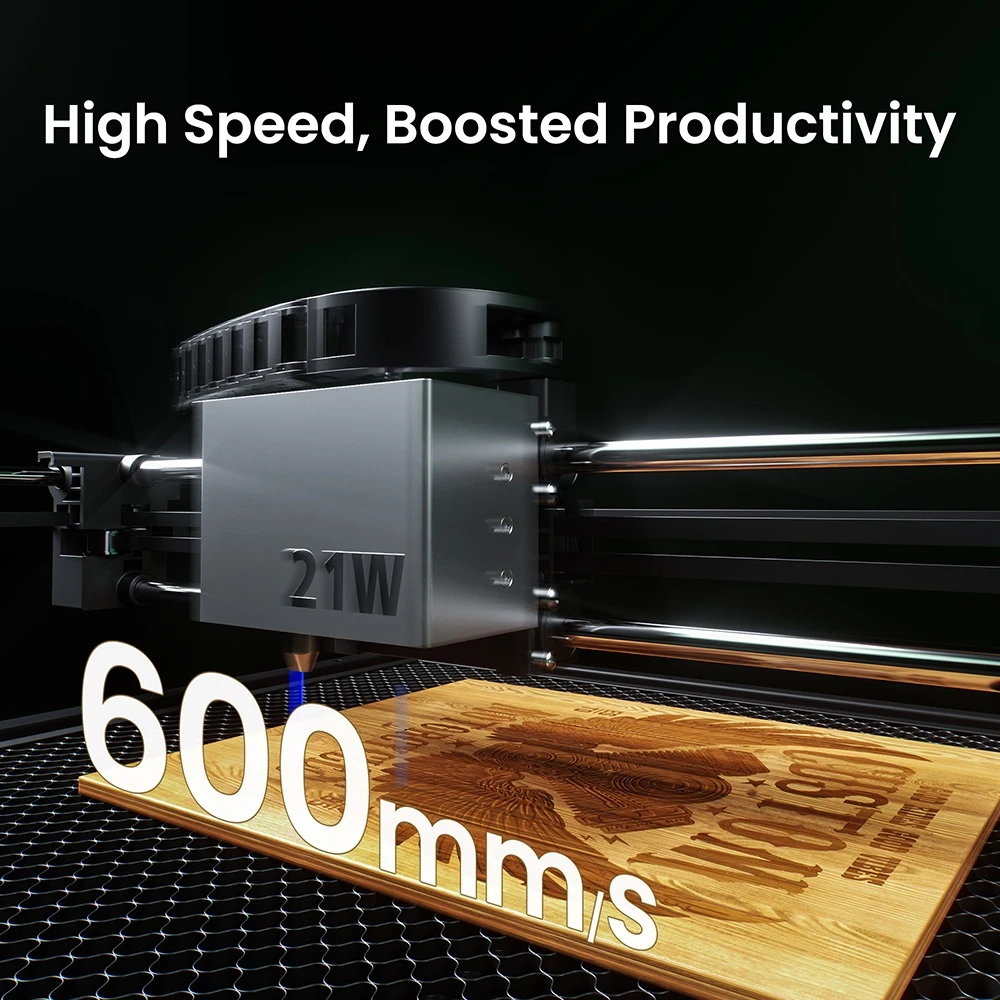

Powerful 21W Laser for Fast & Precise Cutting

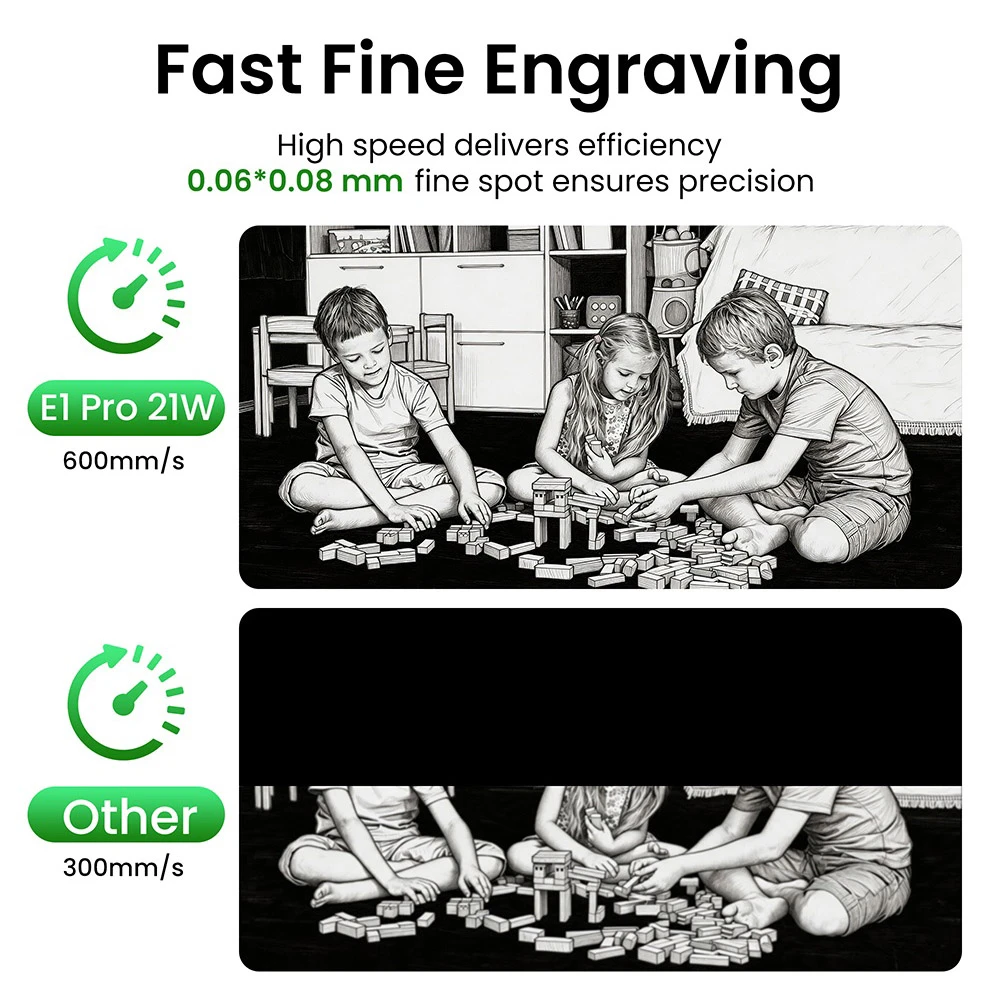

Powered by a high-performance 21W 455nm diode laser, the E1 Pro delivers exceptional engraving precision and cutting efficiency. It can cut up to 10mm wood and 8mm black acrylic in a single pass, while engraving speeds of up to 600mm/s help complete projects faster without sacrificing accuracy.

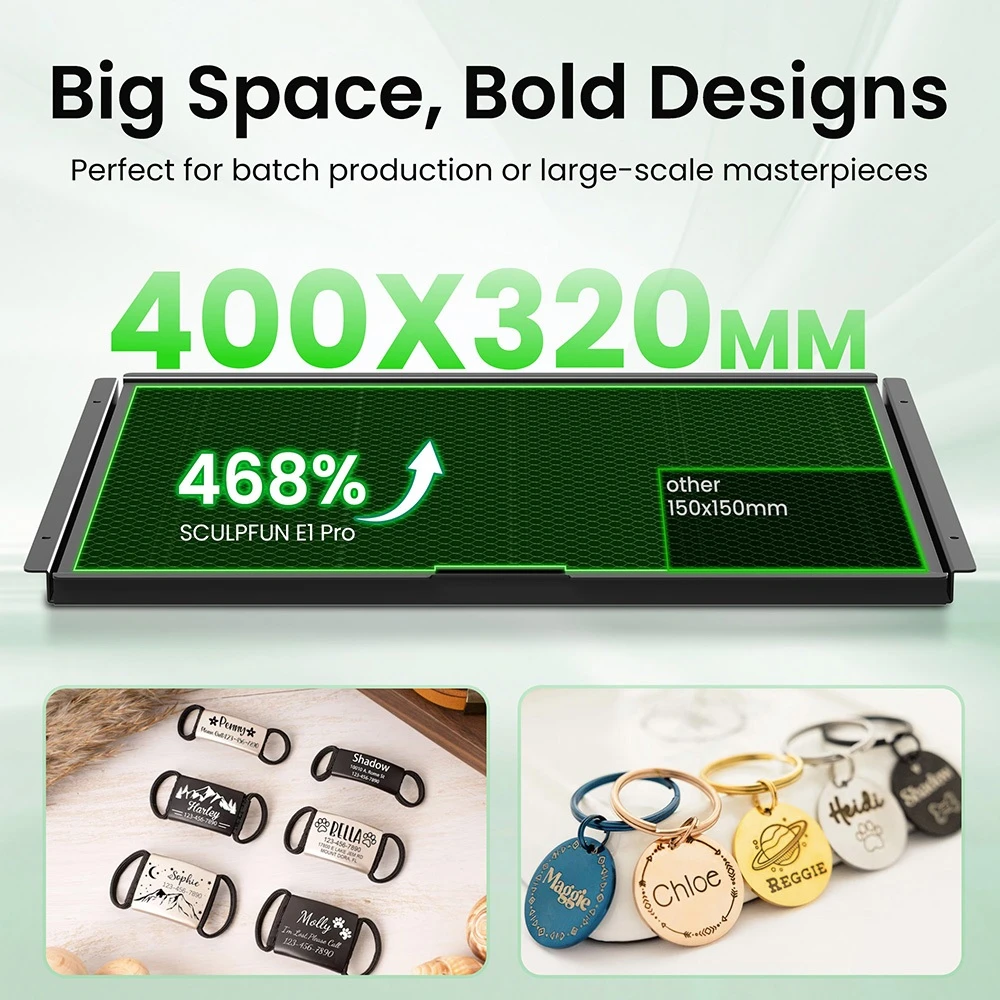

Spacious 400 × 320mm Working Area
Featuring a 400 × 320mm working area and a 450 × 350mm material placement area, the E1 Pro provides ample space for larger projects while maintaining a compact footprint. It supports materials up to 42mm thick, offering greater flexibility for engraving and cutting applications.

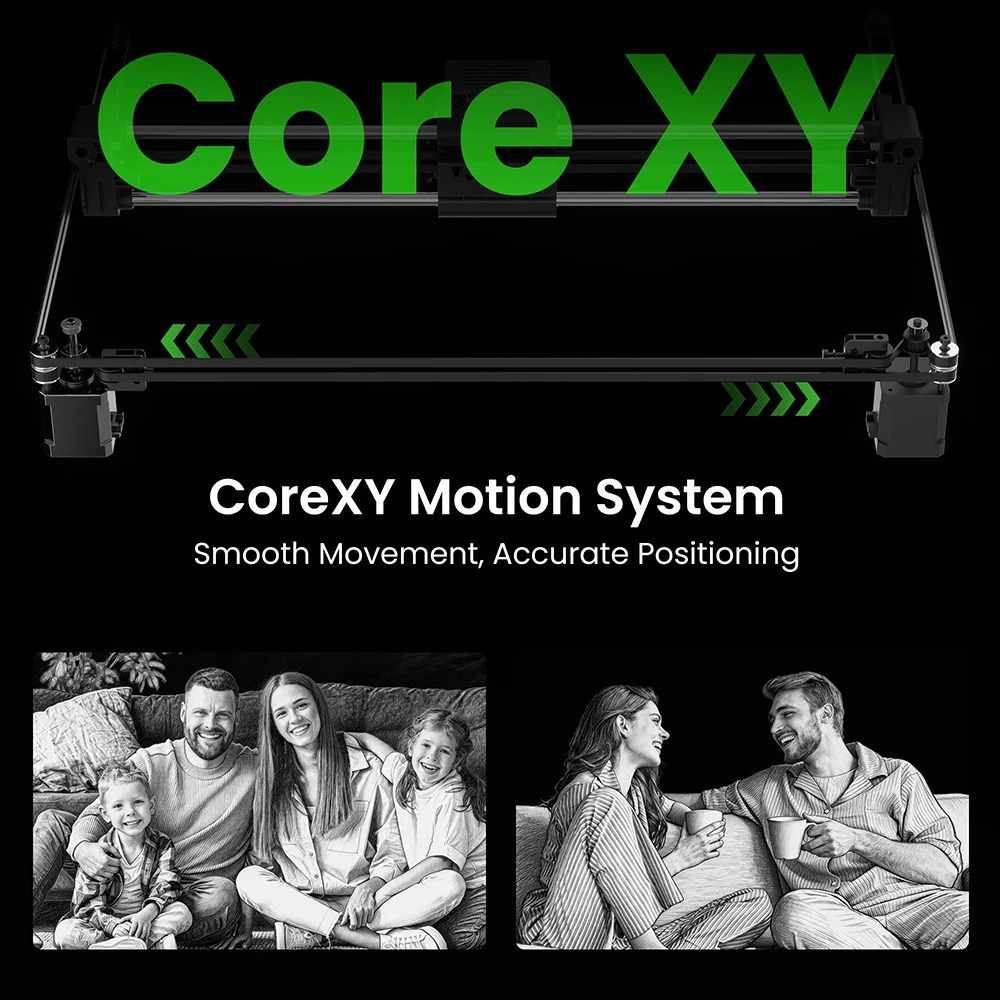

High-Precision CoreXY Motion System
The advanced CoreXY motion structure delivers smooth movement, accurate positioning, and high-speed performance. This optimized design improves engraving detail, cutting quality, and overall productivity for professional-grade results.
Ready to Use Right Out of the Box

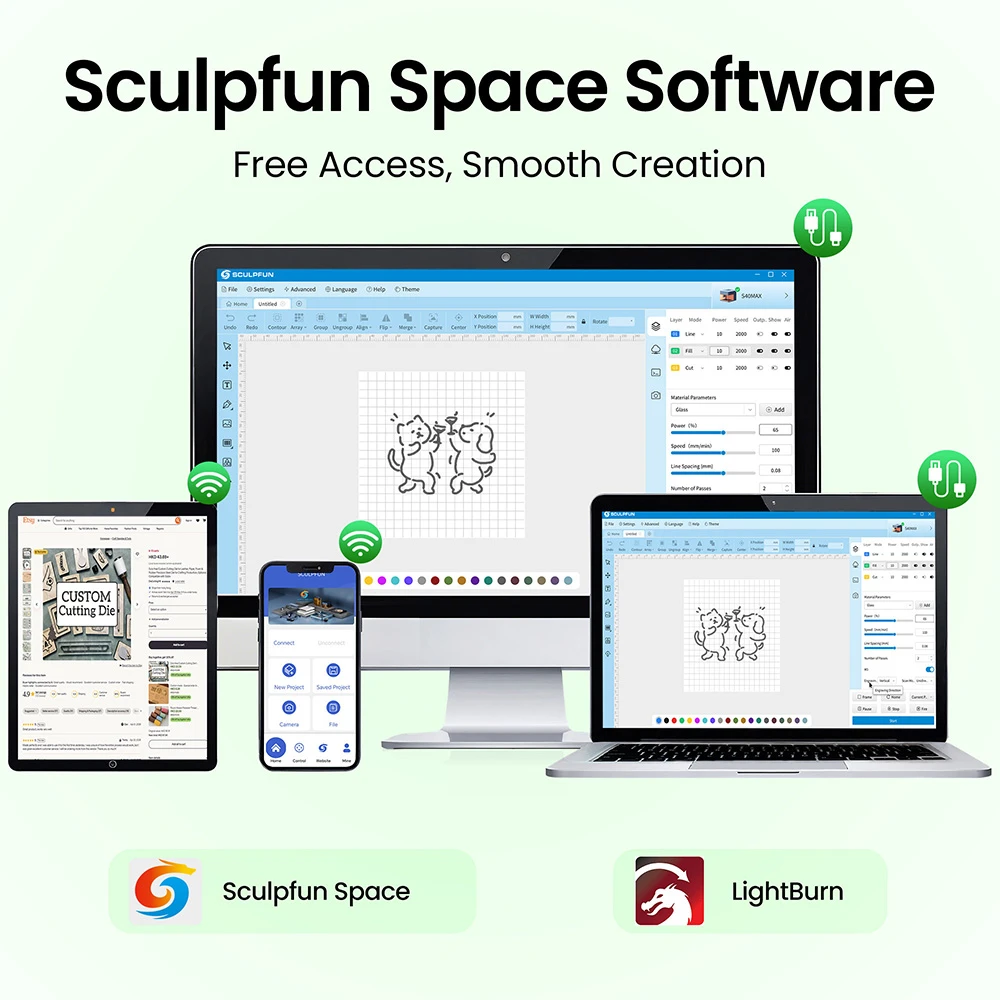

With its integrated all-in-one design, the E1 Pro requires minimal assembly and setup. Simply plug in and start creating. Compatible with the free Sculpfun Space software, it offers an intuitive experience for both beginners and experienced makers.

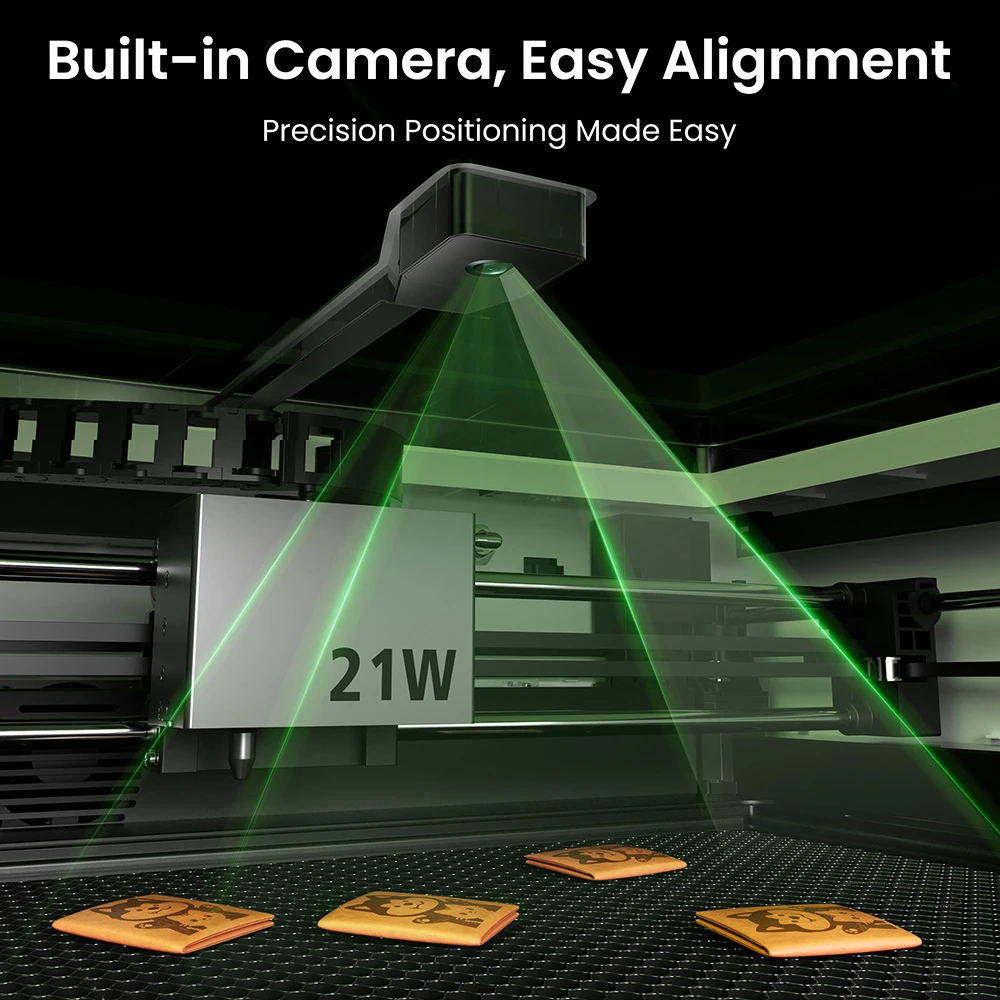

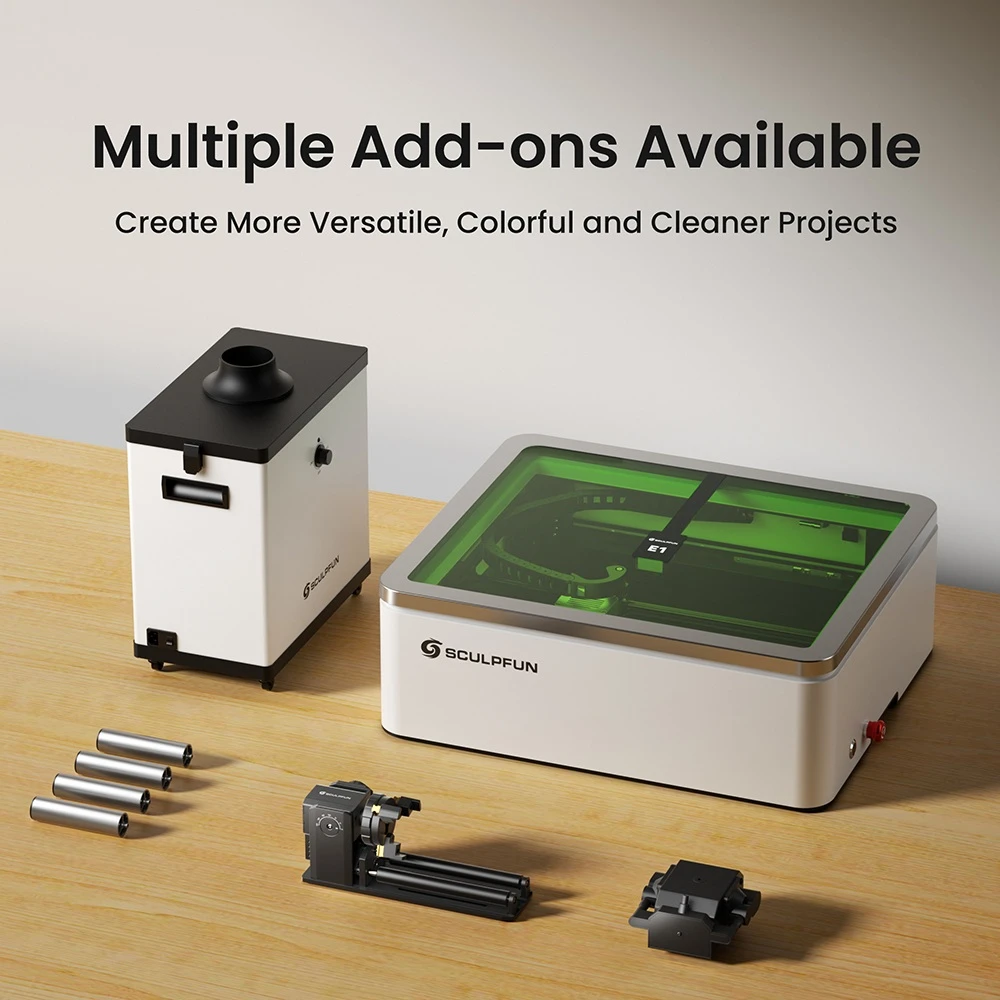

Built-In Camera & Expandable Accessories

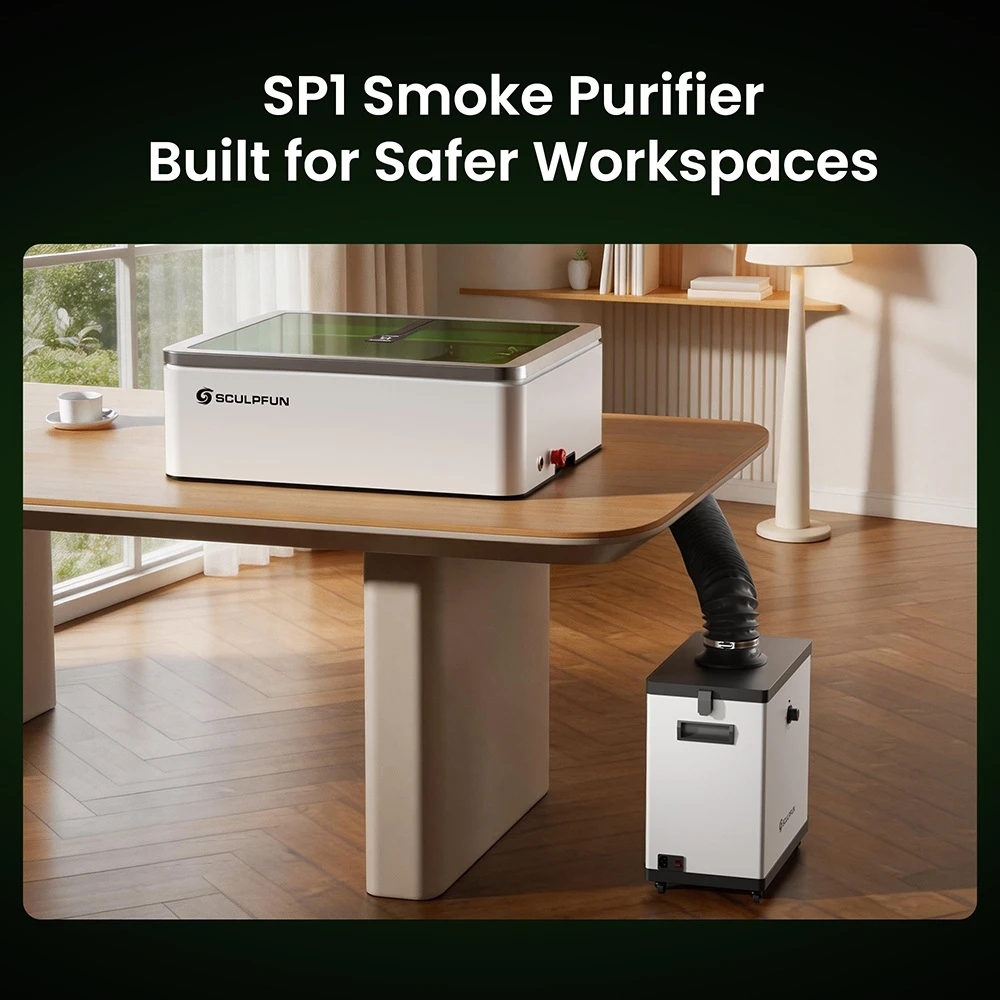

The E1 Pro comes equipped with a built-in camera, pre-installed honeycomb panel, and air assist system for precise positioning and improved engraving quality. It is also compatible with the SP1 smoke purifier and optional accessories such as a rotary attachment, riser base, and IR laser module, expanding its capabilities for cutting, flat engraving, cylindrical engraving, and more.
Specification
| Brand | SCULPFUN |
| Type | Laser Engraver |
| Model | E1 Pro |
| Color | White-Green |
| Laser Power | 21W 455nm Diode Laser |
| Laser Spot Size | 0.06 × 0.08mm |
| Connection | USB / Wi-Fi (App Only) |
| Operating Voltage | 24V |
| Operating Current | 6A |
| Working Area | 400 × 320mm |
| Material Placement Area | 450 × 350mm |
| Maximum Processing Thickness (With Honeycomb Panel) | 30mm |
| Maximum Processing Thickness (Without Honeycomb Panel) | 42mm |
| Engraving Materials | Wood, Bamboo, Cardboard, Plastics, Leather, PCB Boards, Anodized Aluminum, 304 Stainless Steel, Ceramics, Dark-Colored Stone |
| Cutting Materials | Wood Sheets, Acrylic Sheets, Cardboard, Non-Woven Fabric, Bamboo Sheets, Certain Plastic Sheets |
| Product Weight | 12.05kg |
| Package Weight | 17.9kg |
| Product Size (L x W x H) | 590×500×205mm |
| Package Size (L x W x H) | 675×585×285mm |

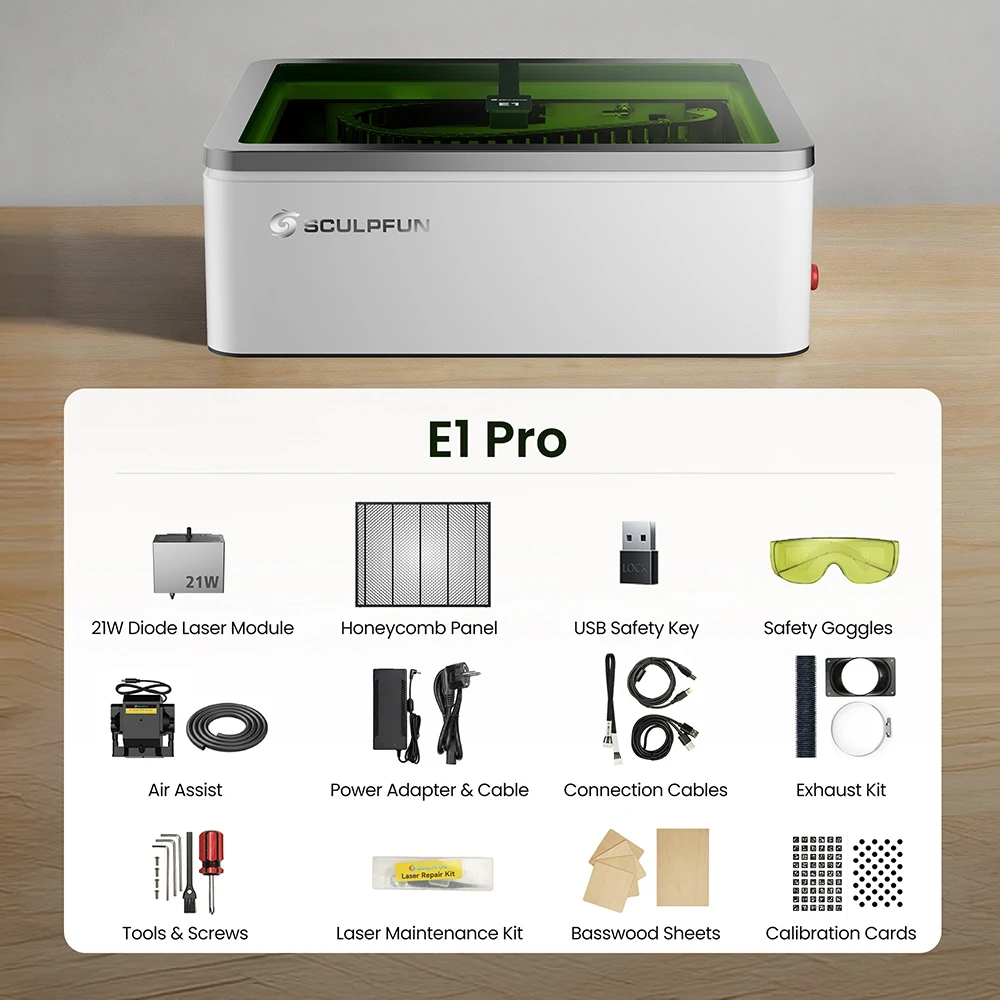

| Package Contents | 1 x Machine 1 x User Manual 1 x 455nm Laser Module (Pre-installed) 1 x Exhaust Hose 1 x Flange 1 x Hose Clamp 1 x Air Pump 1 x Air Hose 1 x Safety Goggles 1 x 24V/6A Power Adapter 1 x Honeycomb Panel (Pre-installed) 1 x Tool Kit 1 x USB Safety Key 1 x Cable Set 2 x Camera Calibration Papers 1 x Laser Maintenance Kit 5 x 3mm Basswood Sheets |
