SCULPFUN E1 12W
SCULPFUN E1 12W Enclosed Laser Engraver, 400×320mm Working Area, 600mm/s CoreXY, HD Camera, Class 1 Safety, Air Assist
SCULPFUN E1 12W Enclosed Laser Engraver, 400×320mm Working Area, 600mm/s CoreXY, HD Camera, Class 1 Safety, Air Assist
Highlights
Class 1 Safety Protection with Fully Enclosed Design
The E1 features a fully enclosed structure that effectively contains heat, smoke, and noise for a safer and more comfortable working environment. Certified to Class 1 laser safety standards, its protective cover filters up to 99% of harmful laser light. Additional safety features include a safety lock, emergency stop button, and Hall sensor, while automatic laser shutdown when the cover is opened ensures reliable protection during operation.

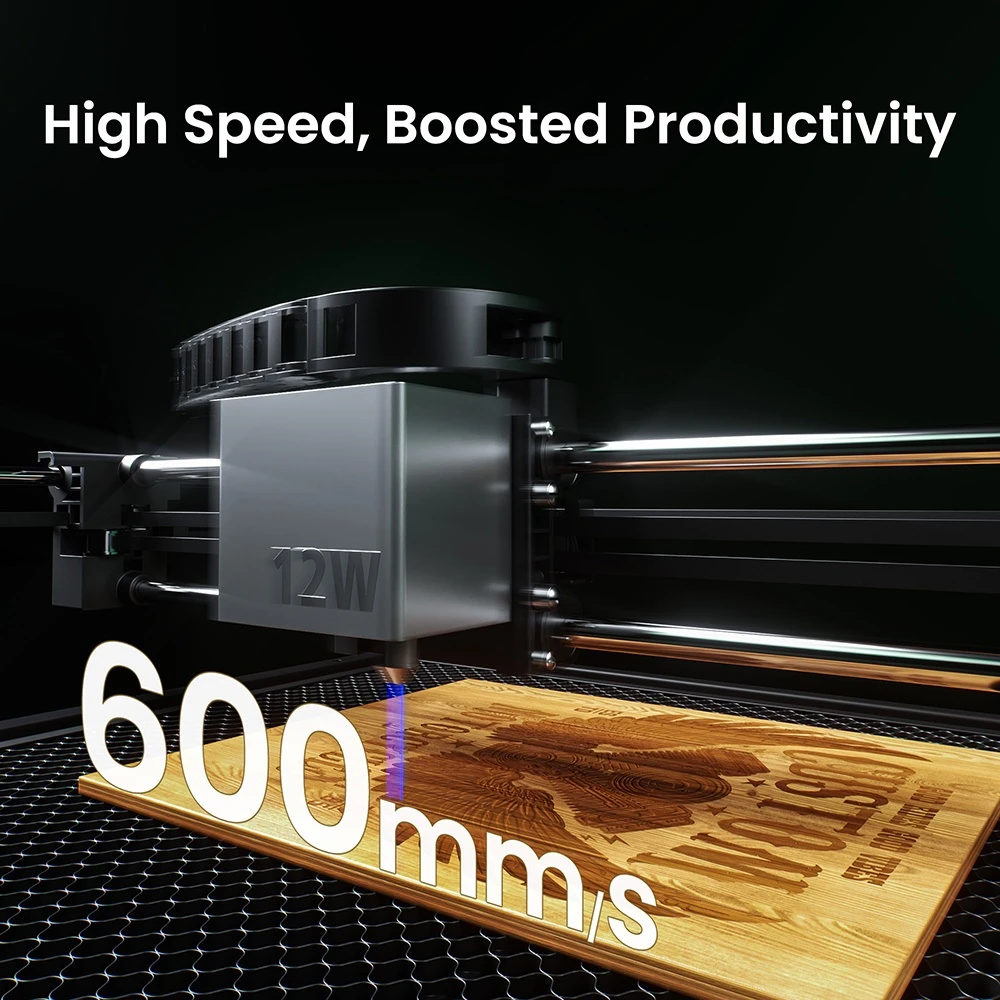

Powerful 12W Laser with High-Speed Precision

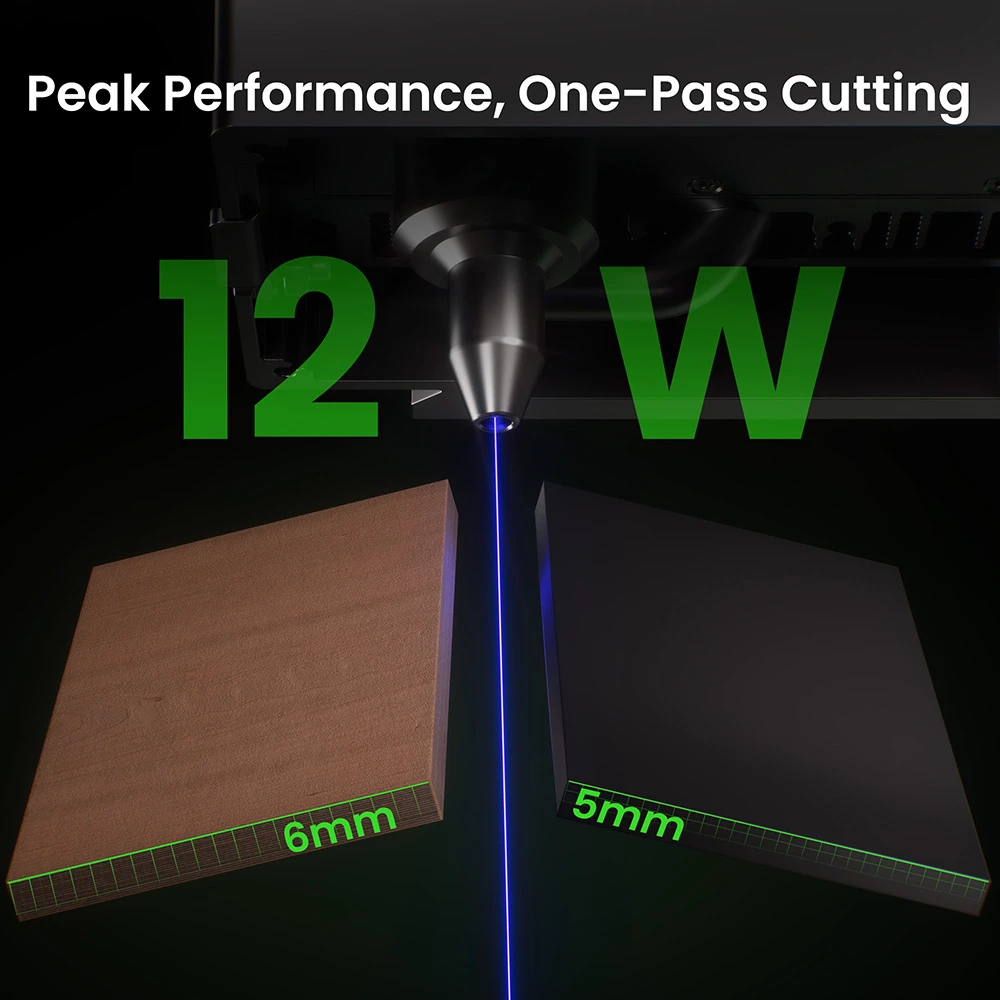

Equipped with a 12W 455nm diode laser and an ultra-fine 0.04 × 0.06mm laser spot, the E1 delivers exceptional engraving detail and cutting performance. It can cut up to 6mm wood and 5mm black acrylic in a single pass, while engraving speeds of up to 600mm/s provide fast, accurate, and efficient results for a wide range of creative projects.

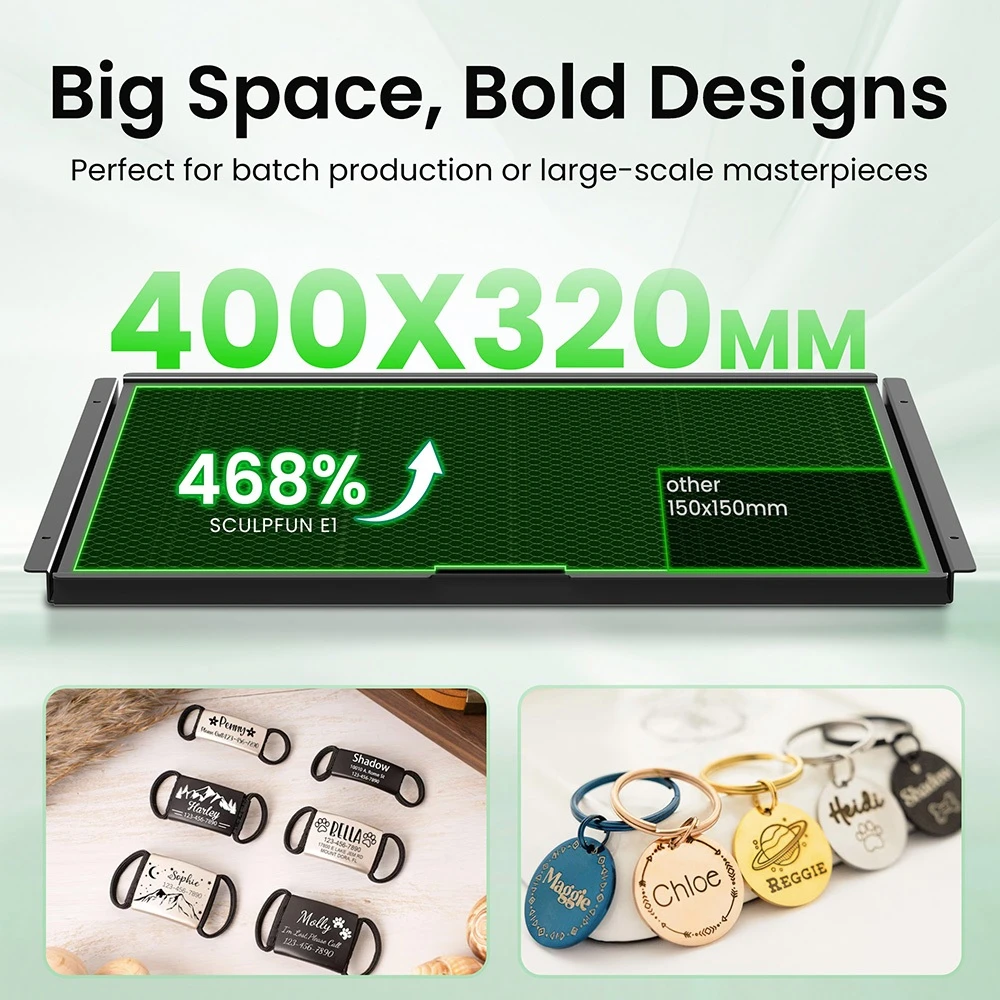

Spacious Workspace for Larger Projects
Featuring a 450 × 350mm material placement area and a 400 × 320mm working area, the E1 offers a generous workspace comparable to many open-frame laser engravers while maintaining a compact footprint. With support for materials up to 42mm thick, it accommodates larger and more diverse projects with ease.

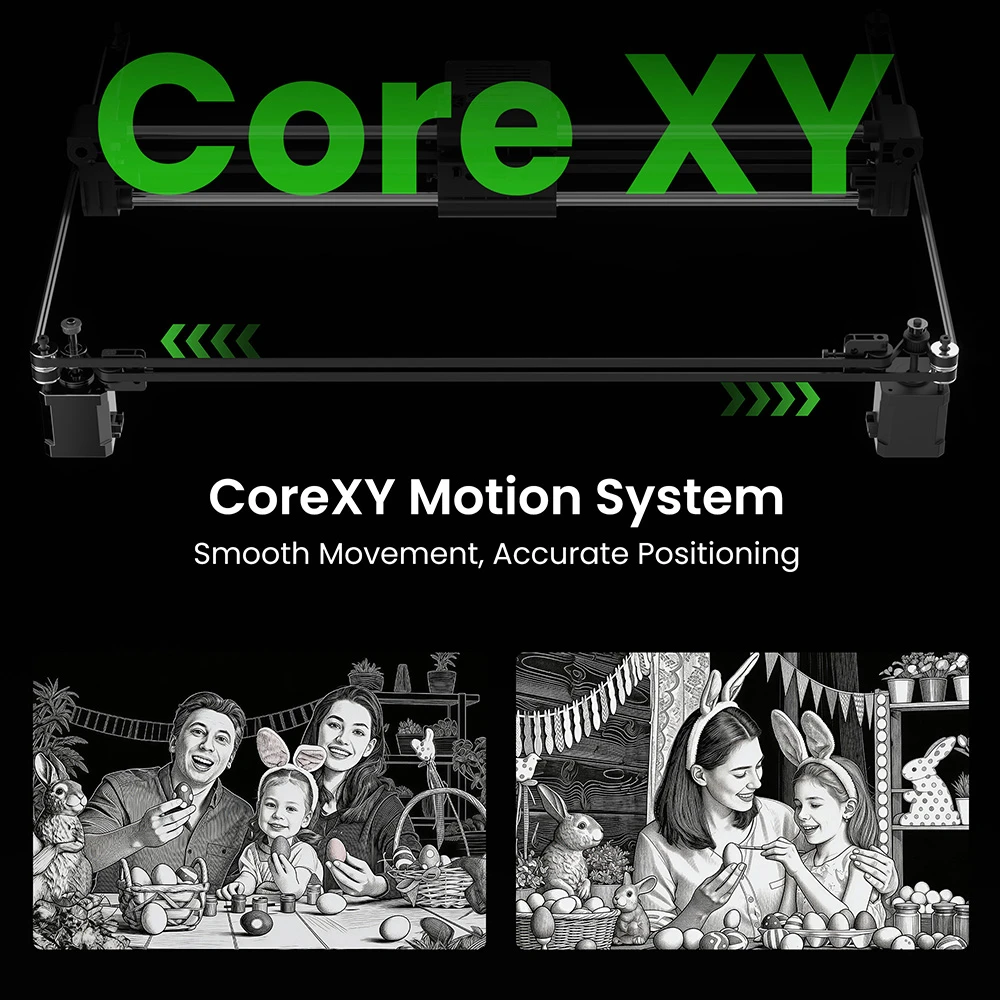

Stable CoreXY Motion System
The advanced CoreXY motion structure ensures smooth, stable movement and precise positioning, delivering superior engraving accuracy, cleaner cuts, and faster operation. This optimized system enhances overall performance and helps achieve professional-quality results.

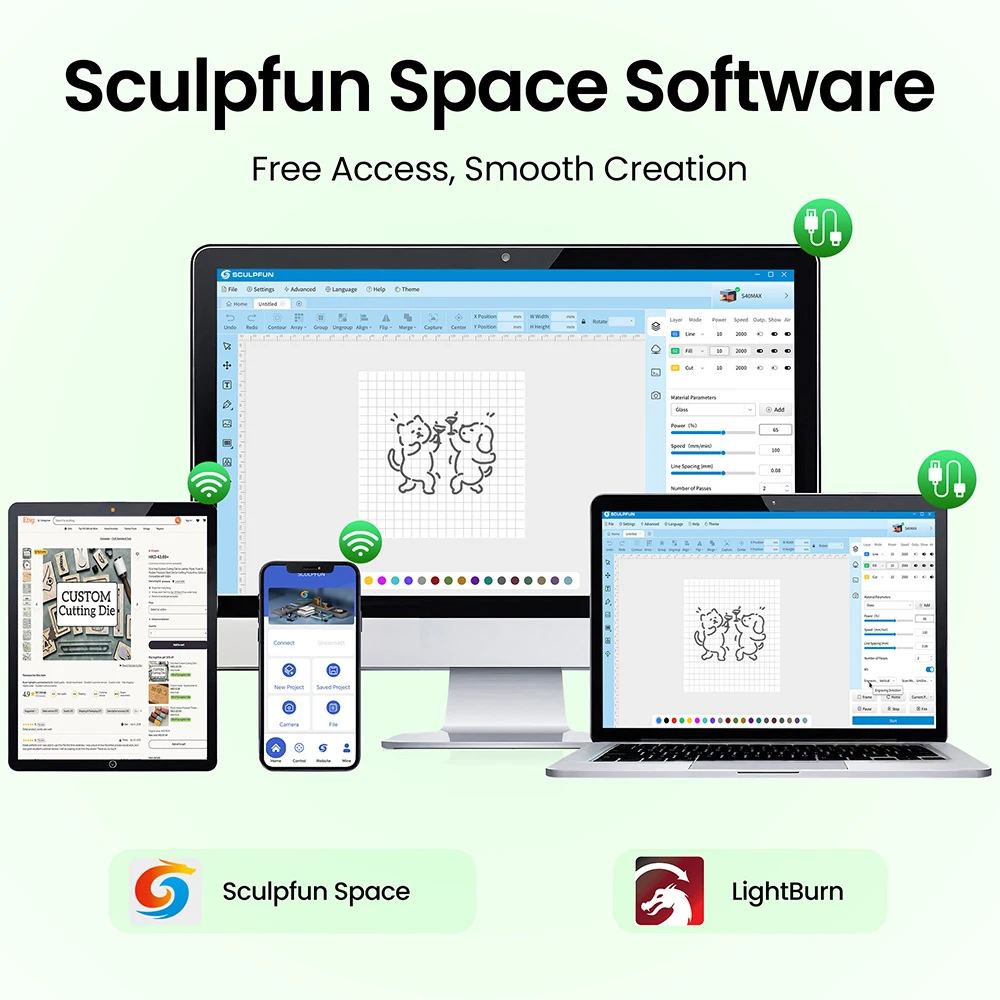

Ready to Use with Easy Software Control
Designed with an integrated all-in-one structure, the E1 requires virtually no assembly—simply plug in and start creating. Ideal for beginners and experienced users alike, it supports USB and Wi-Fi connectivity and works seamlessly with the free Sculpfun Space software for an intuitive user experience.

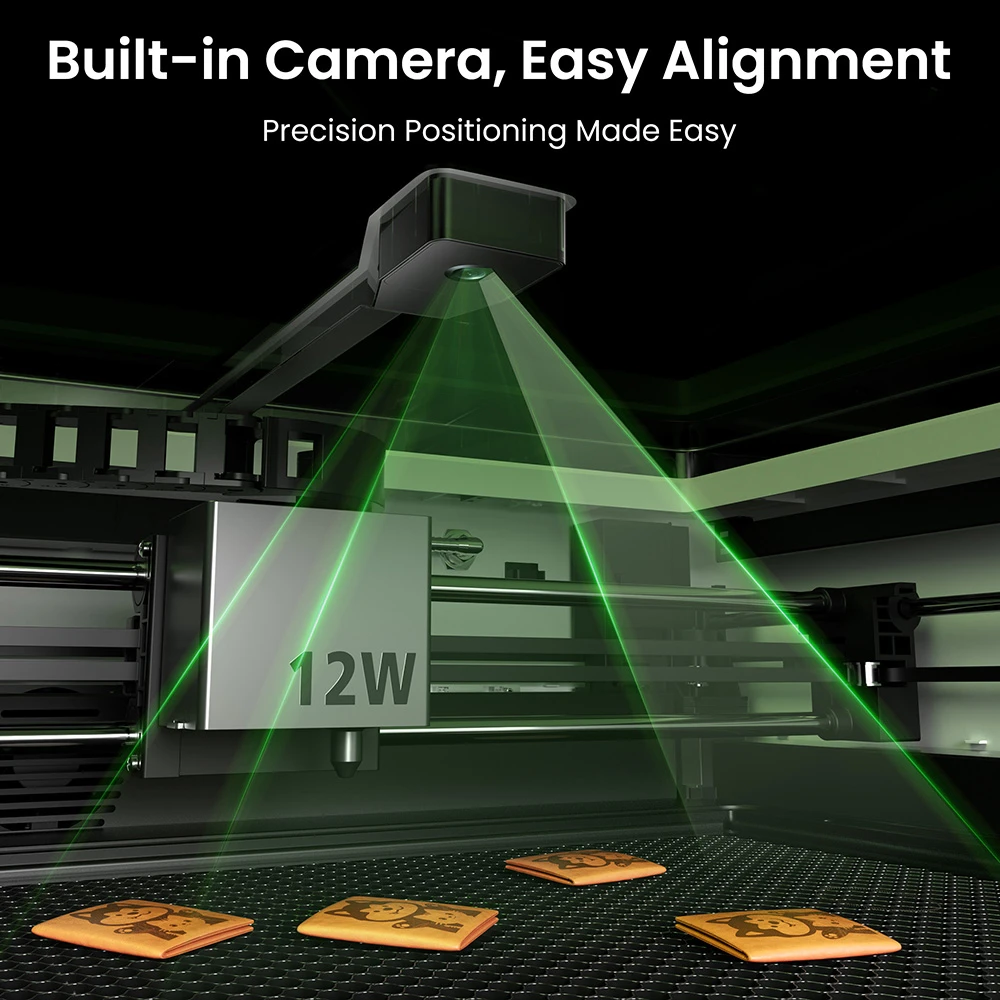

Built-In Camera and Expandable Functionality

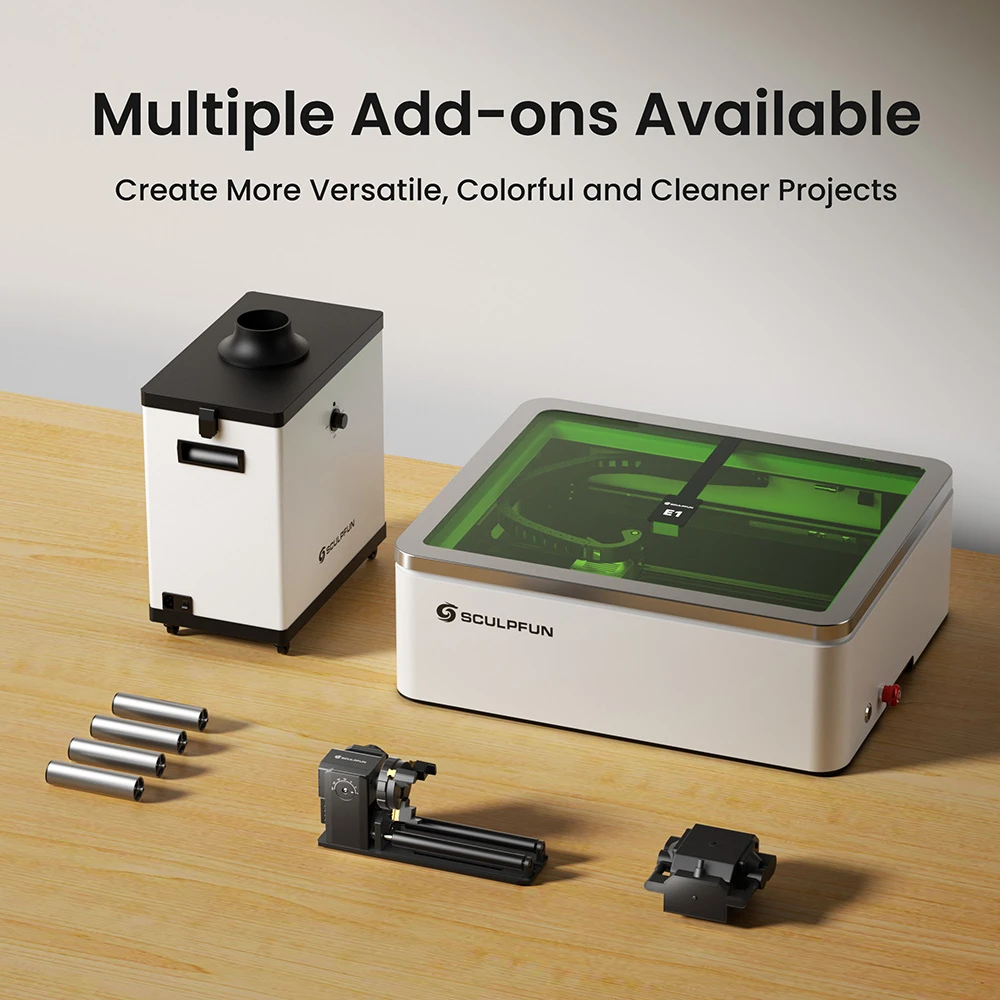

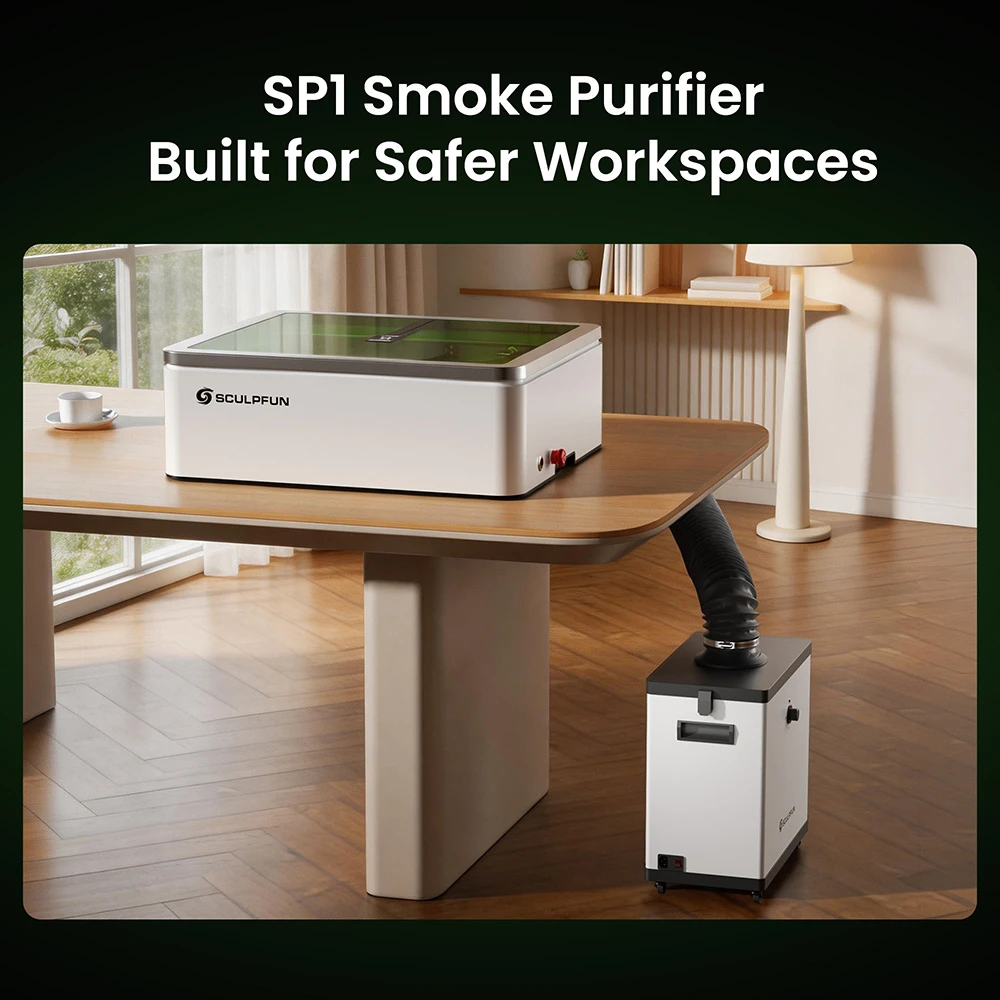

The E1 comes standard with a pre-installed honeycomb panel, air assist pump, and built-in camera for precise positioning and simplified workflow. It is compatible with the SP1 smoke purifier for cleaner operation and supports optional accessories such as a rotary attachment, riser base, and IR laser module, expanding capabilities for flat engraving, cutting, cylindrical engraving, and specialized material processing.
Specification
| Brand | SCULPFUN |
| Type | Laser Engraver |
| Model | E1 |
| Color | White-Green |
| Laser Type | 12W 455nm Diode Laser |
| Laser Spot Size | 0.04 × 0.06mm |
| Connection | USB / Wi-Fi (App Only) |
| Operating Voltage | 24V |
| Operating Current | 4A |
| Working Area | 400 × 320mm |
| Material Placement Area | 450 × 350mm |
| Maximum Processing Thickness (With Honeycomb Panel) | 30mm |
| Maximum Processing Thickness (Without Honeycomb Panel) | 42mm |
| Engraving Materials | Wood, Bamboo, Cardboard, Plastics, Leather, PCB Boards, Anodized Aluminum, 304 Stainless Steel, Ceramics, Dark-Colored Stone |
| Cutting Materials | Wood Sheets, Acrylic Sheets, Cardboard, Non-Woven Fabric, Bamboo Sheets, Certain Plastic Sheets |
| Product Weight | 12.05kg |
| Package Weight | 17.9kg |
| Product Size(L x W x H) | 590×500×205mm |
| Package Size(L x W x H) | 675×585×285mm |

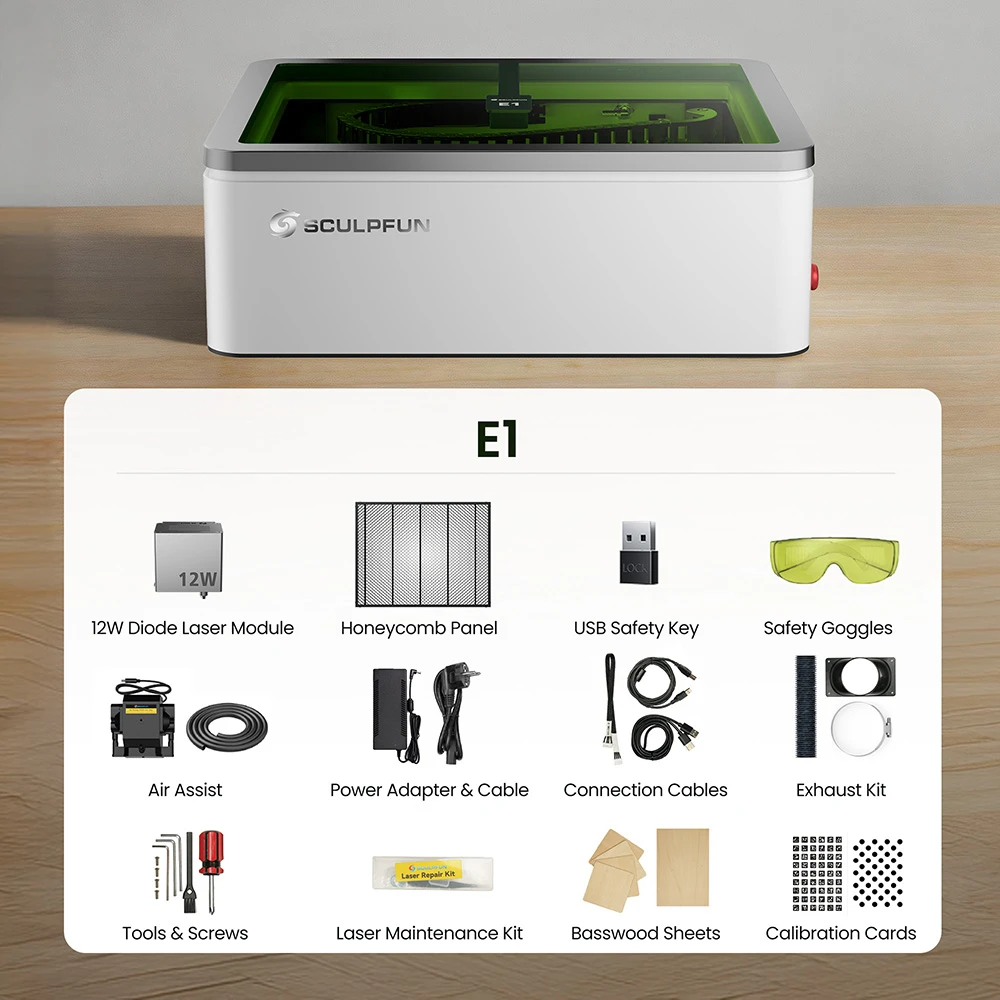

| Package Contents | 1 x Machine 1 x User Manual 1 x 455nm Laser Module (Pre-installed) 1 x Exhaust Hose 1 x Flange 1 x Hose Clamp 1 x Air Pump 1 x Air Hose 1 x Safety Goggles 1 x 24V/4A Power Adapter 1 x Honeycomb Panel (Pre-installed) 1 x Tool Kit 1 x USB Safety Key 1 x Cable Set 2 x Camera Calibration Paper 1 x Laser Maintenance Kit 5 x 3mm Basswood Sheets |
