LIONSHEE LS-PV800Mi 800W Flexible Solar Kit
LIONSHEE LS-PV800Mi 800W Flexible Solar Kit, 4×200W Panels + 800W Microinverter, 23.5% Efficiency, IP67 Waterproof, 5m AC Cable, Plug-and-Play for Balcony & RV
LIONSHEE LS-PV800Mi 800W Flexible Solar Kit, 4×200W Panels + 800W Microinverter, 23.5% Efficiency, IP67 Waterproof, 5m AC Cable, Plug-and-Play for Balcony & RV
Highlights
High-Power, Flexible Solar Setup
Featuring 4 lightweight 200W flexible solar panels paired with an 800W high-efficiency microinverter, this system delivers strong and stable power output. The flexible panel design easily adapts to curved or uneven surfaces, making it perfect for non-flat installations where traditional panels won’t fit.

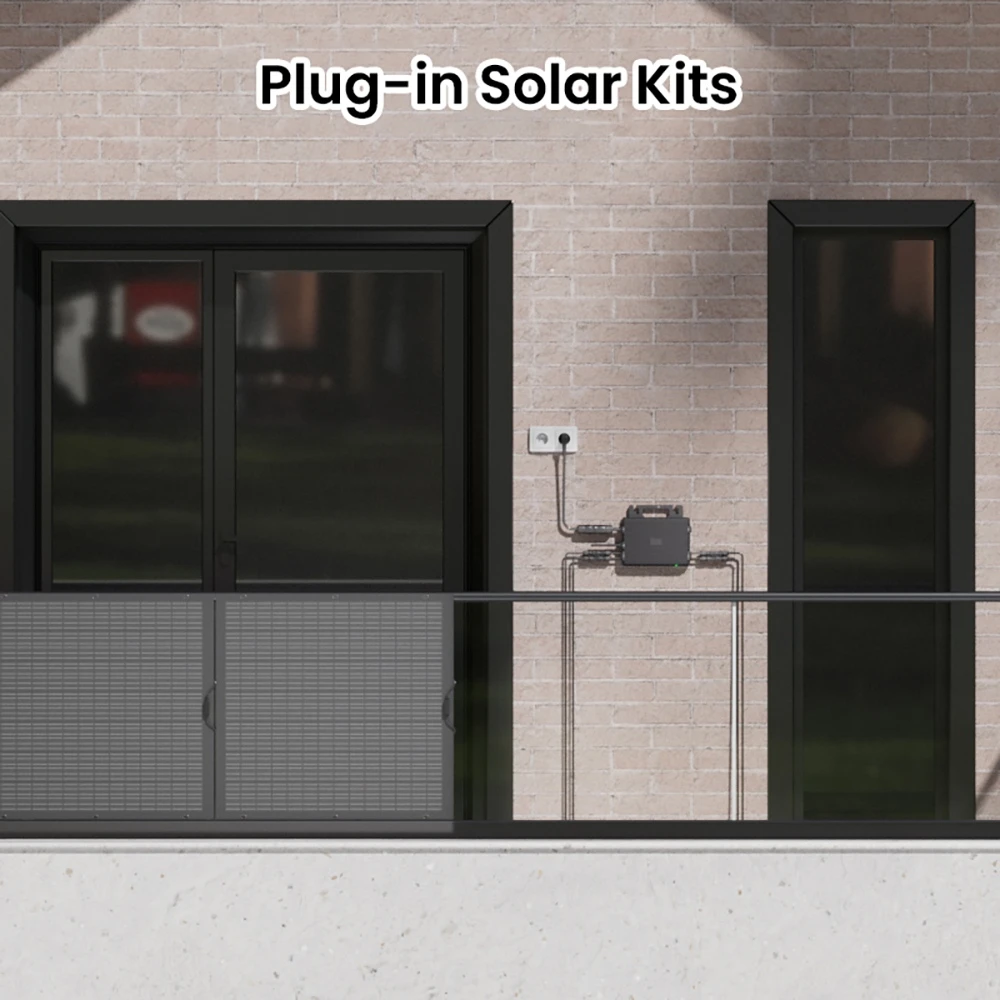

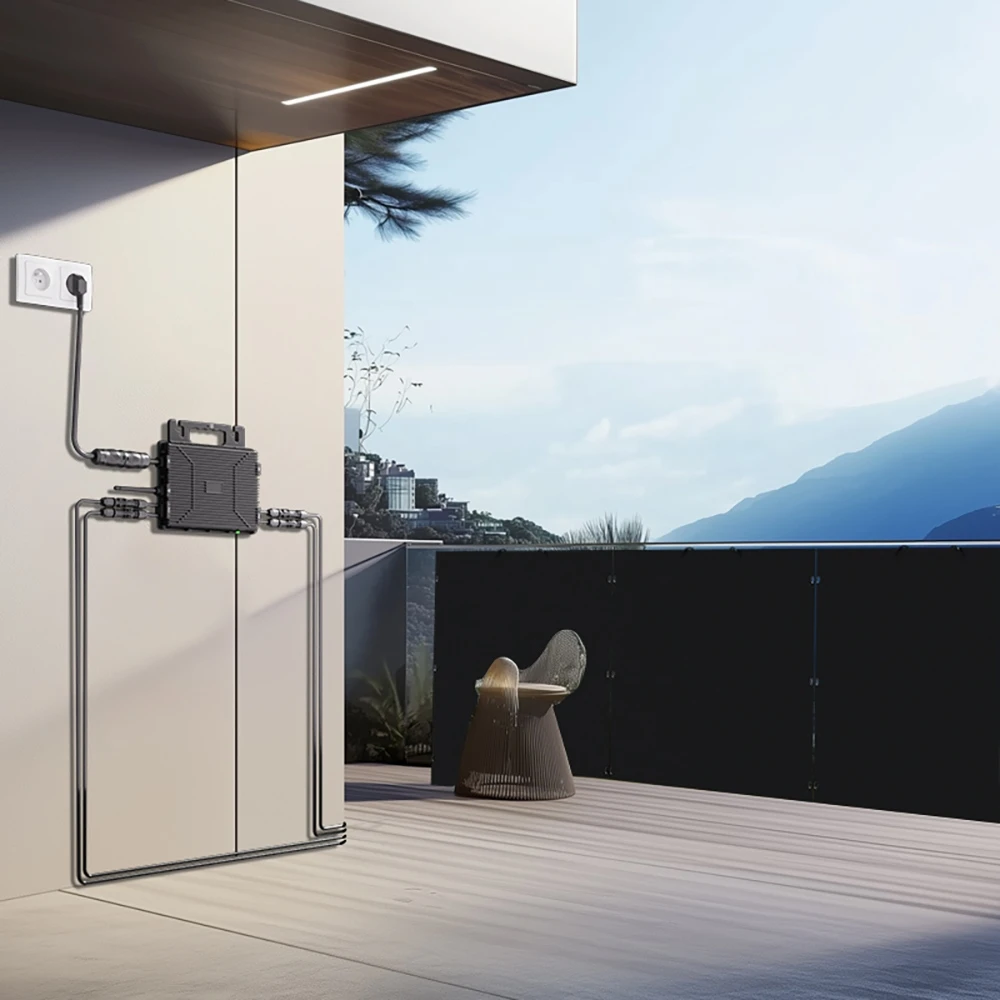

True Plug-and-Play Installation
No professional tools, no complex wiring. The system is designed for easy DIY installation, allowing homeowners to set it up independently and start generating solar power in minutes—no electrician required.
Designed for Multiple Scenarios

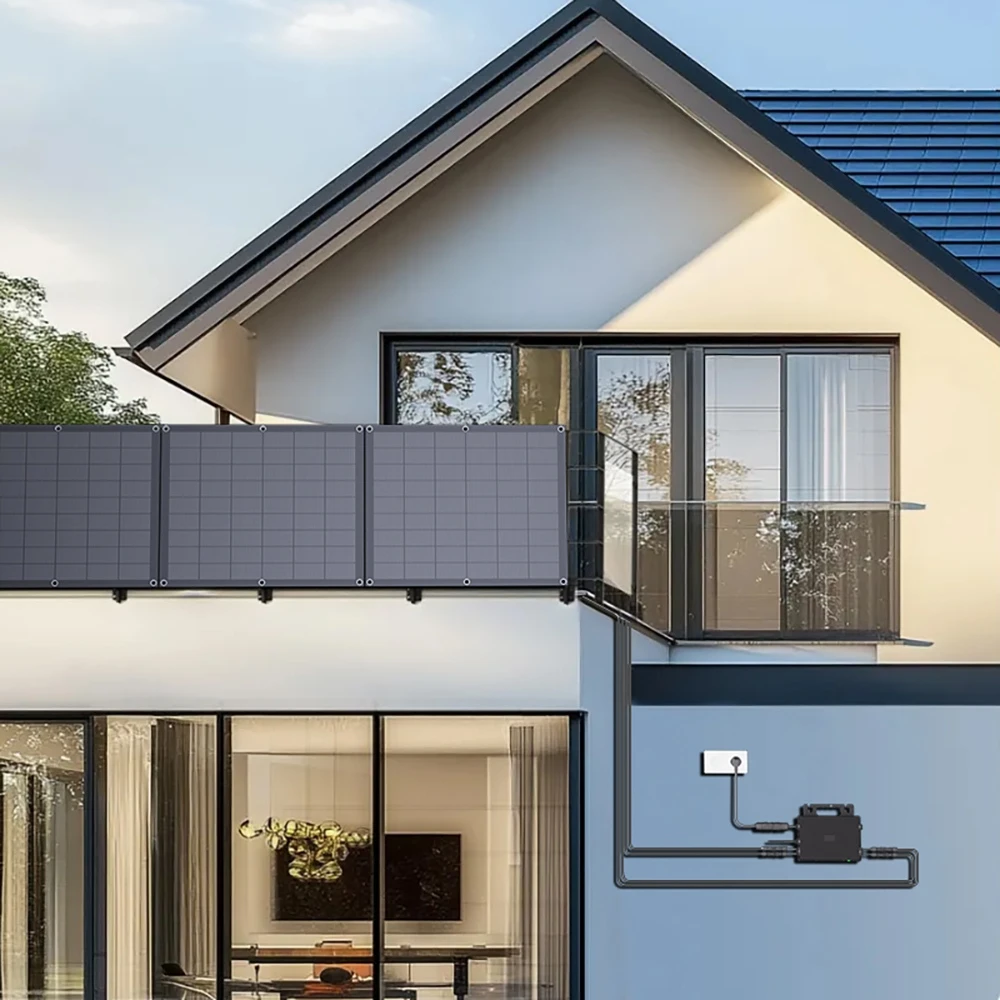

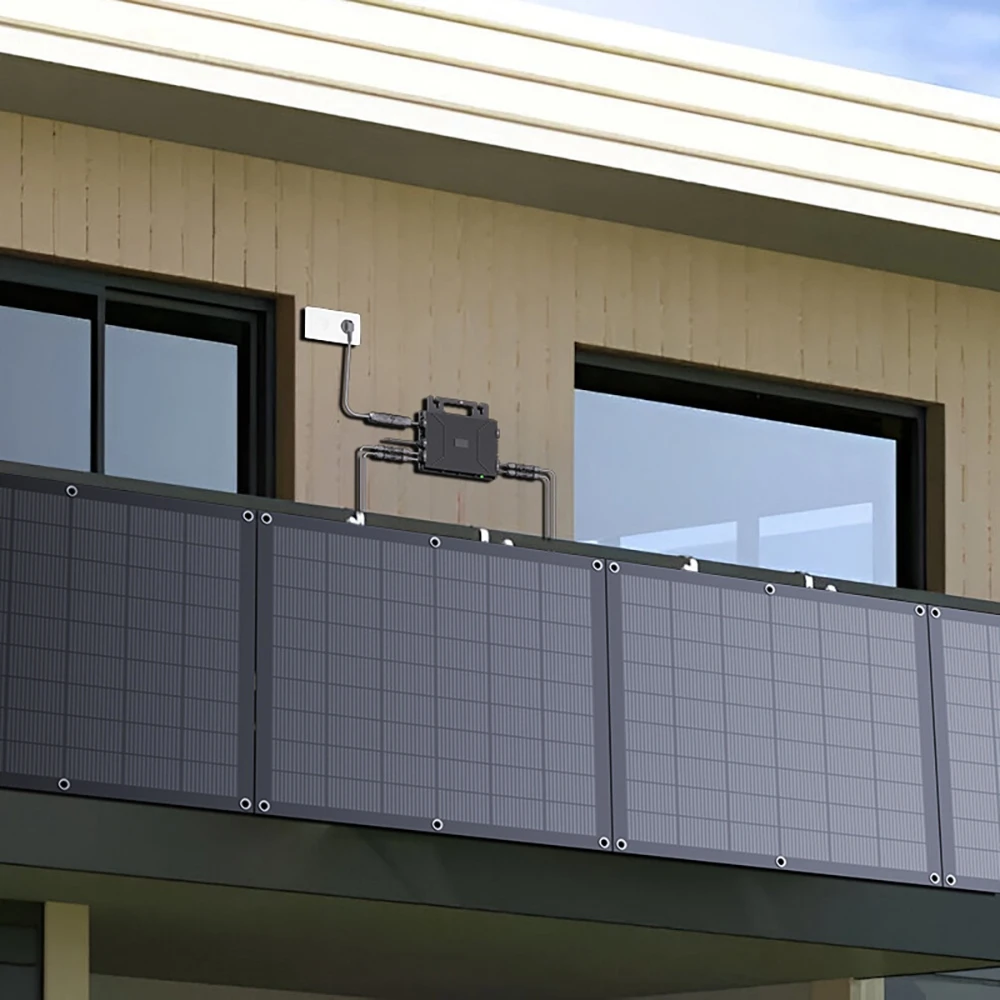

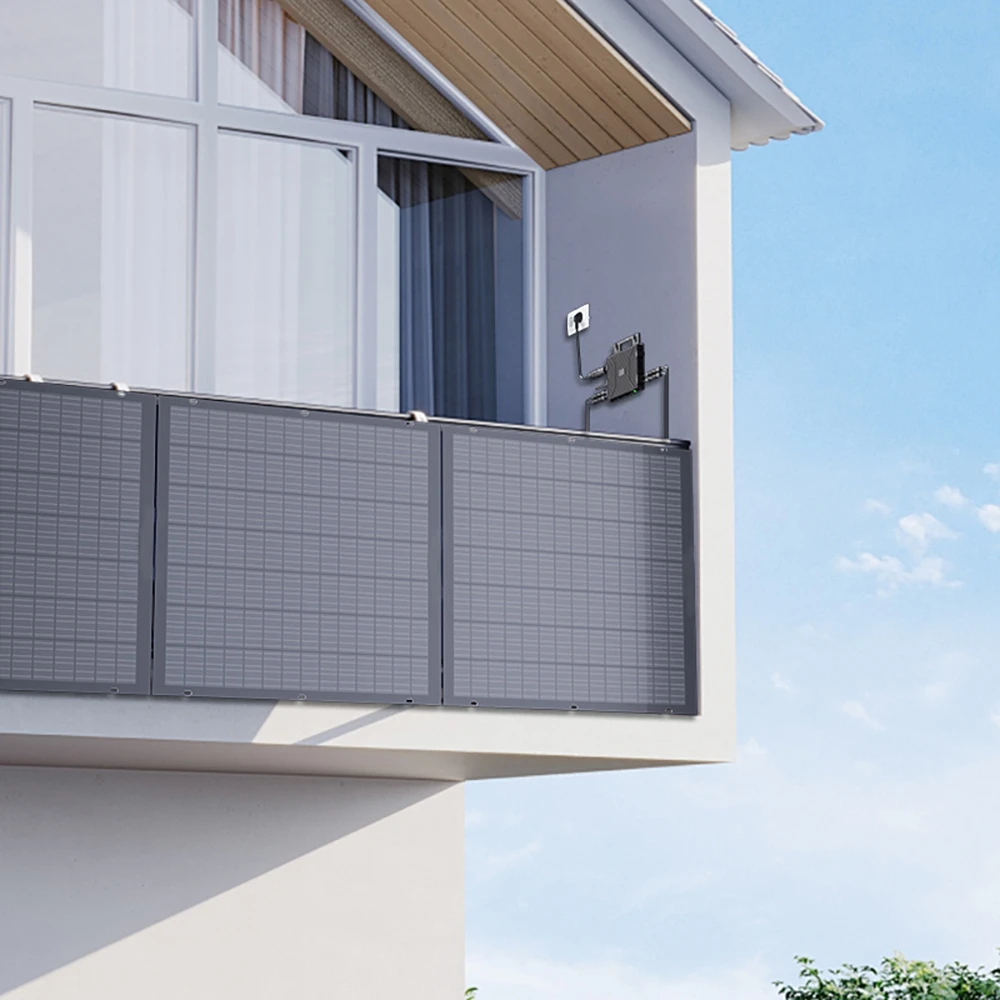

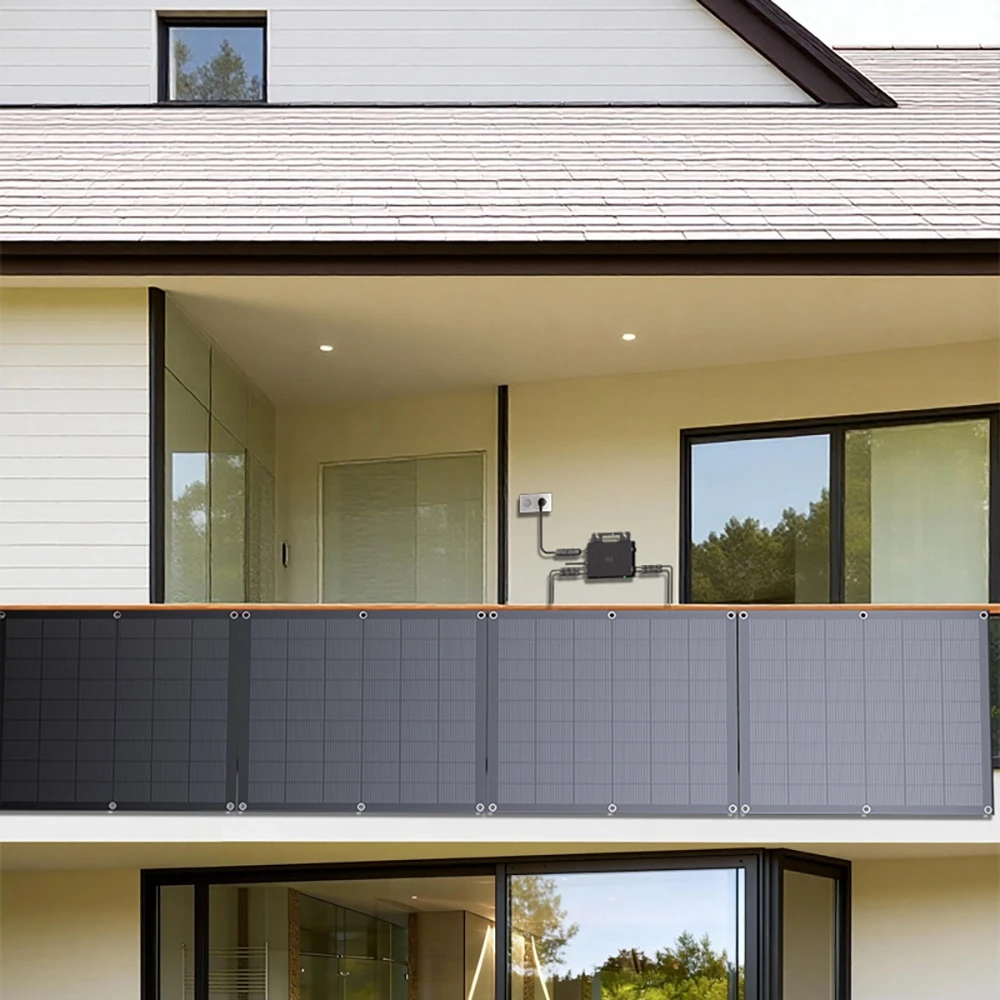

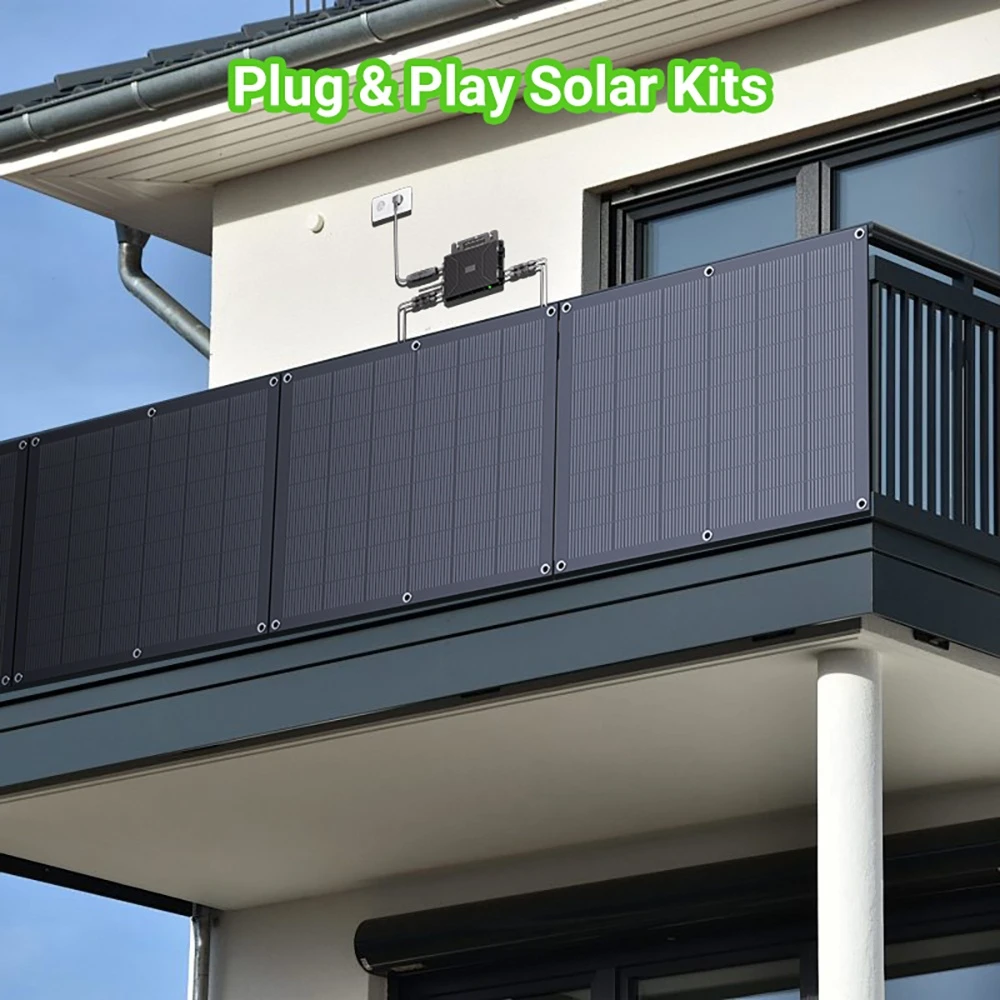

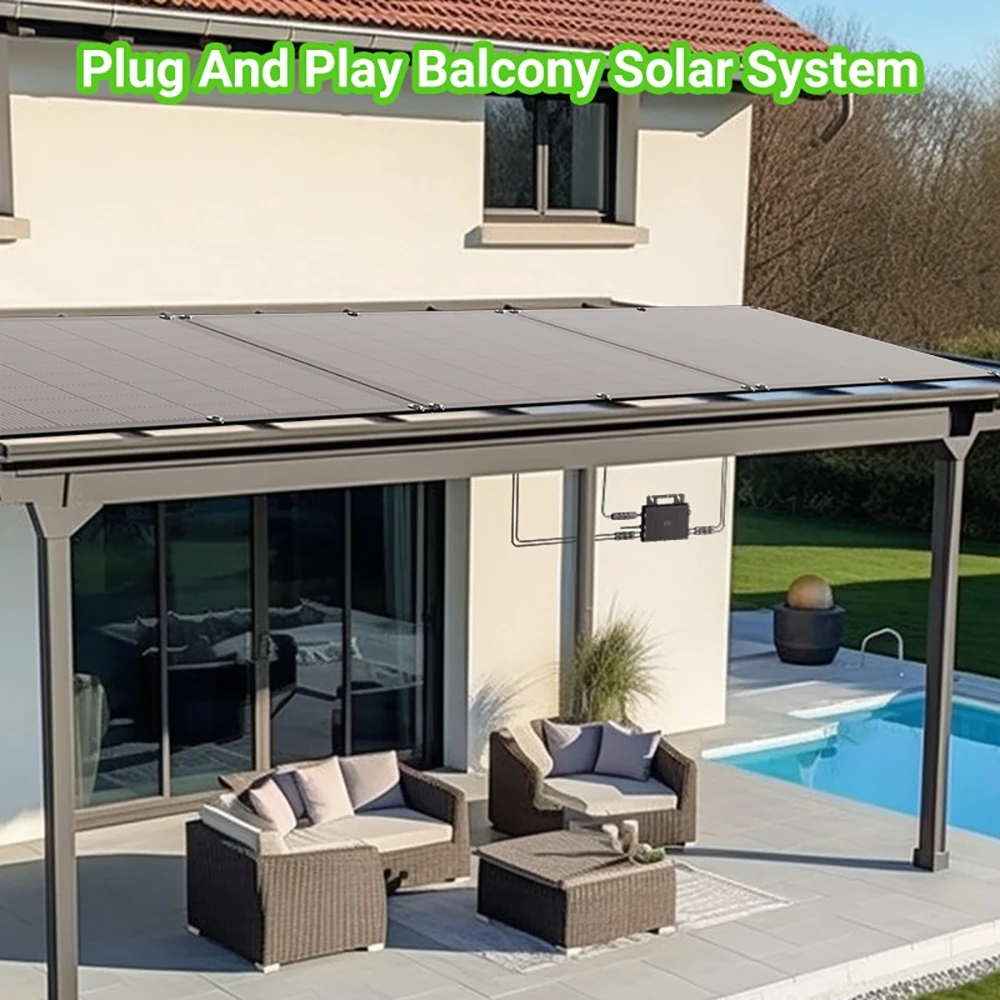

Engineered for balconies, gardens, RVs, small rooftops, and mobile setups, this kit seamlessly adapts to both residential and off-grid applications, providing clean energy wherever you need it.
Cost-Effective & Energy-Saving
An affordable way to reduce long-term electricity bills while producing renewable energy. Ideal for users looking to lower energy costs without a high upfront investment.
All-in-One Turnkey Kit
Everything you need in one complete package—solar panels, microinverter, and all essential accessories included. No extra purchases, no compatibility worries, just a hassle-free solar solution.
Specification
| Brand | LIONSHEE |
| Type | Balcony Solar System |
| Model | LS-PV800Mi |
| Solar Panel Specifications | |
| Rated Power | 200W (per panel) |
| Open Circuit Voltage (Voc) | 18.36V |
| Short Circuit Current (Isc) | 13.51A |
| Maximum Power Voltage (Vm) | 15.66V |
| Maximum Power Current (Im) | 12.78A |
| Maximum Series Fuse | 15A |
| Cables & Plug Connectors | 2.5mm² cable 90cm + MC4 |
| Conversion Efficiency | ≥23.5% |
| Protection Rating | IP67 |
| Certificates | CE, EC, ROHS |
| Microinverter Specifications | |
| Rated Power | 800W |
| Max. Input Voltage | 60V |
| Max. Input Current | 13.5A × 2 |
| MPPT Voltage Range | 25–55V |
| Max. DC Short Circuit Current | 16.5A × 2 |
| Number of MPPTs | 2 |
| Output Voltage Range | 184–253V |
| Max. Output Current | 4A |
| Nominal Frequency | 50Hz (45–55Hz) |
| Peak Efficiency | 96% |
| Certifications | IEC62109-1, IEC62109-2, IEC61000-6-1, IEC61000-6-3, VDE4105, VRF2019, NEN-EN 50549-1:2019, PN-EN 50549-1:2019 |
| Weight & Size | |
| Product Weight | Solar Panel: 3.98kg / Microinverter: 2.9kg |
| Package Weight | 22.6kg |
| Product Size | Solar Panel: 1160×940×2.5mm / Microinverter: 260×225×32mm |
| Package Size | 1445×985×80mm |
| Package Contents | |

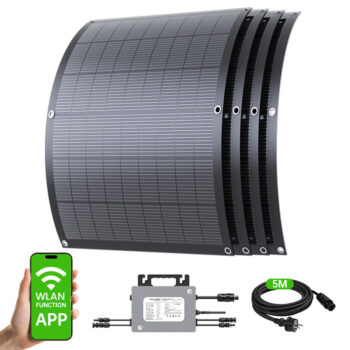

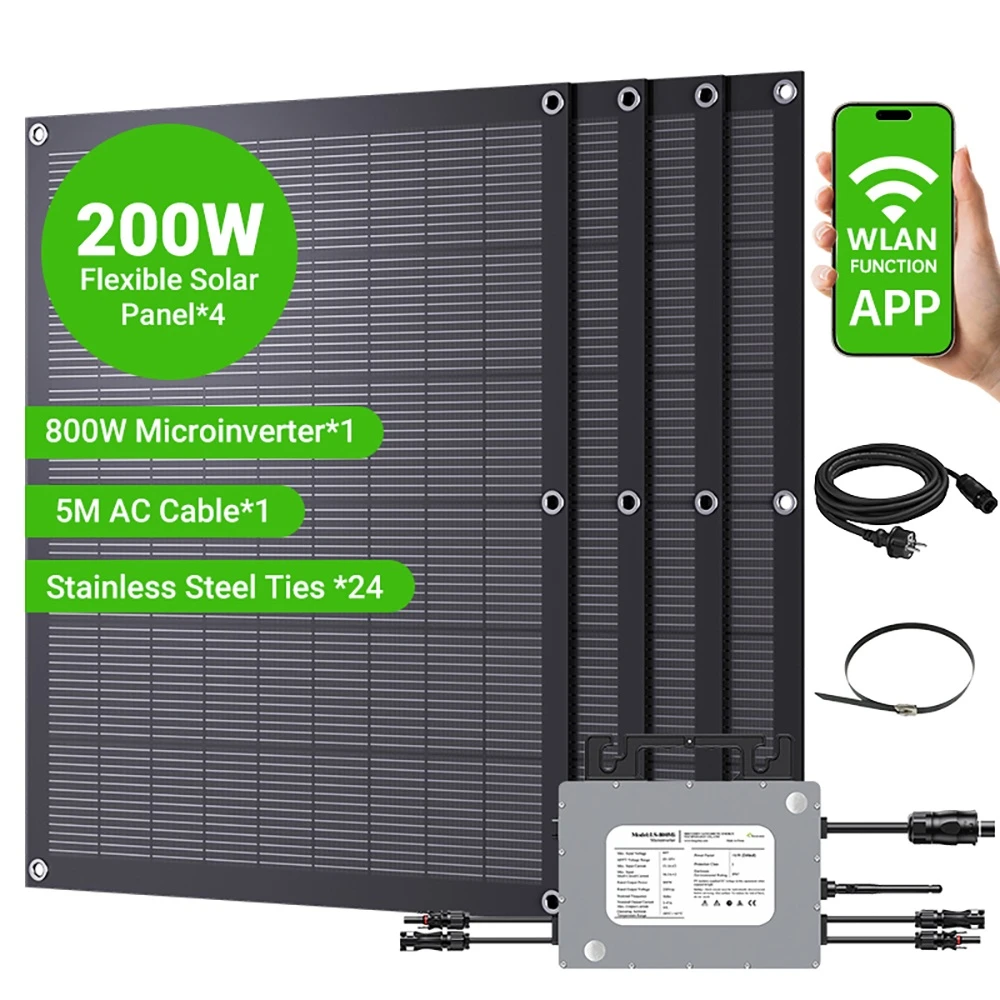

| Included Items | 4 x 200W Flexible Solar Panel 1 x 800W Microinverter (WiFi enabled) 24 x Stainless Steel Ties 1 x 5m AC Cable |
