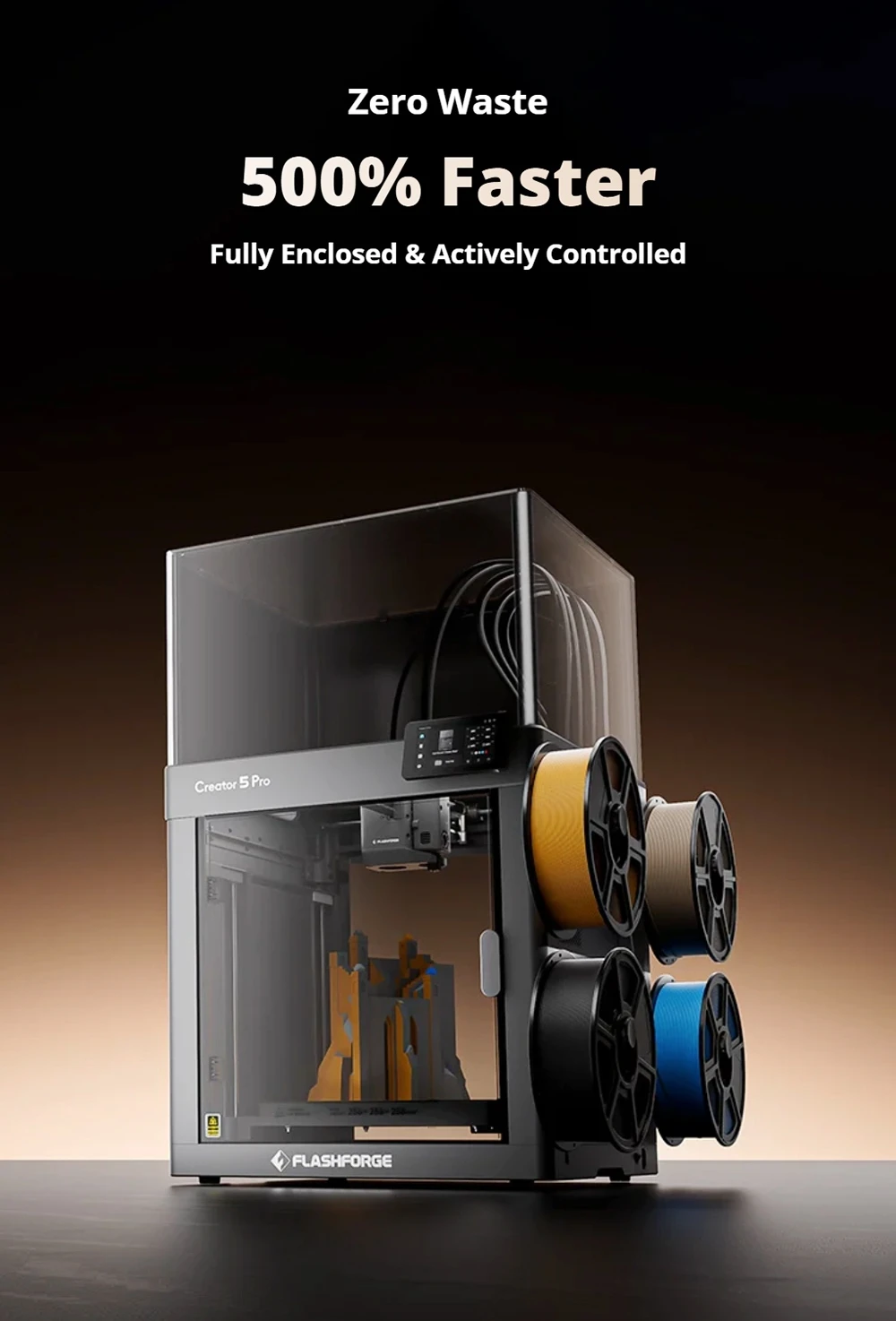

Flashforge Creator 5 Pro
Flashforge Creator 5 Pro 3D Printer, 4 Independent Toolheads, 300mm/s High-Speed, Zero Purge Waste, 65°C Heated Chamber, Enclosed Multi-Color & Multi-Material
Flashforge Creator 5 Pro 3D Printer, 4 Independent Toolheads, 300mm/s High-Speed, Zero Purge Waste, 65°C Heated Chamber, Enclosed Multi-Color & Multi-Material
Highlights

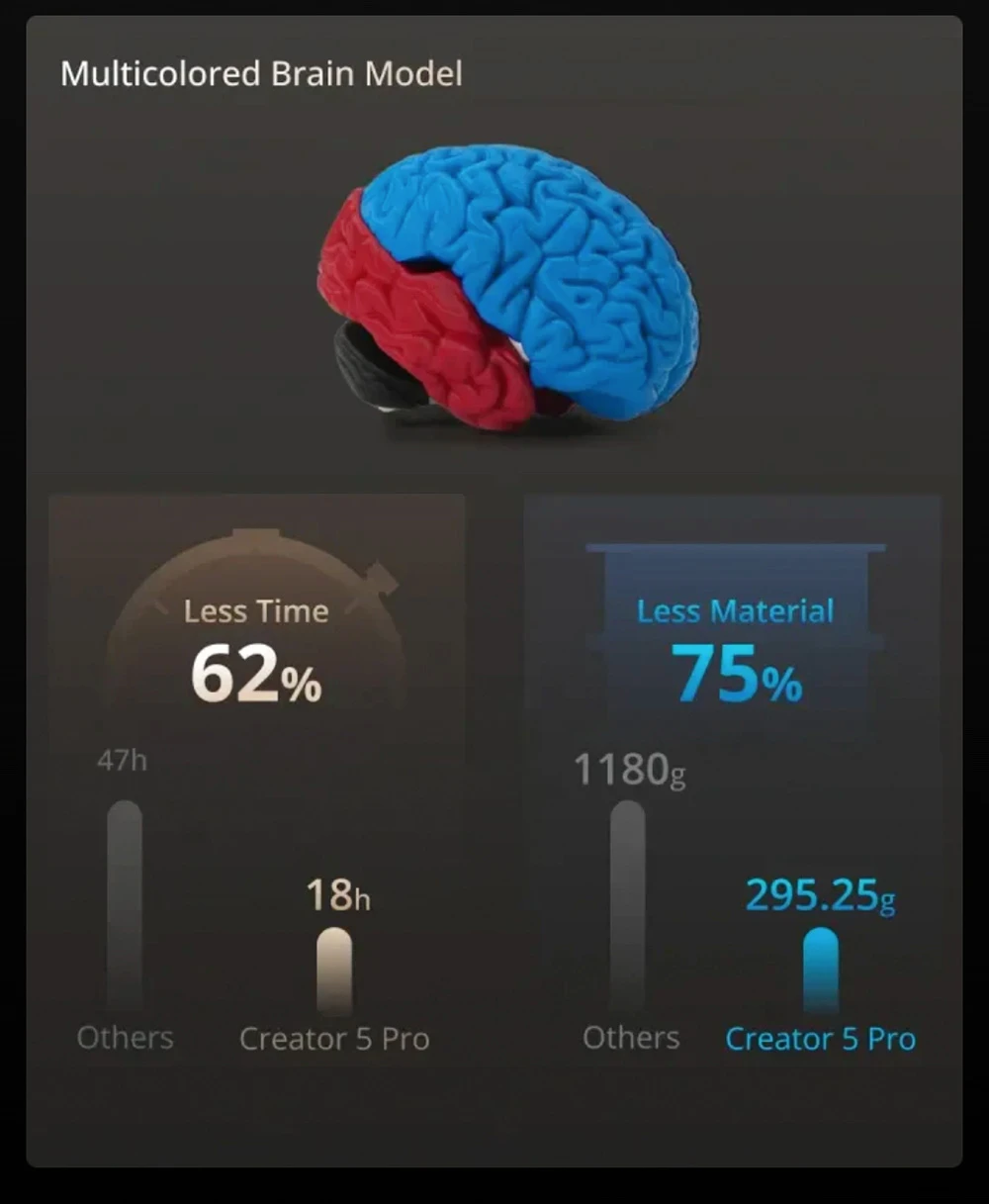

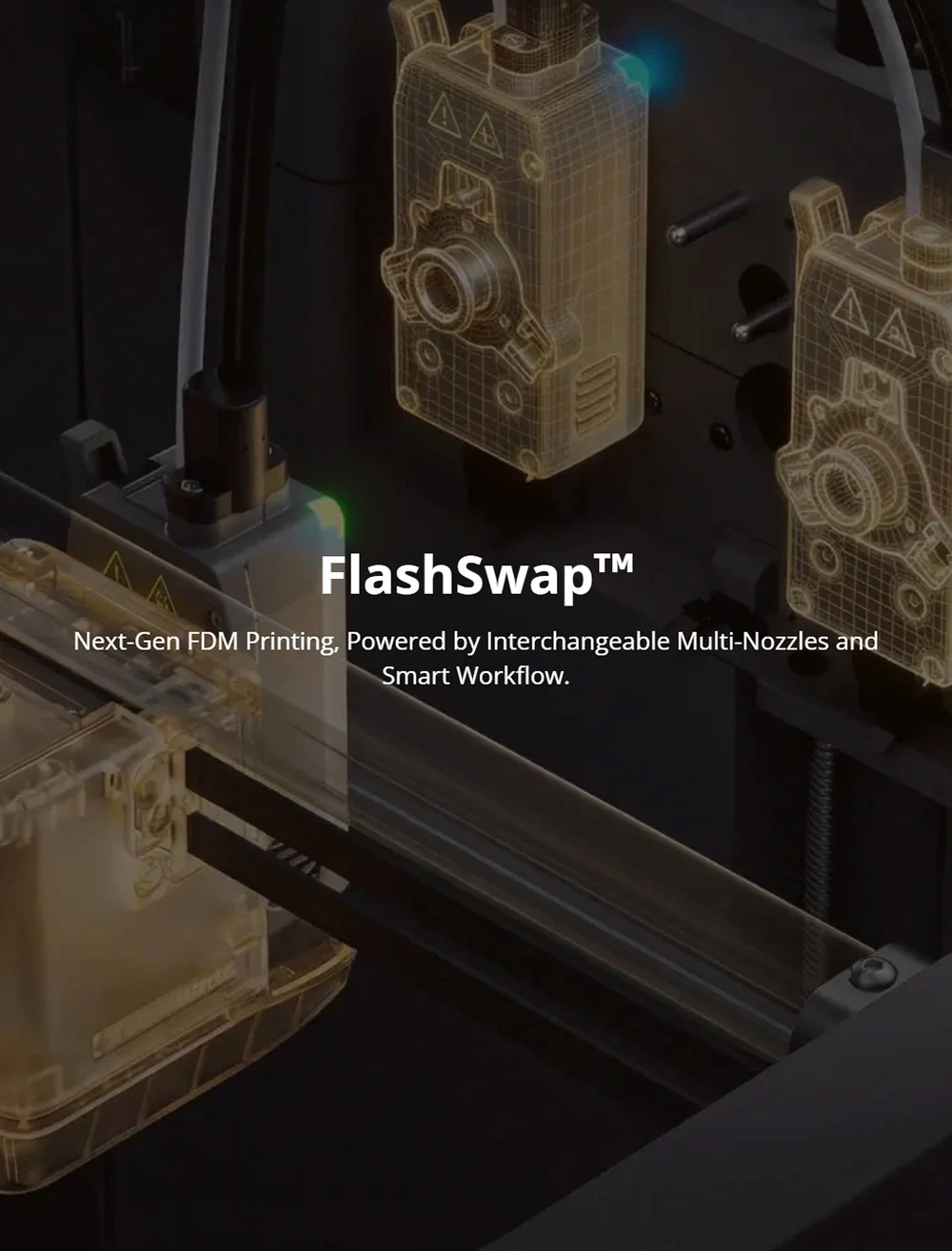

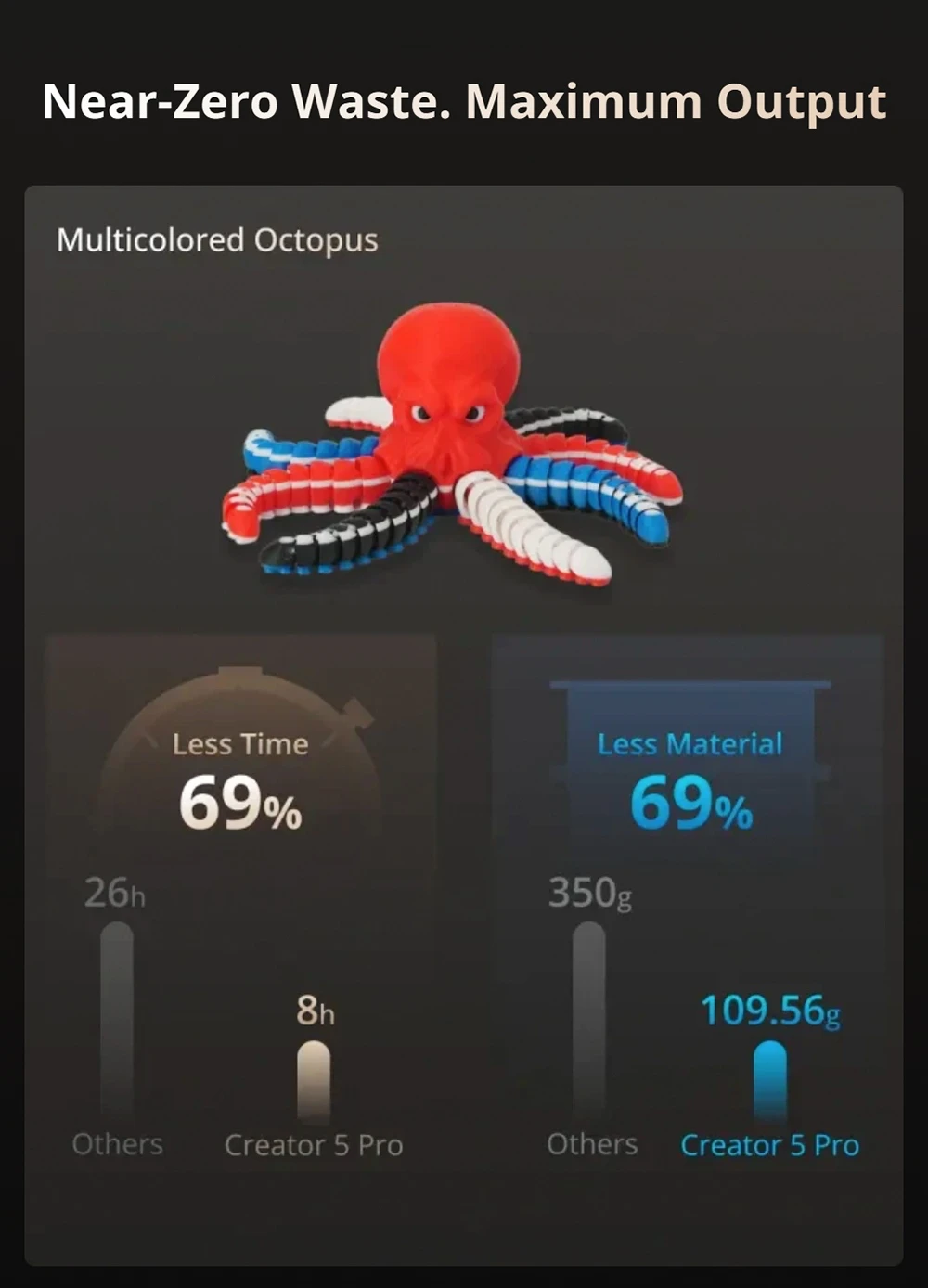

Zero-Waste Multi-Toolhead Printing
Four independent toolheads enable rapid automatic switching without purge waste during material changes. This highly efficient system reduces filament consumption, shortens production cycles, and significantly improves multi-material printing efficiency.
600mm/s High-Speed Precision Performance
With up to 600mm/s travel speed and 30000mm/s² acceleration, the printer delivers fast and stable output while maintaining excellent dimensional accuracy. Dual heating and cooling temperature control effectively minimizes warping and cracking across different filament types.

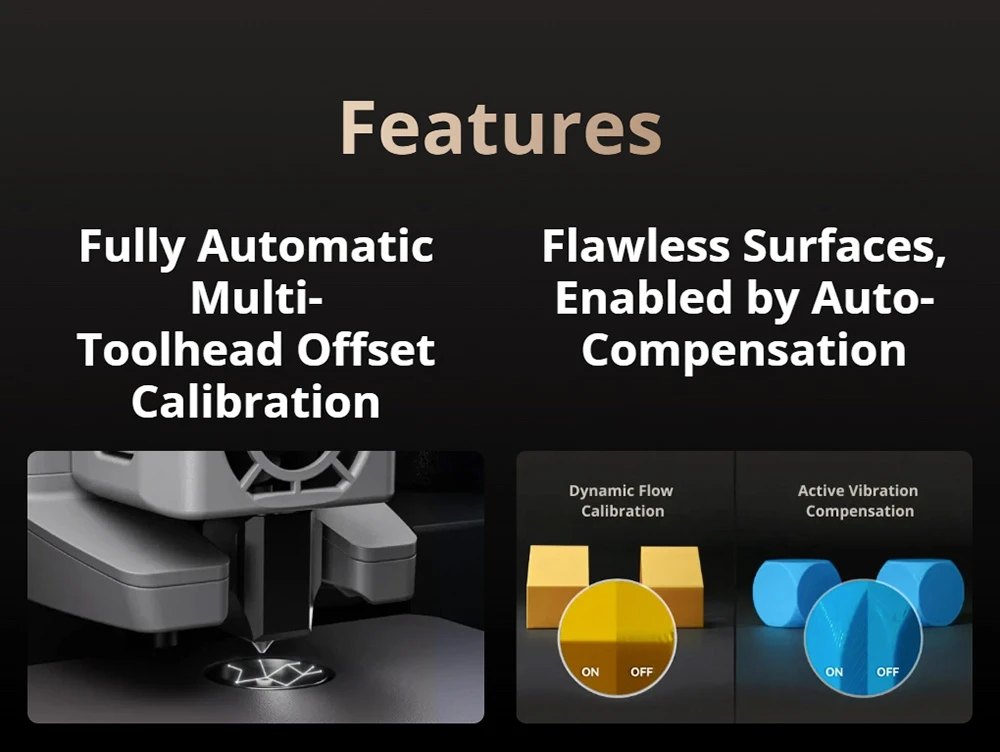

Smooth Surface & Intelligent Calibration
Advanced auto calibration functions including offset adjustment, dynamic flow tuning, and vibration compensation help achieve smoother surfaces, sharper details, and consistently flawless print quality with minimal manual setup.
Large Build Volume & Broad Material Support
The spacious 256×256×256mm build area supports larger models and batch printing projects. Compatible with PLA, TPU, ABS, PC, and various engineering-grade filaments for versatile creative and professional applications.

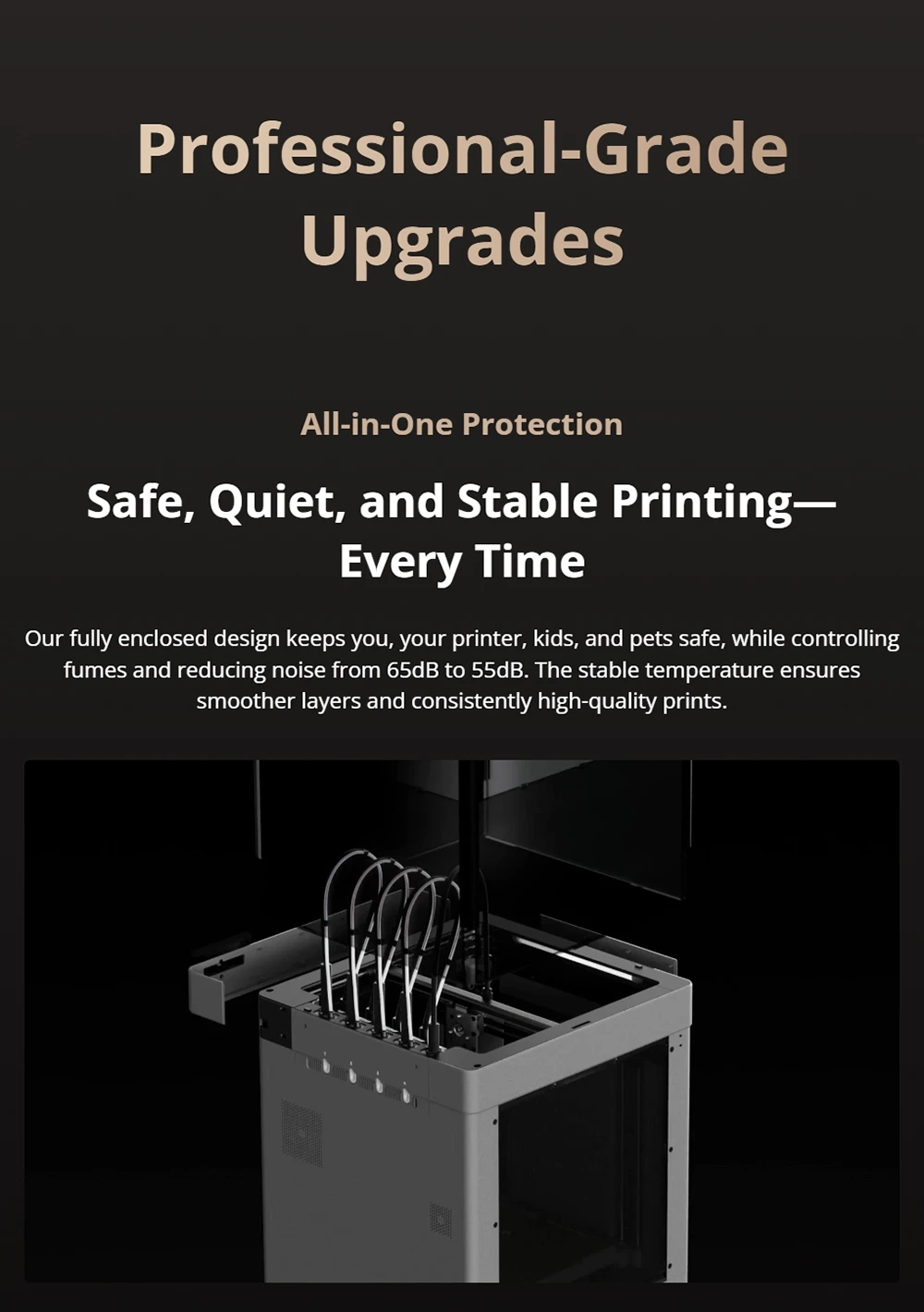

Fully Enclosed Safe & Smart Printing System
A sealed enclosure combined with an H13 HEPA filter and activated carbon air purification system helps reduce dust and VOC emissions for a cleaner working environment. Additional smart features such as power-loss recovery, remote camera monitoring, and multi-device management ensure reliable long-term operation.
Specification
| Brand | Flashforge |
| Type | 3D Printer |
| Model | Creator 5 Pro |
| Color | Black |

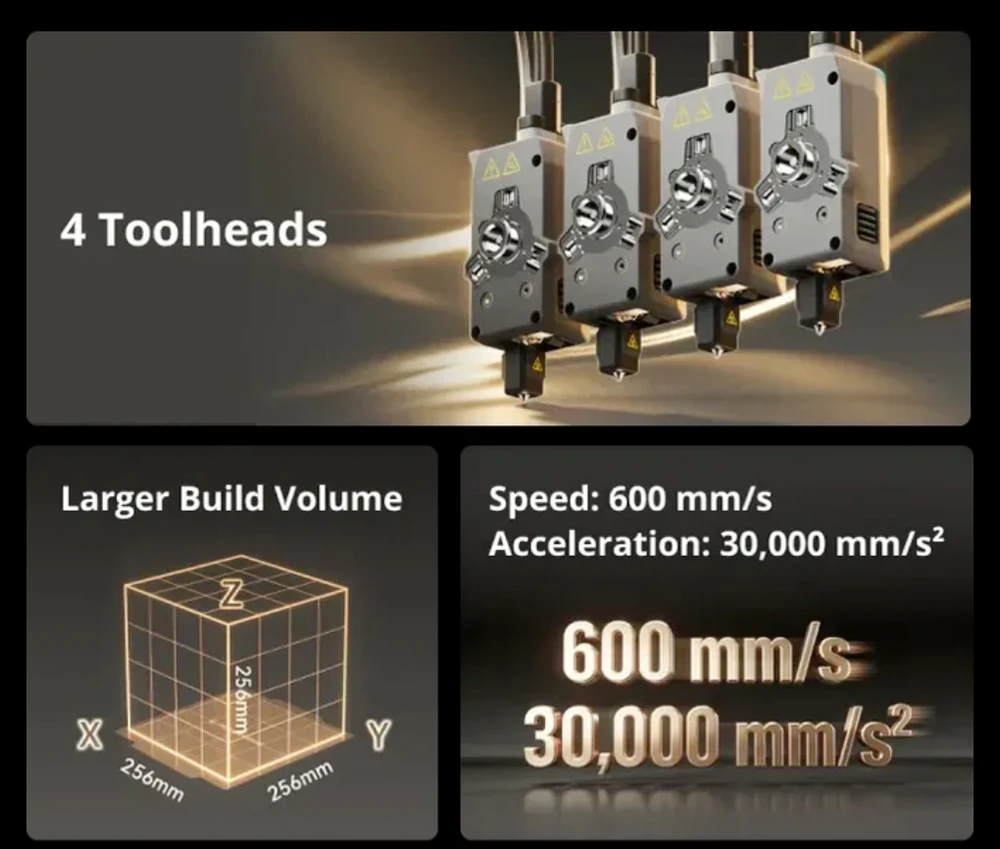

| Extruder Quantity | 4 Independent Toolheads |
| Build Volume | 256 × 256 × 256 mm |
| Layer Thickness | 0.1 – 0.4 mm |
| Maximum Flow Rate | 32 mm³/s |
| Nozzle Diameter | 0.4 mm (Standard), Optional 0.25 / 0.6 / 0.8 mm |
| Max Extruder Temperature | 320°C |
| Max Bed Temperature | 120°C |
| Build Plate | Textured PEI Flexible Steel Plate |
| Auto Leveling | Automatic |
| Removable Nozzle | Supported |
| Dynamic Flow Calibration | Auto PA Calibration |

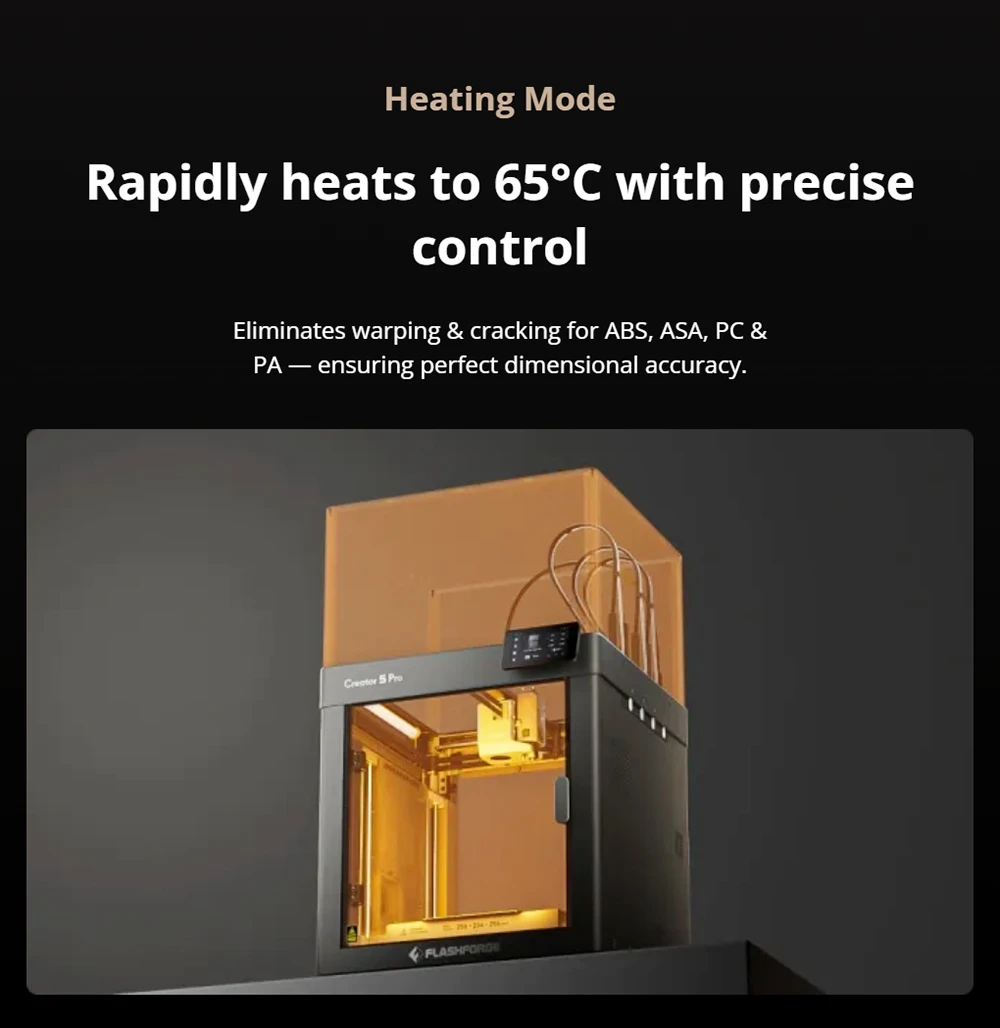

| Active Chamber Heating | Supported, Max 65°C |
| Auxiliary Cooling | Supported (Auxiliary Cooling Fan) |
| Structure | Enclosed Frame Design |
| Air Filtration | HEPA13 Filter + Activated Carbon |
| Door Detection | Supported (Front Door & Top Cover) |
| Maximum Travel Speed | 600 mm/s |
| Maximum Print Speed | 300 mm/s |
| Maximum Acceleration | 30,000 mm/s² |
| Recommended Filaments | PLA, PETG, TPU 90A-95A, PLA-CF, PETG-CF, PET, Silk, PVA, BVOH, S-Multi, S-Path, ABS, ASA, PA-CF, PET-CF, PAHT-CF, ASA-CF (GF), ABS-CF (GF), PPA-CF (GF) |
| Supported Filaments with Enclosure | PC, PA, PC-ABS, PPS-CF |
| Filament Detection | Supported (Run-out Sensor) |
| Power Outage Recovery | Supported |

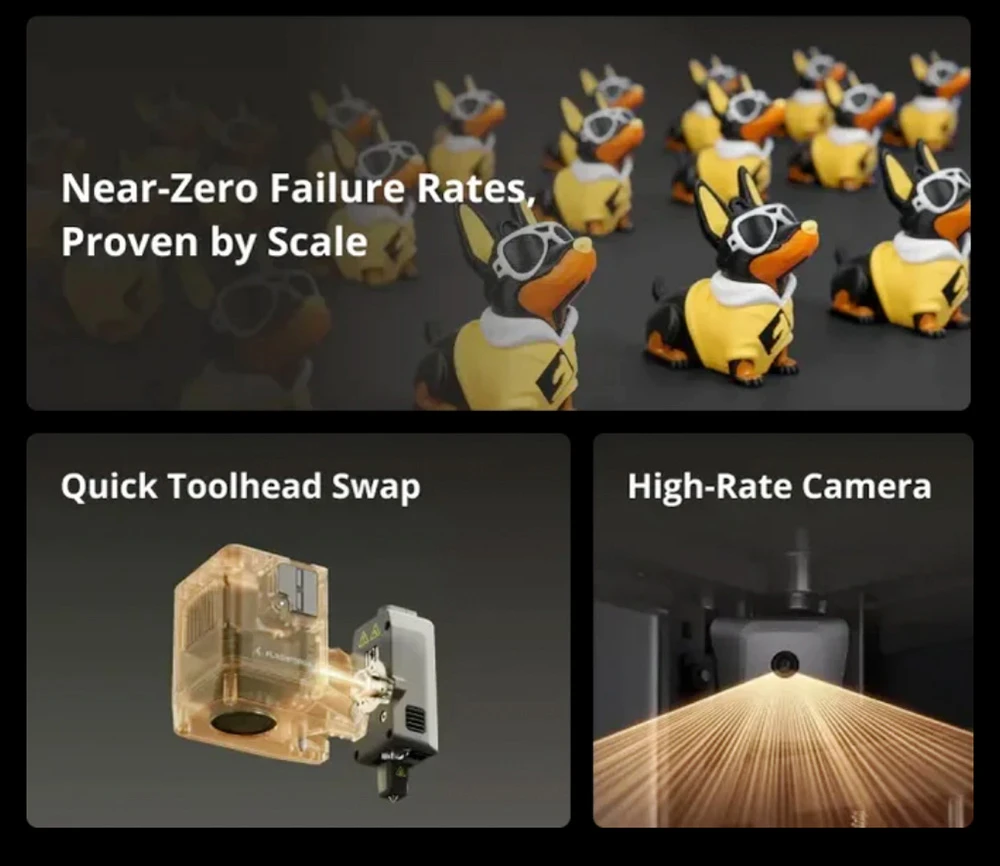

| Remote Monitoring | Built-in Full HD Camera, 1920 × 1080 @ 30fps |
| Chamber Lighting | Supported |
| Multi-Printer Management | Supported |
| One-Touch Power On/Off | Supported |
| Connectivity | USB / WiFi |
| WiFi | 2.4GHz / 5GHz WiFi |
| Compatible Slicing Software | Orca-Flashforge, OrcaSlicer |
| Display | 4-inch 800 × 480 Full-Color Touchscreen |
| Input Voltage | 100–120V / 200–240V AC, 50/60Hz |
| Power Consumption | 1200W |
| Product Weight | 18kg |
| Package Weight | 22kg |
| Product Size(L x W x H) | 520 × 443 × 710 mm (with filament accessories); 441 × 411 × 460 mm (without filament accessories) |
| Package Size(L x W x H) | 520×498×540mm |

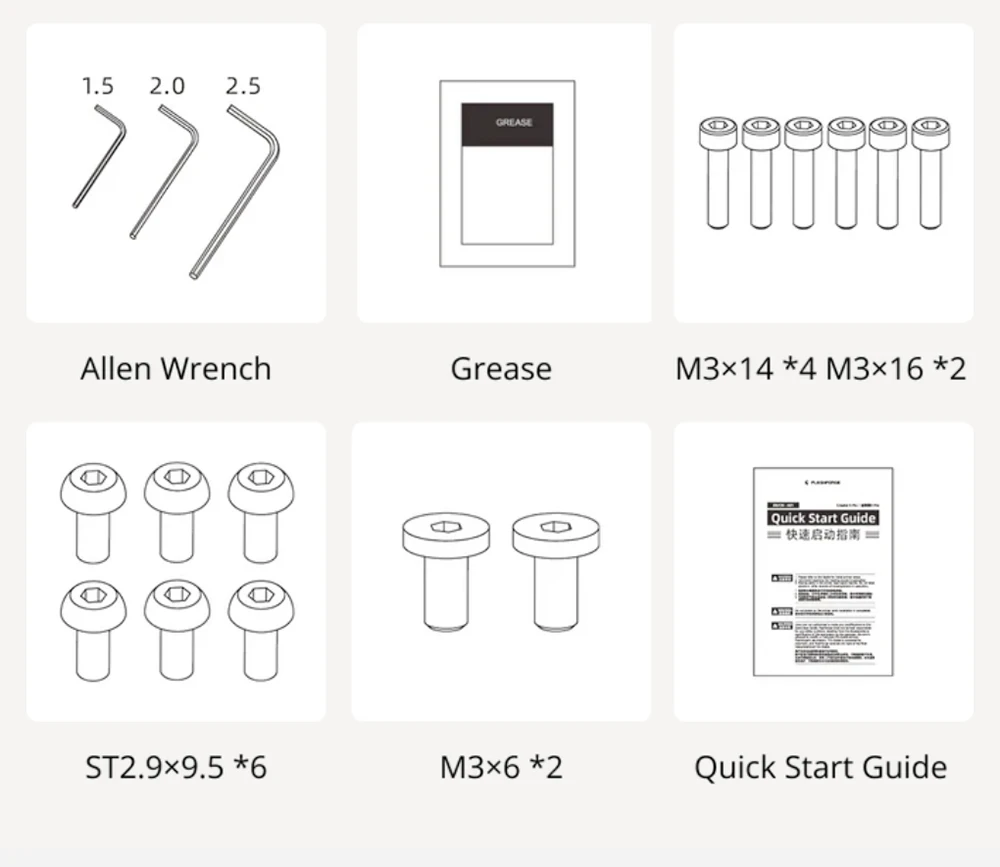

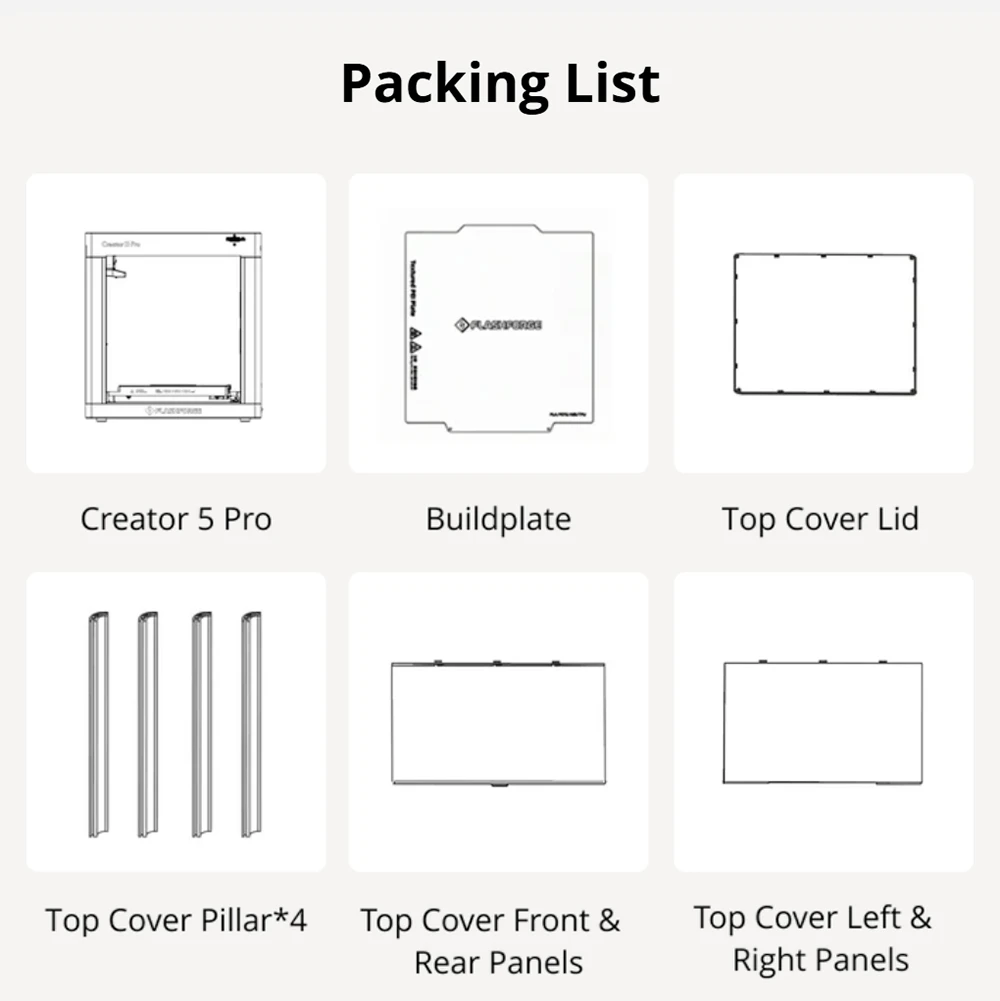

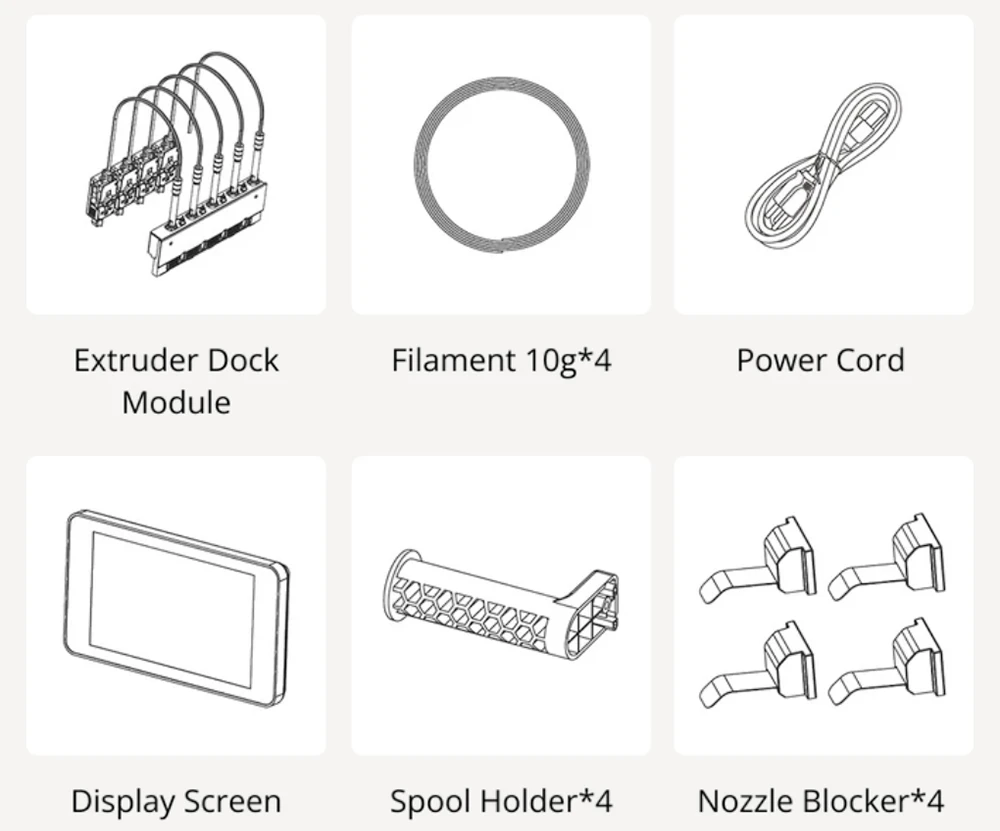

| Package Contents | 1 x Creator 5 Pro 1 x Buildplate 1 x Top Cover Lid 4 x Top Cover Pillars 2 x Top Cover Front & Rear Panels 2 x Top Cover Left & Right Panels 1 x Extruder Dock Module 4 x 10g Filament Samples 1 x Power Cord 1 x Display Screen 4 x Spool Holders 4 x Nozzle Blockers 3 x Allen Wrenches (1.5 / 2.0 / 2.5) 1 x Grease 4 x M3×14 Screws 2 x M3×16 Screws 6 x ST2.9×9.5 Screws 2 x M3×6 Screws 1 x Quick Start Guide |
