FIREBAT F1 Mini PC Ryzen 7 16GB 512GB
FIREBAT F1 Mini PC, AMD Ryzen 7 H255, 8 Cores 16 Threads Up to 4.9GHz, AMD Radeon 780M Graphics, 16GB LPDDR5 RAM, 512GB SSD, USB4 40Gbps, DP+HDMI+Type-C 4K Triple Display, WiFi 6 Bluetooth 5.2, 2.5G RJ45 LAN, Dual M.2 SSD Expansion
FIREBAT F1 Mini PC, AMD Ryzen 7 H255, 8 Cores 16 Threads Up to 4.9GHz, AMD Radeon 780M Graphics, 16GB LPDDR5 RAM, 512GB SSD, USB4 40Gbps, DP+HDMI+Type-C 4K Triple Display, WiFi 6 Bluetooth 5.2, 2.5G RJ45 LAN, Dual M.2 SSD Expansion
Highlights
Powerful AMD Ryzen Zen 4 Performance
Powered by AMD Ryzen 7 H255 processor with Zen 4 architecture, this mini PC features 8 cores and 16 threads, a max boost clock of 4.9GHz, and integrated AMD Radeon 780M graphics. It delivers smooth performance for daily work, entertainment, light gaming, and multitasking, with a maximum power of 54W.
Efficient Full-set Heat Dissipation
Equipped with a cooling fan, high-efficiency thermal paste and dual heat pipes, it maintains stable low-temperature operation and effectively reduces the probability of equipment breakdowns, with ultra-quiet running noise.
Flexible Storage Expansion & Versatile High-Speed Connectivity
Built with LPDDR5 memory, the FIREBAT F1 comes with dual M.2 SSD slots for easy storage expansion to hold applications, media files, and daily use. It is also equipped with USB4 40Gbps, multiple USB-A ports, HDMI 2.1, DP 1.4, 2.5Gbps RJ45 LAN, and a 3.5mm audio jack, supporting fast data transfer and seamless connection to monitors, storage devices, keyboards, and other peripherals.
Triple-Display Productivity Setup
Supports up to three displays simultaneously via USB4 (40Gbps Type-C), HDMI 2.1, and DP 1.4, creating an efficient multi-screen workspace ideal for multitasking and professional workflows.
Fast & Stable Wireless Networking
Features WiFi 6 (802.11AX), Bluetooth 5.2, and a 2.5Gbps RJ45 LAN port with MU-MIMO support, delivering stable high-speed wired and wireless connectivity for gaming, streaming, video conferencing, and large file transfers.
Specification
| Brand | FIREBAT |
| Model | F1 |
| Type | Mini PC |
| Color | Silver |
| Motherboard Platform | AMD Integrated Platform with Integrated Chipset Design |
| CPU | AMD Ryzen 7 H255, 8 Cores / 16 Threads, 3.8GHz Base Clock, Up to 4.9GHz Boost, 16MB Cache, 35–54W TDP |
| Dedicated GPU | None |
| Integrated Graphics | AMD Radeon 780M |
| Cooling System | Single Fan + Copper Heat Pipe Cooling Module with High-Efficiency Thermal Grease |
| Memory | LPDDR5 16GB |
| Memory Slot | Onboard Memory, Non-Replaceable |
| Storage | 512GB PCIe 4.0 SSD |
| Storage Expansion | 2 × M.2 2280 PCIe 4.0 ×4 SSD Slots Supports 2230 / 2242 / 2260 / 2280 Sizes Does Not Support 22110 or SATA SSD |
| Networking | 1 × 2.5Gbps RJ45 LAN Port Realtek RTL8852BE WiFi 6 Dual-Band Wireless Card Supports 802.11ax, 5GHz Band, MU-MIMO Theoretical Max Bandwidth: 1800Mbps Bluetooth 5.2 M.2 2230 Replaceable Wireless Module |

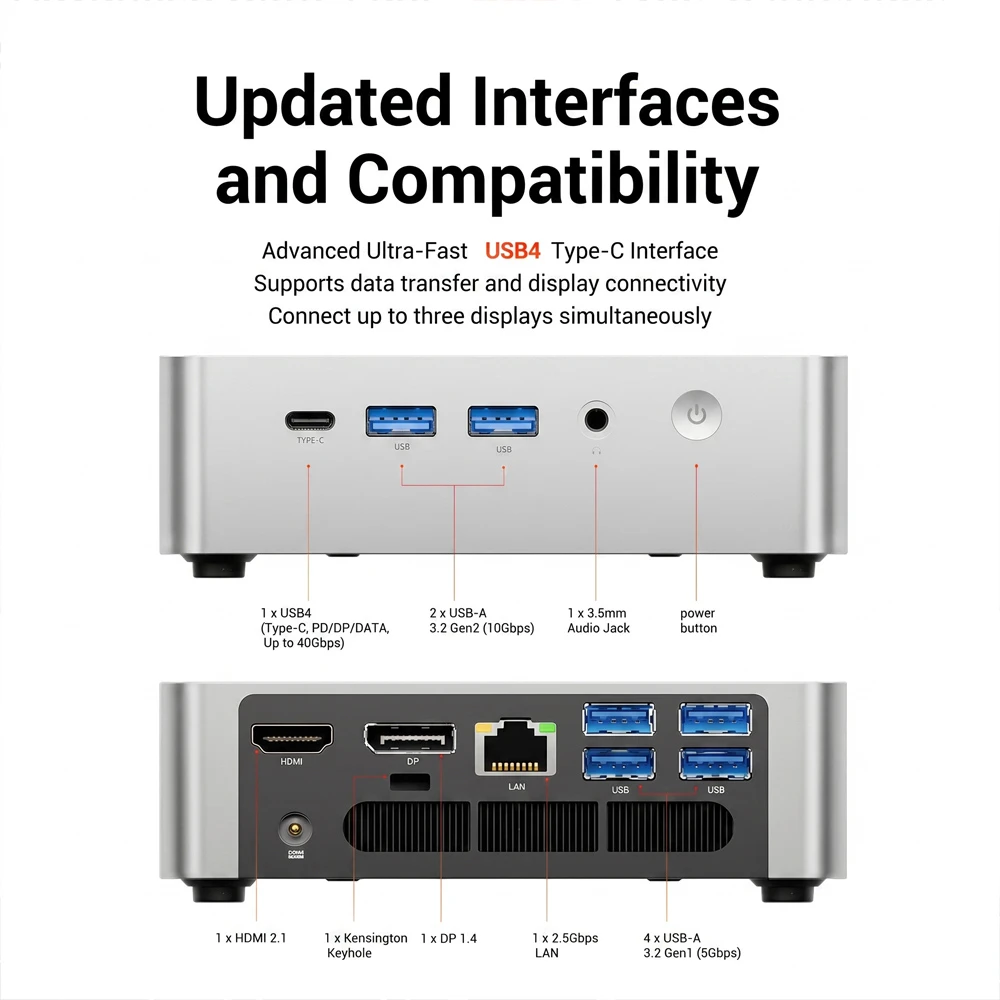

| I/O Ports | 4 × USB 3.2 (5Gbps) 2 × USB 3.2 Gen2 Type-A (10Gbps) 1 × USB4 Type-C (40Gbps, Supports Data Transfer, 4K@60Hz Display Output, PD 100W Power Delivery) 1 × HDMI 1 × DisplayPort 1 × 2.5G RJ45 LAN 1 × DC Power Input 1 × 3.5mm Audio Combo Jack 1 × Kensington Lock Slot |
| Power Adapter | DC 19V 6.3A 120W DC 5.5 × 2.1mm Standard Adapter |
| Product weight | 0.5kg |
| Package weight | 1.2kg |
| Product size (L x W x H) | 128×128×41mm |
| Package size (L x W x H) | 170×170×60mm |

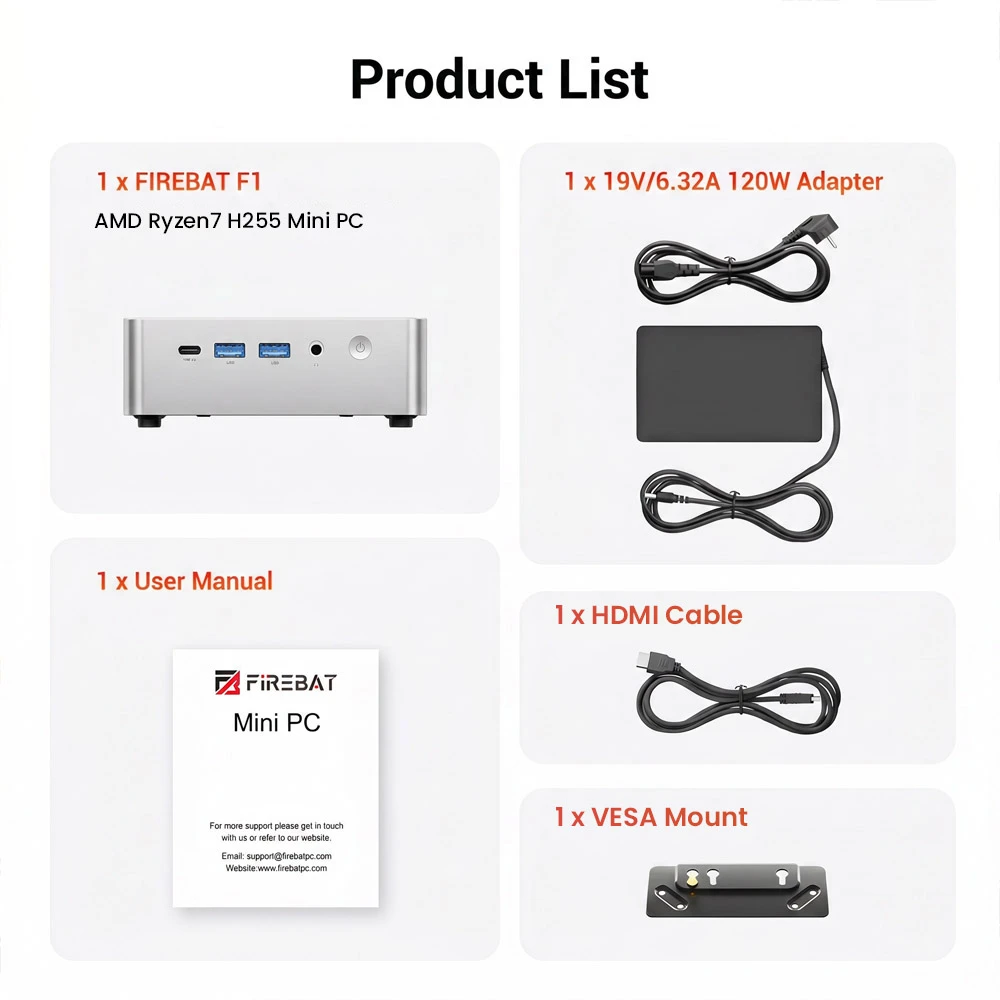

| Package Contents | 1 x Mini PC 1 x 19V/6.32A 120W Adapter 1 x User Manual 1 x HDMI Cable 1 x VESA Mount |
