FIREBAT AM02 Mini PC Barebone AMD Ryzen 7
FIREBAT AM02 Mini PC Barebone (No RAM No SSD), AMD Ryzen 7 H 255 8C/16T up to 4.9GHz, Radeon 780M, Dual DDR5 5600MHz RAM Slots, Dual M.2 PCIe SSD Slots, HDMI + DP + Full-Function Type-C Triple Display, Dual Gigabit RJ45 WiFi 6 Bluetooth 5.2
FIREBAT AM02 Mini PC Barebone (No RAM No SSD), AMD Ryzen 7 H 255 8C/16T up to 4.9GHz, Radeon 780M, Dual DDR5 5600MHz RAM Slots, Dual M.2 PCIe SSD Slots, HDMI + DP + Full-Function Type-C Triple Display, Dual Gigabit RJ45 WiFi 6 Bluetooth 5.2
Highlights
Powerful Zen3 Architecture 8-Core 16-Thread Processor
Built-in Zen3-based 8-core 16-thread CPU with a boosted clock speed up to 4.9GHz. It provides robust computing power to handle daily office document editing, 2D/light 3D graphic design, video transcoding and casual mainstream games smoothly, eliminating lagging or stuttering during long-hour multitasking.
Triple-Display Output & Full-Featured Rich Interfaces
Native support for three independent screen outputs at the same time to expand your working desktop space greatly. Equipped with complete common interfaces including high-speed USB ports and DC-IN power port. The versatile port layout meets your daily connections of external hard drives, monitors, mouse, keyboard and other peripherals for flexible equipment expansion.

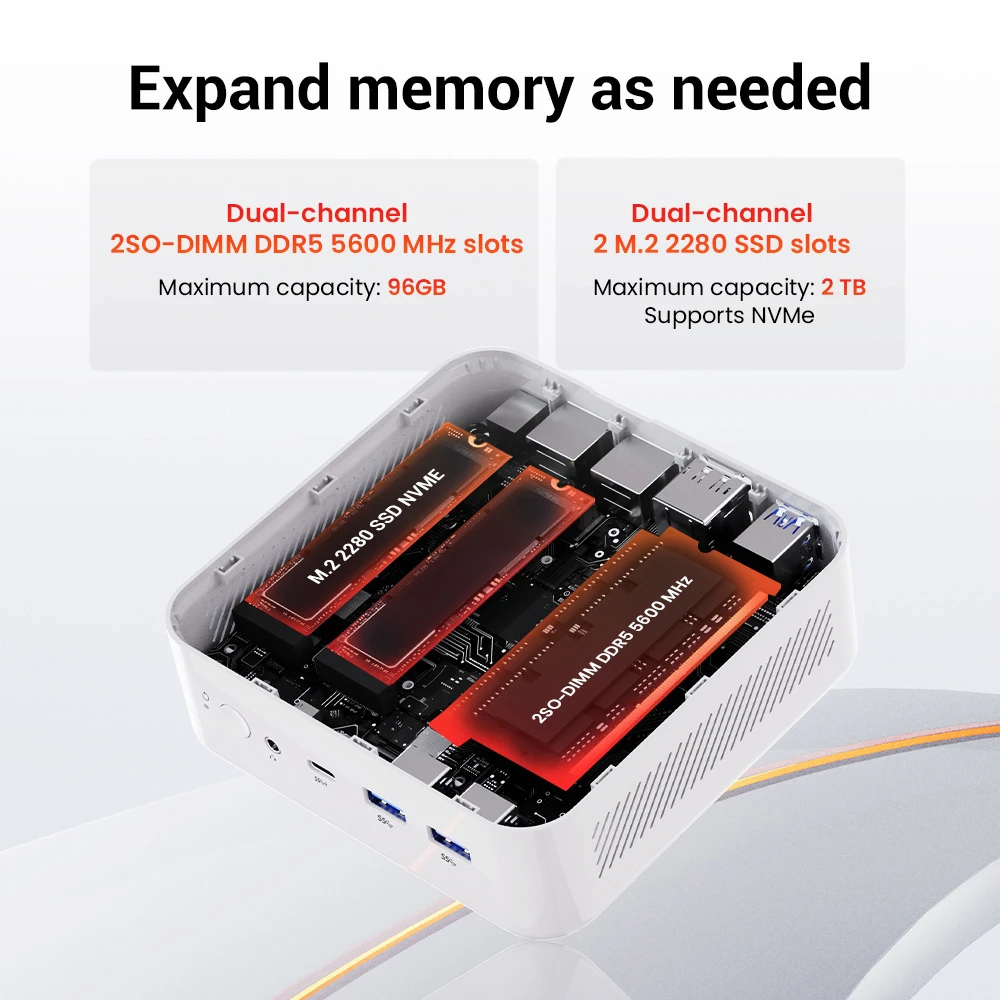

Dual-Channel RAM & Dual M.2 2280 SSD Upgradable Design
Comes with 2×SO-DIMM DDR5 5600MHz memory slots and 2 independent M.2 2280 solid state drive bays. Users can freely upgrade RAM capacity and storage space separately according to personal usage needs, no limitation on later performance expansion.

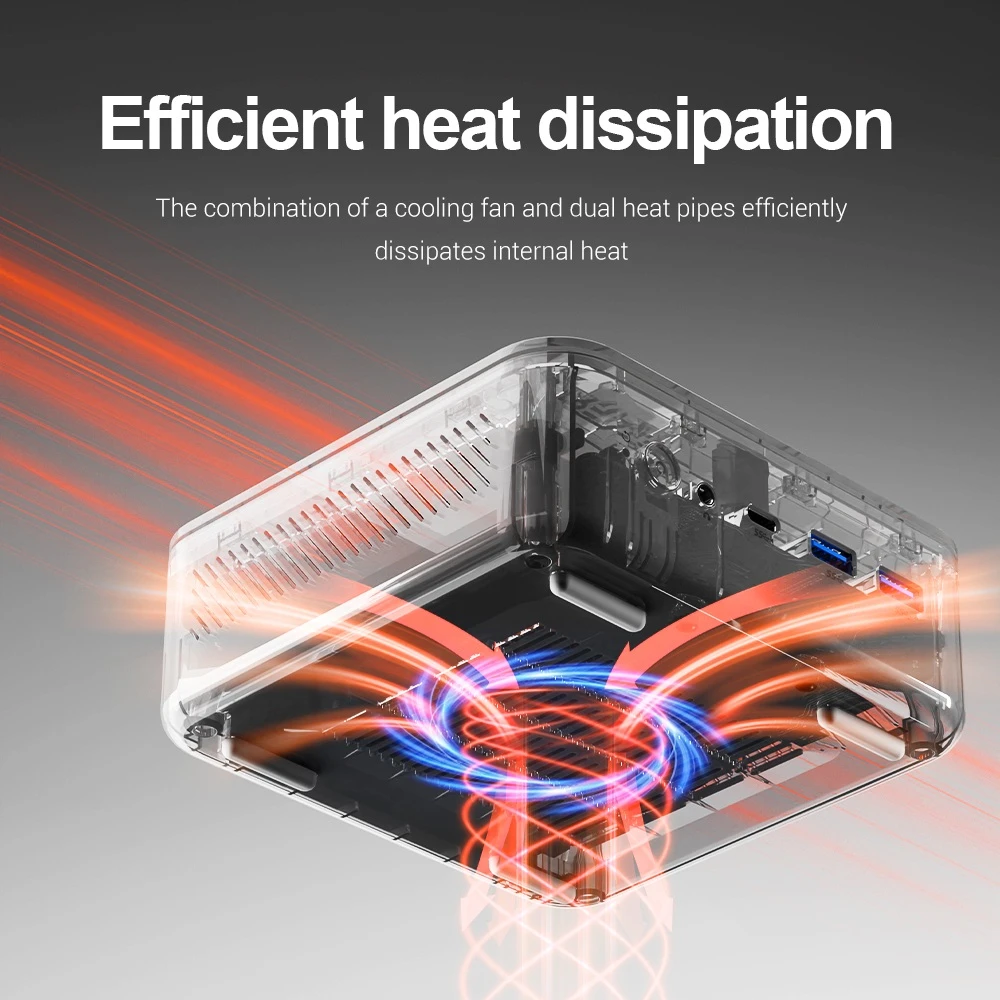

Optimized Dual Heat Pipe + Active Fan Cooling System
Adopts professional dual heat pipes matched with built-in cooling fan structure. This mature heat dissipation solution rapidly conducts and exhausts internal operating heat, keeping the mini PC running at stable temperature under continuous high-load work and avoiding performance drop caused by overheating throttling.

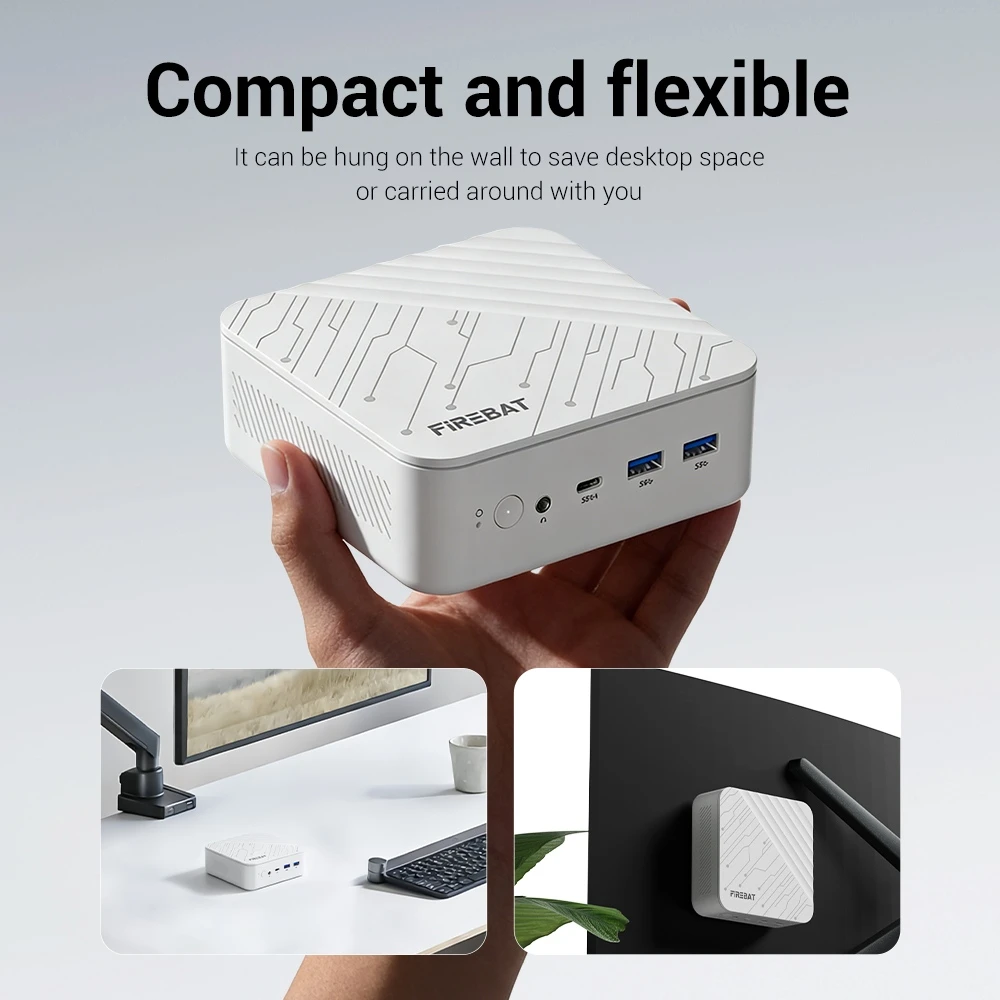

Ultra-Compact Mini Size with VESA Mountable & Portable Design
Extremely compact body with only around 0.77L small volume and lightweight build. Compatible with standard VESA mounting bracket to hang the host behind monitors and free up precious desktop space. Its compact size also enables easy carry for business trips or temporary mobile office scenarios.
Specification
| Brand | FIREBAT |
| Model | Mini PC |
| Type | AM02 |
| Color | White |
| CPU | AMD Ryzen 7 H 255, 8 Cores 16 Threads, 3.8GHz to 4.9GHz, 16MB L3 Cache, Non-upgradable, Default 34-54W |
| Graphics | AMD Radeon 780M Integrated Graphics |
| Cooling System | Single Fan + Dual Heat Pipe Cooling, High-efficiency Thermal Paste |
| Memory | 0GB |
| Memory Slots | Dual-channel DDR5 5600MHz SO-DIMM, Supports up to 96GB |
| Storage | 0GB M.2 PCIe 3.0 SSD |
| SSD Interface | M.2 2280 SSD Slot ×2 M-KEY PCIe 4.0 ×4 ×2 Supports up to 2TB |
| Networking | Gigabit Ethernet ×2 Realtek RTL8852BE Dual-band WiFi 6 (802.11ax) Supports 5GHz Band Up to 1800Mbps Theoretical Speed Supports MU-MIMO Bluetooth 5.2 M.2 2230 Replaceable Wireless Card |
| I/O Ports | USB 3.2 Gen2 Type-A (10Gbps) ×4 USB 3.2 Type-C (10Gbps) ×1 Supports 65W One-cable Solution Supports DP 1.4 Video Output Supports PD 100W HDMI 2.0 ×1 DP 2.0 ×1 Gigabit Ethernet ×2 DC Power Port ×1 3.5mm Audio Combo Jack ×1 Security Lock Slot ×1 |
| Power Adapter | DC 19V 6.32A 120W DC Plug Size: 5.5 × 2.5mm |
| Material | Plastic |
| Product Weight | 0.485kg |
| Package Weight | 0.9kg |
| Product Size (L x W x H) | 13×12.7×4.7cm |
| Package Size (L x W x H) | 15×15×7cm |

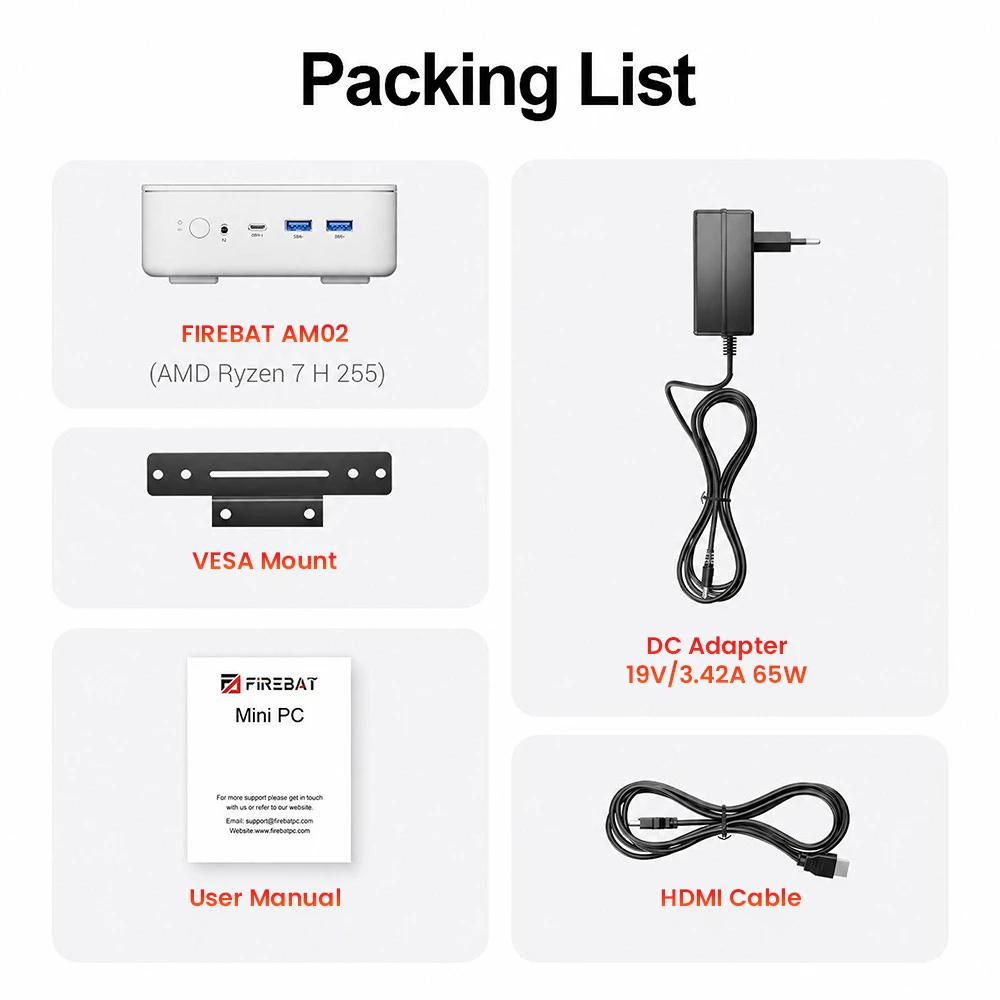

| Package Contents | 1 x Mini PC 1 x VESA Mount 1 x DC Adapter 1 x HDMI Cable 1 x User Manual |
