ELEGOO Saturn 4
Imprimante 3d LCD Monochrome ELEGOO Saturn 4, 10 pouces 12K, volume d’impression 218.88 x x 122.88 x 220mm³
- 10-inch 12K Mono LCD
- COB + Fresnel Collimating Lens
- Auto Leveling & Intelligent Mechanical Sensor
- User-Friendly Structure & Advanced Cooling System
- Large Print Size of 218.88×122.88×220 mm³
10-Inch 12K Mono LCD
COB + Fresnel Collimating Lens

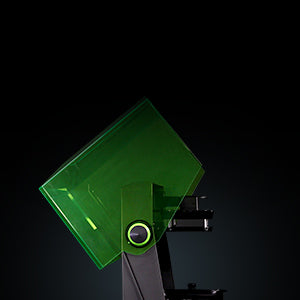

Flip-Up Cover Design

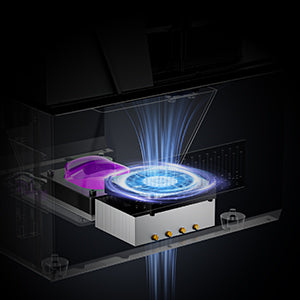

Advanced Cooling System
Automatic Leveling
Smart Mechanical Sensor
12K Mono LCD For Excellent Details Reproduction
With a 10-inch 12K mono LCD, the Saturn 4 boasts an incredible resolution of 11520×5120 and an XY resolution of 19×24μm, presenting you exquisite models with stunning clarity and precision. The LCD screen is equipped with a durable and anti-scratch protector made of 9H tempered glass, effectively protecting the screen from scratches and damage.

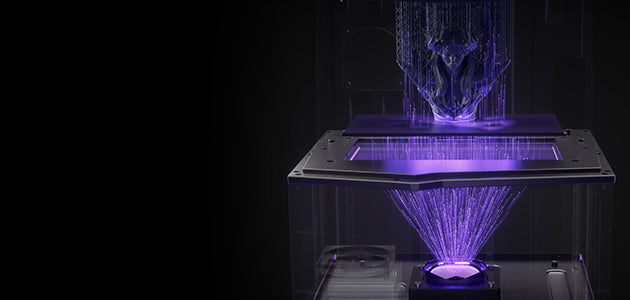

COB & Fresnel Collimating Lens For Precise Surface
When the COB light source emits light at 405nm with the combination of Fresnel collimating lens, it can achieve an ultra-low astigmatism coefficient of 0.5%, an exceptional field uniformity of 92%, and a precise angle deviation control below 5° on the forming surface, realizing accurate and even printing results with delicate finishing and intricate details.
Automatic Leveling, Print Right Out Of The Box
With its intelligent self-check and auto-leveling features, the Saturn 4 delivers a worry-free experience. Simply unbox, power on, and print – the printing experience has never been this effortless.
One-Click Self-Check
With one single click, the Saturn 4 will perform a quick self-check to ensure all its components are working properly before your printing starts.
One-Click Automatic Leveling
Thanks to its intelligent mechanical sensor, leveling the build plate has become a breeze every time once you click the button, saving your time and efforts.

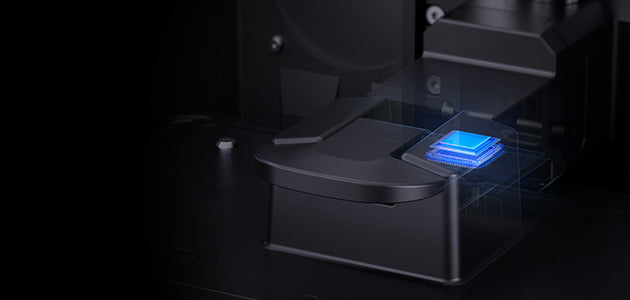

Smart Mechanical Sensor, Enjoy Worry-Free Printing
Equipped with a mechanical sensor, the Saturn 4 supports residue detection to prevent damage to the LCD screen, as well as resin shortage and leveling failure alarm to further enhance the safety and reliability during printing.
User-Friendly Design
ELEGOO is dedicated to offering users a convenient printing experience. From the quick-release design of the build plate to the dual pour spouts design of the resin tank, along with the drip tray design to prevent resin drips, the replaceable tank lock, and the flip-up cover design for effortless access, every detail has been carefully considered to make your operation easier and more enjoyable.
Compatible With Mars Mate Air Purifier
PFA Release Film
Laser-Engraved Build Plate

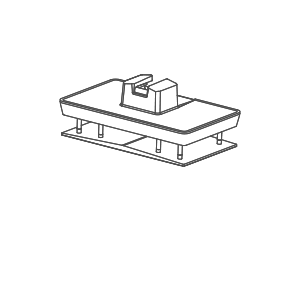

What’s In Box

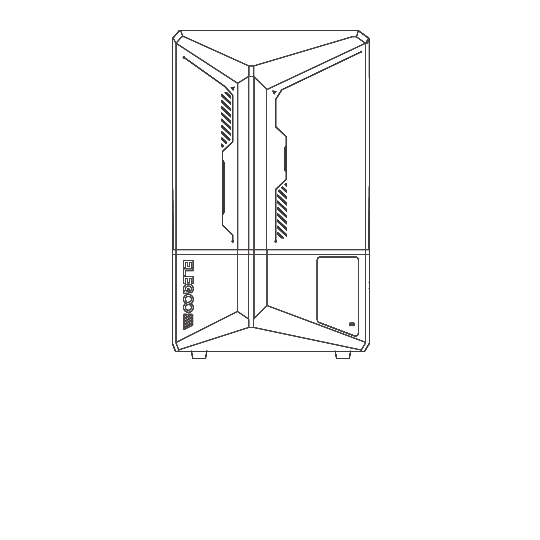

SATURN 4 3D PRINTER
USB FLASH DISK
MASK
GLOVES
BACKUP SCREWS
USER MANUAL
ADAPTER
TOOL KIT
SCRAPER
Specification
LCD
10-inch 12K Mono LCD
SYSTEM
EL3D-3.0.1
SLICER SOFTWARE
CHITUBOX & Voxeldance Tango
TECHNOLOGY
MSLA Stereo lithography
LAYER THICKNESS
0.01-0.2mm
PRINTING SPEED
MAX 70mm/h
Z AXIS ACCURACY
0.02mm
XY RESOLUTION
19*24um (11520*5120)
BUILD VOLUME
218.88mm(L)*122.88mm(W)*220mm(H)
LIGHT SOURCE
COB Light Source + Fresnel Collimating Lens(wavelength 405nm)
LANGUAGES
Chinese, English
CONNECTIVITY
USB offline printing
WEIGHT
13.5kg
OPERATION
3.5-inch resistive touch screen
POWER REQUIREMENTS
100-240V 50/60 Hz 24V 6A
PRINTER DIMENSIONS
327.4mm(L)*329.2mm(W)*548mm(H)
