BMAX B6 Turbo i5 16GB 512GB
BMAX B6 Turbo Mini PC, Intel Core i5-8257U 4 Cores Up to 3.9GHz, 16GB DDR4 RAM 512GB SSD, HDMI + DP Dual 4K Display, 4×USB, RJ45 LAN, 3.5mm Audio Jack, WiFi 6, Bluetooth 5.2
BMAX B6 Turbo Mini PC, Intel Core i5-8257U 4 Cores Up to 3.9GHz, 16GB DDR4 RAM 512GB SSD, HDMI + DP Dual 4K Display, 4×USB, RJ45 LAN, 3.5mm Audio Jack, WiFi 6, Bluetooth 5.2
Highlights
Powerful Intel Performance with Efficient Cooling
Powered by an Intel Core i5-8257U processor (4 cores, 8 threads, up to 3.90GHz Turbo), this mini PC delivers smooth multitasking and reliable performance. The dual copper heat pipes and smart fan cooling system ensure efficient heat dissipation while maintaining quiet operation.

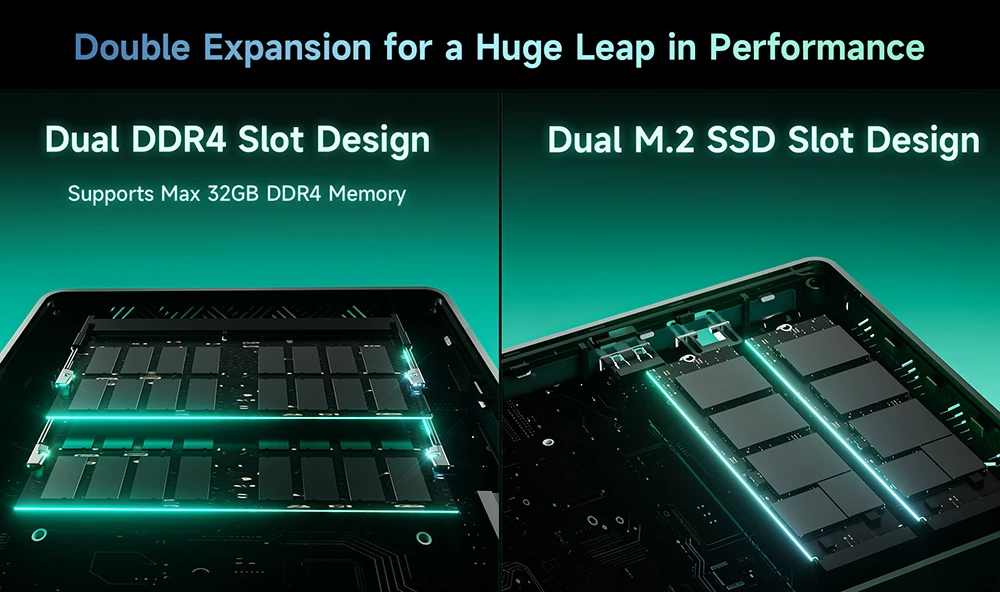

Expandable Memory & High-Speed Storage
Equipped with 16GB DDR4 RAM (dual slots, expandable up to 32GB) and a 512GB SSD with dual M.2 slots, providing fast system responsiveness and large storage capacity for office work, creative tasks, and demanding applications.
Ultra-Compact Design with VESA Mount Support
Measuring only 112×125×33mm, this mini PC saves valuable desk space. The VESA mount design allows it to be easily installed behind a monitor, making it perfect for offices, home setups, and space-limited environments.
Rich Connectivity & Dual 4K Display

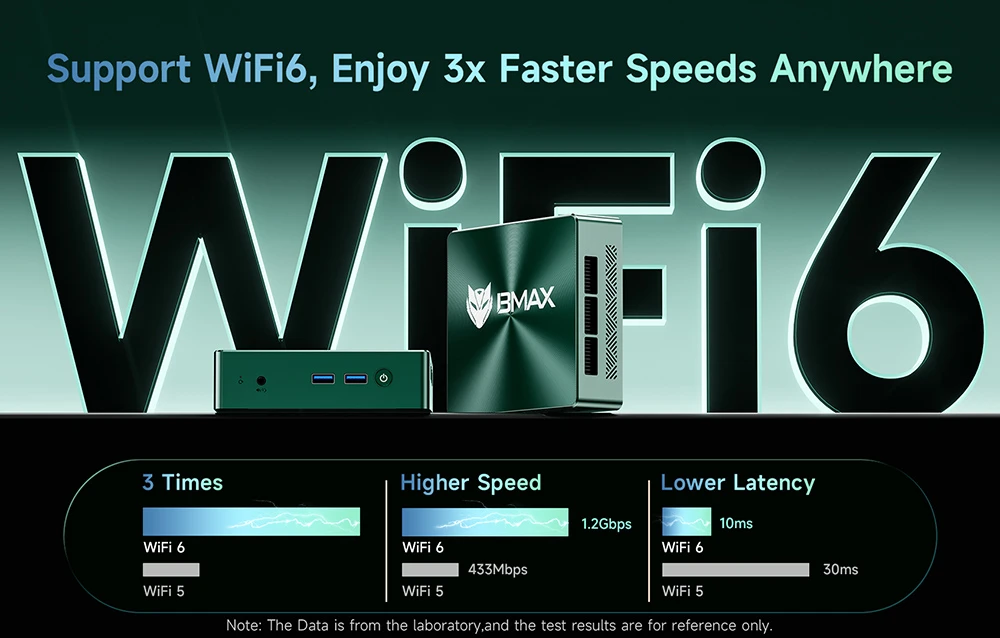

Includes HDMI and DisplayPort outputs supporting dual 4K@60Hz displays. With multiple USB ports, Gigabit Ethernet, and Wi-Fi 6, it connects seamlessly to keyboards, printers, projectors, and other peripherals.
Windows 11 & Linux Compatibility

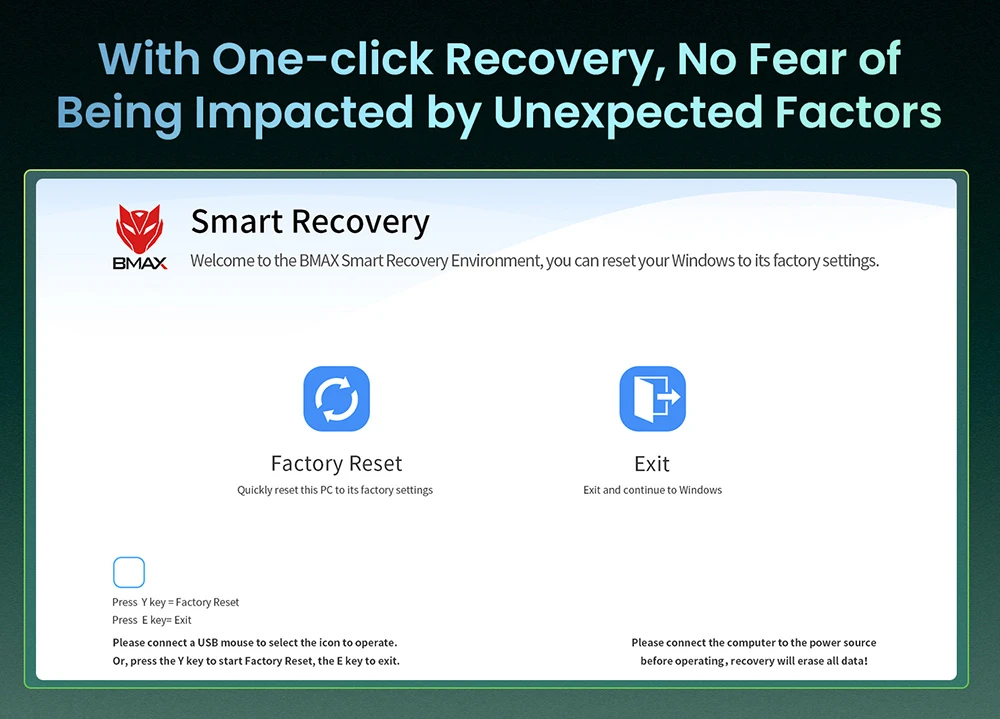

Pre-installed with Windows 11 and compatible with Linux (Ubuntu), providing flexible system options. The built-in one-click recovery function allows quick factory reset for improved system stability and data security.
Specification
| Brand | BMAX |
| Model | B6 Turbo |
| Type | Mini PC |
| Color | Black Green |
| CPU Name | Intel Core i5-8257U Processor |
| CPU Platform / Series | Intel 8th-Gen Comet Lake |
| CPU Cores / Threads | 4 Cores / 8 Threads |
| CPU Frequency | Base 1.4GHz / Burst 3.9GHz |
| GPU | Intel Iris Plus Graphics 645 |
| TPM | TPM 2.0 Support |
| Memory (Pre-installed) | 16GB DDR4 2400MHz SO-DIMM |
| Max Memory | 32GB DDR4 2400MHz SO-DIMM |
| Memory Slots | DDR4 SO-DIMM ×2 |
| Storage | 512GB NVMe SSD |
| SSD Slot 1 | M.2 NVMe (PCIe 3.0 x2) 2280 ×1 |
| SSD Slot 2 | M.2 SATA/NVMe (PCIe 3.0 x4) 2280 ×1 |
| Pre-installed OS | Microsoft Windows 11 (64-bit) |
| System Languages | English, French, German, Russian, Spanish, Italian, Portuguese, Japanese, Korean, Simplified Chinese, Arabic, Thai, Traditional Chinese |
| Activation | Automatic Online Activation |
| Supported OS | Windows 11 / Windows 10 |
| Linux Support | Ubuntu 22.04 LTS Tested |
| LAN | 1Gbps Ethernet |
| Wi-Fi | Wi-Fi 6 (802.11a/b/g/n/ac/ax) |
| Wi-Fi Band | 2.4GHz / 5GHz |
| Bluetooth | Bluetooth 5.2 |
| DC Power Port | DC12V/3A (5.5×2.1×12mm) ×1 |
| Audio Jack | 3.5mm Stereo Headset Jack ×1 |
| USB 3.2 | 2 |
| USB 2.0 | 2 |
| HDMI | HDMI 1.4b ×1 |
| DisplayPort | DP 1.2 ×1 |
| Ethernet Port | RJ45 ×1 |
| Power Button | With LED Indicator |
| Clear CMOS | Button |
| Case Material | Plastic |
| Cooling System | Smart Fan + Dual Copper Heat Pipes |
| Battery | CR2032 Lithium Metal Battery, 3V 230mAh |
| Battery Weight | 3g |
| Product Weight | 336g |
| Package Weight | 690g |
| Product Size | 125 × 112 × 33 mm |
| Package Size | 445 × 400 × 245 mm |
| Package Content | 1 x B6 Turbo Mini PC 1 x Power Adapter 1 x HDMI Cable 1 x Bracket 1 x User Manual |
