BIGTREETECH BTT Pi V1.2 Carte de développement Designed to be the same size as Raspberry Pi, making it a seamless fit for your existing projects.

Feature Highlights

1. CPU: ALLWINNER H616, Quad-core Cortex-A53 @1.5GHz
2. GPU: Mali G31 MP2, Support OpenGL3.2
3. RAM: 1GB DDR3L SDRAM
4. Display: HDMI2.0A Port, 4K Supported
5. 4 x USB 2.0 Ports
6. Fast Ethernet + 100Mbps WiFi
7. Audio: 3.5mm Jack

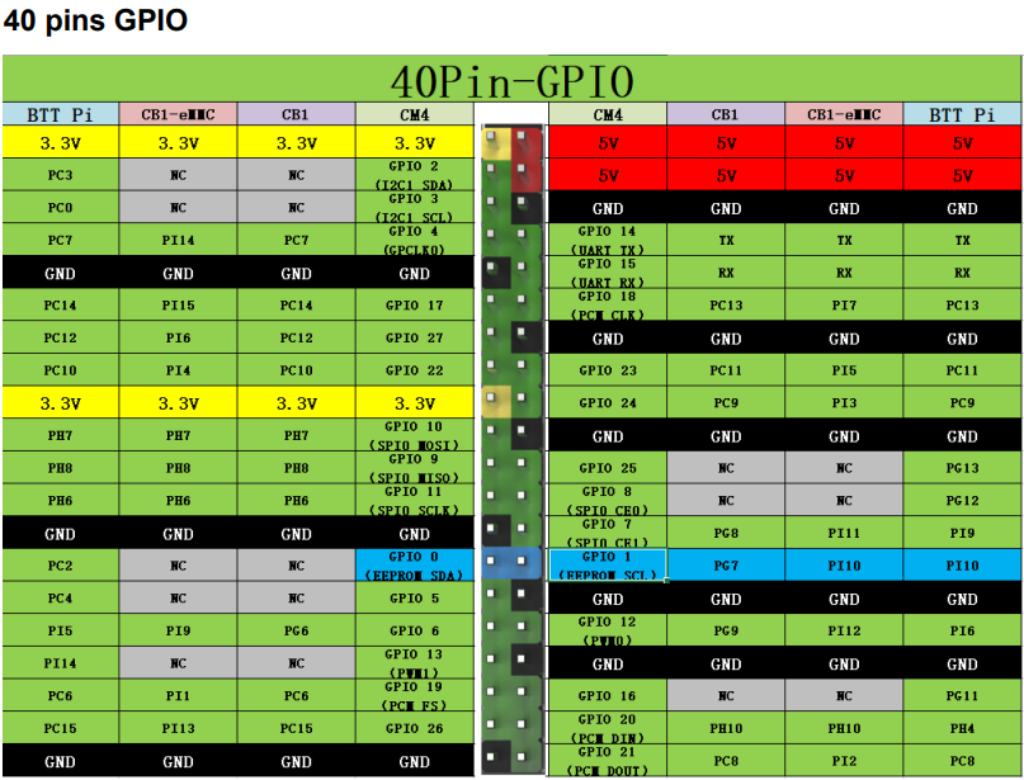

8. 40-pin GPIO
9. Display: SPI Port
   10.ADXL345 Port
   11.Onboard connecting port for USB To CAN Module.
   12.Built-in IR Receiver
   13.The mounting holes are in the same location as Raspberry Pi.

Specifications

1. Product Dimensions: 85 x 56 mm
2. Mounting Size: 64 x 49.4 mm
3. Type-C Input Voltage: DC 5V±5%/2A
4. Input Voltage of Power IN Terminal: DC 12V-24V
5. Pi v1.2 Output Voltage: 3.3V±2%/100mA
6. Pi v1.2 WiFi: 2.4G/802.11 b/g/n Wireless LAN

OS Writing
Download OS Image
Please download and install the OS image we provided:
https://github.com/bigtreetech/CB1/releases
Download and Install Writing Software
Install the official Raspberry Pi Imager: https://www.raspberrypi.com/software/
balenaEtcher: https://www.balena.io/etcher/
Choose one of the above software to download and install.
Start to Write OS
Using Raspberry Pi Imager

1. Insert a microSD card into your computer via a card reader.
2. Choose OS.

Network Configuration
Wired Network
For wired networks, no additional settings are needed. Just plug and play.
WiFi Setting
After the OS image writing is completed, the microSD card will have a FAT32 recognized
by the computer, find “system.cfg”.

Configure the Motherboard
SSH Connect to Device

1. Install the SSH application Mobaxterm：https://mobaxterm.mobatek.net/downloadhome-edition.html
2. Insert the microSD card into the motherboard, and wait for the system to load after
   powering on, approx. 1-2min.
3. The device will automatically be assigned an IP address after successfully connecting
   to the network.
4. Find the device IP address on your router page.

Designer to be the same size as Raspberry Pi, making it a seamless fit for your existing projects.
