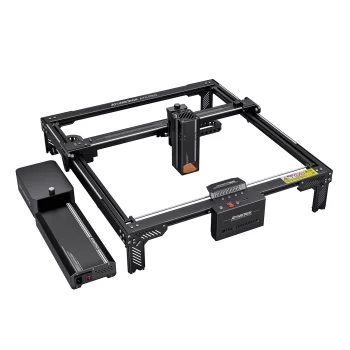

ATOMSTACK A70 Pro
ATOMSTACK A70 Pro Laser Engraver 77W COS Blue Light Laser Power with F60 Air Assist Set 24000mm/min Engraving Speed and Offline Working 0.01mm Precision Support Auto Focus with 4.3 inches Control Monitor 500x400mm Work Area Suitable to Engrave 304 Mirror Stainless Steel/Glass/Ceramics
Features:
1. Powerful cutting force: With 70-77W output laser power, A70 pro is capable of cutting 25mm acrylic, 12mm MDF density board, 30mm pine board, 0.3mm stainless steel sheet by one pass.
2. Enlarged processing area: As a professional processing tool, standard 400x500mm large working area, frame can accommodate materials up to 645x600mm in size.
3. New motion structure: To ensure high-speed stable operation, the machine’s three axes adopt a new low center of gravity dual-axis guide rail structure, stable operation at high speed, quiet, suitable for heavy-duty engraving and cutting work.
4. Offline work: Product comes with a second-generation smart board and control screen, can work offline without a computer or phone.
5. Standard large flow air assist: Equipped with maximum 60L/min air assist ensures flawless cutting work, surface of the cut lines does not turn yellow, extends the life of the laser.
6. Multiple usage scenarios: Support work on reflective metals, ceramics, black acrylic, supports woodworking, painting art, DIY creation, billboards, metal marking, clothing design.
7. Quick accuracy maintenance: At a high-speed operation of 400mm/s, can maintain accuracy of 0.01mm.
8. Dual-mode focus adjustment: Supports manual and automatic focus adjustment, completes focus adjustment within 8 seconds.
9. Automatic flame alarm: Triggers an alarm and stops working when the wavelength points of the flame spot in the working area exceed 35%, accurate and fast.
10. Intelligent cooling system: Opens the double-layer air guide hood air assist, automatically turns on air assist during cutting for better heat dissipation and cutting effects.
11. Power-off resume function: In case of power outage during creation, resumes unfinished creation when power is restored.
12. More accessories available: Atomstack A70 Pro can be equipped with a cover, camera, roller, extension rod, conveyor belt. (accessories are need to purchase separately)
Specification:
Product Model: AtomStack A70 Pro
Device Size: 706x767x230mm
Engraving Size: 500*400mm
Working Principle: Engraving / Cutting
Engraving Materials: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton, slate;
Cutting Materials: Thin steel plate, cardboard, non-woven fabric, wood, acrylic, more thin plastic sheets, sponge;
Input Power: 360W
Output Power: 70-77W, 35-39W
Maximum Speed: 400mm/s (24000mm/min)
Laser Wavelength: 455±5nm
Engraving Accuracy: 0.01mm
Repetition Accuracy: 0.1mm
Spot Size: 0.12×0.18mm (70W) / 0.08mmx0.12mm (35W)
Transmission Method: USB transmission
Focus Adjustment Method: Automatic focus + manual focus
Screen Control: 4.3 inches
Connection Support: Type-C, mobile WiFi, touch screen
Support Systems: IOS, Android, Windows, Mac
Operating Software: LaserGRBL, LightBurn, AtomStack Studio
Air Flow Rate: 0-60 L/min infinitely adjustable
Power Supply: Input 100-240V AC, 50/60HZ, output 12V 5A
Packing List:
1 x AtomStack A70 Pro 70W machine
1 x 360W switching power supply
1 x F60 air assist kit
1 x Control Terminal
