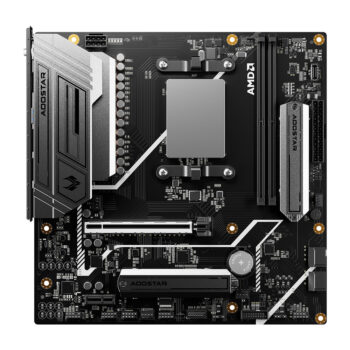

AOOSTAR TA95X3D Desktop PC Motherboard AMD Ryzen 9
AOOSTAR TA95X3D Desktop PC Motherboard, AMD Ryzen 9 9955HX3D, 16-Core 32-Thread, Up to 5.4GHz, 128MB L3 Cache, DDR5-5600, EXPO Overclocking Support, PCIe 5.0, Dual M.2 NVMe, 5G LAN, HDMI + DP + USB 3.0 Ports
AOOSTAR TA95X3D Desktop PC Motherboard, AMD Ryzen 9 9955HX3D, 16-Core 32-Thread, Up to 5.4GHz, 128MB L3 Cache, DDR5-5600, EXPO Overclocking Support, PCIe 5.0, Dual M.2 NVMe, 5G LAN, HDMI + DP + USB 3.0 Ports
Highlights

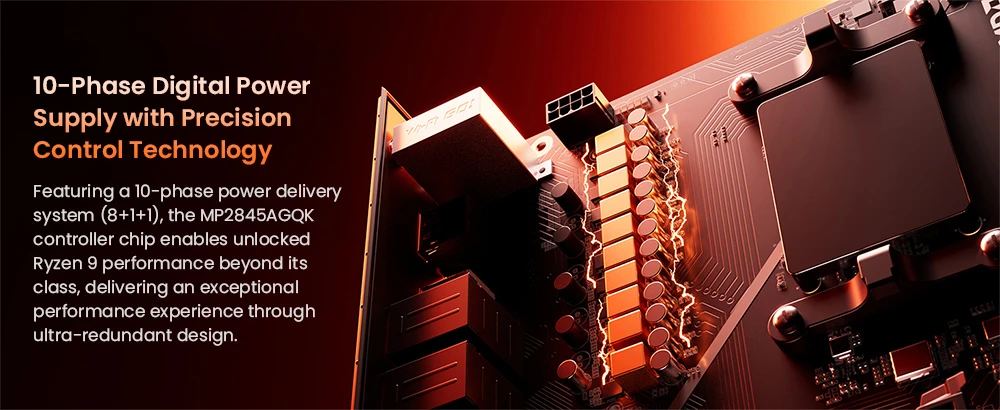

10-Phase Digital Precision Power Design
Features a robust 10-phase (8+1+1) power delivery system powered by the MP2845AGQK controller chip. This high-efficiency power architecture provides stable and precise power output, fully unleashing Ryzen 9 processor performance for overclocking, gaming, and demanding workloads.

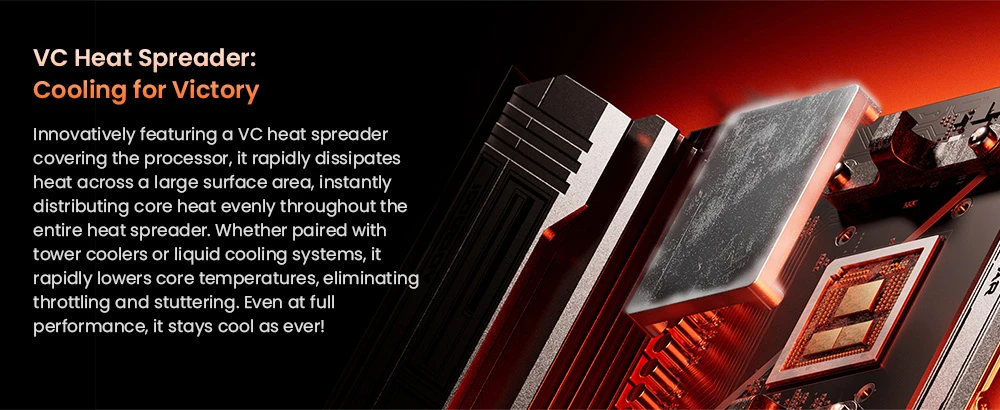

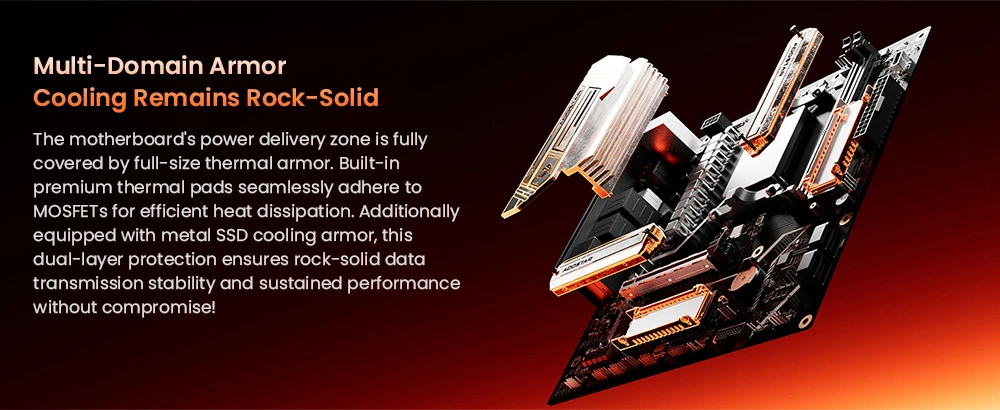

Advanced Thermal Armor with VC Heat Spreader
Equipped with full-coverage thermal armor for enhanced power component cooling, plus dedicated metal armor for M.2 SSD heat dissipation. The integrated VC (Vapor Chamber) heat spreader efficiently distributes CPU heat, reducing thermal throttling and maintaining consistent performance with both air and liquid cooling solutions.

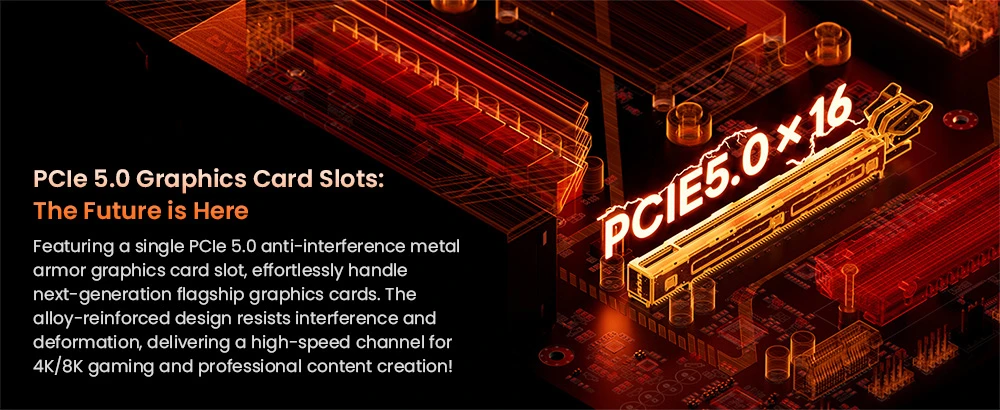

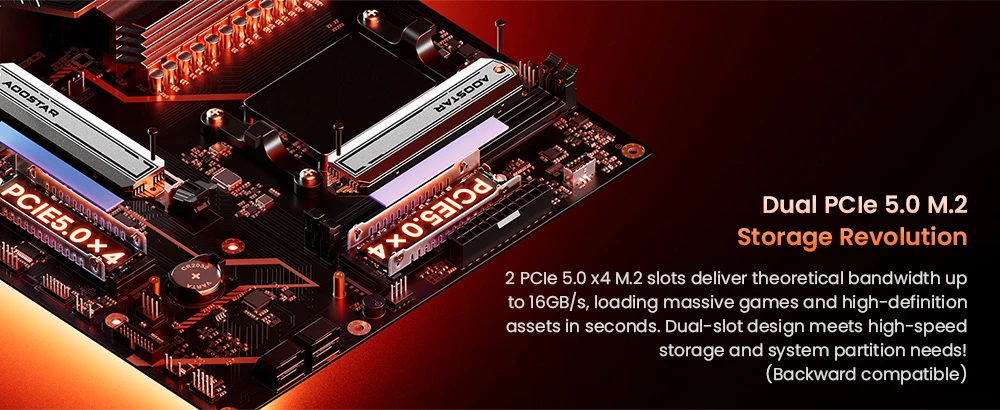

Next-Generation PCIe 5.0 Expansion Support
Offers a PCIe 5.0 ×16 graphics slot and dual PCIe 5.0 ×4 M.2 slots for ultra-fast expansion. The PCIe 5.0 GPU interface supports next-generation flagship graphics cards for high-resolution gaming and professional content creation, while dual M.2 slots deliver up to 16GB/s bandwidth for rapid storage performance.

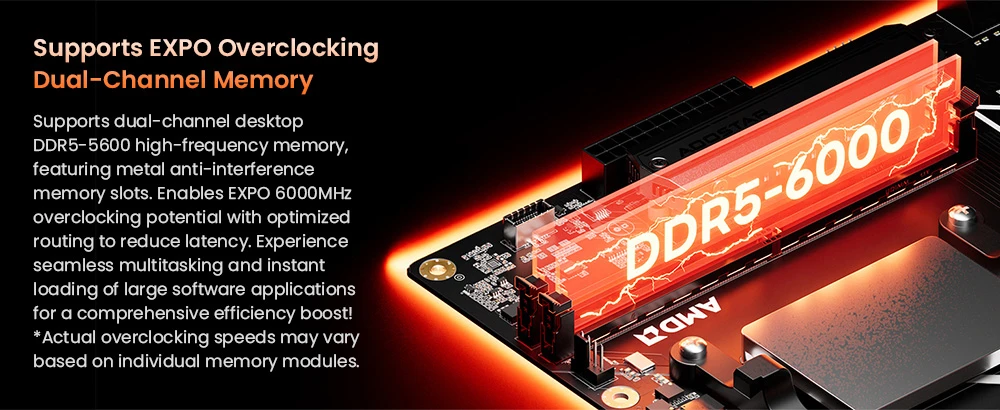

Dual-Channel DDR5 Memory with EXPO Overclocking
Supports dual-channel DDR5-5600 memory with reinforced anti-interference DIMM slots. Optimized circuit design enables EXPO overclocking up to 6000MHz, reducing latency and improving system responsiveness for multitasking, gaming, and productivity applications.

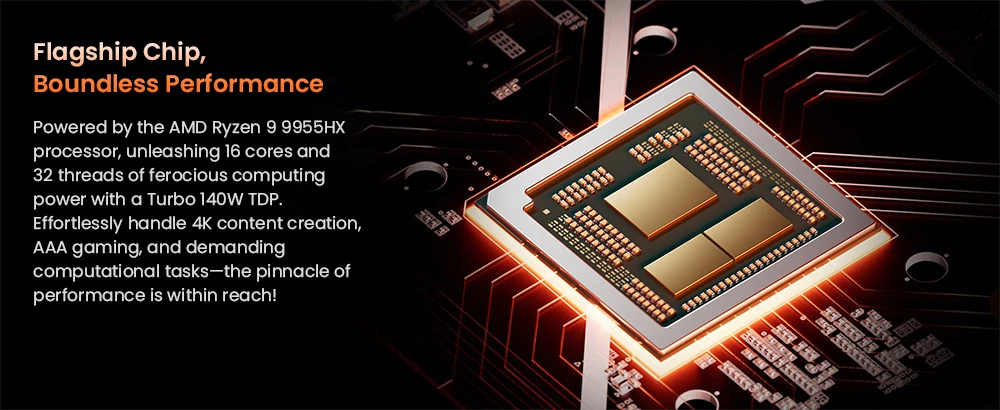

AMD Ryzen™ 9 9955HX Flagship Performance
Powered by the AMD Ryzen™ 9 9955HX processor with 16 cores and 32 threads, delivering up to 140W Turbo TDP performance. It provides exceptional processing power for AAA gaming, 4K content creation, AI workloads, and intensive computing tasks.
Specification
| Brand | AOOSTAR |
| Type | Motherboard |
| Model | TA95X3D |
| CPU Support | AMD Ryzen™ 9 9955HX3D |
| Processor Architecture | Zen 5 |
| CPU Cores | 16 Cores |
| CPU Threads | 32 Threads |
| CPU Frequency | 2.5GHz–5.4GHz |
| Total L3 Cache | 128MB |
| Voltage Regulators | 10-Phase (8+1+1) Power Design |
| Memory Slots | 2 |
| Memory Type | DDR5-5600 |
| ECC / Registered Support | Yes |
| Memory Channel | Dual Channel |
| Maximum Memory Support | 96GB |
| Overclocking Support | AMD EXPO |
| Graphics Model | AMD Radeon™ 610M |
| Graphics Core Count | 2 Cores |
| PCIe x16 Slot | PCIe 5.0 ×1 |
| M.2 Slot | M.2 NVMe 5.0 ×2 (2280) |
| SATA Slot | SATA Gen3 ×4 |
| Audio Codec | ALC897 / ALC897-VA2-CG |
| Audio Type | HD Audio |
| Surround Sound Support | 7.1 Channel |
| LAN | 5G LAN ×1 |
| Wireless Connectivity | Wi-Fi 6E + Bluetooth 5.2 |
| Rear I/O – DP | 1 |
| Rear I/O – HDMI | 1 |
| Rear I/O – USB 3.0 | 3 |
| Rear I/O – USB 2.0 | 3 |
| Rear I/O – 3.5mm Audio Jack | 1 |
| Operating System Support | Windows 11 |
| Product Weight | 2kg |
| Package Weight | 2.5kg |
| Product Size | M-ATX, 244 × 244 mm |
| Package Size | 290 × 280 × 60mm |
| Package Contents | 1 x Motherboard |
