3DMakerpro Raven Max LiDAR Scanner
3DMakerpro Raven Max LiDAR Scanner, Dual 12MP Cameras, 100m Scan Range, Enhanced RGB Point Clouds, 150,000 Points/s, 360°×40° FOV, 4K True-Color Capture, 32GB Storage, 12000mAh Battery, Wi-Fi 5
3DMakerpro Raven Max LiDAR Scanner, Dual 12MP Cameras, 100m Scan Range, Enhanced RGB Point Clouds, 150,000 Points/s, 360°×40° FOV, 4K True-Color Capture, 32GB Storage, 12000mAh Battery, Wi-Fi 5
Highlights

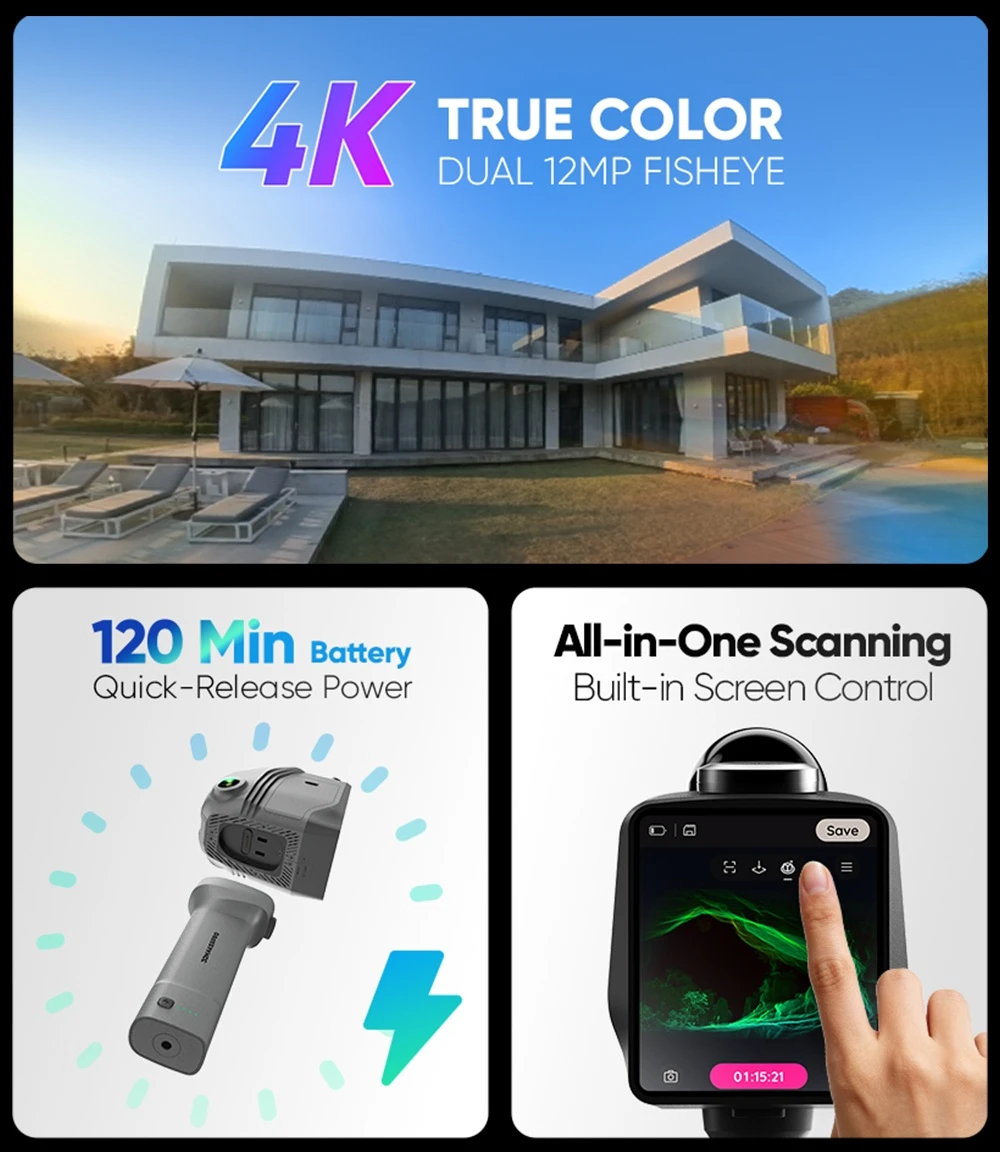

Dual 12MP Cameras for Enhanced Color Reconstruction
The dual-camera system significantly improves RGB texture capture, generating richer and more realistic colorized point clouds for high-quality visual presentation.

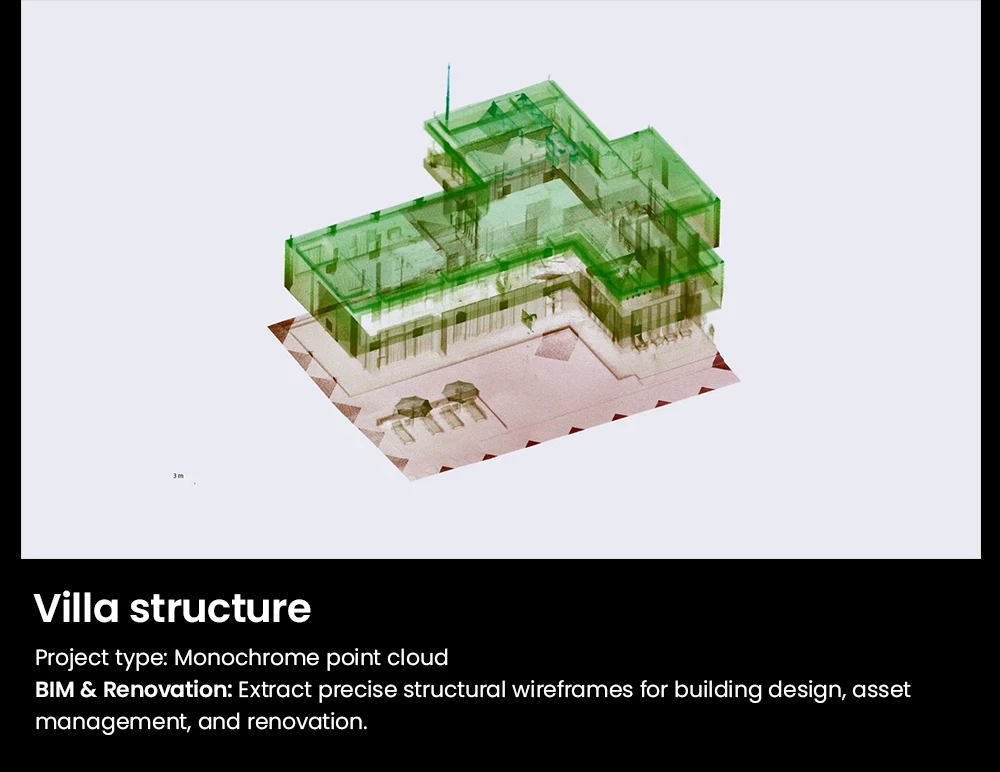

Optimized for Digital Twin & Immersive 3D Scenes
Designed for advanced digital twin creation, virtual exhibitions, architecture visualization, and commercial space reconstruction where visual realism is critical.
Improved Tracking Stability in Complex Environments

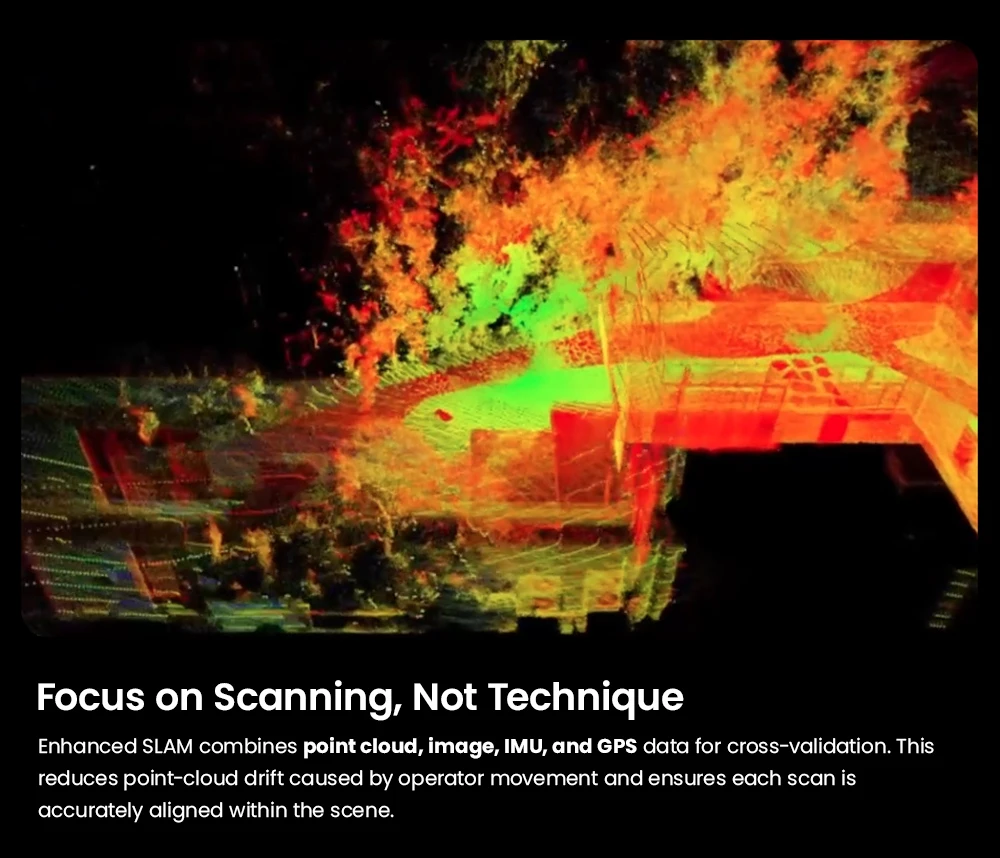

Combining SLAM LiDAR mapping with enhanced visual positioning helps maintain more stable tracking and smoother reconstruction in detailed or visually challenging spaces.

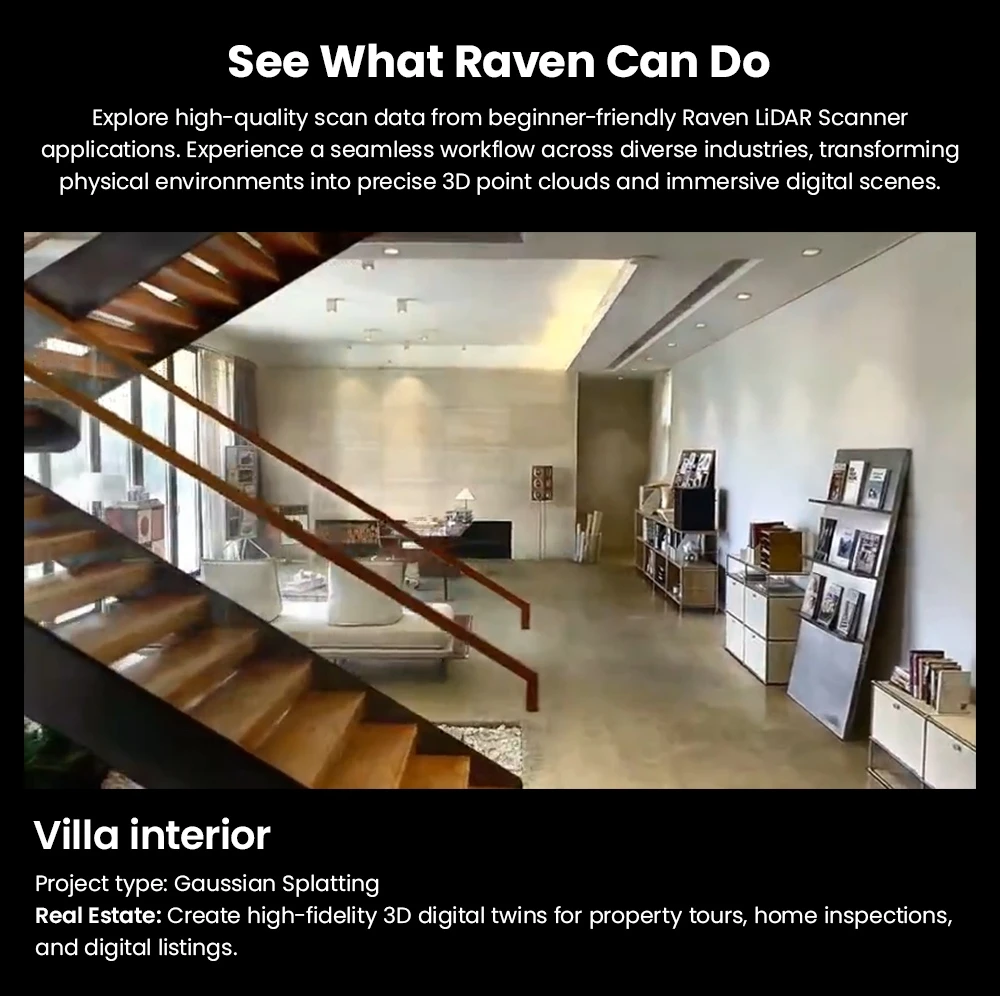

High-Fidelity 4K Visual Reconstruction

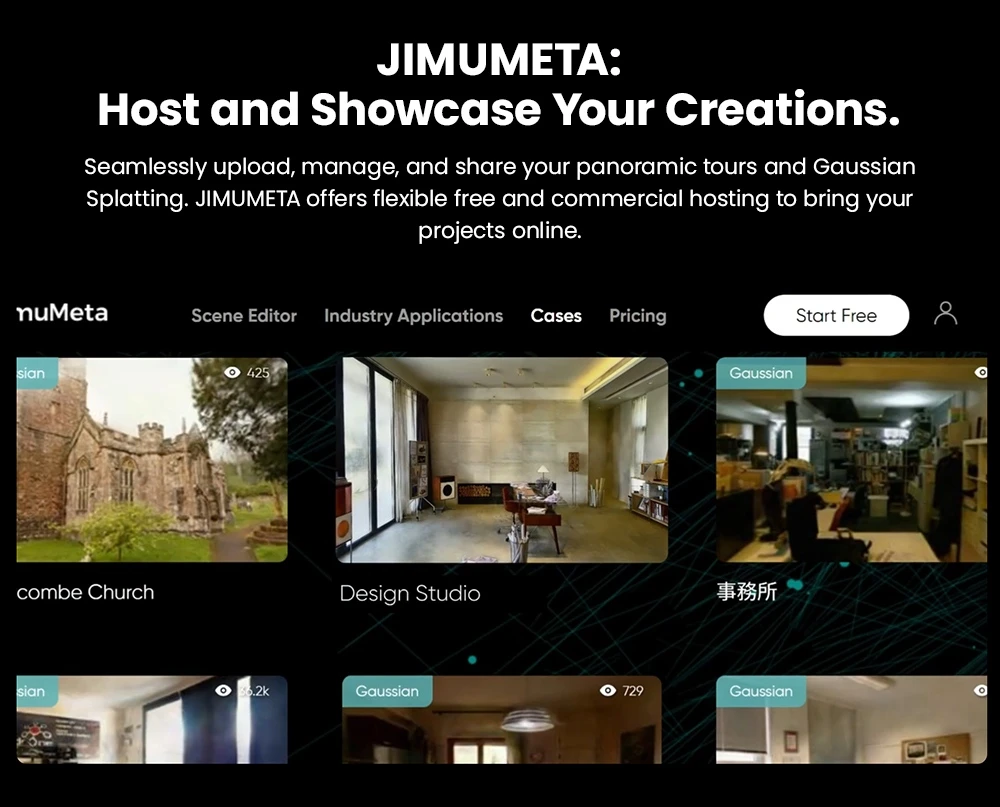

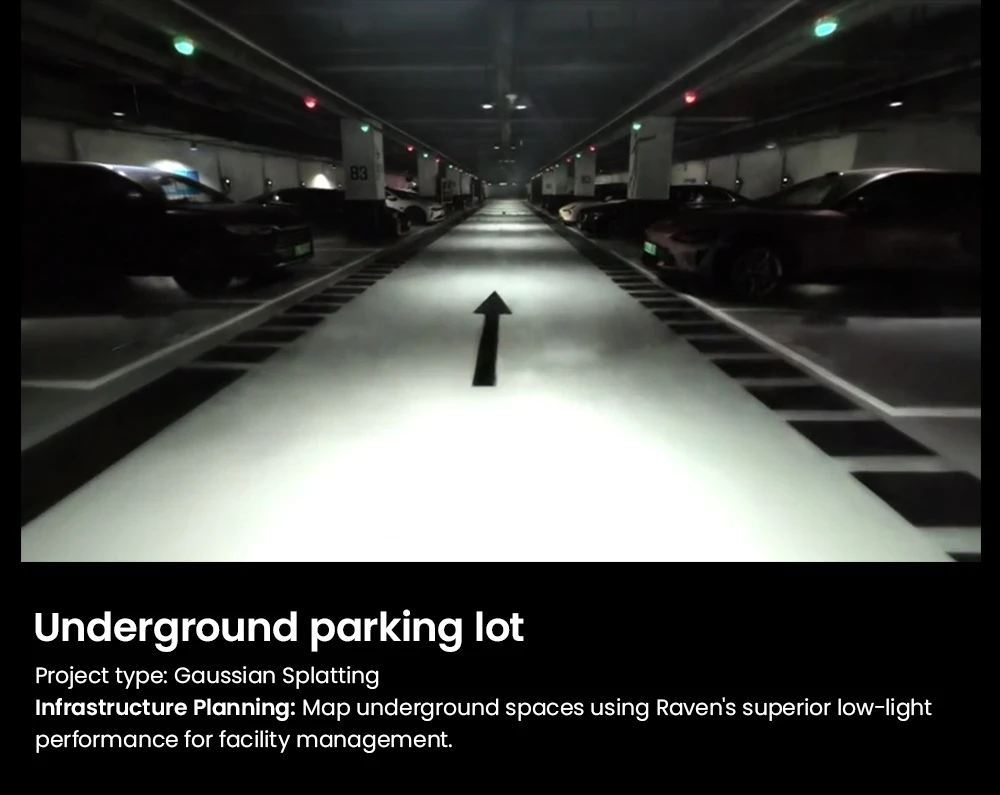

Supports detailed scene rendering and Gaussian Splatting workflows with improved surface texture clarity and realistic environmental reproduction.

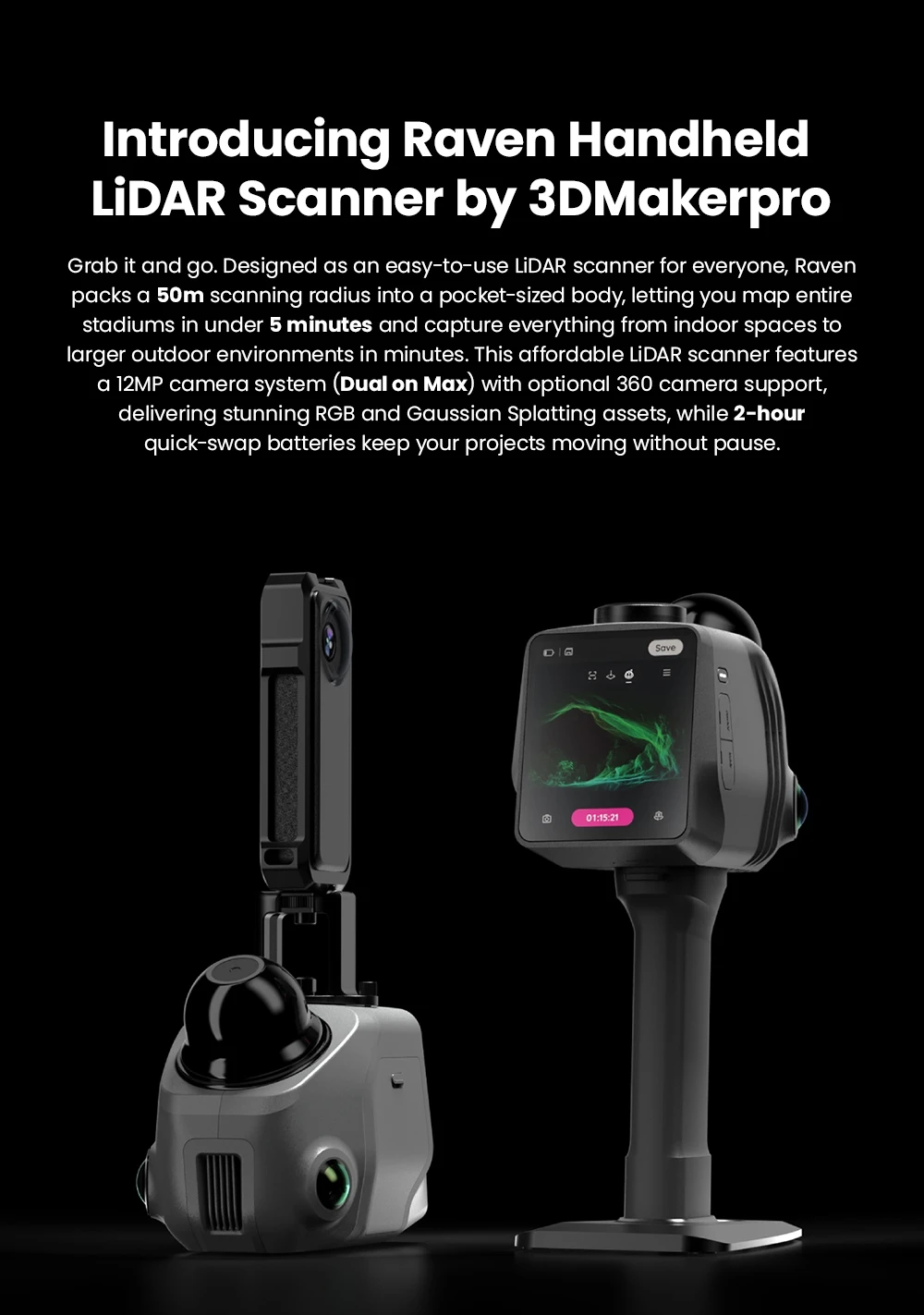

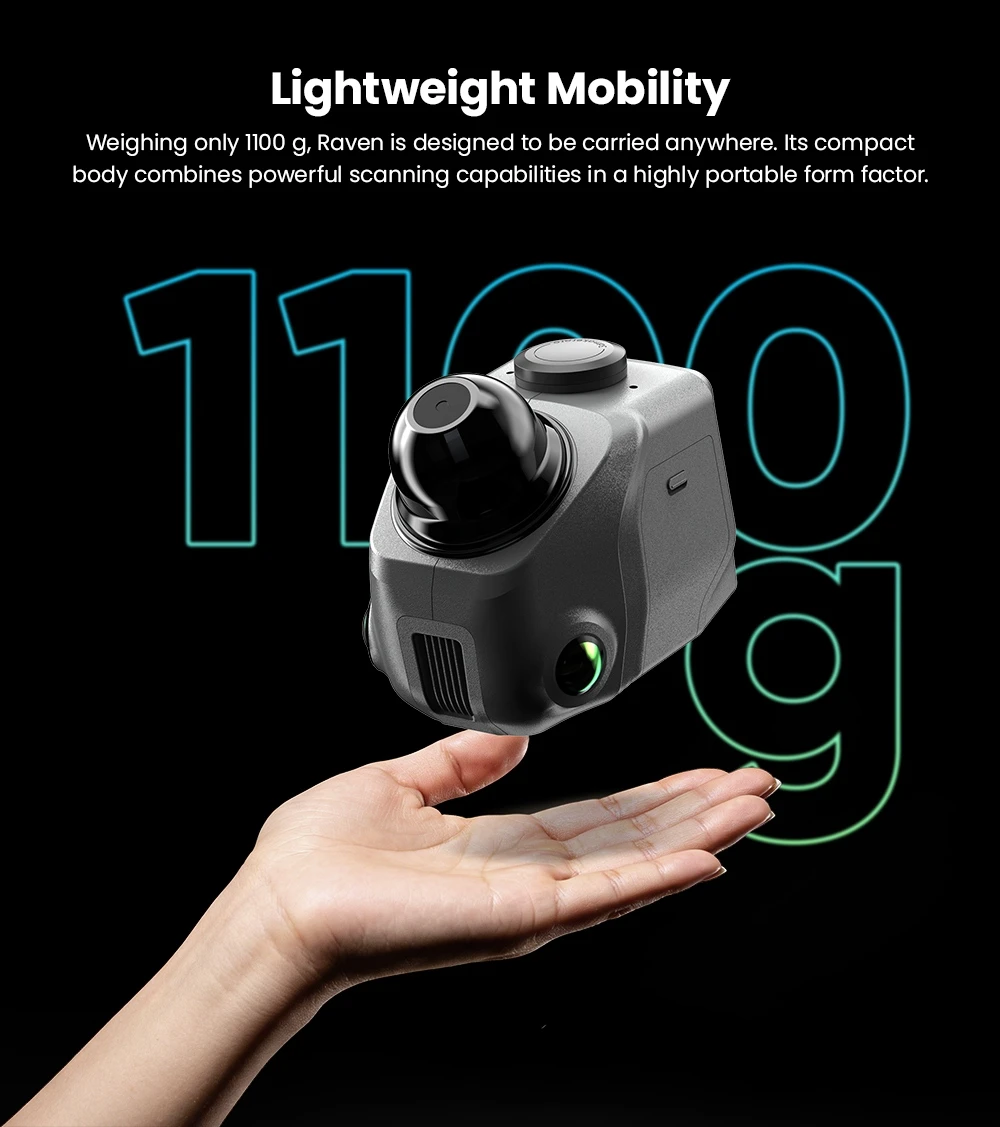

Lightweight Professional Portable Scanner
Despite the upgraded dual-camera system, the scanner retains its lightweight 1.1kg handheld design for efficient field operation across architecture, design, and commercial visualization projects.
Specification
| Brand | 3DMakerpro |
| Type | 3D Scanner |
| Model | Raven Max |
| Color | Gray & Black |
| Accuracy | 2cm @ 10m / 3cm @ 20m / 5cm @ 40m |

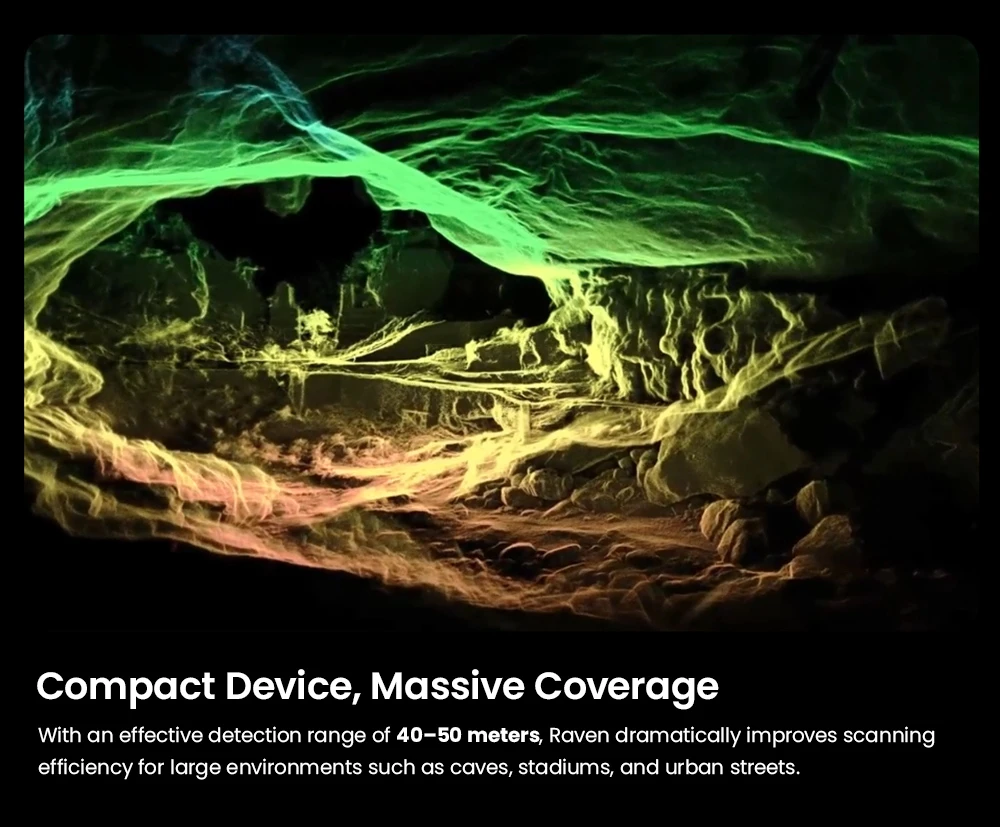

| Scan Radius | 40m @ 10% reflectivity / 50m @ 80% reflectivity |
| Scan Range | 80–100m |

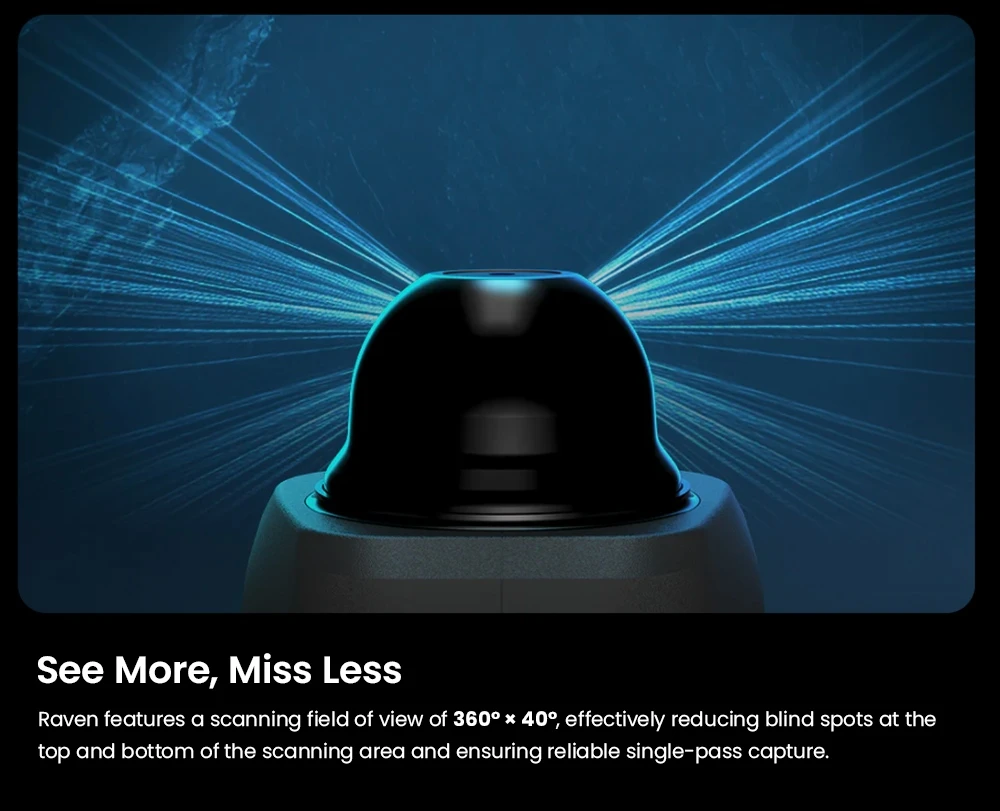

| Field of View | 360° Horizontal / 40° Vertical |
| Point Cloud Frequency | 150,000 points/s |
| Camera System | Dual 12MP Cameras / Enhanced RGB Point Cloud Reconstruction / 4K True-Color Capture |
| Sensor Size | 1/2″ |
| Laser Wavelength | 905nm |
| Laser Safety Class | Class 1 (IEC60825-1:2014) |
| Processor | 8-Core 2.4GHz |
| Memory | 32GB |
| Storage Expansion | TF Card Supported |
| Display | 3.9″ AMOLED Screen |

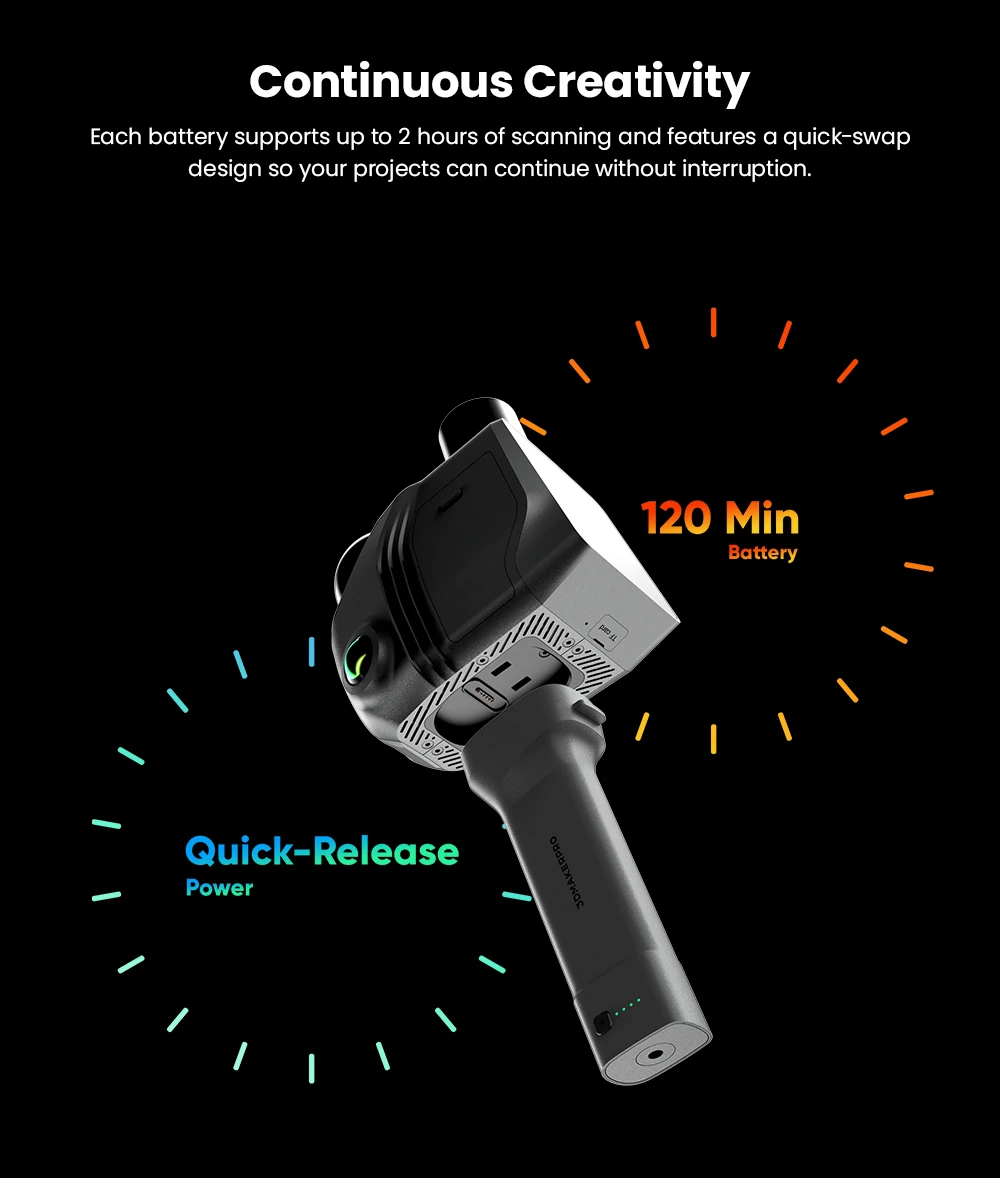

| Battery Capacity | 12000mAh |
| Battery Life | Up to 2 Hours |
| Charging | Supports Charging While Operating |
| Data Interface | USB Type-C |
| Fast Charging | PD 65W USB Type-C |
| Wireless | Wi-Fi 5 Connectivity |

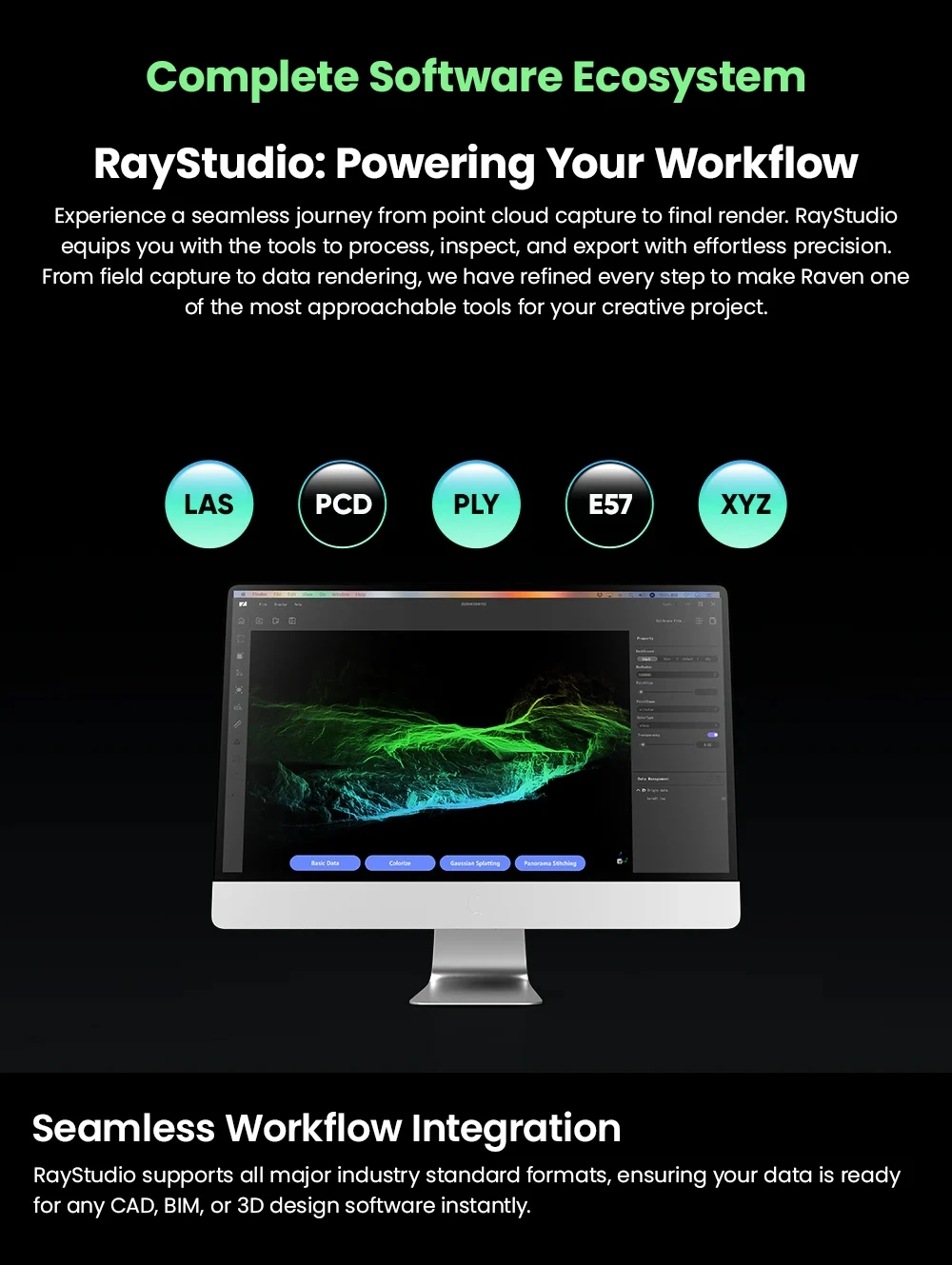

| Export Formats | LAS / PCD / PLY / OBJ / E57 / XYZ |
| System Support | Windows 11 or Above / macOS Not Supported |
| Product Weight | 2.45kg |
| Package Weight | 4.2kg |
| Product Size | 31 × 22 × 12 cm |
| Package Size | 37 × 35 × 15 cm |

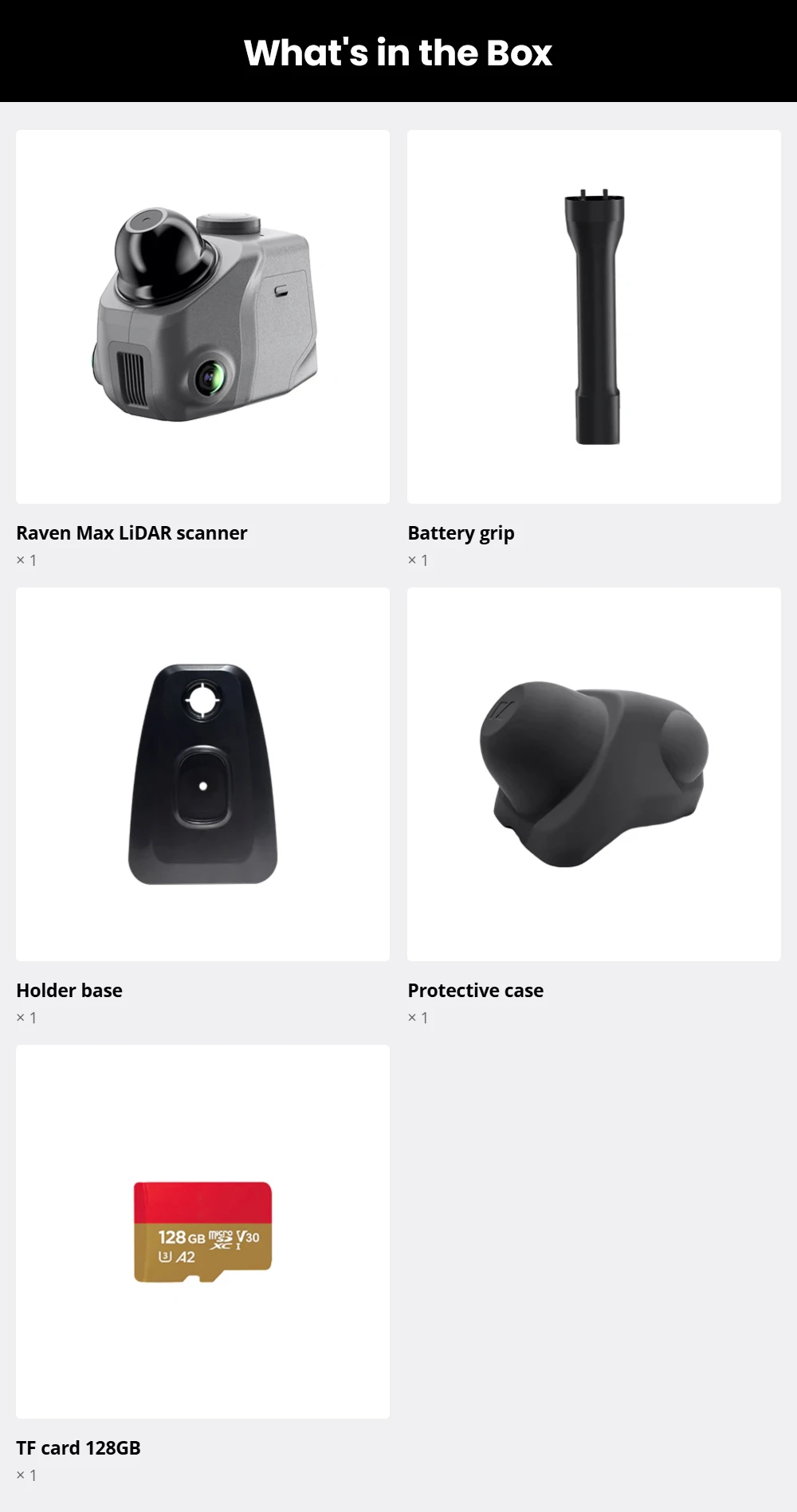

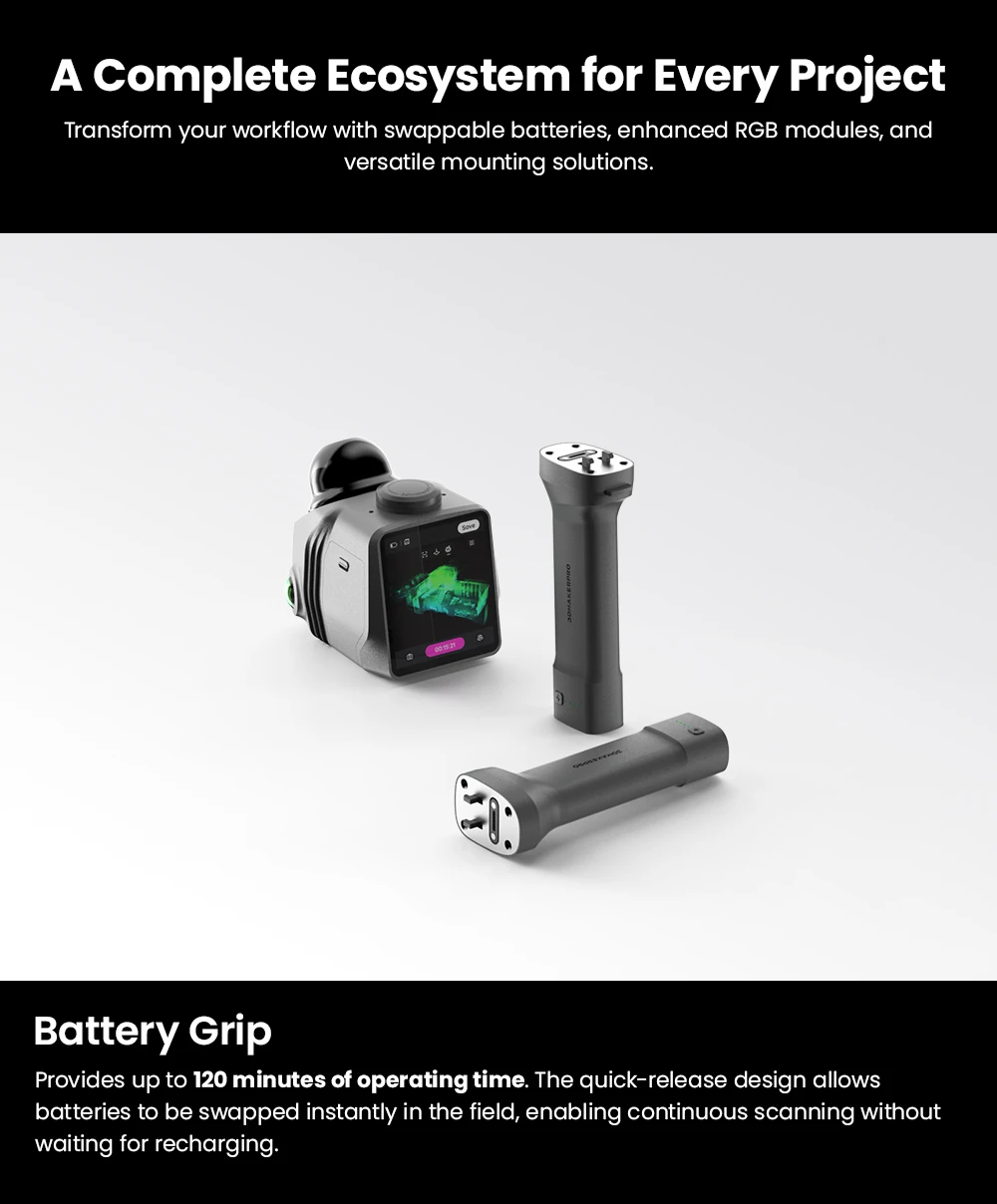

| Package Contents | 1 x Raven Max LiDAR Scanner 1 x Battery Grip 1 x Holder Base 1 x Protective Case 1 x TF Card 128GB |
