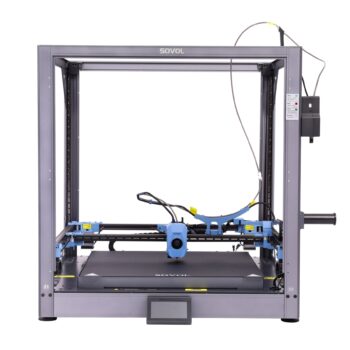

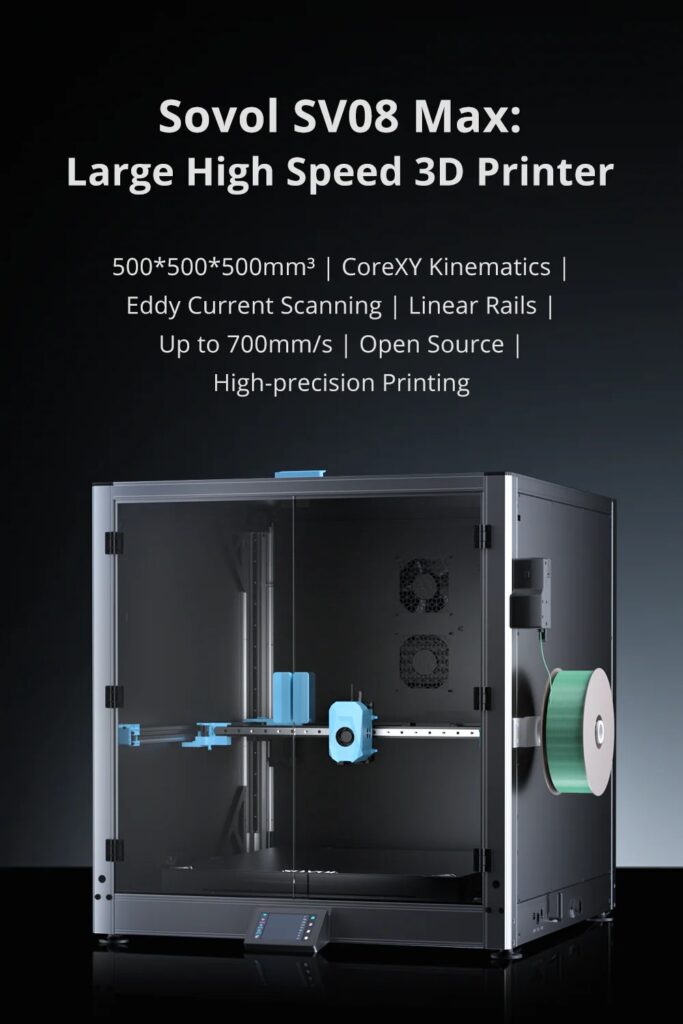

SOVOL SV08 Max

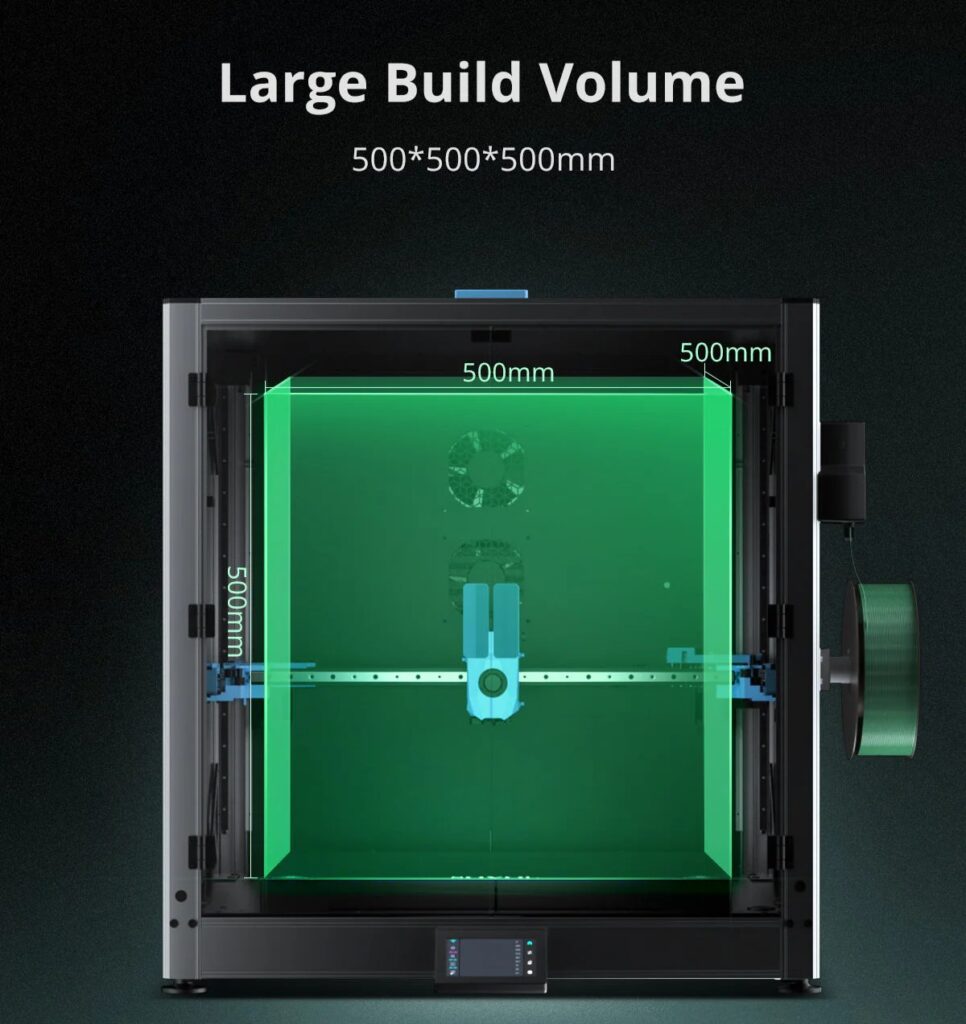

Sovol SV08 Max 3D Printer Up to 700mm/sCoreXY KinematicsXYZ Full Linear RailsAluminum Alloy FrameEddy Current ScanningNozzle Temperature: ≤300℃ (572℉)Hot bed Temperature: ≤100℃ (212℉)Optional chamber heating module.Build Volume: 500×500×500 mm³ (500*500*450 mm³ with enclosure kit)
Sovol SV08 Max 3D Printer Up to 700mm/sCoreXY KinematicsXYZ Full Linear RailsAluminum Alloy FrameEddy Current ScanningNozzle Temperature: ≤300℃ (572℉)Hot bed Temperature: ≤100℃ (212℉)Optional chamber heating module.Build Volume: 500×500×500 mm³ (500*500*450 mm³ with enclosure kit)

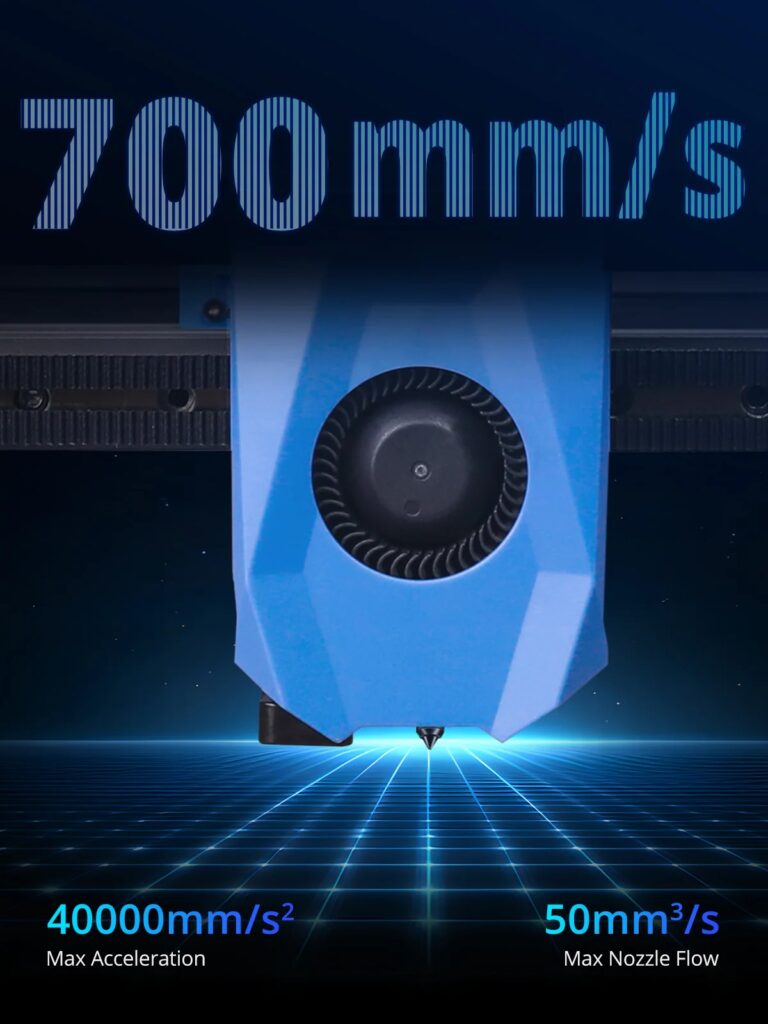

700mm/sGo Big Without Slowing Down — SV08 Max redefines true large-format printing, slashing print times by up to 50%. From furniture and industrial parts to oversized collectibles, it brings blazing-fast performance with 40,000 mm/s² acceleration and a powerful 50mm³/s high-flow nozzle. Less waiting, more creating.

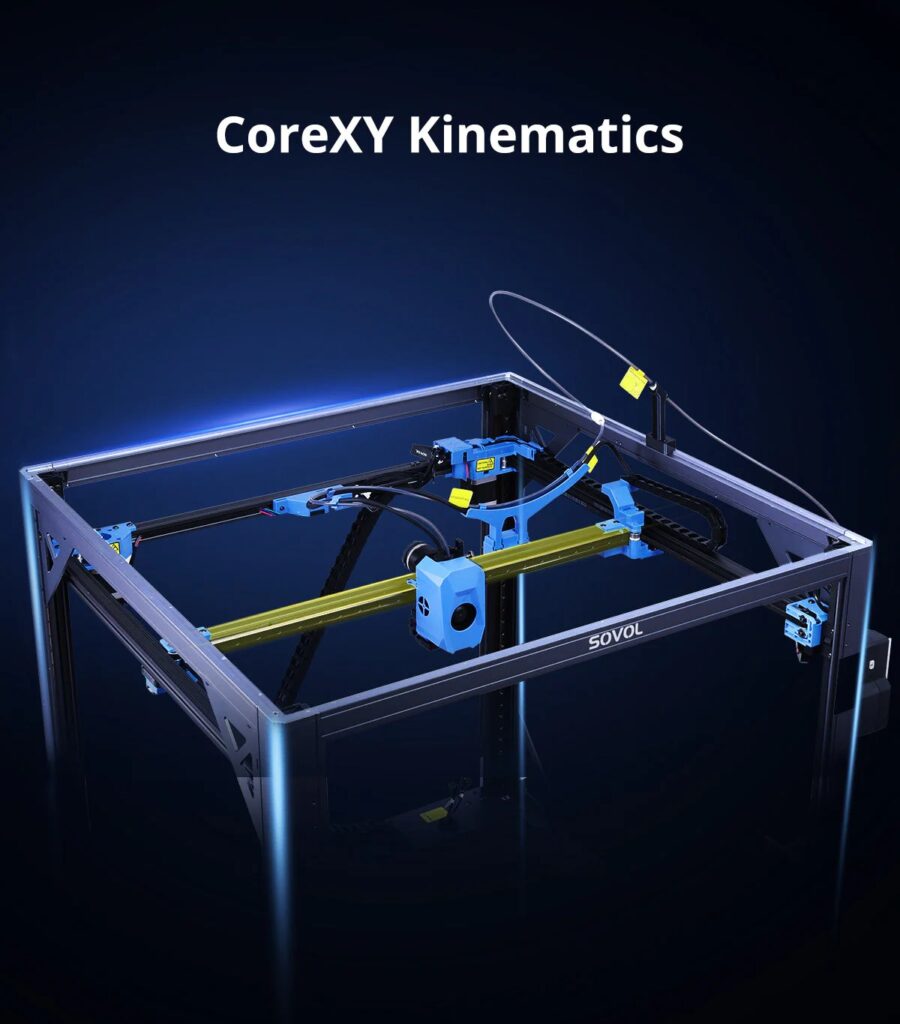

CoreXY KinematicsWith its compact design, minimal moving mass, and optimized motion path, the CoreXY system enables faster acceleration, reduced vibration, and unmatched print precision. Experience smoother, high-speed printing; perfect for large, complex models.
Eddy Current SensorAdvanced Eddy Current Scanning system that delivers high-speed, contactless bed leveling with exceptional accuracy. It detects even the smallest surface deviations to ensure a perfectly leveled bed before every print.

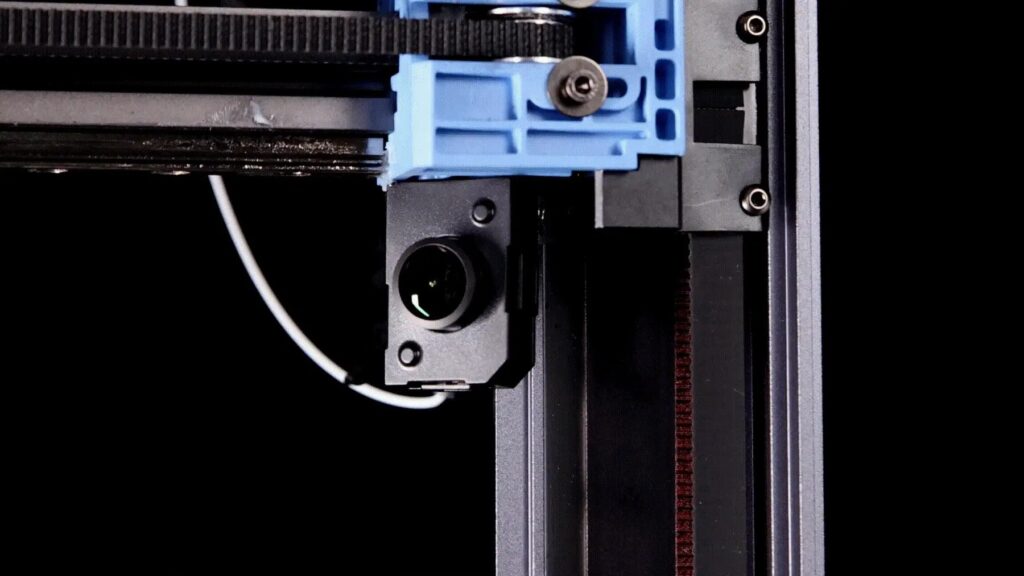

Camera & Remote MonitoringSV08 Max comes equipped with a built-in 1280×720 HD camera, enabling seamless remote monitoring, time-lapse recording, and integration with Obico for advanced cloud-based control and intelligent print failure detection.

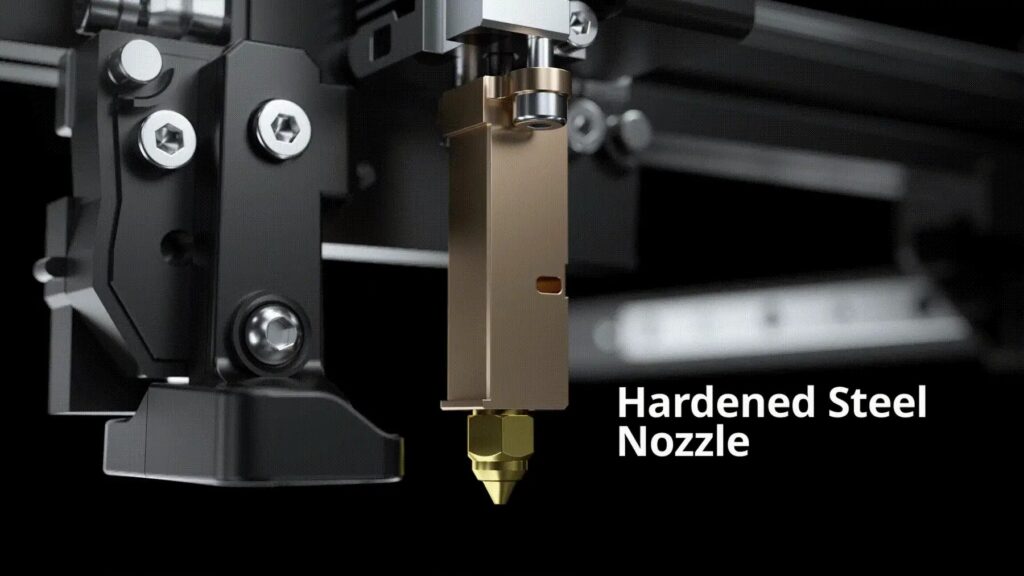

High-Temp NozzleThe hotend supports a maximum temperature of 300°Cand comes with 2 standard 0.4mm nozzles. Optional nozzle sizes include0.4mm, 0.6mm, and 0.8mm(sold separately).

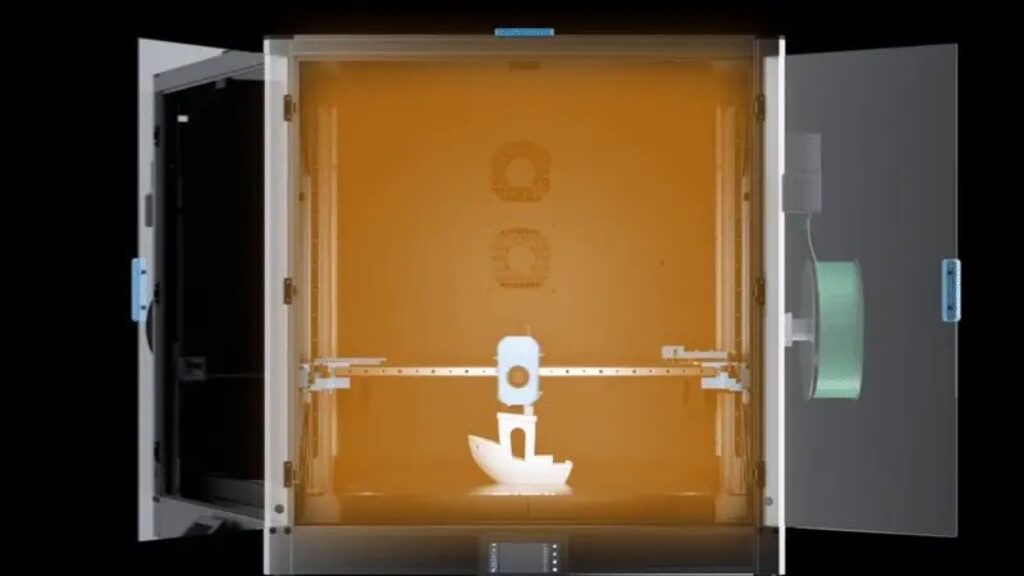

Optional Heated Chamber
SV08 Max is designed with a reserved interface for a Heated Chamber module, allowing users to upgrade their printer for high-temperature filament compatibility in the future. The heating module needs to be purchased separately.

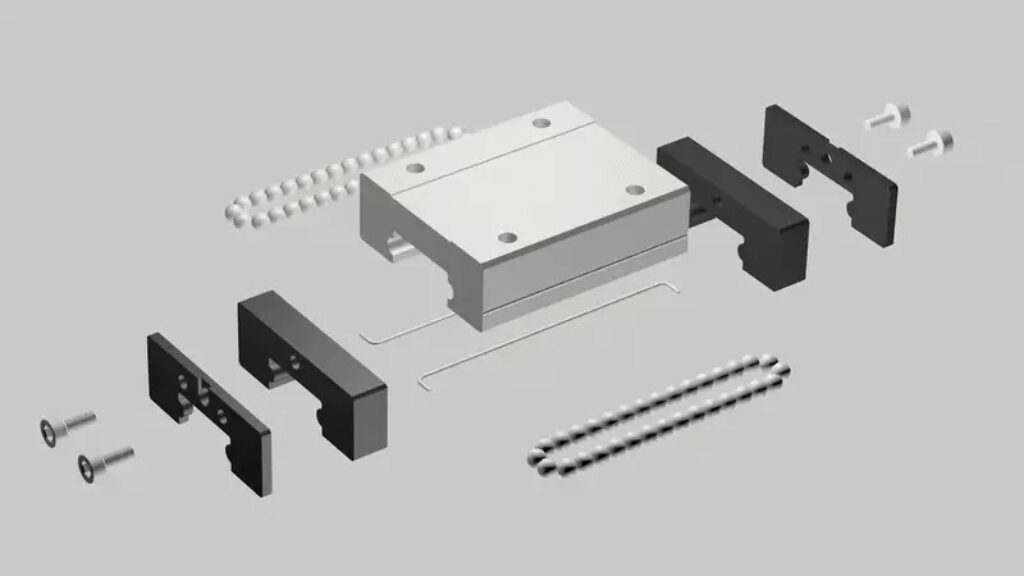

Industrial Grade Linear Rails
Industrial Grade Linear rails ensure smoother motion and superior control, enhancing print quality and reliability by minimizing artifacts. With greater rigidity and corrosion resistance, they offer extended durability for long-term performance.
For AII Your Needs
Perfectly handling a wider range of advanced and challenging filaments, such as PLA/TPU/PETG/ABS/ASA/PA/PC/PLA-CF/PETG-CF/HP-PLA, catering to more applications and diverse printing needs.

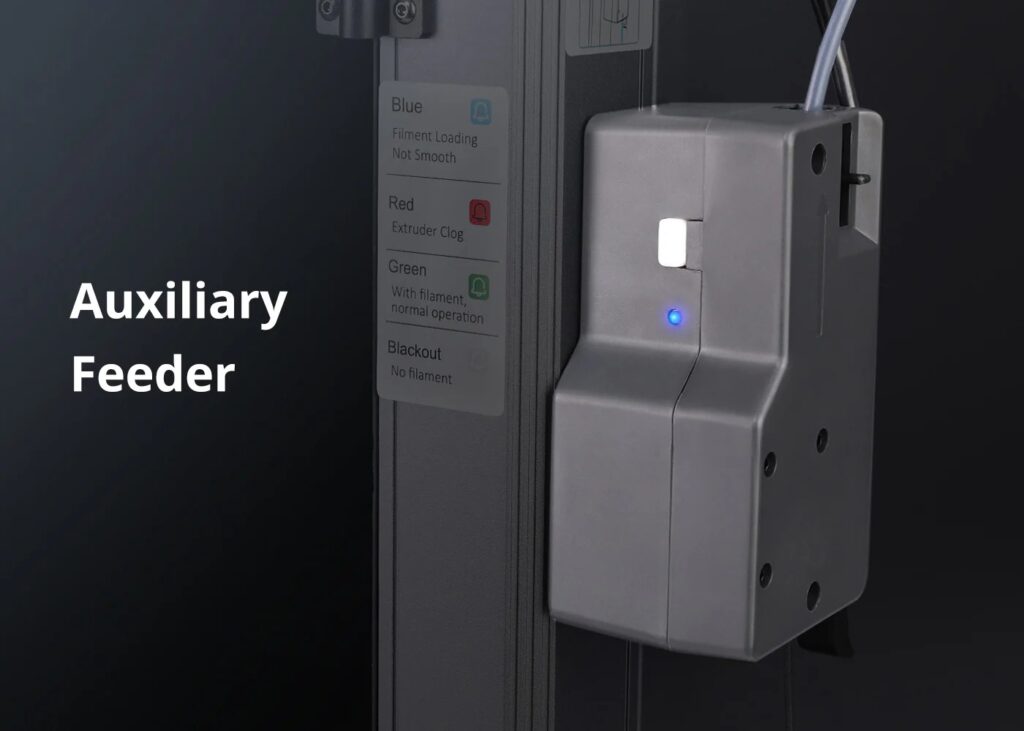

Auxiliary Feeder
The Smart Auxiliary Feeder System not only assists with smooth filament feeding, but also features tangle detection and clog detection to ensure uninterrupted printing. It actively monitors filament flow and prevents issues before they affect your print.
Thickened HotbedEquipped with a 8mm thick aluminum bed and 1300W of power, the SV08 Max’s hotbed delivers rapid and even heating across the entire surface. The reinforced structure minimizes warping, ensuring consistent adhesion and reliable prints — even on large models.Perfect First LayerBy utilizing eddy current scanning and pressure-sensing touch points for automatic bed calibration, achieving a perfect first layer becomes effortless, requiring no action on your part.
Product specification
Build Volume(W*D*H)500×500×500mm³Max Printing Speed700mm/sMax Acceleration40000mm/s²Max Flow Rate50mm³/sNozzle Temperature≤300℃Hotbed Temperature≤100℃RAM1GB (512MB + 512MB)Storage8GB EMMCFilament Runout DetectionYesPower Loss Resume PrintingYesFilament Tangle / Clog DetectionYesAuxiliary FeedingYesSlicerOrcaslicerHeating MethodCeramic HeatingNozzleStandard: 2 × 0.4mmOptional: 0.4 / 0.6 / 0.8mmControl SystemKlipperMotorsZ-axis: TMC2209×4A-axis: TMC5160×1B-axis: TMC5160×1Communication:CAN busConnections:USB, Wi-Fi (2.4G/5G), HDMI, EthernetFilament Diameter1.75mmPrinter Size700×710×750mm(excluding spool holder)Printer Package810×820×360mmEnclosure Kit Package775×728×155mm
