REVOPOINT MetroX
Revopoint MetroX : Blue Laser Line and Full-field Structured Light
Ships from 12.7
ꔷ 4 Flexible Scanning Modes
ꔷ Metrology-grade Accuracy: Up to 0.03 mm
ꔷ Volumetric Accuracy: Up to 0.03 mm + 0.1 mm × L(m)
ꔷ Up to 7,000,000 Points/s in Full-field Structured Light Mode
ꔷ Up to 800,000 Points/s in Multi-line Laser Mode
Take a Closer Look
MetroX 3D Scanner
14 Blue Laser Cross Lines
7 Blue Laser Parallel Lines
62 Line Blue Full-field Structured Light
Automated Turntable Scanning Mode
Powerful Blue Laser Scans
Cross Lines
Up to 800,000 points per second with 14 crossed blue laser lines.
Parallel Lines
Capture objects with 7 high-powered parallel blue laser lines.
Full-field Blue Structured Light
Get it scanned fast at up to 7 million points per second using 62 lines of structured blue light.
Auto Turntable
One-click scans with the Dual-axis Turntable, Revo Scan, and MetroX working in unison.
Metrology-grade Accuracy
Precision: Up to 0.01 mm
Accuracy: Up to 0.03 mm
Flexible Single Capture Area
160 x 70 mm at 200 mm
320 x 215 mm at 400 mm
No Spray Needed
Scan Shiny or Black Surfaces
Get Scans Done Fast
Up to 7,000,000 Points/s in Full-field Structured Light Mode
Up to 800,000 Points/s in Multi-line Laser Mode
Marker Blocks Help Scan Faster
This handy set of shaped marker blocks makes setting up featureless object scans much faster.
Powerful Software Revo Scan 5
Revo Scan does everything from point cloud creation to fusion, meshing, editing, merging, importing, and exporting.
Easy to Control
4 Buttons
HD RGB Camera
Create Vibrant 3D Models
See MetroX’s Amazing Scans
What’s in the Box
Standard Edition

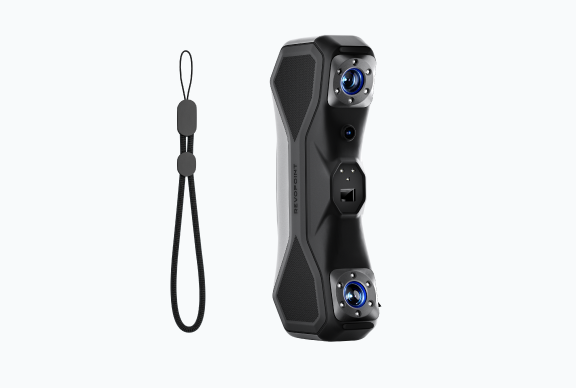

MetroX 3D Scanner & Wrist Strap
Tripod & Scanner Cradle
2m Power Adapter*
Dual-axis Turntable
Calibration Board
Markers(6 mm) × 500
USB Type-A toType-C Cable
USB Type-C to Type-A Adapter
Carrying Case
Sample Bust
Quick Start Guide Certificate &Warranty Card
*The power adapter may vary depending on the country or region.
Advanced Edition
Standard Edition + Marker Block Kit
MetroX 3D Scanner & Wrist Strap
Tripod & Scanner Cradle
2m Power Adapter
Dual-axis Turntable
Calibration Board
Markers(6 mm) × 500
USB Type-A toType-C Cable
USB Type-C to Type-A Adapter
Carrying Case
Sample Bust
Quick Start Guide Certificate &Warranty Card
Ball Marker × 10 (Magnetic)
Dome Marker × 10 (Magnetic)
Pyramid Marker × 4 (Magnetic)
Bar Marker × 4
Markers(6 mm) × 500
*The Marker Block Kit simplifies the workflow by making it much quicker to place markers when scanning featureless objects.
Specifications
Name
MetroX
Compatible Operating Systems
Windows 10/11 (64-bit), macOS 11.0 or better
Scanning Type
Handheld and Desktop
Built-in Chip Computing
Depth Map Computing
Technology
Multi-line Laser Scan and Full-field Structured Light Scan
Buttons
4
Scannable Object Size
Small to Medium
Outdoor Scanning
No
Single-frame Precision, up to
0.01 mm
Output File Formats
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Single-frame Accuracy, up to
0.03 mm
Ready to Print 3D Models
Yes
Volumetric Accuracy
0.03 mm + 0.1 mm × L (m)
L is the length of the object
Fused Point Distance, up to
0.05 mm
Working Distance
200 ~ 400 mm
Connector Type
USB Type-C
Single Capture Area at Nearest Distance
160 x 70 mm at 200 mm
Power Requirements
DC 12V, 3A
Single Capture Area at Furthest Distance
320 x 215 mm at 400 mm
3D Light Source
14 Blue Cross Laser Lines
7 Blue Parallel Laser Lines
62 Line Blue Full-field Structured Light
Angular Field of View (H x V)
43 × 33°
Dimensions (L x W x H)
209 × 88 × 44 mm
Maximum Scan Volume
1 × 1 × 1 m
Minimum Scan Volume
10 × 10 × 10 mm
User Recalibration
Yes
Scanning Speed, up to
Multi-line Blue Laser: 800,000 Points/s
Full Field Blue Light: 7,000,000 Points/s
Special Object Scanning
Please use scanning spray when scanning transparent or specular surfaces in Multi-Line Laser modes.
Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes.
Depth Camera Resolution, up to
2 Megapixels
RGB Camera Resolution
2 Megapixels
Supported Accessories
Dual-axis Turntable, Marker Block Kit
Color Scanning
Only in Auto Turntable Mode
CPU
4 core ARM, 2.0 GHz
Tracking Methods
Feature, Marker, Global Marker
Fill Lights
12 Blue LEDs
Minimum PC Requirements(*4)
macOS
CPU: M1 Pro/Max/Ultra
RAM ≥ 16GB
Windows
CPU: Intel i7 10th Gen 10700 or
AMD Ryzen 7 5800
RAM ≥ 32GB
GPU (Optional):
NVIDIA GeForce RTX 3050 (8GB)
Recommended PC Requirements
macOS
CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra
RAM ≥ 24GB
Windows
CPU: Intel i9 12th Gen or
better
RAM ≥ 64GB
GPU:
NVIDIA RTX 4060 (8 GB) or better
Note:
1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Class 2M Laser Safety Tips:
(1) The product uses a Class 2M laser projector. Avoid looking directly at it at close range! Please refer to the Class 2M laser standard document for details.
(2) To avoid retina damage, don’t look directly into the laser beam through optical instruments capable of magnifying it (e.g., telescopes, and camera lenses).
(3) To prevent laser reflection, avoid placing reflective surfaces like mirrors or glass in the path of the laser beam.
3. This product has flashing lights, which may not be suitable for people with photosensitive epilepsy.
4. If you’re unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.
