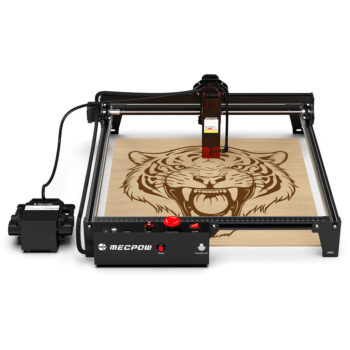

Refurbished Mecpow X3 Pro 10W
Refurbished Mecpow X3 Pro 10W Laser Engraving Machine with Adjustable Air Assist, Safety Lock, Emergency Stop, Flame Detection
Highlights
Mecpow X3 Pro 10W Laser Main Features
Mecpow X3 Pro is one of the world’s first 10W laser engravers with an air assist system included, therefore its cutting capacity is greatly improved compared to its counterparts. Plus, the cutting accuracy and cutting quality are also optimized to a great extent.
- 10W Laser power
- 0.01m engraving accuracy
- 0.06×0.08mm compressed spot
- Flame sensor and tilt alarm
- Security lock
- Limit switches
- Fixed Focus
- Air assist and Air pump included
High–Precision Engraving
The Mecpow X3 Pro adopts a 10W diode laser with a small focus of 0.06×0.08mm and an engraving accuracy of 0.01mm. The small spot size, along with short pulses, produces high peak power, which can achieve more accurate and deeper engraving and cutting. It can cut a wood board with a 20mm thickness and an acrylic board with a 15mm thickness.
Security Protection
The X3 Pro machine boasts a flame sensor and a gyroscope sensor, which can trigger the alarm and stop the machine’s operation in the event of fire or tilting more than 50±5 degrees. Besides, limit switches are included to prevent accidents and reduce wear by stopping the machine from moving beyond its safe limits, leading to a longer lifespan of the laser engraver. Furthermore, you can stop the machine anytime by pressing the emergency stop button and lock the machine to keep it safe from unwanted use, which is especially handy if you have kids around.
Adjustable Air Assist Pump
With a maximum airflow of 30 liters per minute, the air pump effectively removes debris and smoke for a cleaner cut. It also prevents the buildup of combustible materials, reducing the risk of fire and providing a safer engraving experience. Plus, with its adjustable knob, you can easily regulate the airflow according to the density of the smoke for a smokeless and odorless workspace.
Fast & Easy Focusing
The X3 Pro laser engraver comes with a fixed-focus laser that saves you time in adjusting the focus and a focusing screen that helps you move the laser head to the correct position. Slide down the laser head till it touches the focusing screen on the object and then remove the focusing screen.
Eye Protection
The laser engraving machine is equipped with a laser shield on the laser module, which can filter out diffuse light from the laser spot to a large extent. A pair of laser safety goggles is also included for better eye protection.
Wide Application and Compatibility
The X3 Pro engraving machine can be used for engraving on a variety of materials, including wood, acrylic, leather, bamboo, fabric, stainless steel, etc. It is compatible with LaserGRBL (Windows only) and LightBurn (Windows and Mac OS), supporting various file formats, including JPG, PNG, DXF, TIF, PDF, SVG, AI, NC, BMP, etc.
Mecpow X3 Pro 10W
Embrace the Mechanical Power
Reasons to Pick X3 Pro
- 10W Laser Power
- 30L/Min Air Pump
- Fixed Focus
- Emergency Stop
- Flame Sensor & Tilt Alarm
- Security Lock
- Limit Switches
- 10000mm/min Fast Engraving
- 0.01mm Engraving Accuracy
- Offline Engraving
- All Aluminium Alloy Body
- Eye Protection
Powerful Laser
The powerful 10W diode laser can cut through wooden planks as thick as 20mm and painted acrylic sheets as deep as 15mm.
Smaller Spot, Higher Precision
The upgraded laser head features a tiny focal point of 0.06×0.8mm, perfect for achieving high precision in engraving.
0.01mm High Accuracy
With an engraving accuracy of 0.01mm, Mecpow X3 Pro makes your engraving finer and prettier.
Fast & Easy Focusing
1. Place the focusing screen on the object.
2. Move the laser head over the focusing screen and slide it down till it touches the focusing screen.
3. Take the focusing screen out and the focusing is completed.
Large and Extendable Engraving Area
- 410X400mm WORKING AREA
- 750x400mm WORKING AREA
The large engraving area allows you to etch multiple designs at once. Moreover, you can extend the engraving area by using Mecpow’s extended Y-axes.
Better Eye Protection
The laser shield filters out 98%of UV light to protect your eyes.
Clean and Safe Engraving with Air Assist
The air pump helps to remove debris and smoke for a cleaner cut. It also prevents the buildup of combustible materials,reducing the risk of fire and providing a safer engraving experience.
Security Is Priority
Flame Sensor
The flame sensor in the laser module will activate the alarm and stop the machine from working in the event of a fire.
Emergency Stop
You can stop the machine’s operation immediately by pressing the button and get it back to work by rotating it counterclockwise.
Gyroscope Sensor
It will trigger the alarm and halt the machine’s operation when the machine tilts beyond 5045.
Security Lock
Lock your machine and keep it safe from unwanted use, which is especially handy if you have kids around who might be tempted to use it.
Limit Switches Offer Better Protection
Limit switches help prevent accidents and reduce wear by stopping the machine from moving beyond its safe limits, leading to a longer lifespan of the laser engraver.
Broad Compatibility
Unleash your creativity with this leading-edge technology.
File Format Support: JPEG, BMP, GIF, PLT, PNG, DXF, etc.
Engraving on Various Materials
- Wood
- Acrylic
- Leather
- Bamboo
- Fabric
- Paper
- Metal
- Ceramics
- Glass
Design Whatever You Want
- Toys
- Pet Tags
- Logos
- Artistic Creations
Specifications
| General | Brand: Mecpow Type: Laser Engraving Machine Model: X3 Pro Color: Black |
| Specification | Frame Material: High-Strength Aluminium Alloy Power Adapter: AC 100V-240V, 50/60HZ (Input), DC 12V 5A (Output) Electrical Power: 60W Laser Power: 10±1W Wavelength: 445±5 nm Spot Size of Laser Beam: 0.06×0.08 mm Engraving Area: 410×400 mm Engraving Speed: 10000 mm/min Engraving Accuracy: 0.01 mm Focusing: Fixed-Focus Laser Laser Shield: Yes Service Life: ≥10000 Hours Heat Dissipation: Fan Cooling Tilt Alarm: 50±5° Method of Data Transmission: USB Wired Connection (Type-B) Materials for Laser Engraving: Wood, Acrylic, China, Fabric, Bamboo, Plastic Board, Leather, Fruit, Bread, etc. System Support: Windows, Mac Software Support: LaserGRBL (Free Software for Windows), LightBurn (Paid Software for Windows & Mac OS) File Format Support: JPEG, BMP, GIF, PLT, PNG, DXF, etc. Air Pump Flow: 30L/Min Input Voltage of Air Pump: 120V (US)/230V (EU) |
| Features | Alarm: Yes Emergency Stop: Yes Reset Button: Yes Security Lock: Yes Flame Sensor: Yes Gyroscope Sensor: Yes Limit Switches: 2 |
| Weight & Size | Product Weight: 3.67 kg Package Weight: 5.14 kg Product Size(L x W x H): 510x460x117 mm Package Size(L x W x H): 800x249x117 mm Size of Laser Module(L x W x H): 40x40x80 mm |
| Package Contents | 1 x Laser Engraving Machine (Unassembled) 1 x User Manual 1 x Laser Goggles 1 x USB Cable 1 x Power Adapter 1 x Tool Kit 2 x Wood Board 1 x Aluminium Plate 1 x Focusing Screen 2 x Key 1 x Air Pump Kit |
Mecpow X3 Pro Recommended Settings
| Material Name | Thickness(mm) | Processing | Power(%) / Speed(mm/s) / Pass |
|---|---|---|---|
| Plywood | 3MM | Cutting | 480mm/min 1 passes power 100% Air On |
| Plywood | 6MM | Cutting | 180mm/min 1 passes power 100% Air On |
| Plywood | 10MM | Cutting | 180mm/min 4 passes power 100% Air On |
| Plywood | / | Engraving | 3000mm/min power 30% |
| Basswood | 3MM | Cutting | 360mm/min 1 passes power 100% Air On |
| Basswood | 6MM | Cutting | 180mm/min 1 passes power 100% Air On |
| Tung board/cork | 10MM | Cutting | 300mm/min 2 passes power 100% Air On |
| Tung board/cork | 15MM | Cutting | 180mm/min 2 passes power 100% Air On |
| Tung board/cork | 20MM | Cutting | 300mm/min 10 passes power 100% Air On |
| Black Acrylic | 6MM | Cutting | 180mm/min 2 passes power 100% Air On |
| Black Acrylic | 11MM | Cutting | 180mm/min 11 passes power 100% Air On |
| MDF | 3.6MM | Cutting | 240mm/min 2 passes power 100% Air On |
| MDF | / | Engraving | 3000mm/min power 15% |
| Stainless steel | / | Engraving | 360mm/min power 100% |
| g Kraft paper | / | Engraving | 1800mm/min power 15% |
| Leatherwear | / | Engraving | 1800mm/min power 10% |
