ExpiréQuimat NEMA 17 + TB6600 Driver

15,29 € 21,99 € ACHETER SUR AMAZON

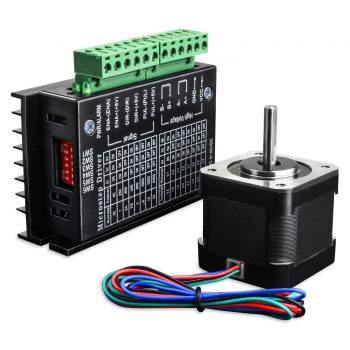

Quimat Nema 17 Imprimante 3D Moteur Stepper 1.7A 24V 40mm 40Ncm (56.2oz.in) + TB6600 Pilote moteur Stepper 32 Segments 4A 40V 57/86, Stepper Motor

Quimat Nema 17 Imprimante 3D Moteur Stepper 1.7A 24V 40mm 40Ncm (56.2oz.in) + TB6600 Pilote moteur Stepper 32 Segments 4A 40V 57/86, Stepper Motor

Quimat Nema 17 Imprimante 3D Moteur Stepper 1.7A 24V 40mm 40Ncm (56.2oz.in) + TB6600 Pilote moteur Stepper 32 Segments 4A 40V 57/86, Stepper Motor

  • MOTEUR CARACTERISTIQIES:modèle Nema 17, couple de maintien de 40Ncm (56.2oz.in), 24V/1.7A et 1.8 degrés.
  • CONNECTEURS:Les moteurs Stepper peuvent être connectés avec des connecteurs molex à 4 broches ou soudés en place.
  • UTILISATION:Utilisez la version améliorée TB6600, ce qui augmente le segment à la subdivision 32, le moteur du moteur pas à pas TB6600 convient aux applications de segmentation élevée.
  • FONCTIONNEMENT DU MOTEUR STEPPER: alimentation 9V-40V DC, conducteur bipolaire à flux constant de phase H-bridge.
  • VOUS OBTENEZ: 1xTB6600 Stepper Moteur Driver; 1 x Nema 17 Stepper Moteur.

Description:
Stepper motor Specification:
Manufacturer Part Number: 17HS4401
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg.
Holding Torque: 40Ncm(56.2oz.in)
Rated Current/phase: 1.7A
Frame Size: 42 x 42mm
Body Length: 40mm
Shaft Diameter: 5mm
Number of Leads: 4
Weight: 280g

Stepper Driver Specification:
Supply Voltage: 9V-40V DC
Max output current: 4.0A
For step motor: 42, 57, 86 type 2 phase 4 phase (4 / 6 / 8 line). Technical support – Our technical support team is on standby to provide solutions to your questions, please feel free to contact us.

Package list:
1 x TB6600 Stepper Motor Driver
1 x Nema 17 Stepper Motor

Quimat NEMA 17 + TB6600 Driver
Quimat NEMA 17 + TB6600 Driver
15,29 € 21,99 €
