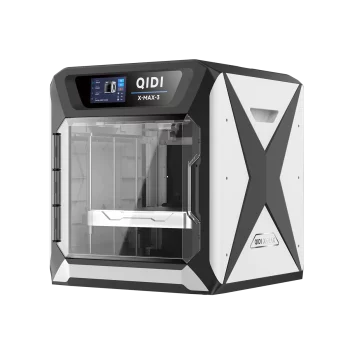

Qidi Tech X-Max 3
Imprimante 3d Qidi Tech X-Max 3, CoreXY, volume d’impression 325*325*325mm, vitesse d’impression jusqu’à 600mm/s, Klipper, auto leveling, TMC2209,…
Purchase Notice:
- Ship from Local Warehouses:
USA – Pre order, ship in May, free shipping.
UK – Pre order, ship in June, free shipping
EU – Pre order, ship in June, free shipping
JP – Pre order, ship in May, free shipping
- Ship from China:
Other countries – Ship from China, ship in 4 weeks, shipping calculate at checkout. All shipments from China need to clear customs and pay duties by yourselves.
About Pre order:
- The pre order is refundable, if you don’t want to keep the order, please be sure to contact us before shipment, we will cancel your order and refund then.
- Pre orders will be shipped in the order of payment.
- When your order is shipped, an email with tracking number will be sent to the email address you filled in when you placed your order.
— The best industrial grade FDM high speed all-round 3d printer —
QIDI Tech
X-MAX 3
-Faster Speed 600mm/s
-Bigger than bigger
-325*325*325 mm
-High-Flow 35mm³/s
-Acceleration: 20000mm/s²
MAX 3 configures the above technologies for truly fast printing
KLIPPER
64-bit
Processor
Cortex-A53
Main frequency 1.5GHz, 8G-EMMC and 1G DDR3
Upgraded Lightweight Structure
Weight reduced to 600g from 1600g.
Enhanced strength, 6-12 times stronger than steel.
CoreXY Structure
·Reduce the motion Inertia and improve the motion speed
·TMC2209 silent drive
·Less noise
Steadier,Stronger,Faster
Extrusion
The 9.5:1 gear ratio
lightweight upgrade and provide strong and stable flow supply
Two Sets of Hot End
Copper Alloy Nozzle,
Better thermal conductivity,
Printing Smoother, More Durable,
Hardened Steel nozzle, Better For High-Performance Materials, Longer life
Both 350℃ Max Print Temp
Controlled Temperature Chamber
And Drying Box
-Independent Heating Device
-Maximum Temp 65℃
-High efficiency printing
PET-CF,PAHT-CF etc
-Chamber Circulation Fan
With Activated Carbon Air Filter
65℃
Chamber Temperature
Control System
Resonance Compensation
We Only Produce High Performance Materials
-Professional Printing Industrial Grade Materials-
Automatic Levelling
New automatic intelligent levelling 16 points are taken to calculate the printing Compensation
Flexiable HF Board
Excellent adhesion,
No warping trouble,
Easy to remove the prints
Excellent User Experience
The highly acclaimed QIDI slicer software has both normal mode and expert mode, which is also easy for beginners to get started!
Quality Service
Since our establishment 9 years ago, we have been focusing on the whole machine FDM R & D and production, we are also very few manufacturers with high-end materials R & D and production capacity! We have been trying to create better experience for users, better product quality, to create value for users is our pursuit. We are far ahead of our peers in terms of user praise on Amazon!
In the four years since the launch of MAX 1, we have produced nearly 100,000 units and received a lot of positive feedback from users, who have provided us with a lot of valuable suggestions. Based on MAX 1 and MAX 2, our Qidi team developed MAX 3, which is a 3D printer comparable to industrial grade.
Specifications
| Machine Name | |||
| X-Max3 | X-Plus3 | X-Smart3 | |
| Technology | FDM | ||
| Build Volume (W×D×H) | 325*325*325mm | 280*280*270mm | 180*180*170mm |
| Dimensions (W×D×H) | 553*553*601mm | 511*527*529mm | 370*362*397mm |
| Net weight (kg) | 24.5 | 19.5 | 10.5 |
| Printing Speed | ≤600mm/s | ≤500mm/s | |
| Extruder Flow: | 35mm³/s | 30mm³/s | |
| Extruder Temp | ≤350°C | ≤280°C | |
| Hotend (Included) | Copper alloy nozzle hotend For Common materials | Brass Nozzle hotend | |
| Hardened steel nozzle hotend For Abrasive materials | |||
| Auxiliary Part Cooling Fan | ✔ | ✔ | ✖ |
| Chamber Temperature Control | 65°C Independent Chamber Heating | 65°C Independent Chamber Heating | ✖ |
| Chamber Circulation Fan With Activated carbon air filter | ✔ | ✖ | ✖ |
| Screen | 5.0 inch | 4.3 inch | |
| 800*480 touch screen | 480*272 touch screen | ||
| Seal print | Dryer Box + Desiccant | Optional | |
| Connection Options | Wi-Fi/USB Flash Drive/Ethernet Cable | Wi-Fi/USB Flash Drive | |
| Rated Power | 900W | 800W | 350W |
| Recommended Filament | PAHT-CF,PET-CF,PA12-CF | PLA | |
| Compatible filament | PLA, ABS, ASA, PETG, TPU, PET-CF, PA12-CF, PC, UltraPA, Nylon, etc. | PLA, ABS, ASA,PETG, TPU etc | |
| Structure | CoreXY | ||
| Z Axis： | Double Z axis | ||
| X axis | Hardened Wear-resistant Carbon Fiber Rod | ||
| Firmware: | Klipper | ||
| Printing Acceleration: | 20000mm/s² | ||
| Printing Accuracy: | ±0.1 mm | ||
| Filament diameter: | 1.75mm | ||
| Bed Leveling: | Automatic Leveling | ||
| Extruder transmission ratio | 9.5:1 | ||
| Hot end: | Ceramic Heating Core | ||
| Extruder: | High-flow Direct Drive Extruder | ||
| Nozzle diameter: | 0.4mm (0.2,0.6,0.8mm Optional) | ||
| Hot bed temperature: | ≤120℃ | ||
| Printing Plate: | Double-Sided Flexible Magnetic HF Plate | ||
| Filament Detection: | Yes | ||
| Resonance Compensation： | Yes | ||
| Pressure Advance： | Yes | ||
| Voltage: | 100-240VAC, 50/60Hz | ||
| Main Processer: | Cortex-A53,64-bit Preocessor | ||
| 1.5Ghz,8G-EMMC,1G DDR3 | |||
| Slicer: | QIDI Print and other third-party software, such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc. | ||
| Operating System: | Windows, MacOS, Linux | ||
| Assembled | Assembled and First Print within 10 minutes | ||
