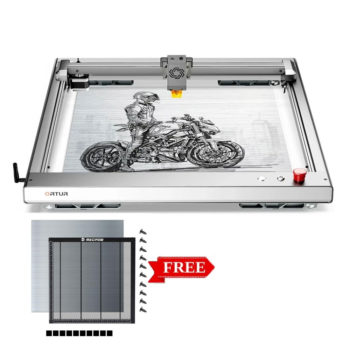

ORTUR LASER MASTER 3 + Honeycomb
Ortur laser master 3 10W LU2-10 module + Honeycomb, table de travail en nid d’abeille. Surface de travail 400x400mm, vitesse 20000mm/mn
Highlights
ORTUR Laser Master 3 Main Features
A successor to the OLM2, the Ortur Laser Master 3 is currently one of the best 10-watt diode laser engravers available. It is able to engrave at a soaring speed of 20000mm/min without compromising on the quality of the results. Except for the user-friendly APP, it is also easy to assemble and has an improved frame for faster and more accurate engraving and cutting, which will cater to the needs of both professionals and business users.
- 20,000mm/min
- 0.05×0.1mm Focus Spot
- Cuts 30mm Acrylic
- Emergency Stop
- Child Lock
- Built-in WiFi
- 400mmx400mm Engraving Area
10W Output
Ortur Laser Master 3 is ORTUR’s newest real 10W optical power laser engraver. The laser output power soars up with the latest generation of two 5.5W laser coupling technology, is able to cut off 10mm pine board with only one pass, and even cut the 30mm thick black acrylics without any issues
The focusing spot area of the new laser is only 1/3 of other ordinary lasers and Integrated Air Assist/Dual Fans/Foldable Focal Gauge/All in 235g Weight. Combine precision engraving and high-energy cutting at the same time. It can work very well at a high speed of 20000mm/mm, saving you over half time as other similar brands.
Laser Cutter with Wide Compatibility
ORTUR Laser master 3 supports Web UI, also compatible with various mature engraving software, such as LaserGRBL, and LightBurn, supports Win XP/7/8/XP/10 and also supports Mac system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF, etc.
User-Friendly Laser Engraver
It supports SD Card/USB/Wi-Fi APP/Access Point Offline Work. Professional APP- Laser Explorer, Easy to Use/Automatic Operation Guide/Novice Friendly, is compatible with iPhone, Android Phones, iPad, and Android Pad. Drag the NC file to the SD card, the machine starts working, and then you can turn off the computer or mobile phone without worrying about disconnecting, which is more convenient to print for a long time. No computer restrictions, and engraving works anytime, anywhere.
New Eye-protection Cover Design
The filter panorama shield can filter 97% of ultraviolet rays, which plays a good role in protecting the eyes. You and those around you don’t need to wear goggles to get a clear view of the laser engraving. Reduce the cost of your goggles and the inconvenience of wearing them. It comes with an air assist nozzle, which makes the laser blow away the smoke and debris during work to make your engraving work perfect.
More Functions
Low Gravitational Center Structure/The Latest Smart Laser Engraver Solution From ORTUR Laser Application Technology Lab/The 11th Generation Of Laser Motherboard/The V2.0 Series Smart Laser Firmware/Direct Print without transferring G-code/No Need Extra Offline Controller to use/No physical Limit Switch but you can set up original point to engrave wherever you like and so on.
Specification
| General | Brand: ORTUR Type: Laser Engraver Model: Laser Master 3 Color: Grey |
| Specification | Engraving Area: 400x400mm Engraving Speed: 20000mm/min Spot Size: About 0.05×0.1mm Motherboard: OLM-ESP-PRO-V2.4 Motors: 42×60 Y Stepper Motor xl, 42×40 Y Stepper Motor xl Available Luminous Power: LU2-10A (9500-10500mw) Product Material: 70% Aluminum +15% Steel + 5% Plastic + 5% Brass + 5% Others File Format: JPG/JPEG/PNG/BMP/SVG/ETC Laser Wavelength: 455+5nm Control Software: LaserGRBL/LightBurn/Laser Explorer (ORTUR APP) Engravable Material: Wood, acrylic, leather, metal, ceramics, fabrics, cylinder, food, tinted glass, stainless steel, paper, cardboard |
| Weight & Size | Package Weight: 6.5Kg Product Size(L x W x H): 58x55x15cm Package Size(L x W x H): 66x24x20cm |
| Package Contents | 1 x Front Assembly 1 x Rear Assembly 2 x Synchronized Belt 1 x Laser Wire 1 x Circuit Group 1 x USB Cable 1 x YRR Motor Wire 1 x Slideway of Left Y-axis 1 x Slideway of Right Y-axis 1 x Assembly of X-axis 4 x M4x8mm Screws 2 x M3x6mm Screws 2 x Idler Assembly 1 x WiFi Aerial 2 x M4 Set Screws 1 x 2mm Allen Key 1 x 3mm Allen Key 1 x Wrench 1 x Testing Acrylic 4 x Testing Woods 1 x 2.5mm Allen key 1 x Laser Goggle 1 x Card Reader + TF Card 1 x Power Adapter 1 x Brush 10 x Cable Ties 1 x Testing Aluminium Flake 1 x Machine Key 1 x LU2-10A Laser Module 1 x Air Assist 1 x Pipe Connector 1 x Thumb Screw 1 x Air Pipe (OD: 6mm, ID: 4mm) 1 x Laser Shield 1 x Air Flow Regulator 1 x User Manual |
