Mintion Lasercam
Mintion Lasercam For Laser Engraver/Cutter | Remote Monitor & Control | Positioning | Fire Detection
Mintion Lasercam For Laser Engraver/Cutter | Remote Monitor & Control | Positioning | Fire Detection
This laser camera is specially designed as a standalone product with multiple functions for laser engraver/cutter and is compatible with major popular brands of diode laser engraver(Such as xTool, Atomstack, Sculpfun, Twotree, Ortur, Creality, NEJE, Longer, etc), complies with GRBL protocol with Lightburn and LaserGRBL.
- Plug & Play, Easy-to-use
- Remote Monitor & Control your laser engraver/cutter
- Offline engraving/cutting to free your computer and protect your eyes
- Precisely positioning in Lightburn
- Auto-generate timelapse videos for engraving/cutting job
- Manual focus of camera lens for a better view
- BeagleEngraver App to remote access from anytime anywhere
- Support PC Browser to monitor & control the laser engraver/cutter
- Fire Detection to Alarm & Alert Message Push on App
- Normal Record & Playback to save evidence if there’s any incident
- 1080P resolution for video streaming
- Dual WiFi Bands of 2.4GHz & 5GHz for wireless connection
- Come with a positioning holder bracket and a tripod for different angle view

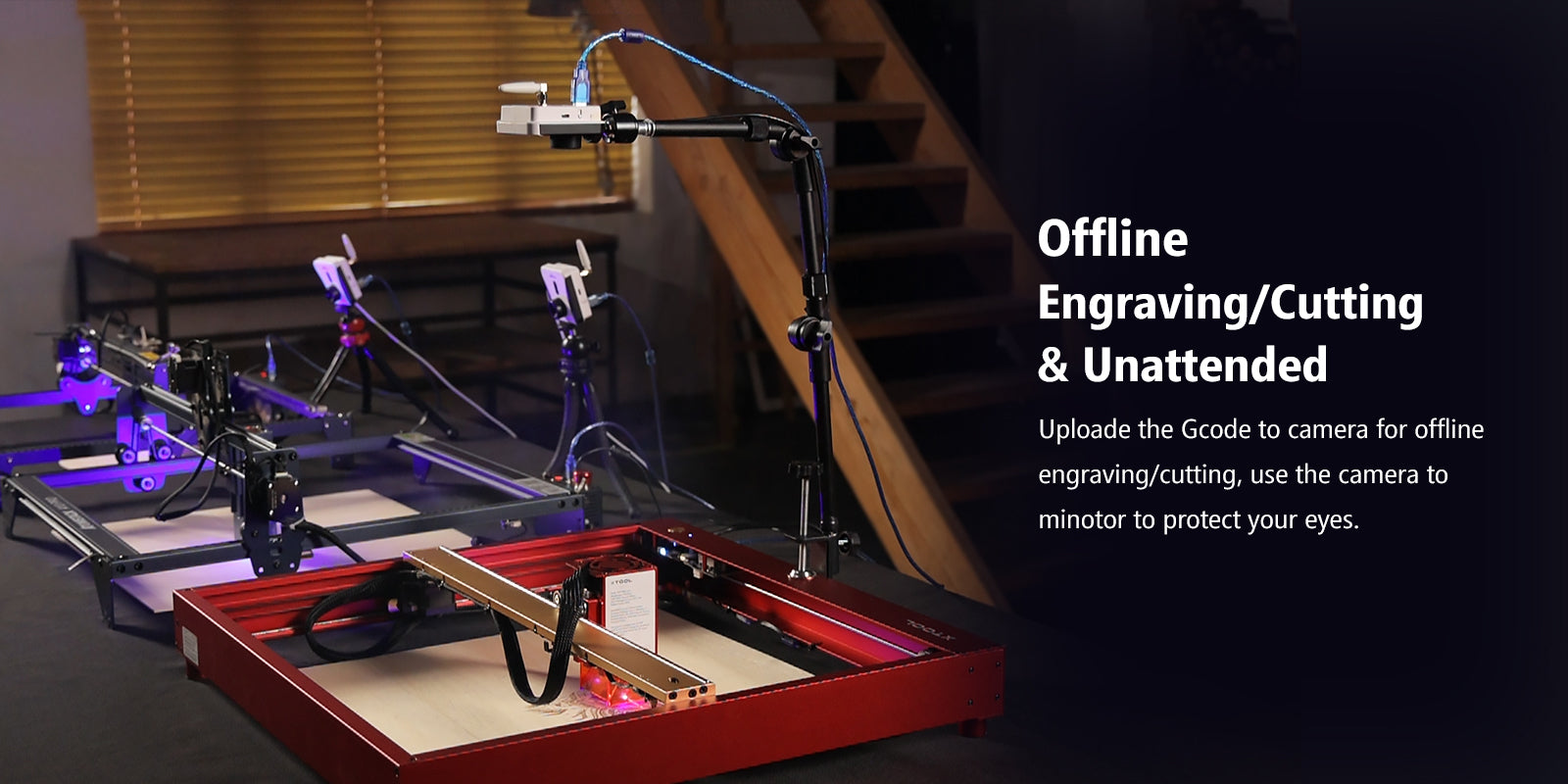

Offline Engraving/Cutting &Unattended
Free your computer for offline engraving/cutting and don’t need to stay with engraver anymore

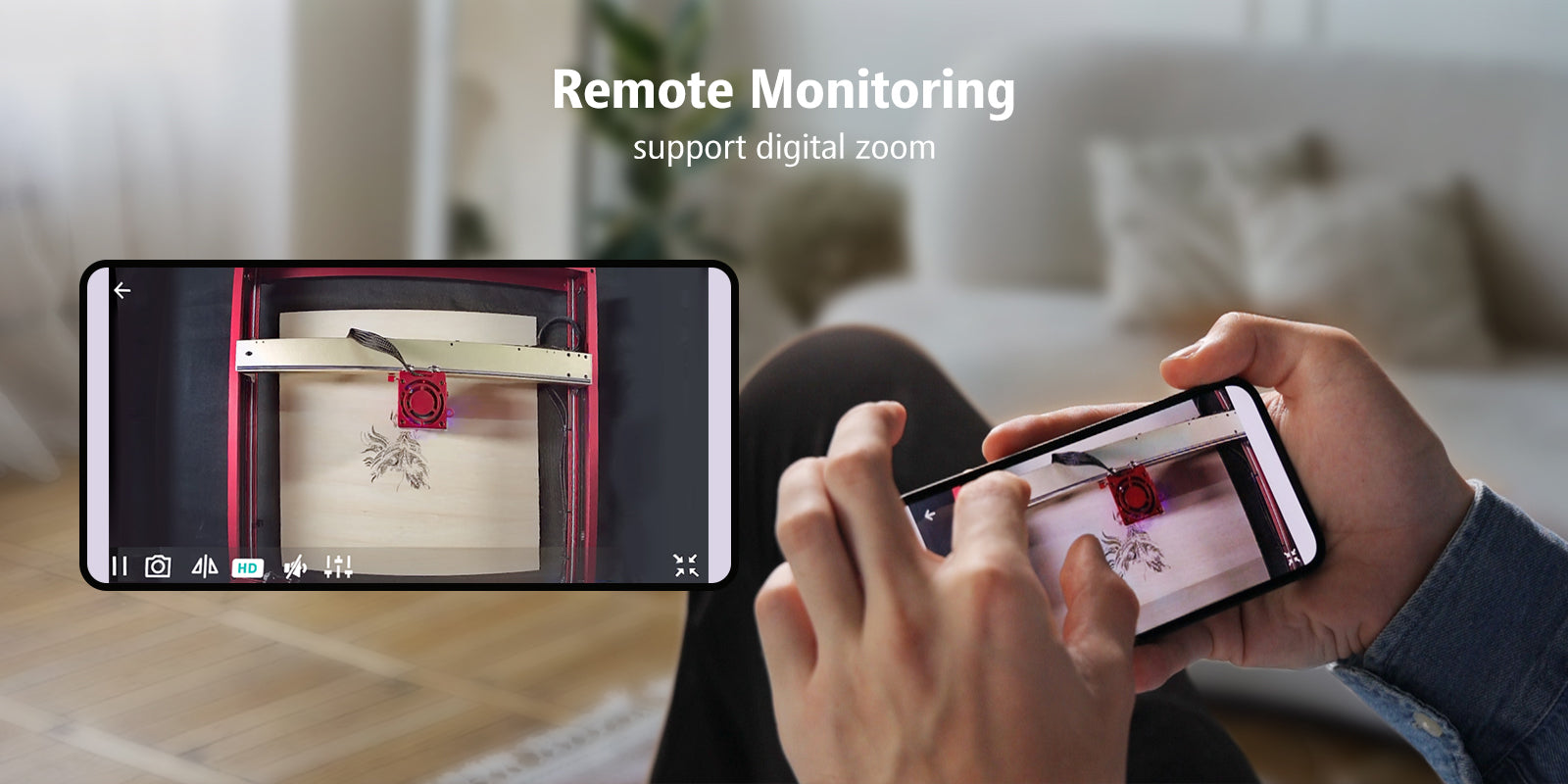

Remote Monitor the Ongoing Project
With BeagleEngrave, you can easily observe the job ongoing and digital zoom the video to check the details
Remote Control the Engraver
You can easily check the artwork and control the engraving on hand, even if it’s in the enclosure

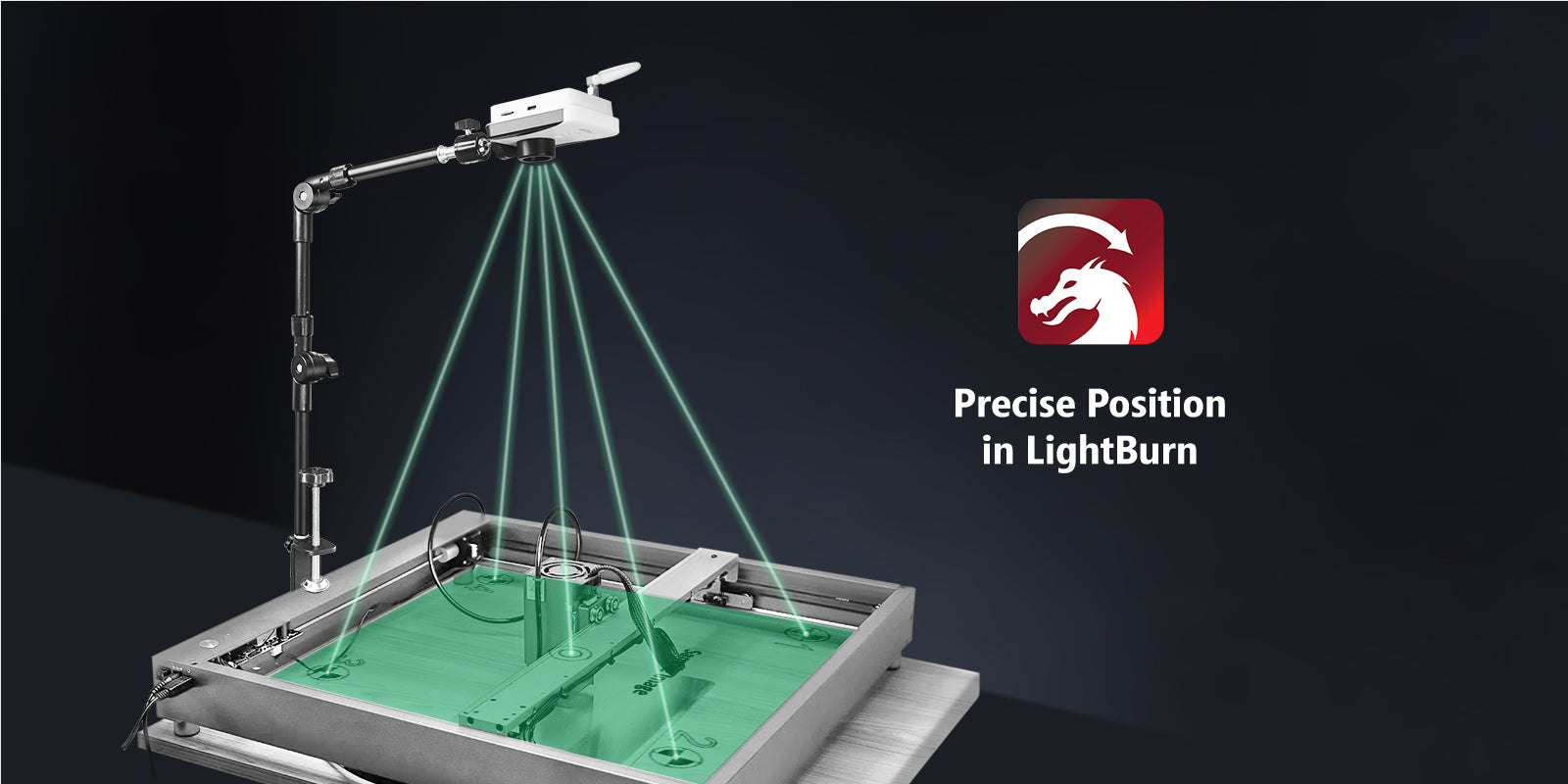

Work as LightBurn Camera
The Lasercam is able to connect to computer and works as LightBurn camera for positioning and tracking
Beyond a Camera for Multiple Functions
The Lasercam is specially designed for laser engraver/laser cutter, not just as a normal USB camera

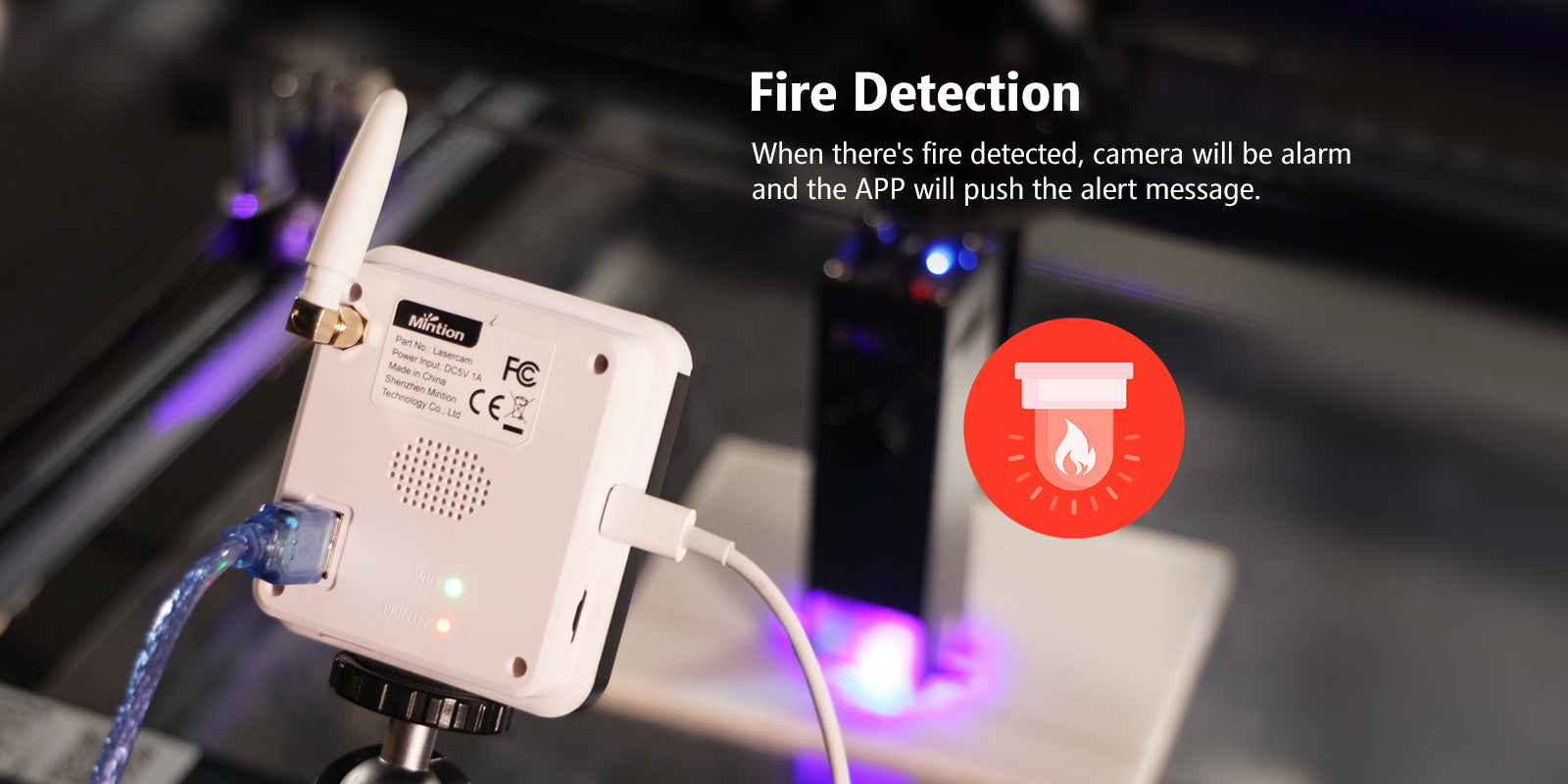

Fire Detection for Safe
When the Flame Detector detected a flame, the camera will send the command to stop the engraver and move the laser module aside, then Lasercam will alarm and send the alert message to your phone to keep safety.
Use on Browser
Besides the app BeagleEngrave, you can also use login the camera on browser and easily upload the gcode
Real-time Prompt Engraving Status
When engraving/cutting is paused/interrupted/completed, the app BeagleEngrave will push a message in real time to let you know the status at the first time.
Normal Recording & Playback
Lasercam can work as a normal wifi camera for instant recording and playback the record videos to save evidence if there’s an unexpected incident.
Create Time-lapse Video with Fun
Three different timelapse video modes to generate the video automatically
Clean Timelapse Video
The laser module will be moved aside every 5 seconds (default setting) automatically to create a timelapse video like the art job self-growing.
Normal Timelapse Video
The camera will capture the image each 5 seconds (default setting), but won’t move the laser module. The laser module will be inside the video.
Timer Timelapse Video
This mode allows to make timelapse video even without connecting to the engraver. You can set the timing to capture as a camera to make timelapse video.
Laser Engraver/Cutter Compatible List
Lasercam camera compatible with major popular engravers in the market and the list will be updated regularly
ATOMSTACK
A5 M30 / A5 M40 / A5 M50 / A5 M50 Pro / A5 Pro / A5 Pro+ / A10 Pro / A20 Pro / A30 Pro / P9 M40 / P9 M50 / P7 M30 / P7 M40 / S10 PRO / X7 / X7 Pro / X20 Pro / X30 Pro
Aufero
AL1 / AL2
Creality
Falcon / Falcon2
Comgrow
Z1
iKier
K1 Pro / K1 Pro Max / K1 Ultra
Longer
RAY5 / Laser B1
Ortur
LM2 / LM2 S2 / LM2 Pro S2 / LM3 / LM3 LE
SCULPFUN
S6 / S6 Pro / S9 / S10 / S30 / S30 Pro / S30 Pro Max / S30 Ultra
TWOTREE
TTS / TS2 / TS3
xTool
D1 / D1 Pro
Software List
The Lasercam complies with RGBL protocol and works flawlessly with the gcode files
Compatible Software List
– LightBurn
– LaserGRBL
On Testing Software List
– xTool Creative Space
Specification
Model
Lasercam
Video Compression
H.264/MJPEG
Video Resolution
1080P
Night Version
Black & White; Color Night Version
Frame Rate
Up to 25fps
Auto Time-lapse Video
Clean/Normal/Timer Mode
WiFi Connectivity
Supports 2.4GHz / 5GHz
Compatibility
GRBL protocol engraver and LightBurn & LaserGRBL
Connect to Computer
Type C to USB Cable
Connect to Engraver
USB Cable
Files Storage
Micro SD Card (Default 32 GB)
Upload Gcode File
Yes, .gcode & .nc files
Power Source
DC5V 1A
Brackets
1*Holder & 1*Tripod
Camera Box Size
313*292*71cm
Gross Weight
1.5KG
Why BeagleEngrave?
The Beagle
Excellence Watchdog
The Beagle is an excellent watchdog with a friendly personality; they have reliable guarding and territorial instincts and are highly protective of the family members, making them a good choice for a watchdog.
The BeagleEngrave
Your Engraver Sentinel
We envision our Lasercam camera as a reliable companion for laser engraving/cutting, just like a loyal beagle. It offers remote monitoring and controlling, acting as a vigilant guardian throughout the process, including fire detection. Seamlessly integrated with LightBurn software, it ensures precise positioning, enhancing the engraving experience.
This versatile camera also boasts a one-button auto-generation for time-lapse videos, adding joy and entertainment to the engraving, much like how beagles always find ways to bring laughter and delight.
