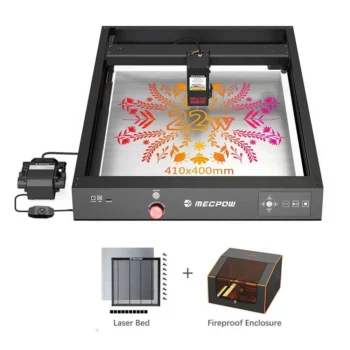

MECPOW X4 22W + FC1 + Laser Bed
Mecpow X4 22W Laser Engraver Cutter + FC1 Fireproof Enclosure + Laser Bed
Highlights MECPOW X4 22W + FC1 + Laser Bed
Mecpow X4 is a genuine 22W laser utilizing cutting-edge spot compression technology, where four high-powered 6W laser diodes are compressed to boost the laser power to 22W. This laser is capable of cutting through 10mm wood, 6mm black acrylic, and 0.08mm stainless steel sheet with just one pass at 80% power.
- 90% Pre-assembled
- Integrated Air Assist
- 0.08×0.1mm Compressed Spot
- 22000mm/min Engraving Speed
- Emergency Stop / Offline Work
- Engraving Area 410*400mmm
Auto Assist Air Pump
The 30L/min air pump blows up the dirt on the engraving area easily, keeping the surface tidy. The high air pressure prevents the engraving from burning, which ensures complete and intact patterns as well as smooth and shiny lines in the engraving. You can also adjust the air volume to quickly get the required volume.
High Power & Capacious Engraving Area
The Mecpow X4 laser engraver boasts 22W high power, enabling several-fold the thickness of cutting achievable. The laser engraver unleashes enormous power for stable and extensive engraving. The spacious engraving area reaches up to 400×410mm (15.7×16.1 inches), providing a boundless area for users to create.
High Efficiency & Pinpoint Precision
The Mecpow X4 achieves a remarkable maximum engraving speed of 22,000mm/min, spending less time to increase productivity. Featuring an ultra-fine laser point of 0.08mm×0.1mm, the laser engraver increases its accuracy, effortlessly engraving exquisite and fine artworks.
Comprehensive Protection System & Fast Focusing
Equipped with a flame sensor, an alarm, a tilt sensor, a built-in laser shield and an emergency stop button, the Mecpow X4 considers the safety of the user thoroughly and avoids accidents. The eye-protective laser head could filter harmful lasers with the protective shield. Besides, the Mecpow laser engraver completes focusing in just a few minutes. You can embrace your engraving without extra concern and embark on your creative journey rapidly.
Offline Operation & Wide Compatibility
The Mecpow laser engraver makes offline operations possible for the convenience of the user. You can begin the engraving by inserting the TF card or connecting your phone to the WiFi of the laser engraver. Besides, the X4 laser engraver is compatible with various software, such as MKSLaser APP, LaserGRBL and LightBurn, etc. You will invent novel and stylish engravings thanks to these two great strengths.
Multiple Engraving Materials
To satisfy the diverse needs of the users, Mecpow created the amazing X4 laser engraver. With a variety of engraving materials like wood, acrylic, glass, metal, china, fabric, bamboo, plastic board, leather, food, and more, you can create one-of-a-kind engravings that stand out.
Specification
| General | Brand: Mecpow Type: Laser Engraving Machine Model: X4 Color: Black |
| Specification | Frame Material: Aluminum Input Voltage: DC 24V Rated Power: 144W Max. Engraving Area: 410 x 400mm Max. Engraving Speed: 22000mm/min Spot Size of Laser Beam: 0.08 x 0.1mm Tilt Alarm: 50°±5 Methods of Data Transmission: USB Wired/ WIFI Wireless/ TF Card Software Support: MKSLaser APP/ LaserGRBL/ LightBurn System Support: Windows/ Mac/ Linux File Format Support: JPEG, BMP, GIF, PLT, PNG, DXF Materials for Laser Engraving: Wood, Acrylic, China, Fabric, Bamboo, Plastic Board, Leather, Fruit, Bread, etc. Laser Power: 22W Air Velocity for Air Pump: 30L/min Charger: AC 100~240V 2.5A (Input), 24V 6A (Output) |
| Features | Auto Air Pump: Yes Offline Operation Support: Yes Eye-Protective Laser Head with a laser shield: Yes Alarm: Yes Emergency Stop: Yes Reset Button: Yes Tilt Sensor: Yes Flame Sensor: Yes Limit Switches: Yes |
| Weight & Size | Product Weight: 7.5kg Package Weight: 11kg Product Size(L x W x H): 68.5x62x19cm Package Size(L x W x H): 71.5×64.5×14.5cm |
| Package Contents | 1 x Laser Module 1 x Power Adapter 1 x USB Cable 2 x Wood Board 1 x Metal Plate 1 x Goggles 1 x User Manual 1 x Air Pump 4 x Raiser 4 x Raiser for Combination 1 x TF Card 1 x TF Card Reader 1 x Cleaning Brush 1 x Wrench 1 x WiFi Antenna 1 x Screwdriver 1 x Mecpow H44 Laser Bed 1 x FC1 Fireproof Enclosure |
