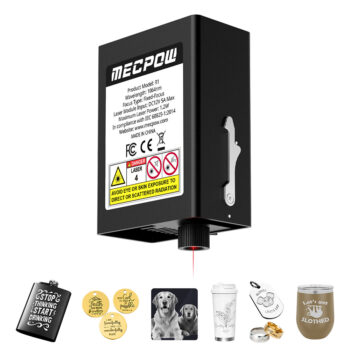

Mecpow R1: 1064nm 1.2W IR Laser Module for M1 / X3 Series Laser Engraver
Highlights
Versatile Material Engraving
The Mecpow R1 1064nm infrared laser module is engineered to engrave on a variety of metals, including gold, silver, platinum, copper, aluminum, zinc, iron, stainless steel, metal oxides, alloys, plastics and dark acrylics.
Exceptional Precision & High-Speed Pulse Energy
Featuring an ultra-fine 0.01mm laser spot, the Mecpow infrared laser module ensures high-precision engraving, allowing intricate and delicate designs to be reproduced on various metal surfaces. With a powerful pulse energy of up to 16,000Hz, the Mecpow R1 effortlessly engraves even the hardest metals, producing clean, sharp, and highly detailed results.
Wide Compatibility & Fast Focusing
Compatible with Mecpow laser engravers, including the X3, X3 Pro, and M1 series, the Mecpow R1 allows for quick focusing by simply pulling down the focus lever to adjust.
Quick Installation
Equipped with a dovetail, the Mecpow R1 infrared laser module allows quick and secure attachment to your laser engraver. Get set up and start engraving in no time.
Unleash Your Creativity
Ideal for custom jewelry making, personalized gifts, and creative DIY projects, the Mecpow R1 empowers you to add a unique, heartfelt touch to special occasions. Turn everyday items into lasting memories with professional-grade laser engraving.
Specification
General | Brand: Mecpow Type: Infrared Laser Module Model: R1 Color: Black |
Specification | Wavelength: 1064 nm±1 Laser Power: 1.2W Pulse Width: =8 ns Power Supply: =16 KHz (Non-adjustable), DC12V 5A Laser Control: PWM signal input for laser activation Operating Temperature: 20-30°C (68-86°F) Storage Temperature: -10-50°C (14-122°F) |
Weight & Size | Product Weight: 0.4kg Package Weight: 0.8kg Product Size(L x W x H): 60*38*80mm Package Size(L x W x H): 195*150*70mm |
Package Contents | 1 x Infrared Laser Module R1 1 x 12V 5A Power Adapter 1 x Dovetail Slot 1 x M3*30mm Fastening Screw 4 x M3*8mm Flat Head Screw 1 x User Manual |
