Creality Falcon2 40W + Honeycomb + Rotary
Creality Falcon2 40W Laser Engraver with Integrated Air Assist System and 4in1 Y-axis Rotary Roller and 400x400mm Honeycomb Working Table 25000mm/min High Speed Adjustable Laser Spot Steel Color Engraving and Cutting Machine Quick Assembly Support TF Card Offline 400mm*415mm Work Area for Wood Cardboard Bamboo Leather Brushed Stainless Steel Acrylic
Features:
🔝 Creality Falcon2 adopts 40W Laser Module which improve photoelectric conversion efficiency, beam quality, and reliability to a standard comparable to 20W products by adopting new package cooling technology. Able to cut 20mm wooden board or 30mm black acrylic plate by one pass.
🔝 Upgraded adjustable Laser beam – 0.1mm/0.15mm, which can be used to adjust the light beam according to the engraving and cutting needs, making the work more refined. And with 25000mm/min amazing engraving Speed, Falcon2 allows you to spend less time creating more.
🔝 Equipped with new Integrated air assist system, free to manually adjust the air assist steplessly through the knob, or it can automatically adjust the airflow through LightBurn, to remove smoke and protect the laser lens, bringing a cleaner result.
🔝 Up to 400mm*415mm work area, perfect for carving large wooden craft. The integrated sliding rail on the axis keeps the running highly synchronized, while the U-shaped wear-resistant wheels make motion more stable. This 40W lazer power Carving machine support insert TF card and offline creating; Free to dynamic preview and adjust precisely without connecting to a computer.
🔝 Falcon2 40W designed with more conservation functions to keep users and machine safety when enjoy the creating. Triple Monitoring Systems including Airflow Monitoring, Lens Monitoring and Flame Monitoring. And 5 safety protections – Bidirectional Limit Switch, Active Stop Function, Security Lock Design, Emergency Stop Button and Laser Protective Cover.
🔝 The full aluminum alloy structure design brings a more solid machine, ensuring exceptional stability even in high-speed operation. Only 3 steps are needed for full assembly. You can enjoy creating as soon as possible. New design – there are 3 adjustment holes on the bottom of the machine to suit different table sizes.
Necessary Accessories for Laser Cutting: With this accessory to cut wood, acrylic and other materials, the edges of the wood are neat and clean, not easy to be yellowed by smoke, and you can get a clean cutting work. 400x400mm working area is suitable for most popular laser engraving machines, maximize the cutting area.
Observable Design: When the laser cuts through wood or acrylic, the metal plate at the bottom of the honeycomb will emit a bright light, which means that the cutting has penetrated. Easier to judge whether cutting through. You don’t need to calculate the number of cuts, just keep repeating cutting until the bottom glows, which means the material has been cut through.
Safe Metal Desktop conservation Board: All made of metal, processed by high-precision CNC, solid structure not easy to deform, and high flatness. And equipped with a metal desktop conservation board, which can protect the table from laser damage.
Square Measuring Ruler: X-axis and Y-axis contain precise scale lines to form a right-angle measuring ruler, which is convenient for you to measure the size of cutting objects quickly.
Wide Compatibility: Compatible with various mature laser engraving machines, such as diode DIY laser engraving machine and CO2 laser engraving machine.
4in1 Rotary Module: The roller with rubber covered, greater frictional forces than any sheet metal. Water resistance. 90% pre-assembled. Now you can take a few minutes to switch the mounting combination to work with the sculpted item you want. You can even experience four engravings in less than 10 minutes.
Roller Rotary: Now your baseball bat or red wine glass is always ready for engraving, so you don’t even need to think about length or diameter. The engraving starts naturally when an extra-long cylindrical object or a large diameter object is placed on it.

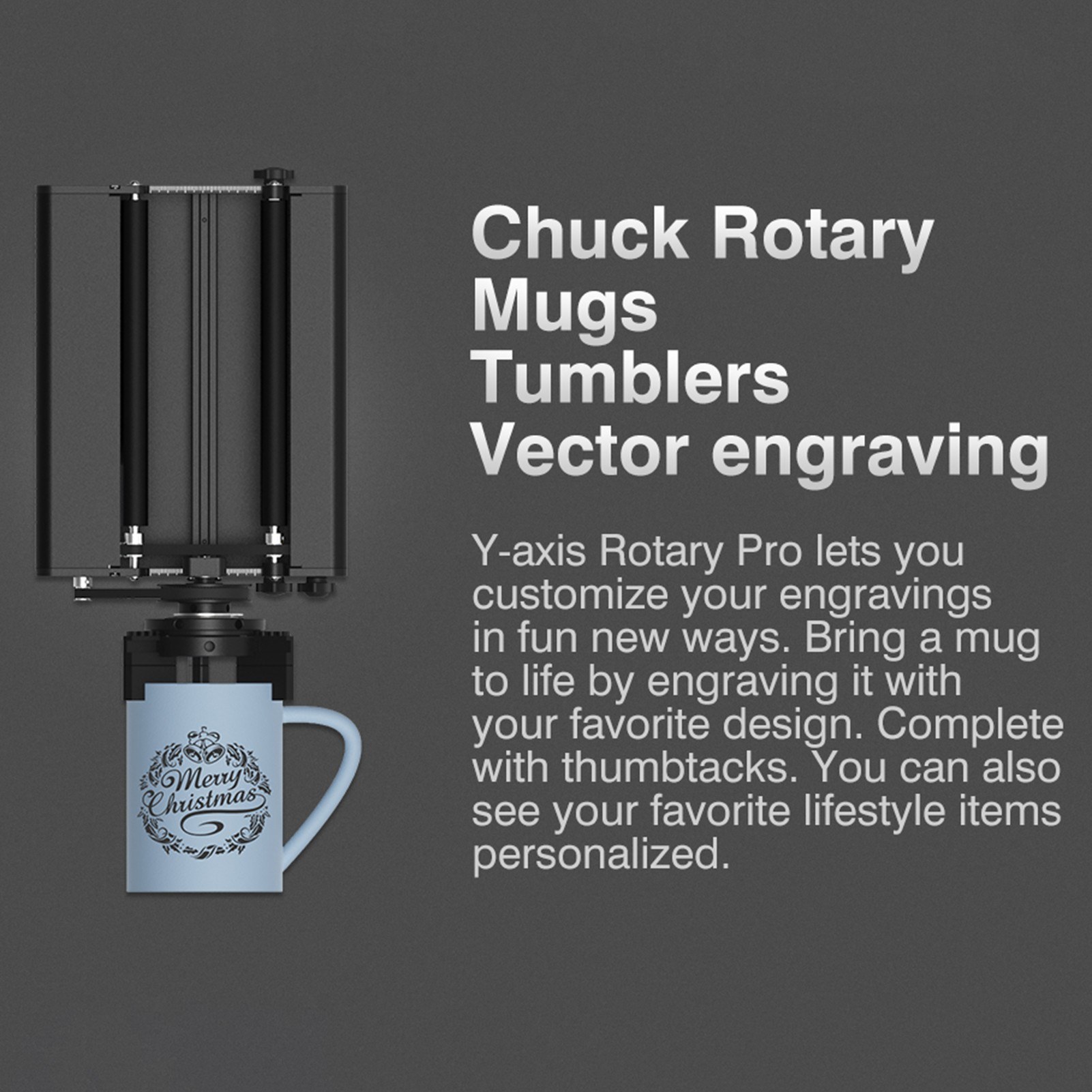

Chuck Rotary: Y-axis Rotary Pro lets you customize your engravings in fun new ways. Bring a mug to life by engraving it with your favorite design. Complete with thumbtacks. You can also see your favorite lifestyle items personalized.
Ring Rotary: On the Y-axis Rotary Pro, the smallest diameter allows perfect engraving of rings.
Sphere Rotary: The module with suction cup assembly sliding adjustment to adapt to different diameter of the ball, with the use of the chuck ball fixed diameter 50-105mm.
Applicable to a wide range of models: Standard two 80CM motor adapter cables are suitable for different types of engraving machine interfaces on the market. It can use with Swiitol Laser Engravers such as C18 PRO\C24 PRO\E6 PRO\E18 PRO\E24 PRO.
Specification:
Model: Creality Falcon2 40W
Laser Module Output Power: 40W
Laser Spot: 0.1mm/0.15mm
Wavelength: 455±5mm
Engraving Speed: Max. 25000mm/min
Working Area: 400mm*415mm
Voltage Input: 100-240V~ 50-60Hz
Voltage Output: DC 24.0V 10A
Connecting Interfaces: TF Card, Type-C
Operating System: Windows,MacOS
Control Software: LightBurn,LaserGRBL
File Type(s): jpeg,jpg,png,bmp,svg,dxf etc.
Material for Engraving: Cardboard, Felt, Cardboard,Wood, Bamboo, Leather,
Fabric, Acrylic, Brushed Stainless Steel, Dark Anodized Aluminum, Painted Metal, etc.
Material for Cutting: Cardboard, Felt, Cardboard,Wood, Bamboo, Leather,
Fabric, Acrylic, Brushed Stainless Steel etc.
Net Weight: 7.4kg
Product Size: 664x570x193mm
Model: SCULPFUN honeycomb panel
Material: High-strength Steel
Product Size: 400x400mm
Product Thickness: 22mm
Diameter of Honeycomb Mesh: 9mm
Chuck rotary
Radio: 5.7:1
Diameter:26- 140mm
Engrave diameter range (Use additional risers)
Roller: 5mm-1 50mm
Chuck: 1mm-1 15mm
Sphere: 50mm-105mm
Ring: 15mm-1 10mm
Product Weight: 2090g
Packing List:
1 x Creality Falcon2 40W Laser Engraver
1 x Honeycomb panel
1 x 400x400mm metal desktop conservation board
1 x 4in1 Y-axis Rotary Roller
