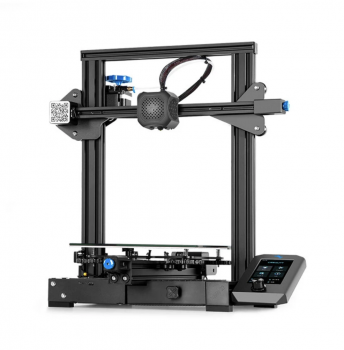

Creality Ender 3 V2
Creality 3D® Ender-3 V2 Upgraded DIY 3D Printer Kit 220x220x250mm Printing Size Ultra-silent TMC2208/Silent Mainboard/Carborundum Glass Platform Support Resume Print – EU Plug
The package will not contain U disk/SD card, click to: Download SD card file
There is a new Ender-PLA filament for Sales.
Features:
✔ Updated Self-developed Silent mainboard with TMC2208 stepper drivers. Ender-3 V2 built-in self-developed 4.2.2 version silent motherboard.
✔ Safty Mean Well Power Supply
✔ Carborundum Glass Platform.
✔ A new UI 4.3inch color screen with updated easy to use interface
✔ New Heating Element Enclosure.
✔ Smart filament sensor and resume printing.
✔ Easy filament feed function.
✔ X and Y-Axis Belt Tension: quick and fast adjustment. And better to improve dimensional accuracy.
✔ Y-Axis – 4040 Aluminum Extrusion: The Y Axis has been replaced with a 4040 extrusion, the same as the Ender 3 Pro.
✔ This gives greater stability to the Y Axis over original Creality Ender 3.
✔ Nozzle and Toolbox, convenient and tidy.
Some tutorial video:
0. How to level the Creality Ender-3 V2 3d printer? Here you can refer to our leveling tutorial: Video link: https://youtu.be/GeuvoCZY4CI
1. Ender-3 V2 nozzle cleaning tutorial
2. Ender-3 V2 through needle cleaning and nozzle replacement tutorial
3. Ender-3 V2 Replacement nozzle component tutorial
4. Ender-3 V2 motherboard firmware update
5. How to load filament into the Creality Ender-3 V2 3d printer?
Step1. Please turn on the machine, click the button of control, to select the button of temperature, and the nozzle temperature is setting 200 degrees Celsius.
Step 2. When waiting for the temperature to rise, please cut the front end of the consumables at a 45-degree angle and hang the filaments on the material rack.
Step 3. Press the extrusion spring and insert the filament until the nozzle along the extrusion. When the temperature is up to the target temperature, the filament will come out of the nozzle, nozzle, and complete loading the filament.
6.Which filaments support to print in the Creality Ender-3 V2?
It supports printing the PLA、TPU、carbon fiber and other linear filaments.
7.How to move the X/Y/Z/E axis separately?
In “Preparation”, select “Axis Movement” to control each axis individually, and you can also select the distance of each movement (0.1mm/1mm/10mm)
8.How to replace the filament in the Creality Ender-3 V2?
Please hold the nozzle at 200 degrees Celsius at first, then pinch the extrusion clamp to push the old filaments forward and pull it out quickly, while preheating the nozzle and withdraw the filament quickly and feed the new filament.
Ender-3 VS Ender-3 Pro VS Ender-3 V2 : The Differences(click to open)
Package Included:
1 x Ender-3 V2 3D Printer Kit
