CNC KIT ARDUINO
Professional 3D printer CNC Kit for arduino, Kuman GRBL CNC Shield KB02
CNC Shield Board:
Latest CNC Shield Version 3.0 for arduino
GRBL 0.9 compatible
4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
2 x End stops for each axis (6 in total)
Coolant enable
Compatible with A4988 or DRV8825 stepper driver
Runs on 12-36V DC
Kuman UNO R3 Board Compable with Arduino:
DRV8825 Stepper Motor Driver:
Stepper motor driver (upgraded from A4988, 2.5 A max current/phase. It’s not arduino official board but it’s compatible with all arduino software and hardware)
Nema 17 Stepper motor Specification:
Model No.:17HD48002H-22B
Step Angle: 1.8 deg.
Holding Torque: 59Ncm(84 oz.in)
Rated Current/phase: 1.7A
Frame Size: 41 x 41mm
Body Length: 47mm
Shaft Diameter: 5mm
Shaft Length: 22mm
Weight: 380g
Mechanical Endstop Connection description:
Red line connect VCC (ramps of +)
black wire connect the GND (ramps of -)
Green Line connect SIGNAL (ramps in s)
Tips: Under normal circumstances, the system must be configured to at least three mechanical switches.
Advantage: Easy to install, the more common used styles
Length of Cable: 70 cm

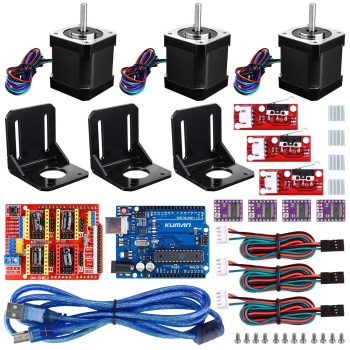

Package Contents:
1 x CNC Shield Board
1 x Kuman UNO R3 Board
4 x DRV8825 Stepper Motor Driver
4 x Aluminum heatsink w/ 3M tape backing
3 x Nema 17 stepper motor 1.7 A
3 x Nema 17 Stepper Motor Mounting Bracket
12 x M3 Screws for bracket of stepper motor
3 x Mechanical Switch Endstop
3 x 3Pin 70cm Cable
1 x 1.5m USB cable for R3 Board
