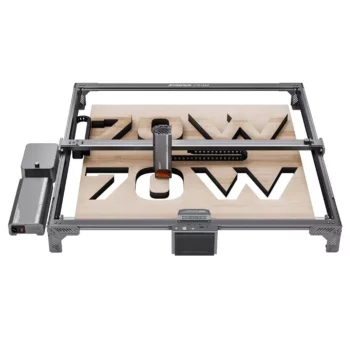

ATOMSTACK X70 Max 70W

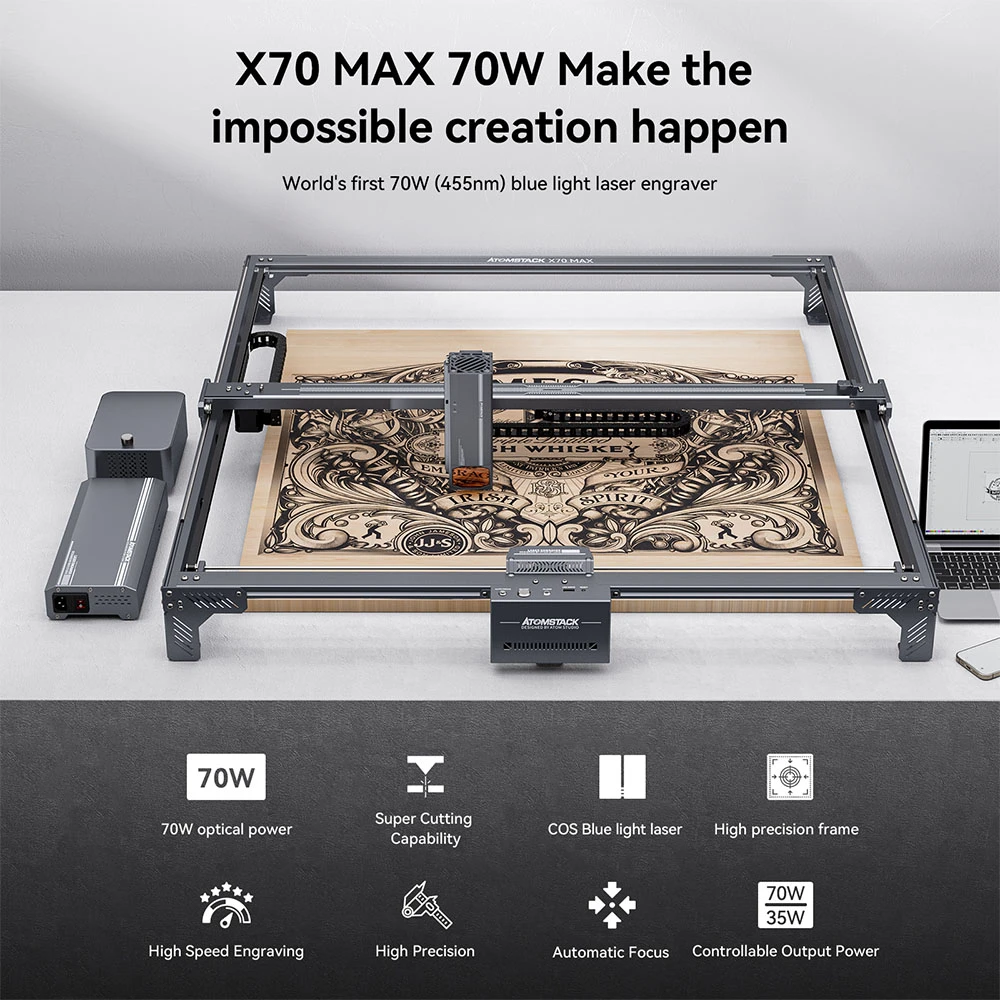

ATOMSTACK X70 Max 70W Laser Engraver, 0.02mm Accuracy, Auto Focus, 800x850mm
ATOMSTACK X70 Max 70W Laser Engraver, 0.02mm Accuracy, Auto Focus, 800x850mm
Highlights

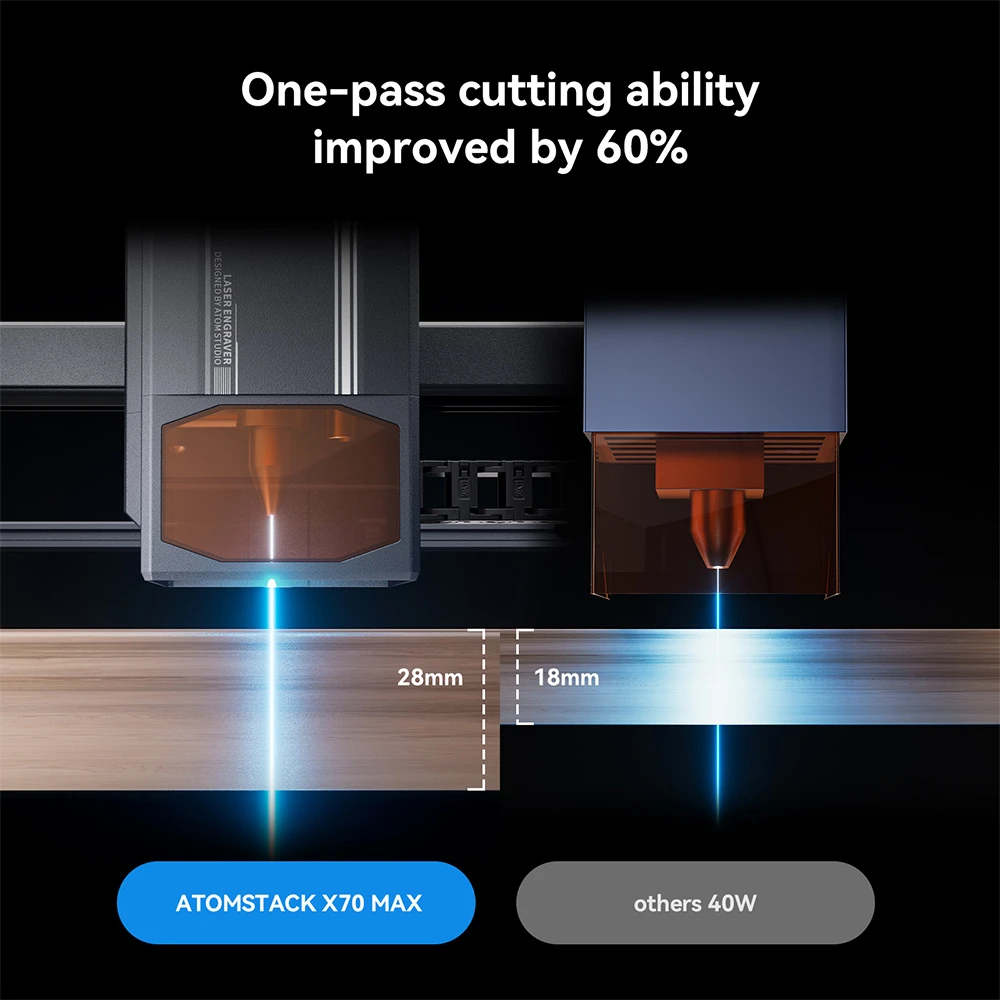

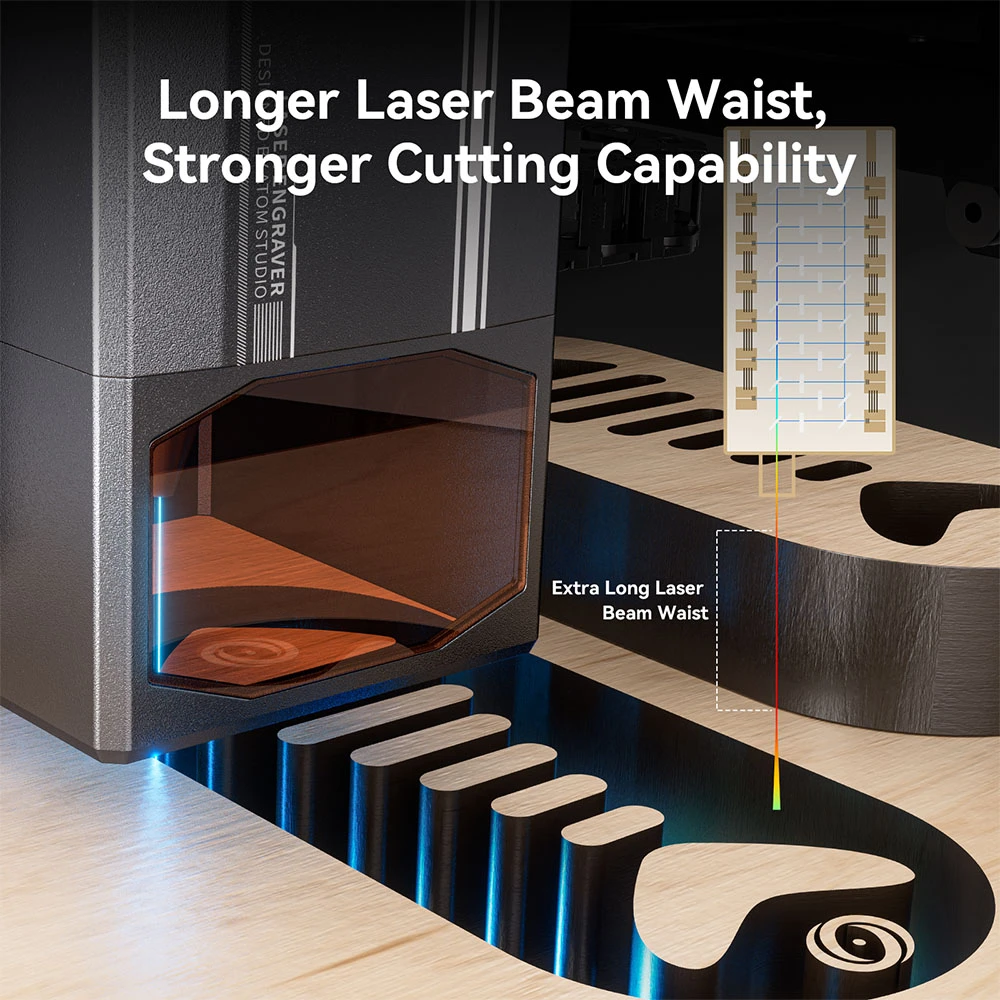

Powerful Cutting Performance

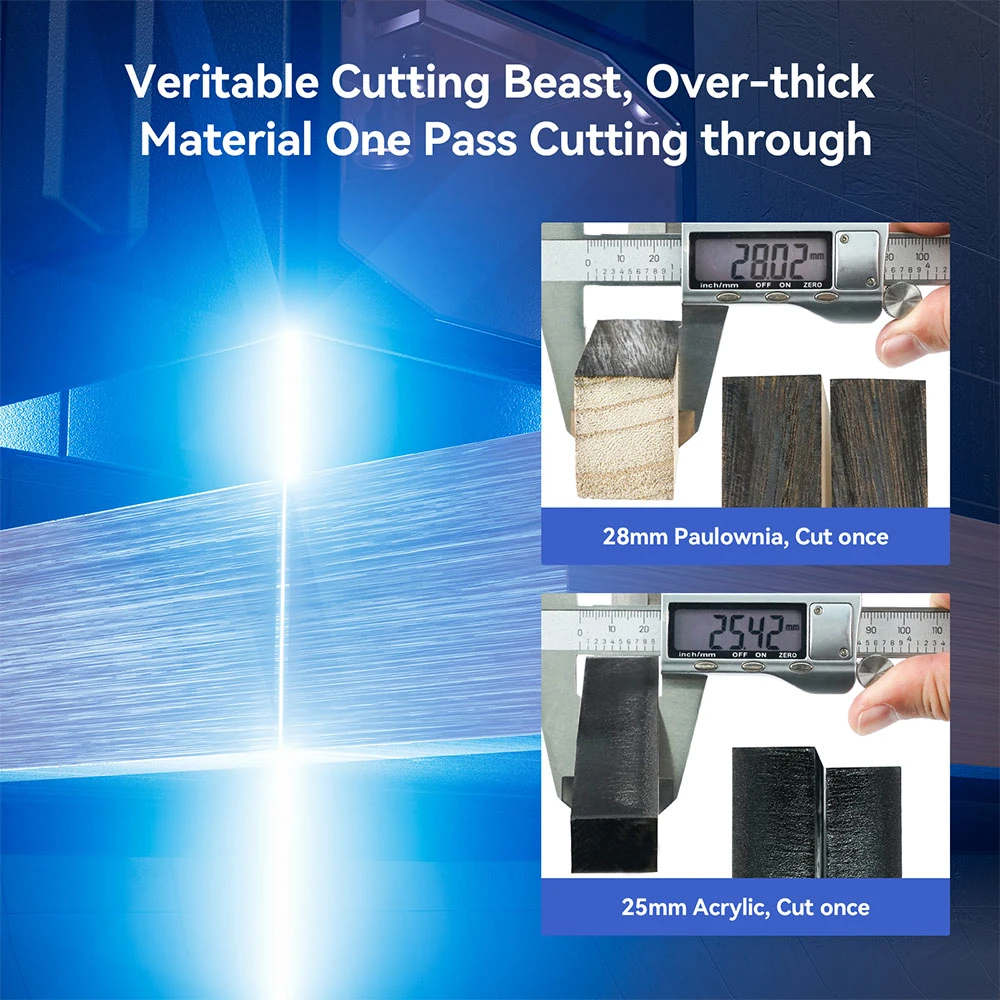

The AtomStack X70 Max delivers exceptional cutting force, capable of slicing through 25mm black acrylic, 12mm MDF density board, 30mm pine wood, and 0.3mm stainless steel sheets with precision.
Large Processing Area

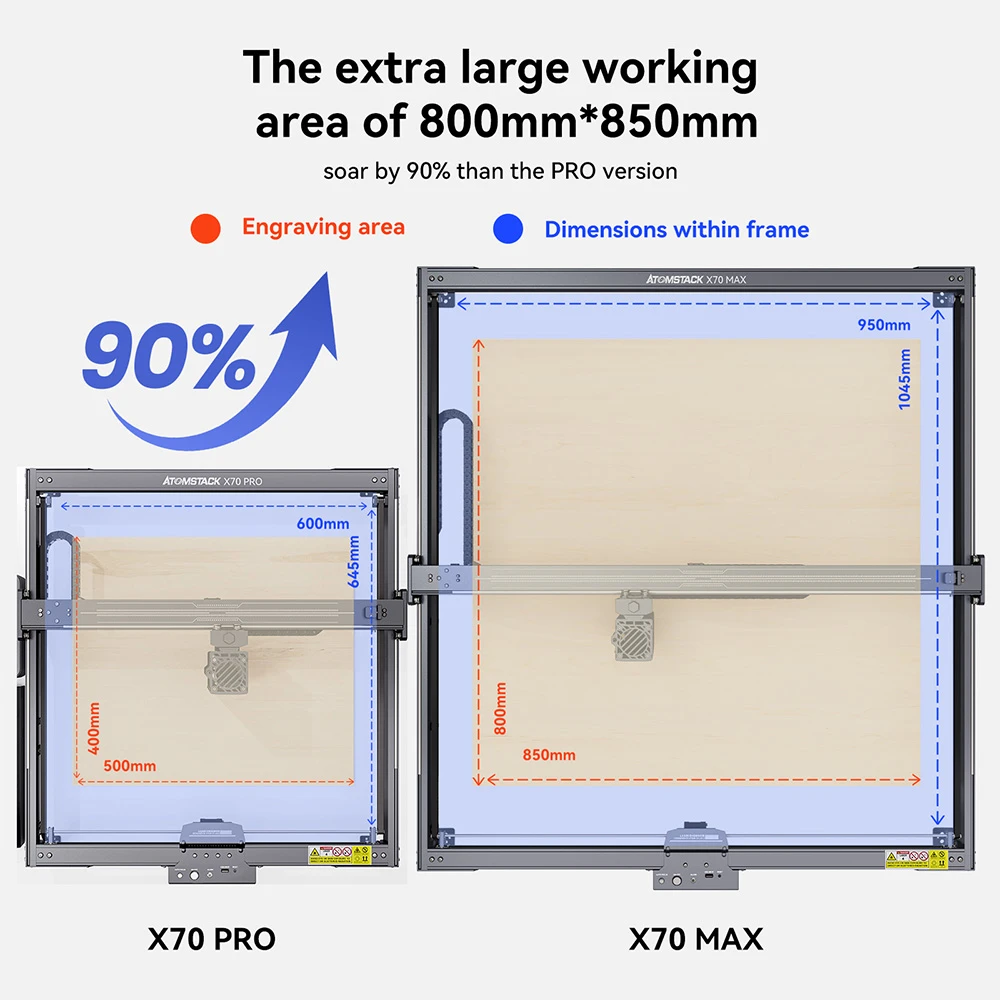

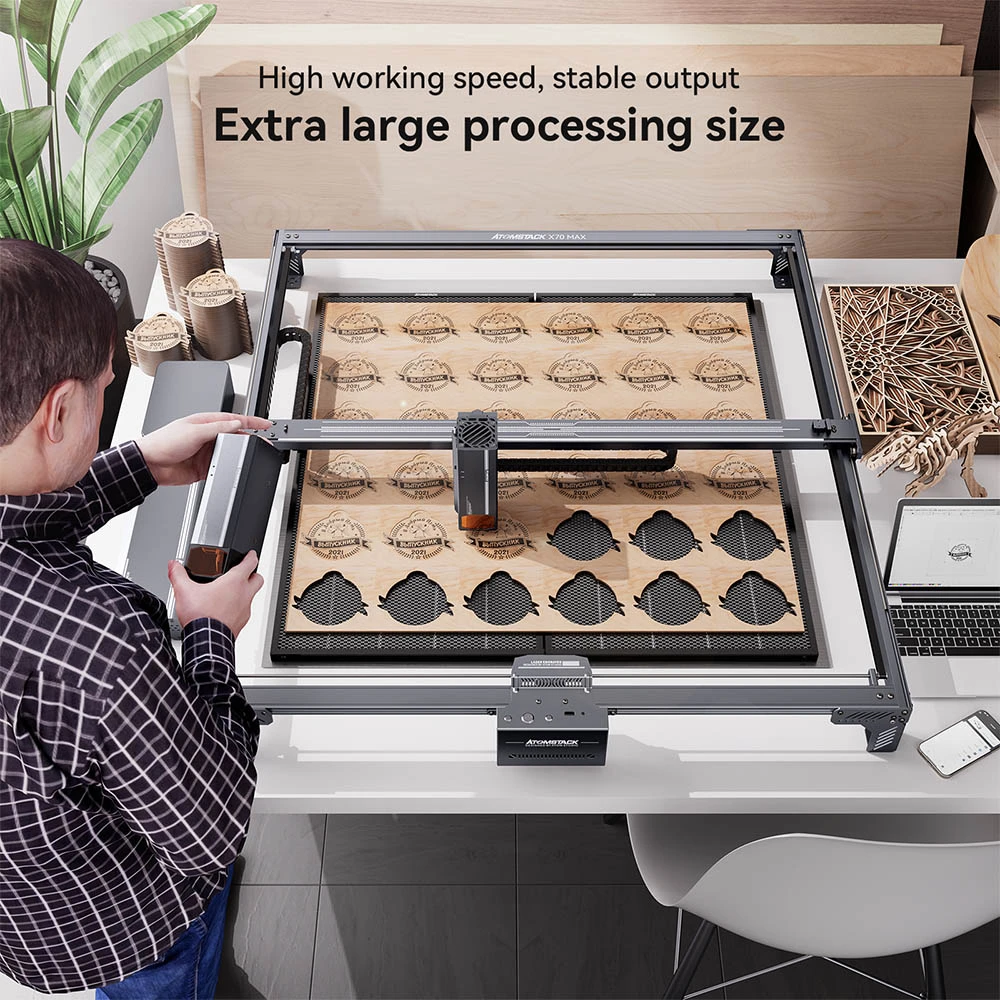

Featuring a professional-grade blue light laser system, this machine offers a standard 800x850mm working area. Its robust frame accommodates materials up to 1045x950mm, supported by four adjustable feet and fixed holes for stable placement on workbenches.

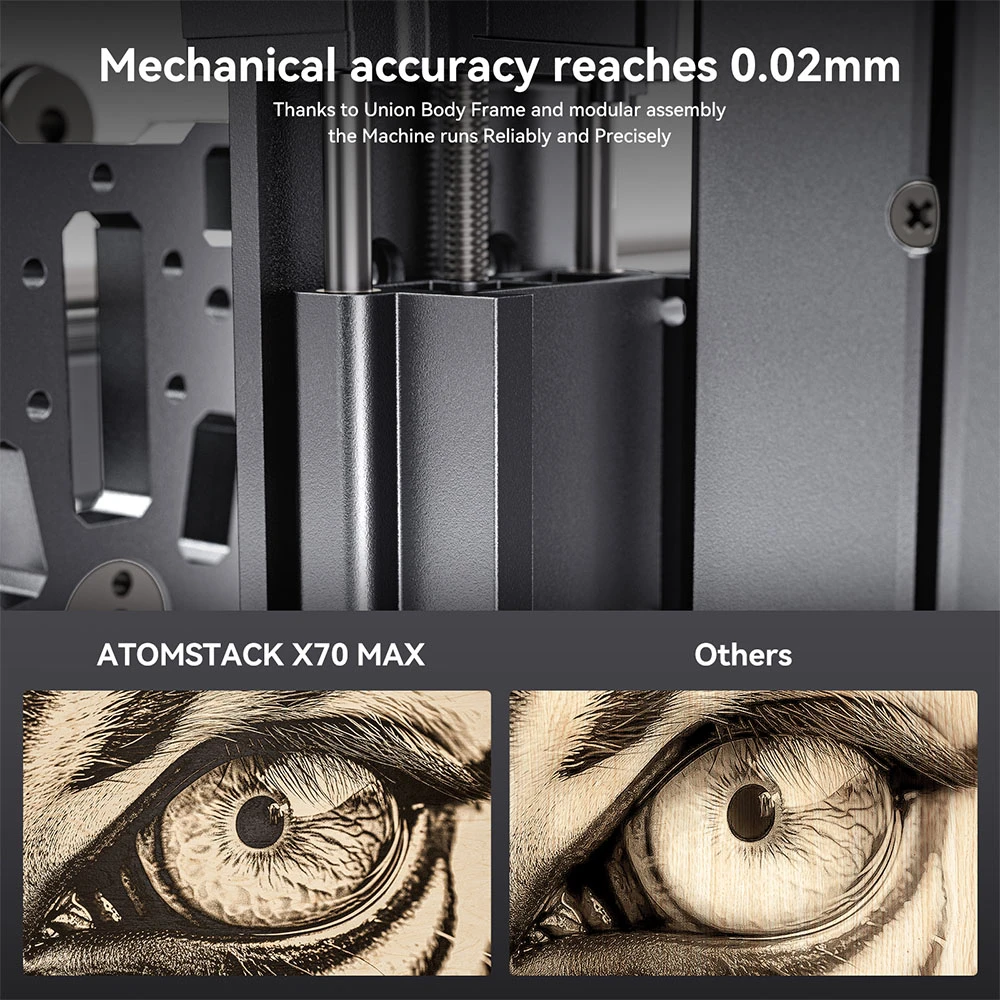

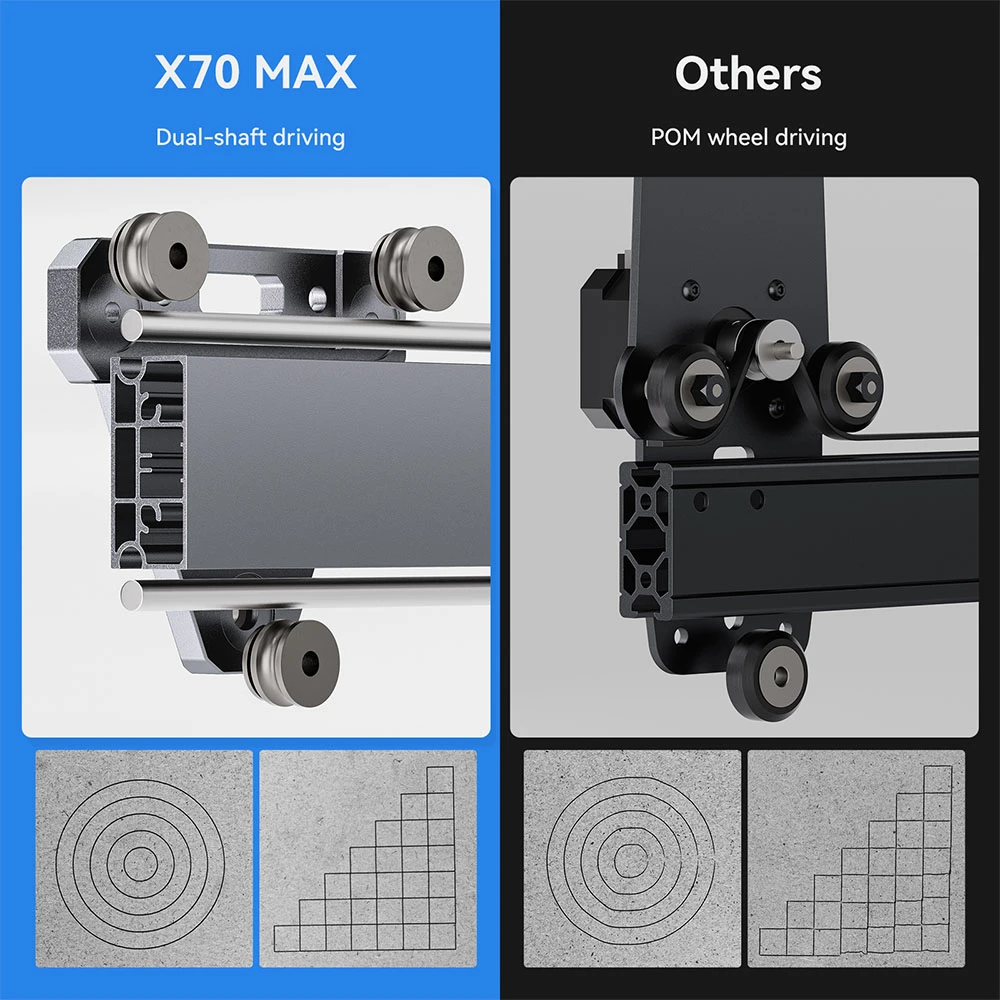

Advanced Motion Structure

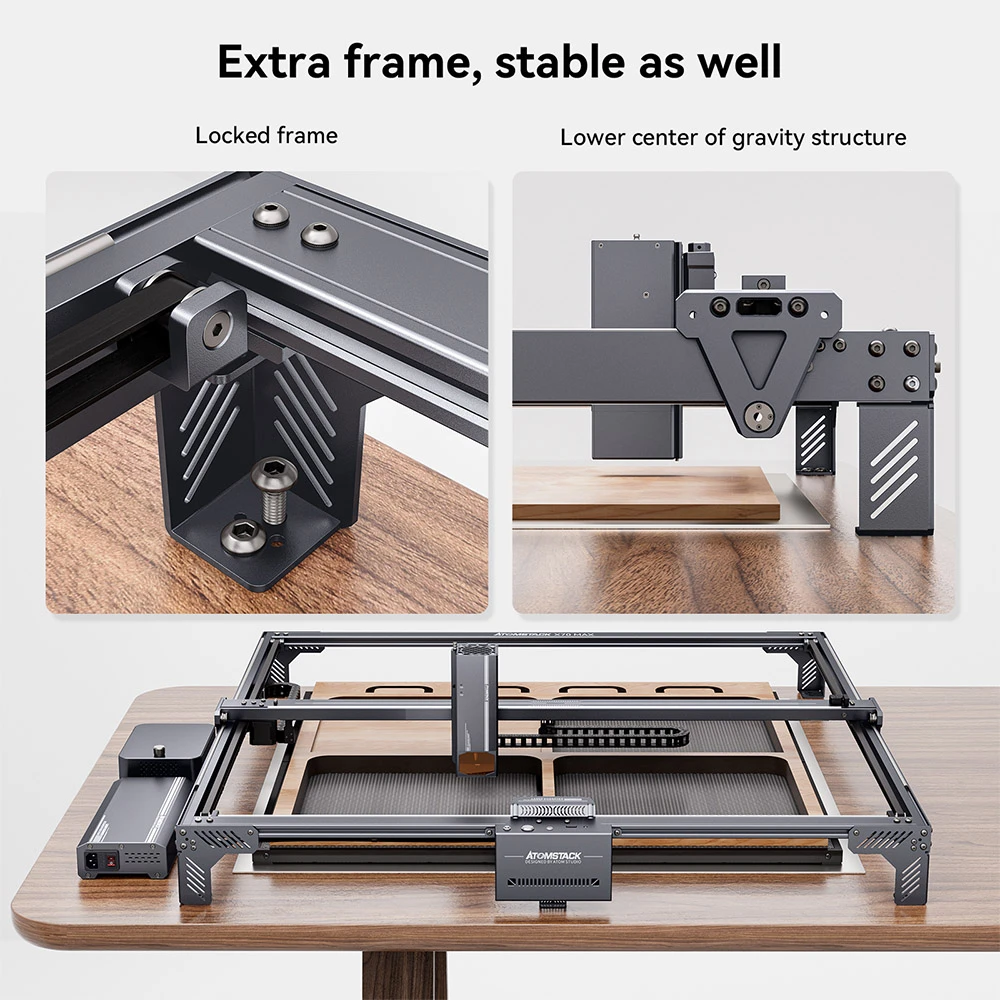

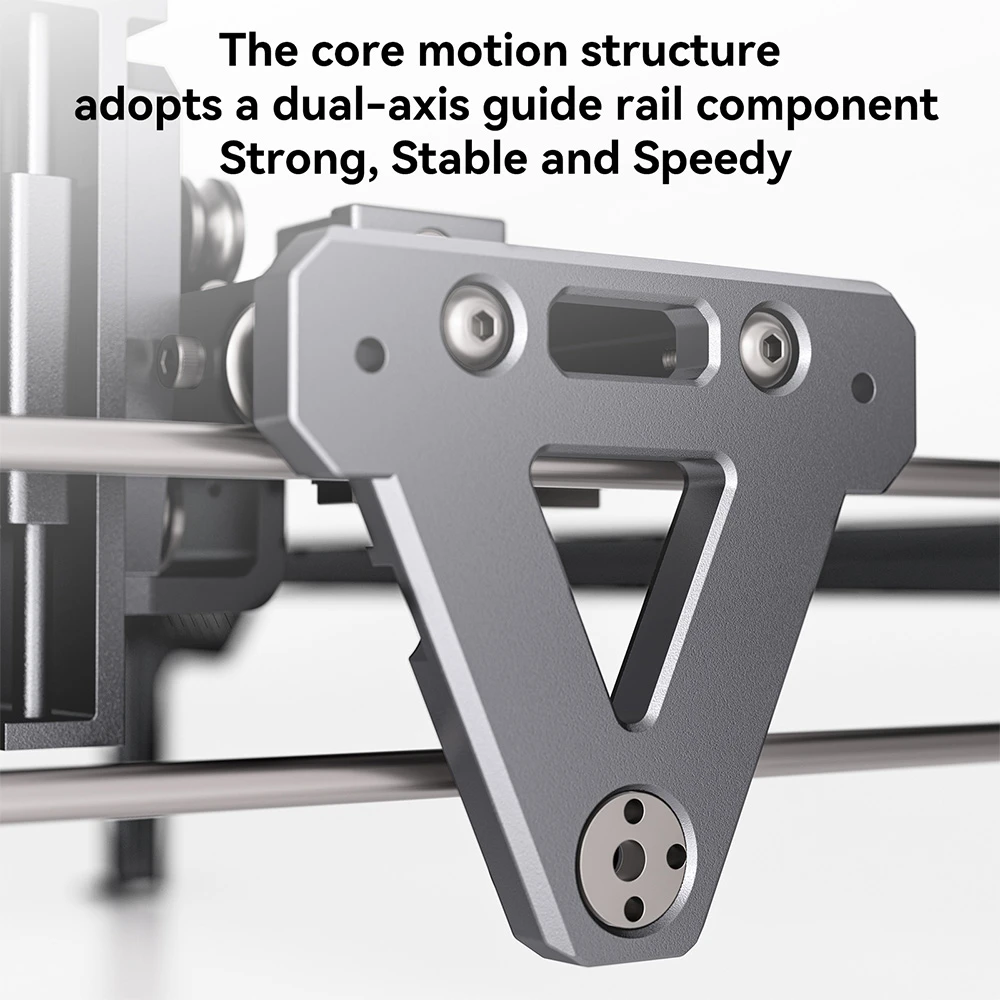

Equipped with a low-center-of-gravity dual-axis rail system, the three-axis mechanism ensures high-speed stability (up to 400mm/s) and quiet operation, ideal for heavy-duty engraving and cutting tasks.

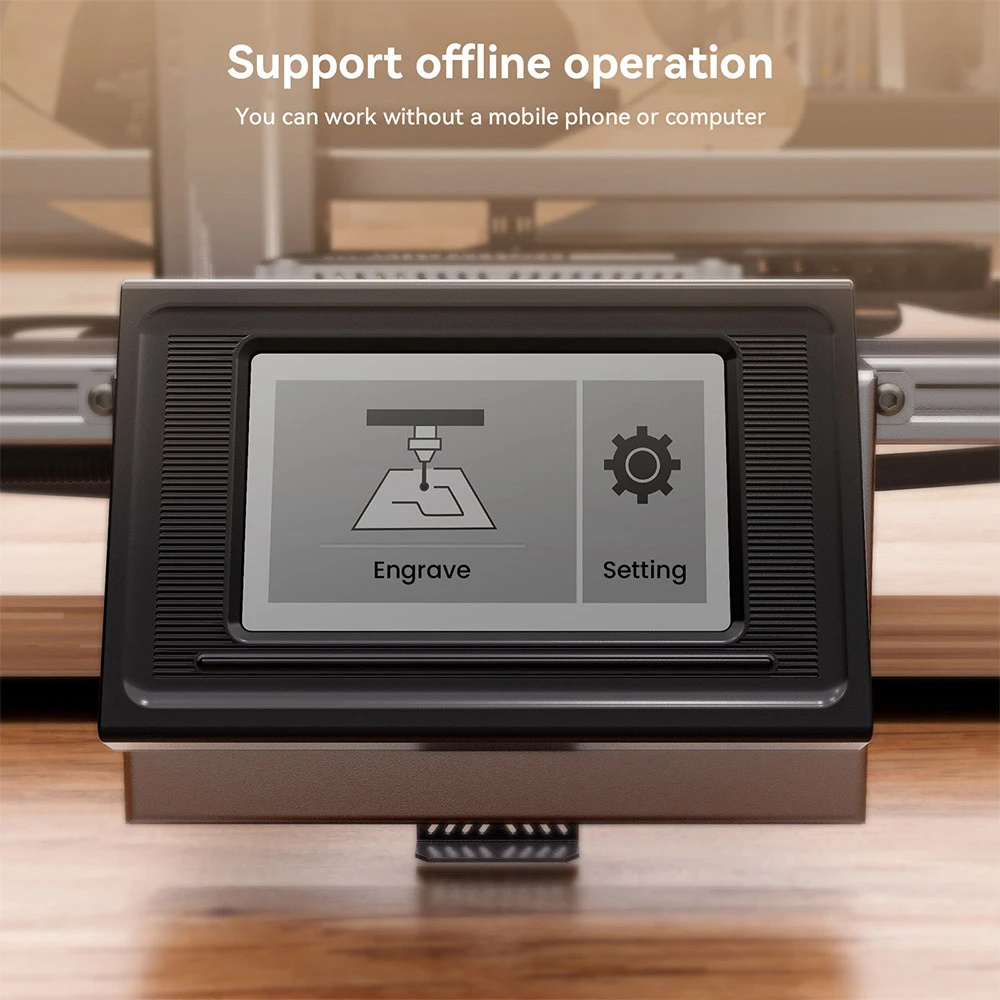

Offline Operation Capability
The included second-generation smart control panel allows standalone operation without a computer or smartphone, enhancing workflow flexibility.
High-Flow Air Assist System
A 60L/min air assist guarantees clean cuts by preventing yellowing on edges and prolonging the laser tube’s lifespan.

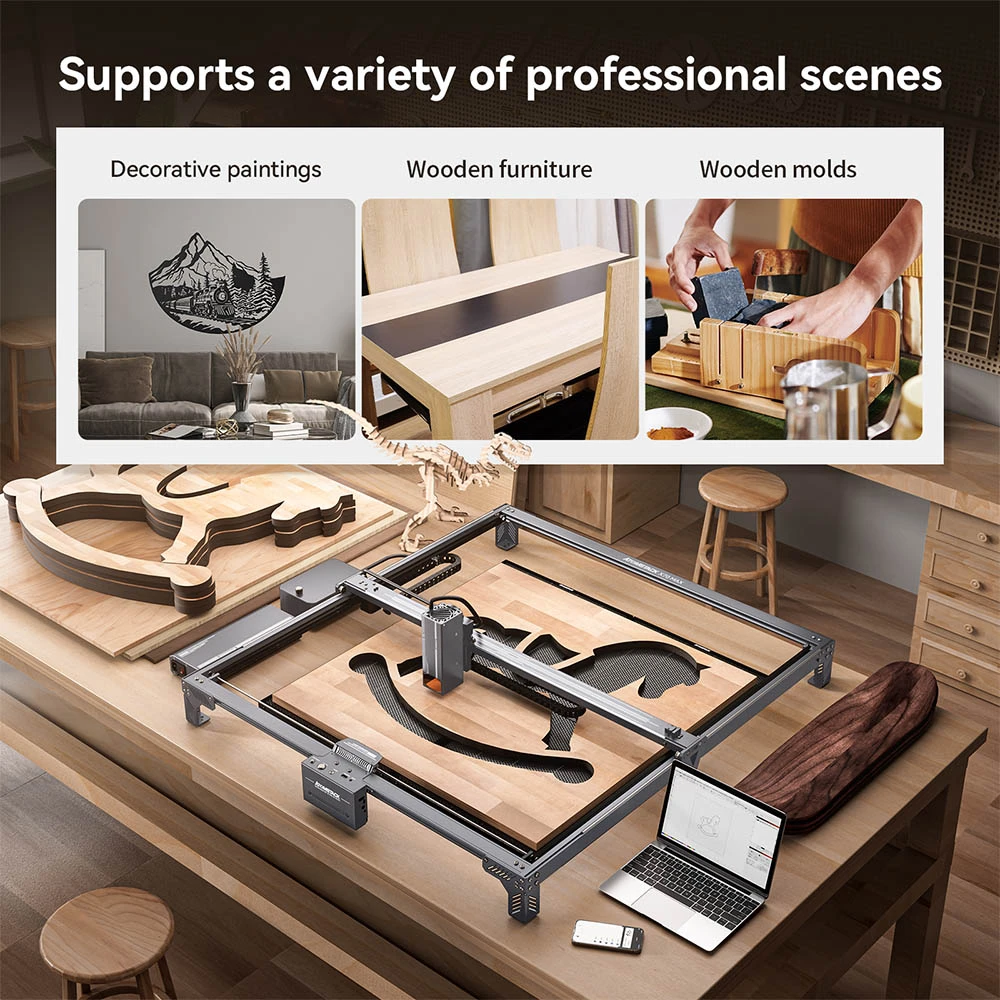

Versatile Application Scenarios
Designed for diverse materials, including reflective metals, ceramics, black acrylic, and more, it supports woodworking, painting art, DIY projects, signage, metal marking, and apparel design.
Specification
| General | Brand: AtomStack Type: Laser Engraver Model: X70 Max Color: Gray |
| Specification | Engraving Size: 850*800mm Working Principle: Engraving / Cutting Engraving Materials: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton, slate; Cutting Materials: Thin steel plate, cardboard, non-woven fabric, wood, acrylic, more thin plastic sheets, sponge; Input Power: 360W Output Power: 70-77W, 35-39W Maximum Speed: 400mm/s (24000mm/min) Laser Wavelength: 45±5nm Engraving Accuracy: 0.02mm Repetition Accuracy: 0.1mm Spot Size: 0.12*0.18mm (70W) / 0.08mm*0.12mm (35W) Transmission Method: USB transmission Focus Adjustment Method: Automatic focus + manual focus Screen Control: 4.3 inches Connection Support: Type-C, mobile WiFi, touch screen Support Systems: IOS, Android, Windows, Mac Operating Software: LaserGRBL, LightBurn, AtomStack Studio Air Flow Rate: 0-60 L/min infinitely adjustable Power Supply: Input 100-240V AC, 50/60HZ, output 12V 5A Quality Certification: CE, FCC, RoHS, FDA, PSE |
| Weight & Size | Product Weight: 15kg Package Weight: 17.75kg Package Size(L x W x H): 116x50x20cm |

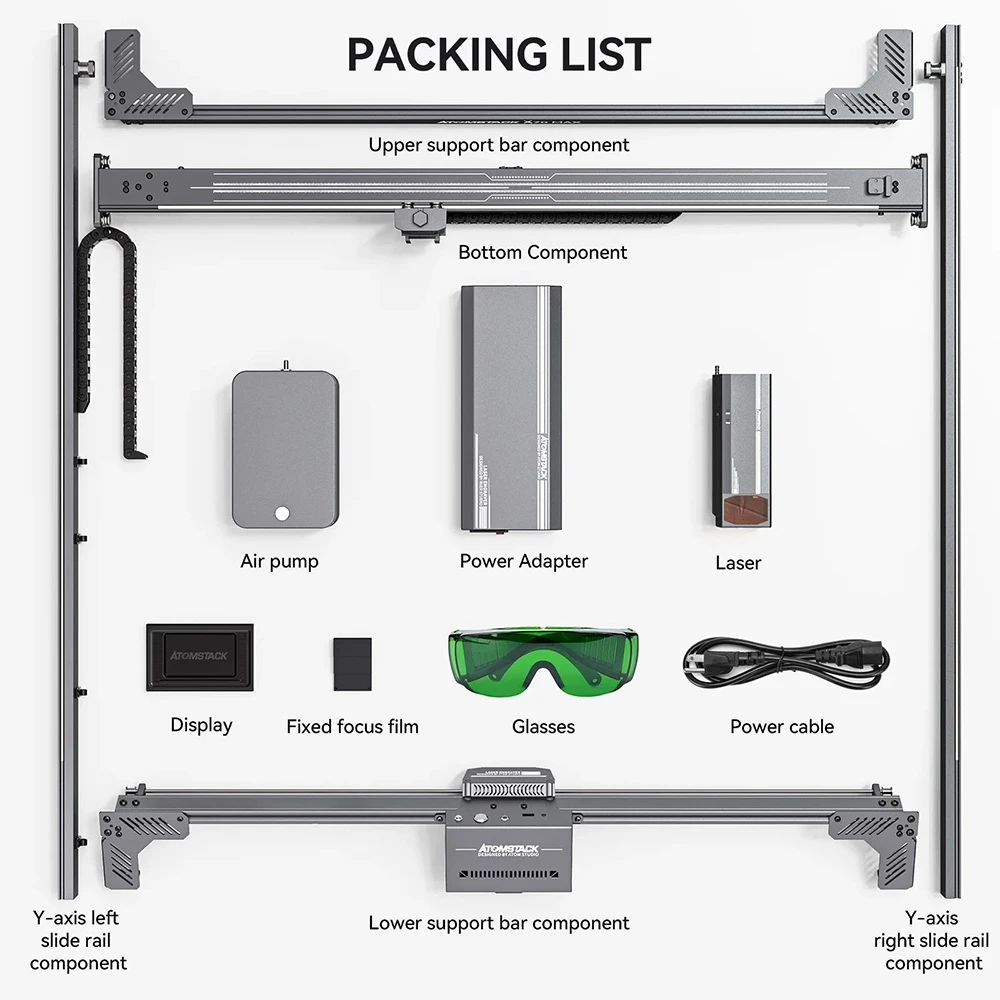

| Package Contents | 1 x Upper Support Bar Component 1 x Bottom Component 1 x Air Pump 1 x Power Adapter 1 x Laser 1 x Display 1 x Fixed Focus Film 1 x Glasses 1 x Power Cable 1 x Y-axis Left Slide Rail Component 1 x Lower Support Bar Component 1 x Y-axis Right Slide Rail Component |
