3DMakerpro Toucan 3D Scanner
Découvrez le scanner 3D Toucan, tout-en-un, portable et sans ordinateur, idéal pour numériser des figurines jusqu’à des sculptures grandeur nature. Scannez, éditez et fusionnez des modèles 3D avec une haute précision et une simplicité inégalée, que vous soyez créateur, professionnel ou passionné du monde 3D.
Découvrez le scanner 3D Toucan, tout-en-un, portable et sans ordinateur, idéal pour numériser des figurines jusqu’à des sculptures grandeur nature. Scannez, éditez et fusionnez des modèles 3D avec une haute précision et une simplicité inégalée, que vous soyez créateur, professionnel ou passionné du monde 3D.
- All-in-One Workflow
- ≤0.03 mm Accuracy
- Up to 1000×750 mm FOV
- High-Power MEMS Optics

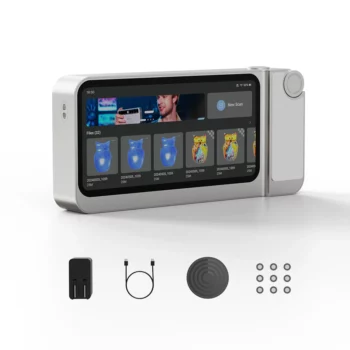

Toucan 3D Scanner
One for all, all in one
Watch Video
Introducing 3DMakerpro Toucan
From desktop figurines to life-size sculptures, Toucan lets you scan, edit, and fuse complete 3D models — all without a computer. Everything happens inside the device.
Overview
Toucan Handheld 3D Scanner Pre-Launch | Portable & Accurate
Finer, Larger, Brighter
Toucan’s upgraded hardware boasts a powerful MEMS projector with better accuracy and adaptability. Near/far scan modes target objects of all sizes.
0.03 mm
Accuracy
0.05 mm
Resolution
1,000 mm
Working Distance
Ultra-Large Range
Fine Scan
Professional Precision

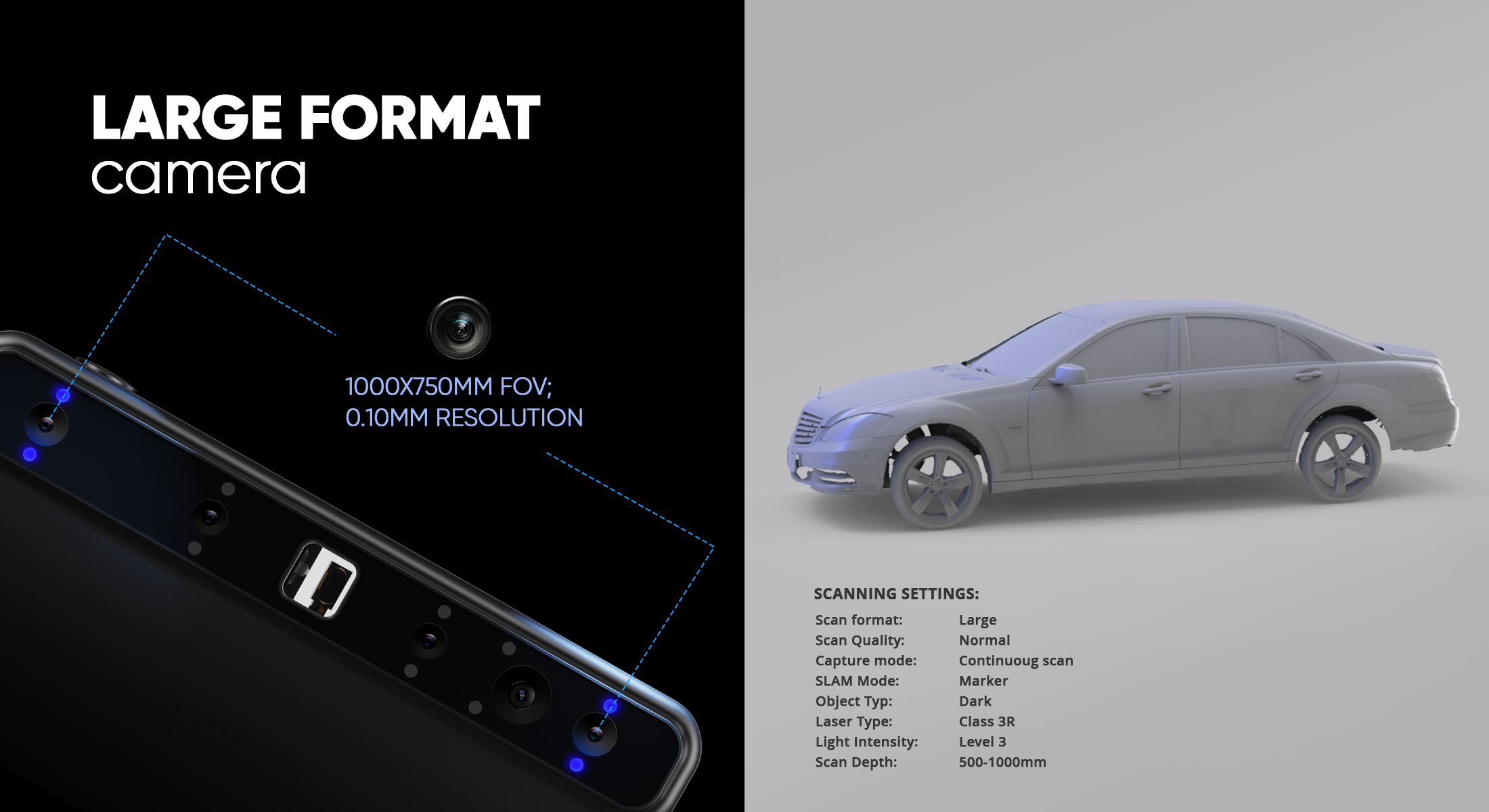

Effortlessly scan cars, bodies, and furniture with expansive coverage. Achieve full, detailed models in seconds, ideal for large-scale objects.

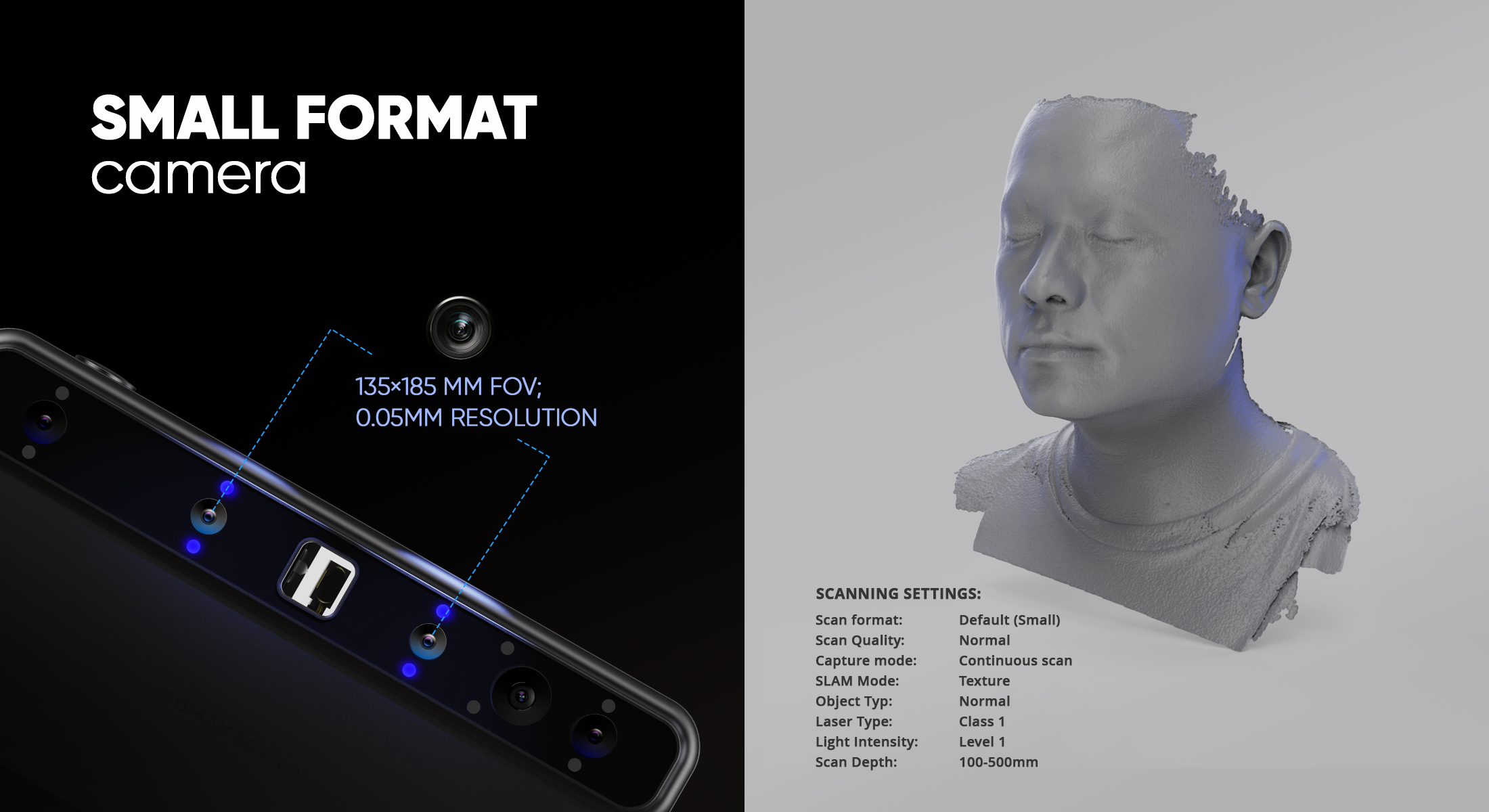

Capture portraits, figurines, electronics, and car parts with sharp accuracy. Deliver intricate, high-quality scans for small to medium items, even on the go.

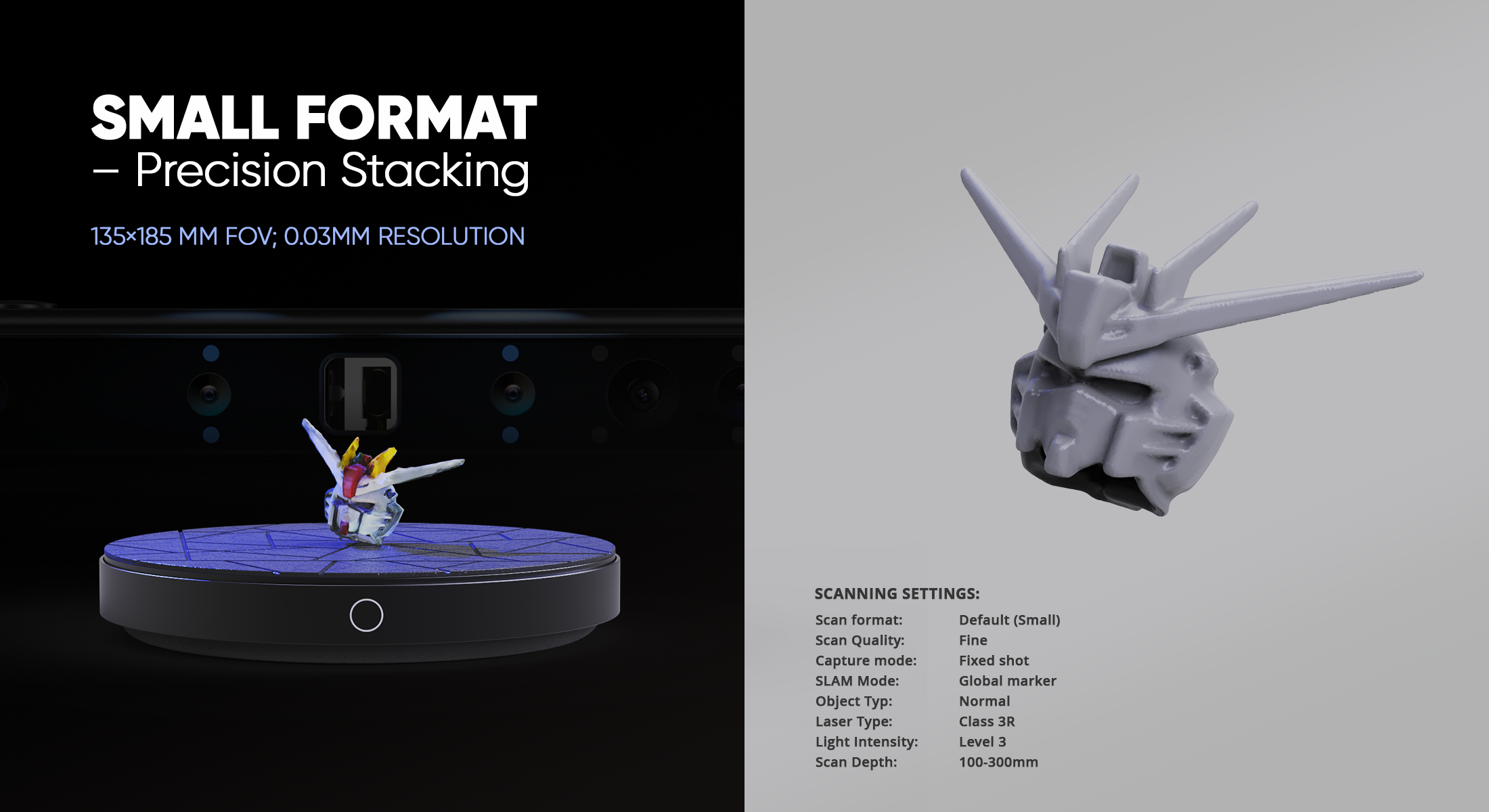

Scan specimens, jewelry, and dental molds with exceptional clarity using Phase-Shifting Structured Light, excelling with fine, thin targets. Create flawless, detailed models (paired with electric turntable, sold separately).
Deep Detection, Fearless of Cavities
Super Scan Depth
Scans 200-1000mm, probing deep cavities like a 33cm vase interior.
Complete in One Go, No Blanks Left
Smart Resume Scan Mode
Toucan recognizes different object orientations, filling in gaps during the scanning process to effortlessly capture the underside and internal structures.
Toucan Handheld 3D Scanner Pre-Launch | Portable & Accurate
Convenience Design
Toucan lets you use it just like a camera or smartphone, with operations that feel natural and intuitive.
Multi-Level Damping Wheel
Adjusts parameters, modes, and zoom effortlessly via the wheel.

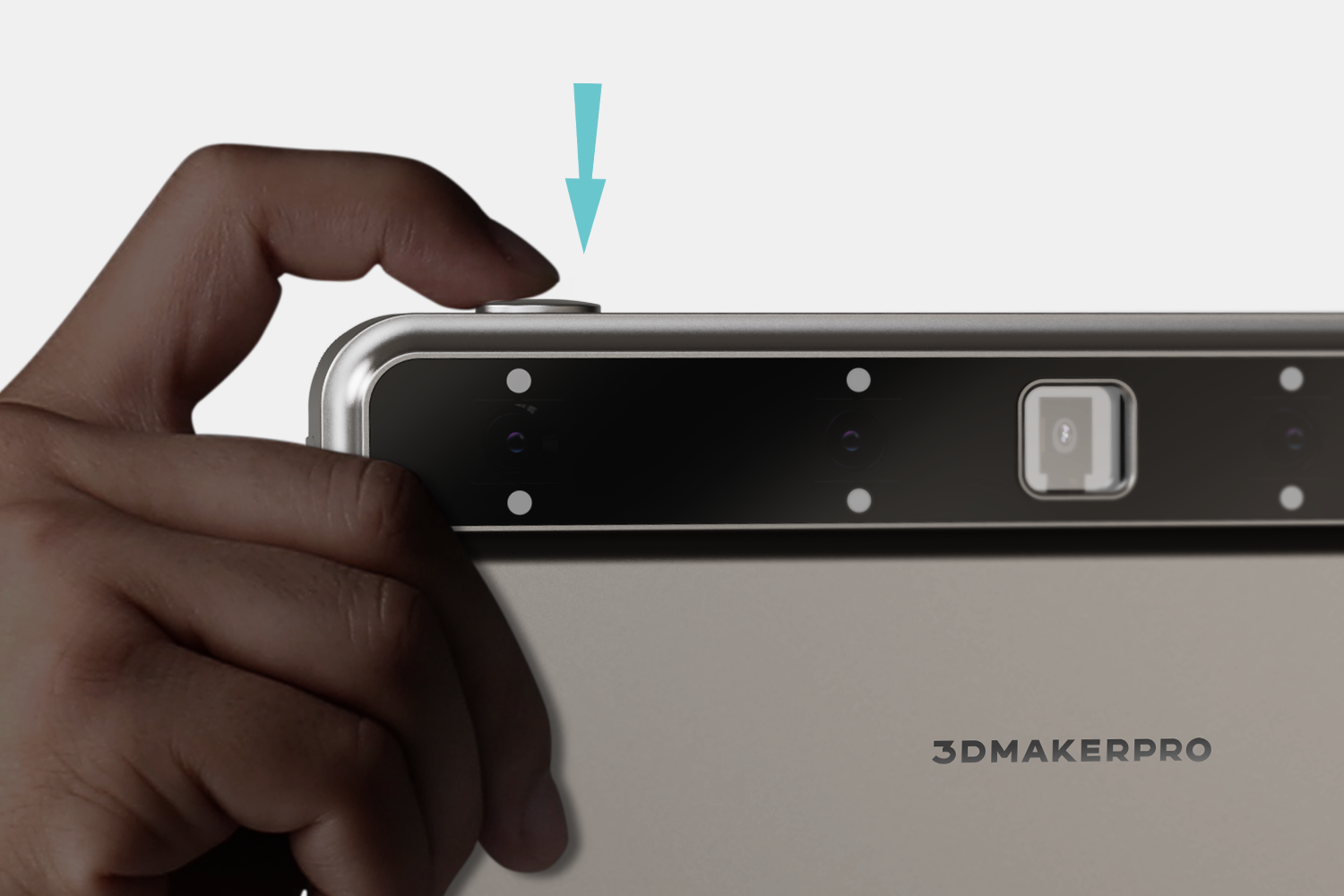

Quick Buttons
For fast setup of scan start, pause, end, and serving as a single-shot photo mode.
Performance Parameters
Toucan 3D Scanner
Scan Type:
Continuous Handheld Scan/ Photo Scan / Table Scan
Camera:
3D Cameras *4
48 MP RGB Camera *1
Light Soure:
Blue Laser Structured Light
(Class1/Class3R)
Single-Frame Accuracy:
≤ 0.03mm (Small)/ ≤ 0.10mm (Large)
Resolution:
≤ 0.03mm (Fixed Shot)/ ≤ 0.05mm (Small)/ ≤ 0.10mm (Large)
Scanning Range (FOV):
135×185 mm (Small) / 1000×750 mm (Large)
Working distance:
200–1000 mm
Scan Speed:
Up to 15 fps
Processor:
8-core 2.4 GHz CPU + Mali-G52 GPU
Memory/ Built-in Storage:
32 GB DDR4 / 256 GB eMMC
Battery:
6600 mAh
Connectivity:
Wi-Fi 6, Bluetooth4.1, Interface: USB-C
Sensors & Interaction:
Position Sensor: 9-axis IMU
Tracking Method: Features/ Markers/ Global Markers
Button: 2
Scroll Wheel : 1
Volume:
200×93×37.5mm
Weight:
735gView less
